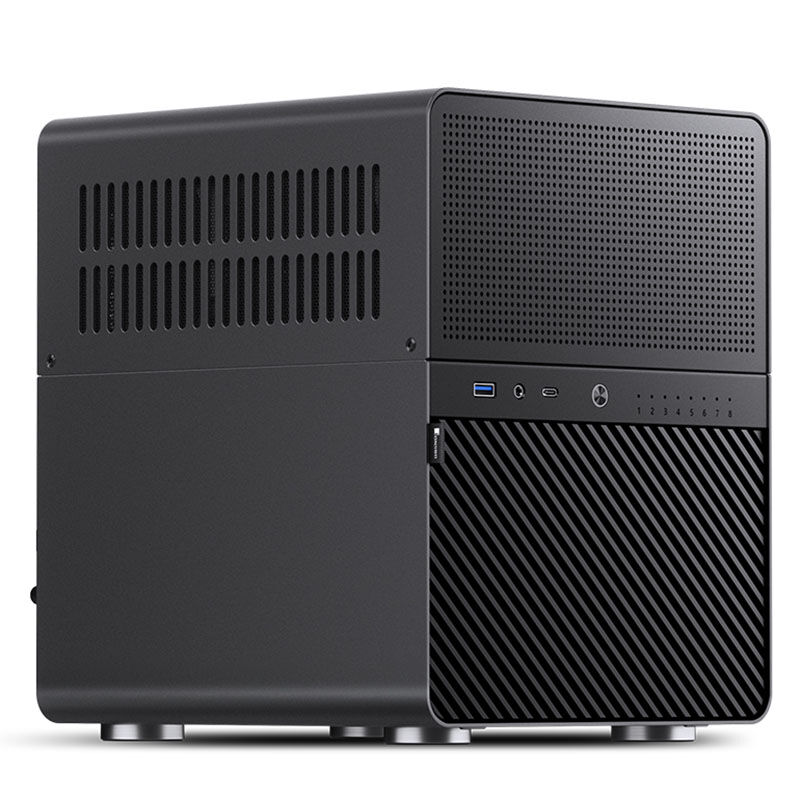

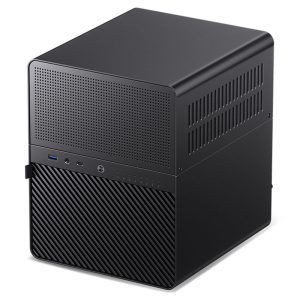

The Jonsbo N3 Mini-ITX case in detail
A compact computer for cloud storage or home office systems. The Jonsbo N3 is the small but nice solution for purpose systems. It holds eight 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for 8 HDD drives.
Two pre-installed fans in 80 mm format transport the waste heat from your hardware to the outside.
The Jonsbo N3 Mini-ITX case in detail
A compact computer for cloud storage or home office systems. The Jonsbo N3 is the small but nice solution for purpose systems. It holds eight 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for 8 HDD drives.
Two pre-installed fans in 80 mm format transport the waste heat from your hardware to the outside.
The Jonsbo N3 Mini-ITX case in detail
A compact computer for cloud storage or home office systems. The Jonsbo N3 is the small but nice solution for purpose systems. It holds eight 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for 8 HDD drives.
Two pre-installed fans in 80 mm format transport the waste heat from your hardware to the outside.
Features:
– Graphics cards up to a maximum length of 250 mm
– Powered by SFX power supply
– CPU cooler up to 130 mm high
– Two 80mm fans pre-installed
– Hard drive cage for 8x 3.5 HDDs

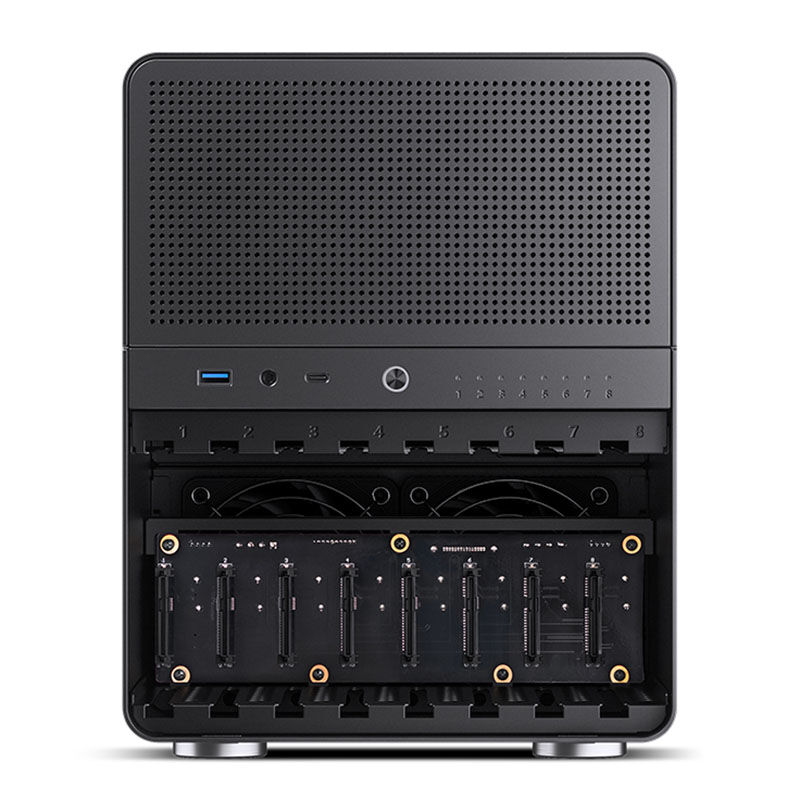

– With board for 8x SATA slots, hot-swappable
– I/O panel: 1x USB-C 3.1, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (audio + mic)
Organization and hardware

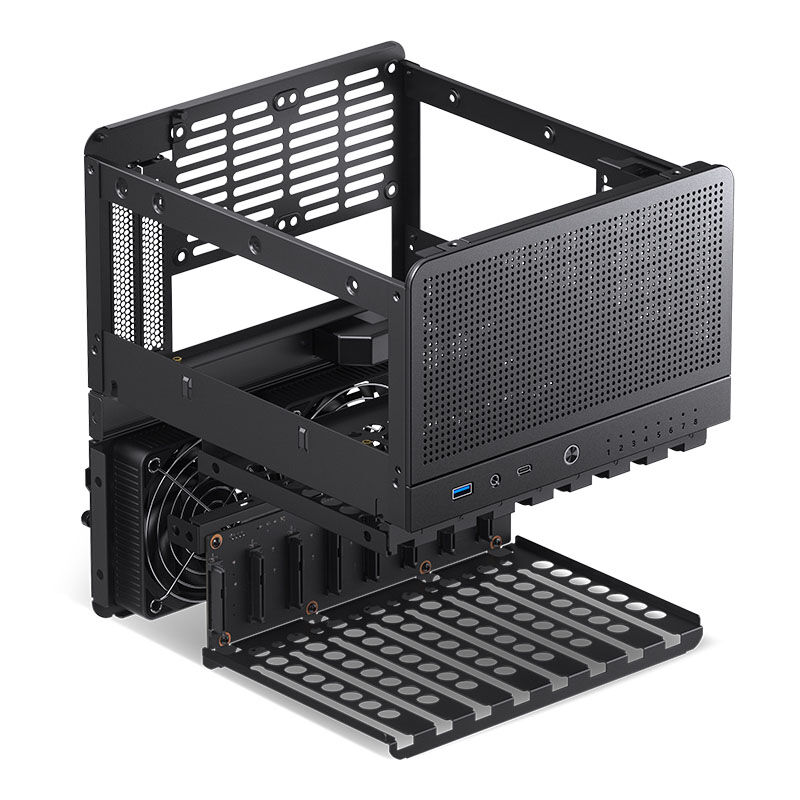

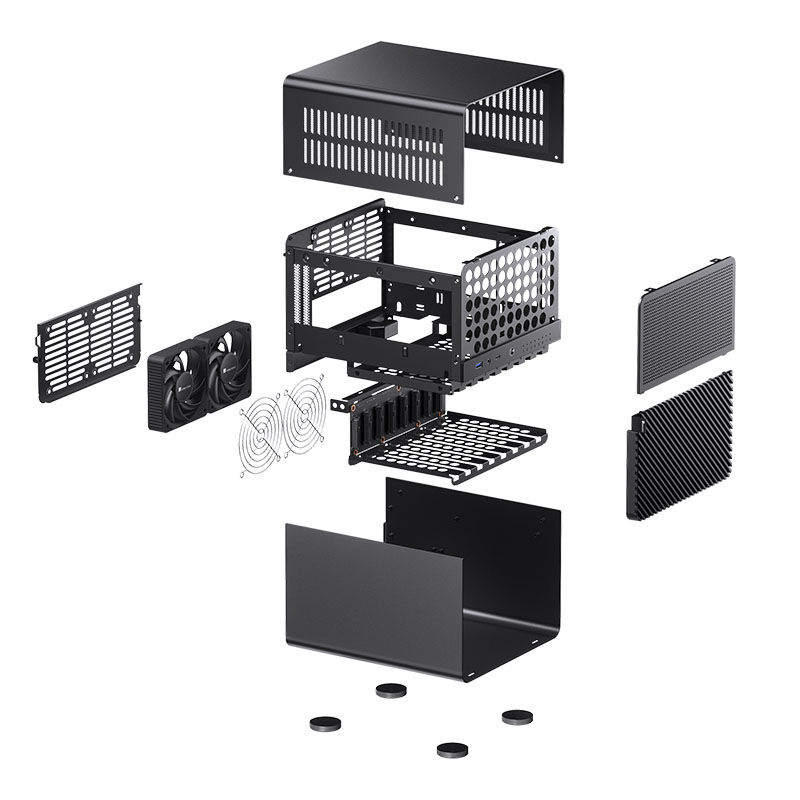

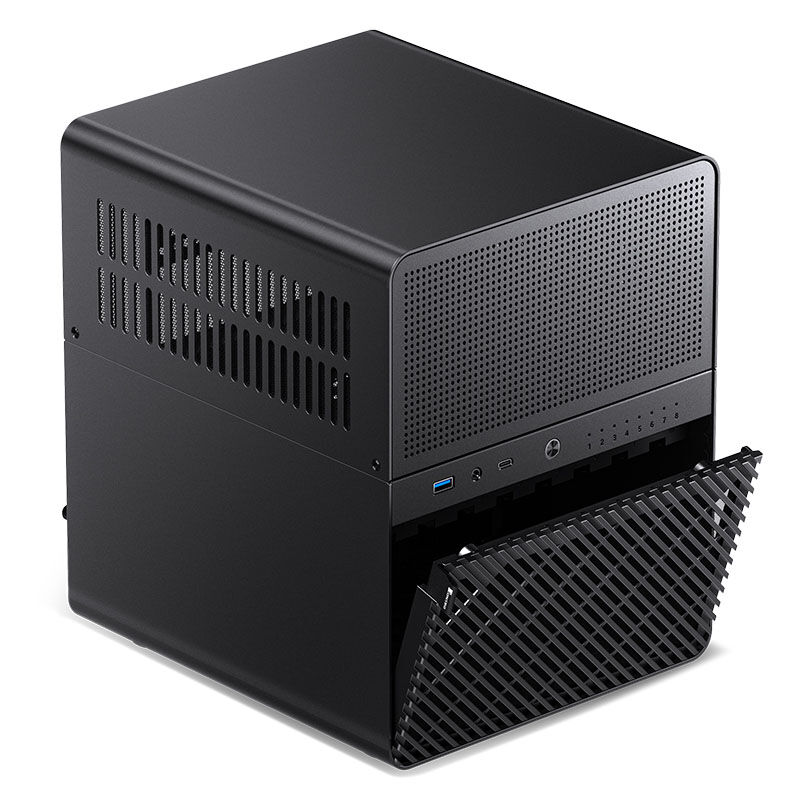

The Jonsbo N3 is a Mini-ITX case and is only compatible with these form actuator mainboard sizes. The N3 offers 250 mm of space for graphics cards. The housing can be completely removed to make installation easier. The left side panel can be quickly removed for quick access to optional hot-swap HDDs.
The mini system is powered by a power supply in the compact SFX standard. The CPU cooler, on the other hand, can be a maximum of 130 mm high.

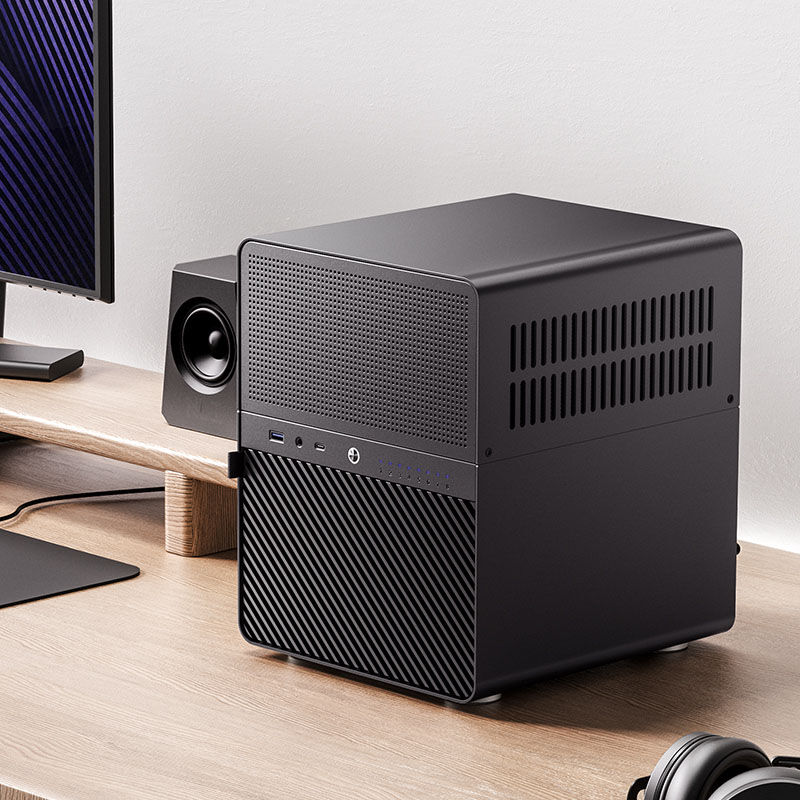

Compact design for home use

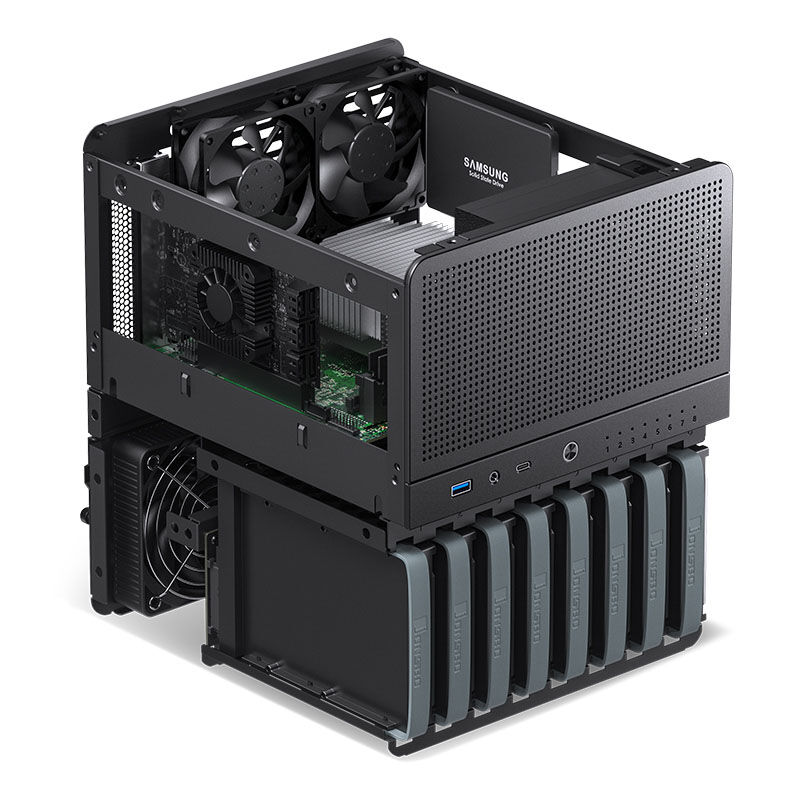

If you are looking for a small computer for small basic tasks such as office programs or want to save on-site in your own cloud storage, you will find a practical solution with the Jonsbo N3. The design is space-saving, clever and offers capacity for eight 3.5-inch HDDs in a hard drive cage. A 2.5-inch disk can be attached to the side wall.

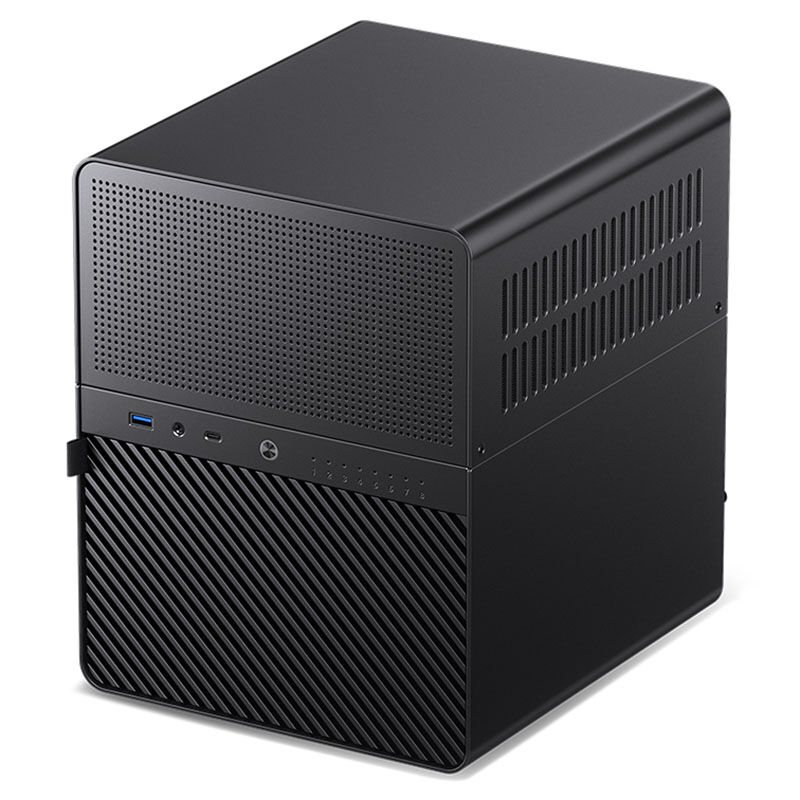

Functionality is very important to the Jonsbo N3. Its compact dimensions of 233 mm x 298 x 262 mm (W x H x D) fit into any home and, in its high-quality aluminum housing, blend seamlessly into any setup or look. The I/O panel with a USB-C 3.1, USB 3.0 Type A and audio 3.5 mm jack plug offers you a variety of connection options for your peripherals.
| Specification | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Width | 233 mm |
| Height | 298 mm |
| Depth | 262 mm |
| Weight | 3.9 kg |
| Case | |
| Case Type | Mini Case |
| Material | Aluminium, Steel |
| Motherboard Support | |
| Compatible Motherboard Formats | Mini-ITX |
| Max. Motherboard Format | Mini-ITX |
| Internal Dimensions | |
| Max GPU Length | 250 mm |
| Max GPU Slots | 2 |
| Max PSU Length | 105 mm |
| Fan Support | |
| Max Number of Fans | 1 |
| Drive Cage | 1x 80 mm (pre-installed) |
| Drive Bays | |
| 2.5″ Drives | 1 |
| 3.5″ Drives | 8 |
| Power Supply | |
| PSU Included | No |
| PSU Format | SFX (max. 105 mm) |
| Expansion Slots | |
| PCI / Expansion Slots | 1 |
| External Ports | |
| USB 3.0 Type-A (USB 3.2 Gen 1, 5 Gbit/s) | 1 |
| USB 3.1 Type-C (USB 3.2 Gen 2, 10 Gbit/s) | 1 |
| Audio Jack | 1x 3.5 mm (mic & headphones) |
| Power Button | Yes |
£139.98£116.65 Inc VatEx Vat
