A compact computer for cloud storage or home office systems. The Jonsbo N2 is the small but nice solution for purpose systems. It houses a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for five HDD drives.
It is convertible and space-saving because it can be laid down or placed upright.
A compact computer for cloud storage or home office systems. The Jonsbo N2 is the small but nice solution for purpose systems. It houses a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for five HDD drives.
It is convertible and space-saving because it can be laid down or placed upright.
A compact computer for cloud storage or home office systems. The Jonsbo N2 is the small but nice solution for purpose systems. It houses a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for five HDD drives.
It is convertible and space-saving because it can be laid down or placed upright.
Features:
– Graphics cards up to a maximum length of 197 mm
– Powered by SFX power supply
– CPU cooler up to 65 mm high
– A 120 mm fan pre-installed in the front
– Hard drive cage for 5x 3.5 HDDs

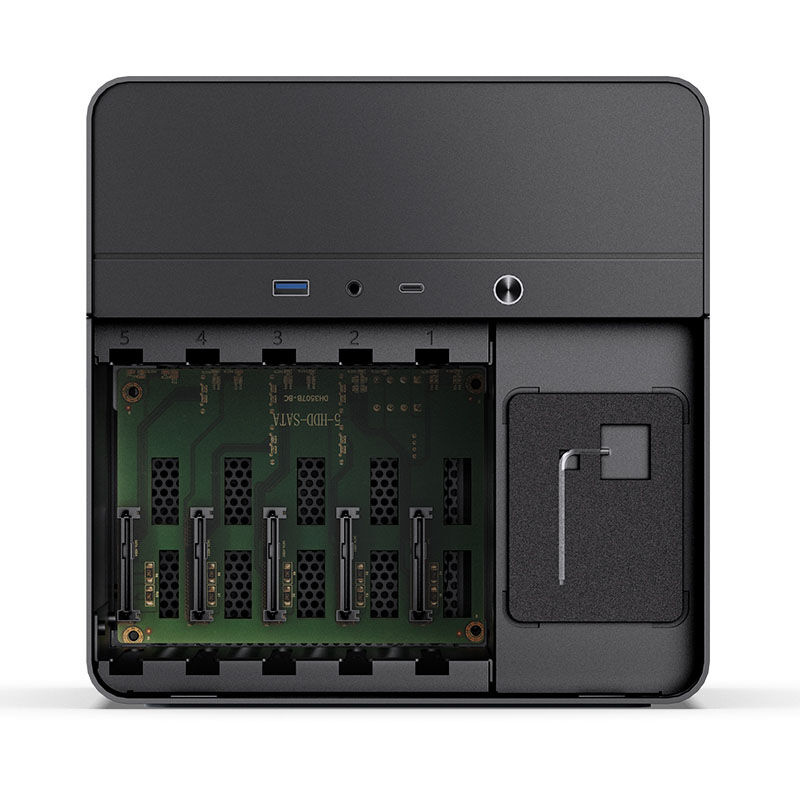

– With board for 5x SATA slots, hot-swappable
– I/O panel: 1x USB-C 3.1, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (audio + mic)

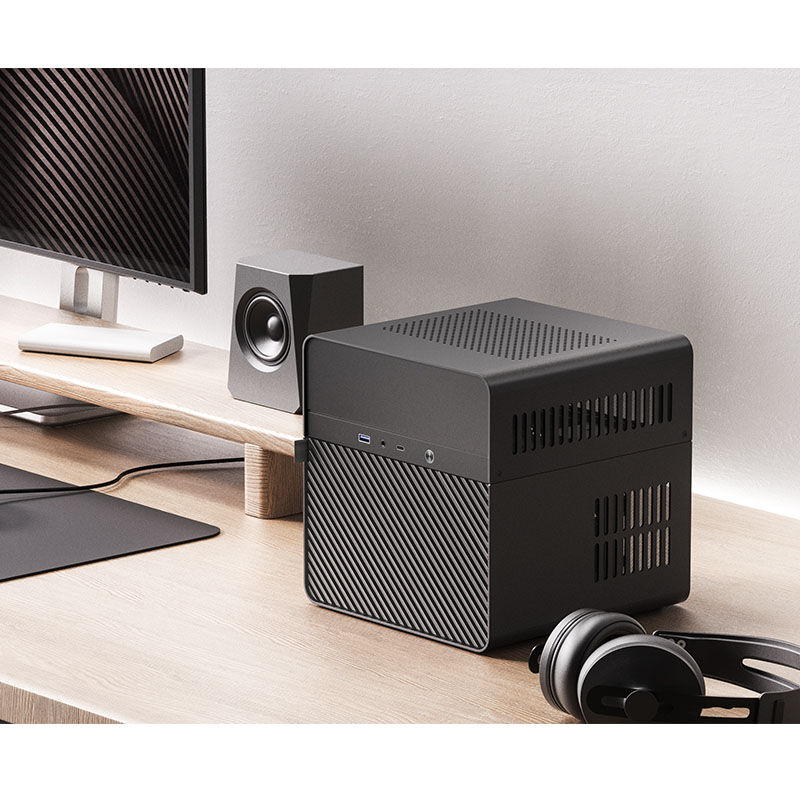

The Jonsbo N2 Mini-ITX case in detail
A compact computer for cloud storage or home office systems. The Jonsbo N2 is the small but nice solution for purpose systems. It houses a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swappable SATA/SAS board is already installed for five HDD drives. It is convertible and space-saving because it can be laid down or placed upright.
Organization and hardware

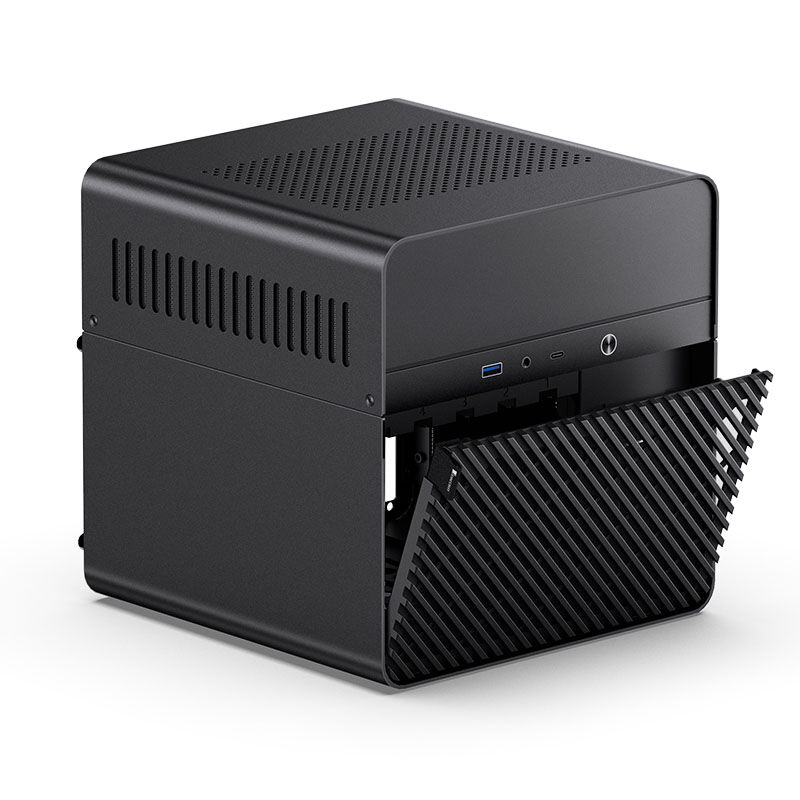

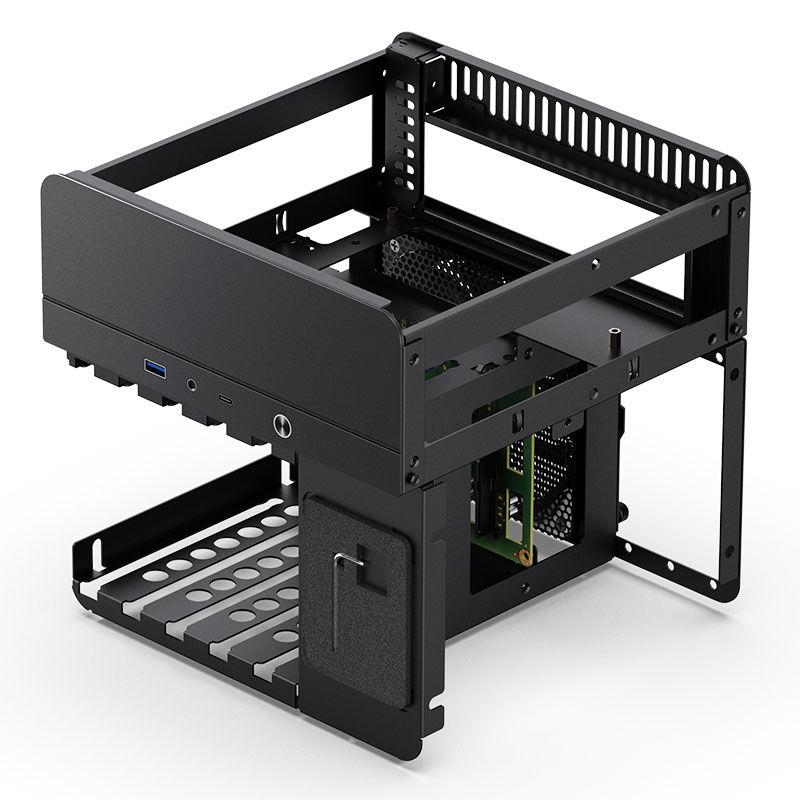

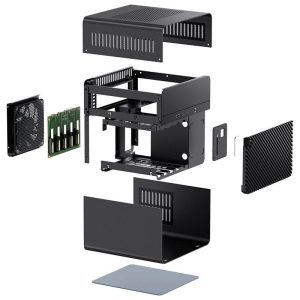

The Jonsbo N2 is a Mini-ITX case and is only compatible with these form actuator mainboard sizes. Only small 1-slot graphics cards with a length of 197 mm fit inside. The housing can be completely removed to make installation easier. The left side panel can be quickly removed for quick access to optional hot-swap HDDs.
Important! There isnt much space inside. Graphics cards only fit in with a low-profile bracket. It is advisable to buy a CPU chipset with a graphics unit.
The mini system is powered by a power supply in the compact SFX standard. The CPU cooler, on the other hand, can be a maximum of 65 mm high. A 120 mm fan is installed in the front for air circulation and is of course included in the scope of delivery.
Compact design for home use
If you are looking for a small computer for small basic tasks such as office programs or want to save on-site in your own cloud storage, you will find a practical solution with the Jonsbo N2. The design is space-saving, clever and offers capacity for five 3.5-inch HDDs in a hard drive cage. A 2.5-inch disk can be attached above the power supply.
Functionality is very important to the Jonsbo N2. Its petite dimensions of 222.5 mm x 222.5 mm x 224 mm (W x H x D) fit into any home and, in its high-quality aluminum housing, blend seamlessly into any setup or look. If you still cant find a good place to put it, put it up. No matter how, the I/O panel with a USB-C 3.1, USB 3.0 Type A and audio 3.5 mm jack plug remains freely accessible in any position.
| Specification | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Width | 222.5 mm |
| Height | 222.5 mm |
| Depth | 224 mm |
| Weight | 3.8 kg |
| Case | |
| Case Type | Mini Case |
| Material | Aluminium, Steel |
| Motherboard Support | |
| Compatible Motherboard Formats | Mini-ITX |
| Max. Motherboard Format | Mini-ITX |
| Internal Dimensions | |
| Max GPU Length | 197 mm (low profile) |
| Max PSU Length | 150 mm |
| Fan Support | |
| Max Number of Fans | 1 |
| Front | 1x 120 mm (pre-installed) |
| Drive Bays | |
| 2.5″ Drives | 1 |
| 3.5″ Drives | 5 |
| Power Supply | |
| PSU Included | No |
| PSU Format | SFX (max. 150 mm) |
| Expansion Slots | |
| PCI / Expansion Slots | 1 (single slot, low profile) |
| External Ports | |
| USB 3.0 Type-A (USB 3.2 Gen 1, 5 Gbit/s) | 1 |
| USB 3.1 Type-C (USB 3.2 Gen 2, 5 Gbit/s) | 1 |
| Audio Jack | 1x 3.5 mm combo (mic & headphones) |
| Power Button | Yes |
£123.80£103.17 Inc VatEx Vat
