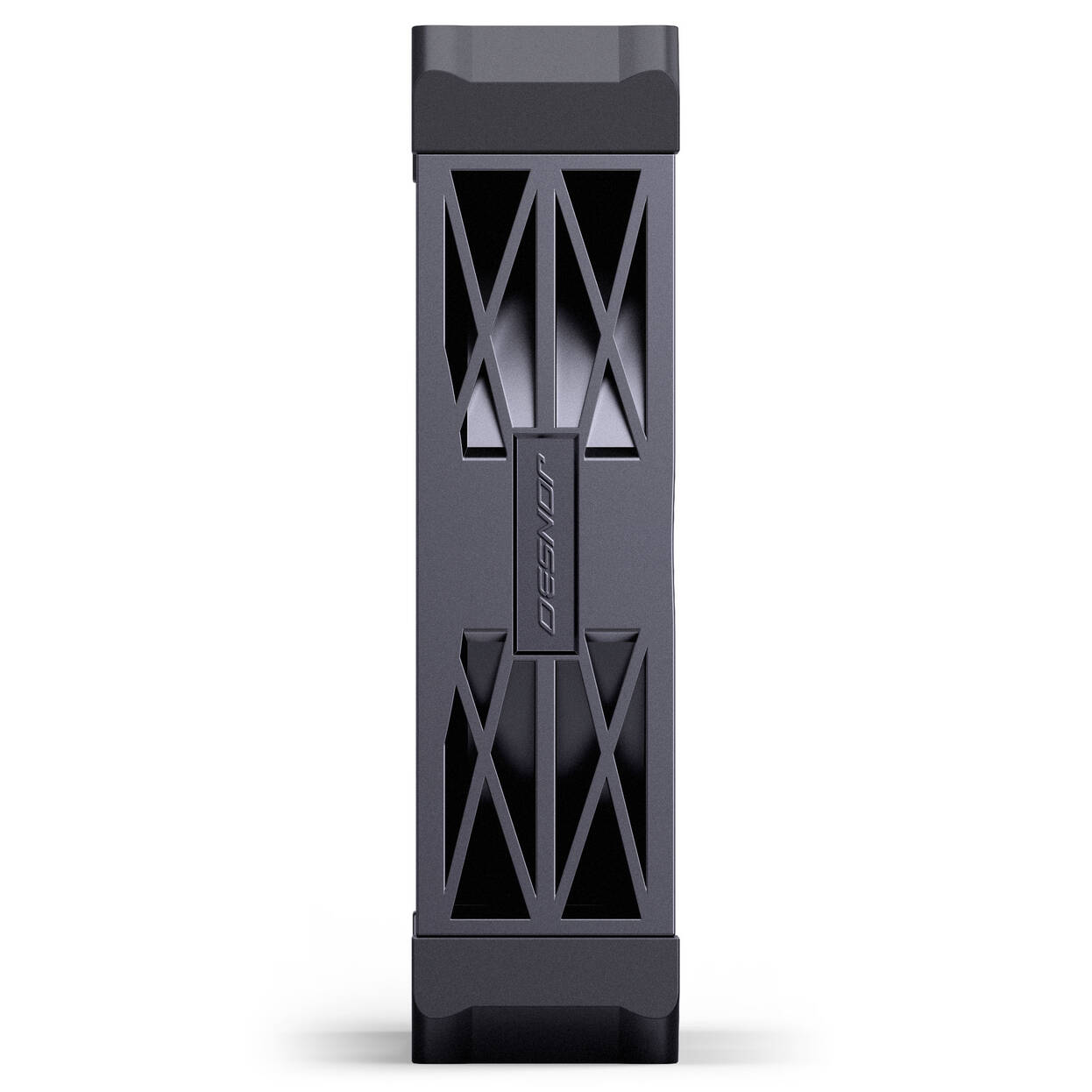

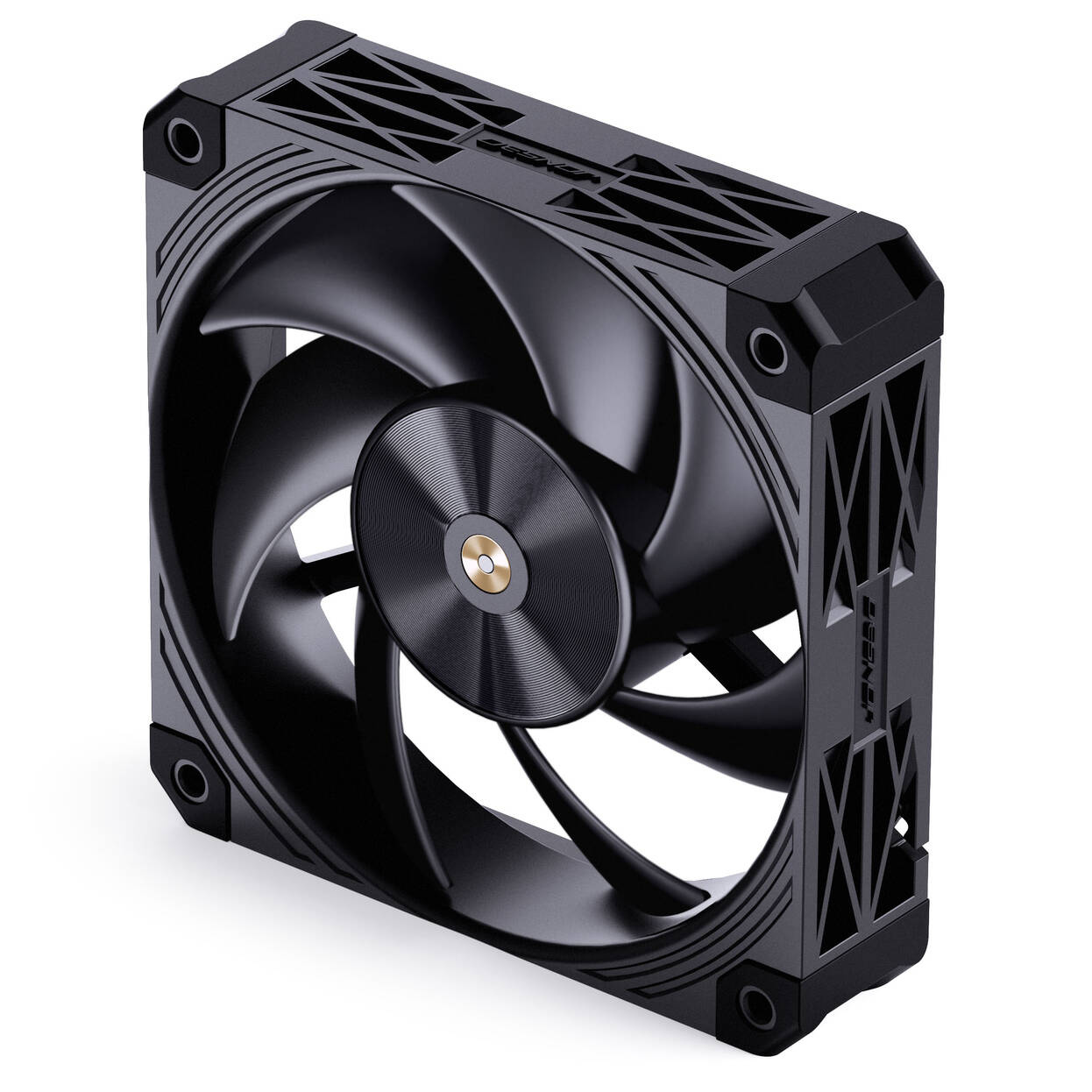

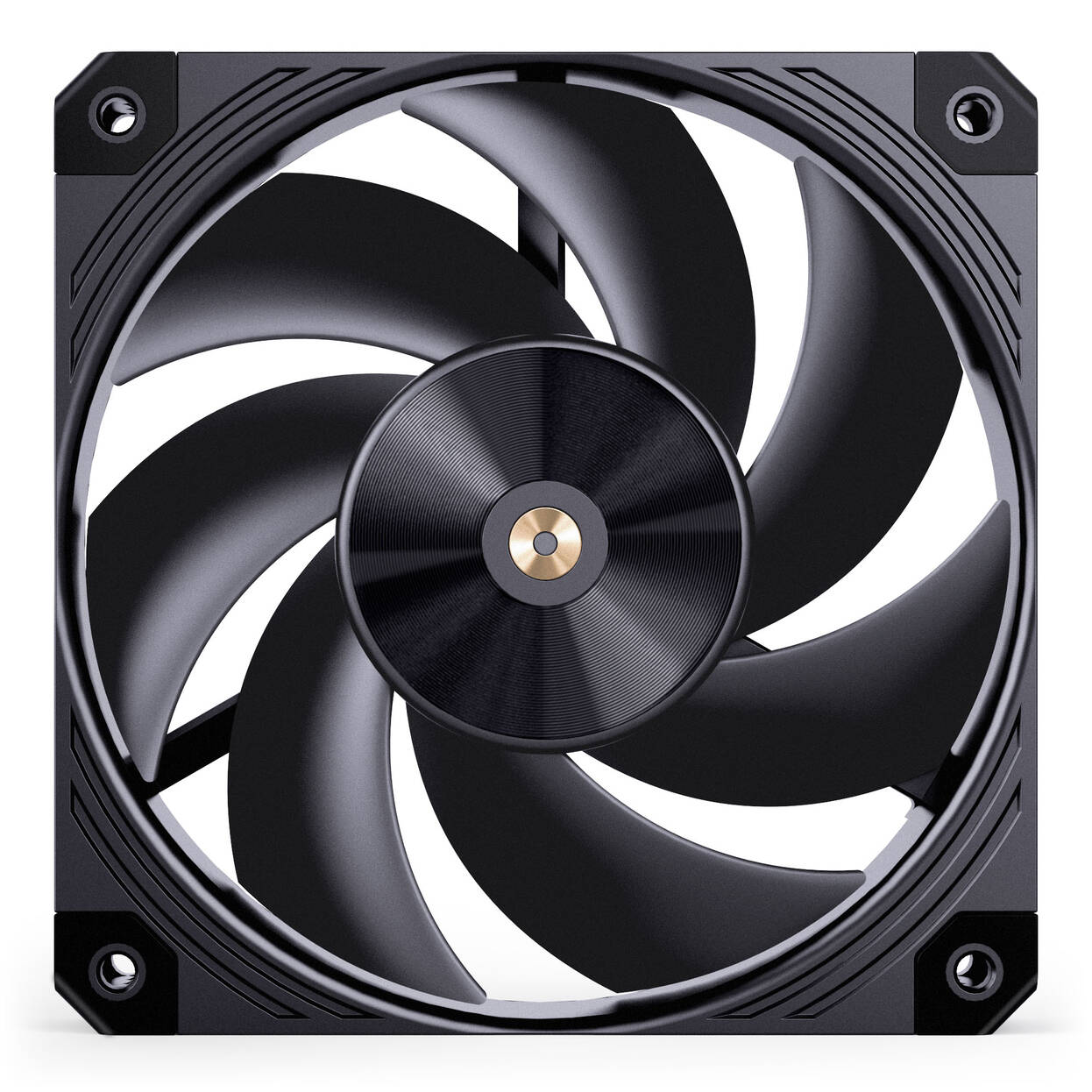

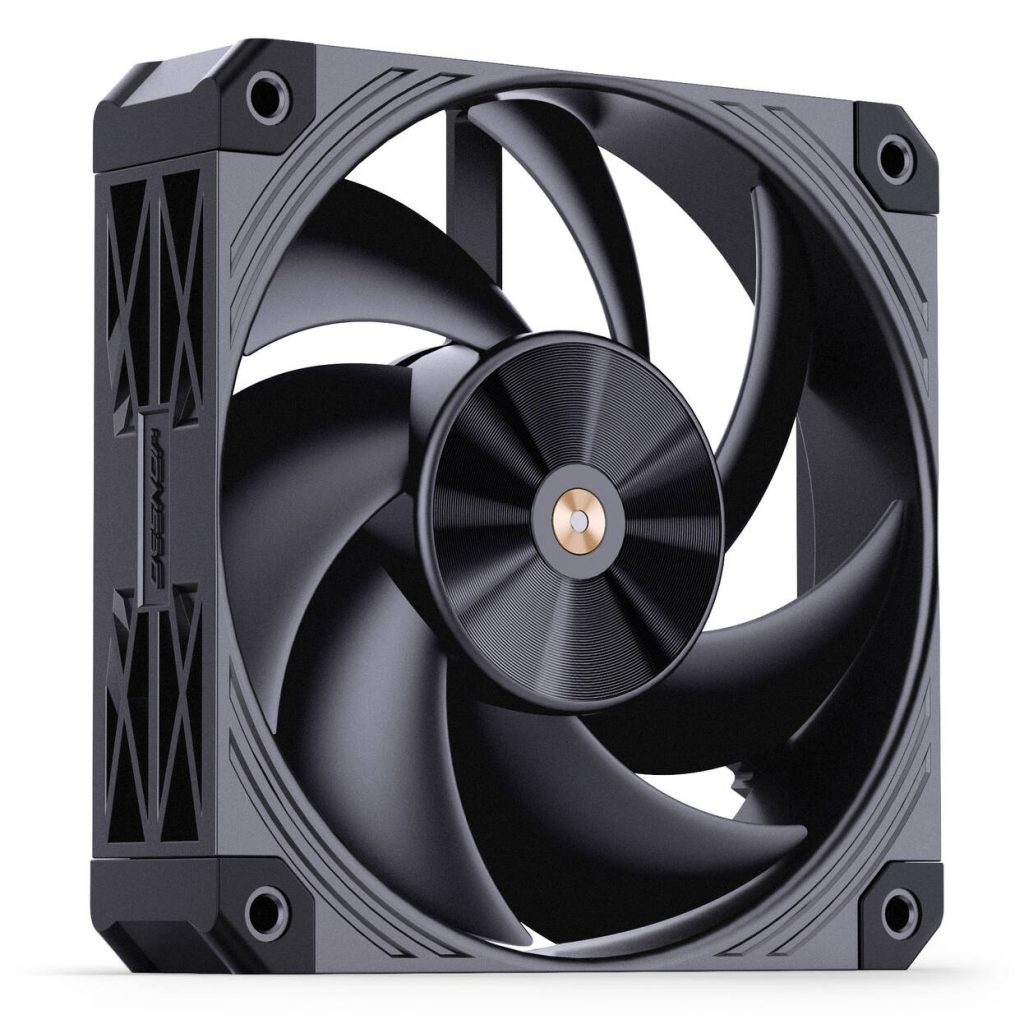

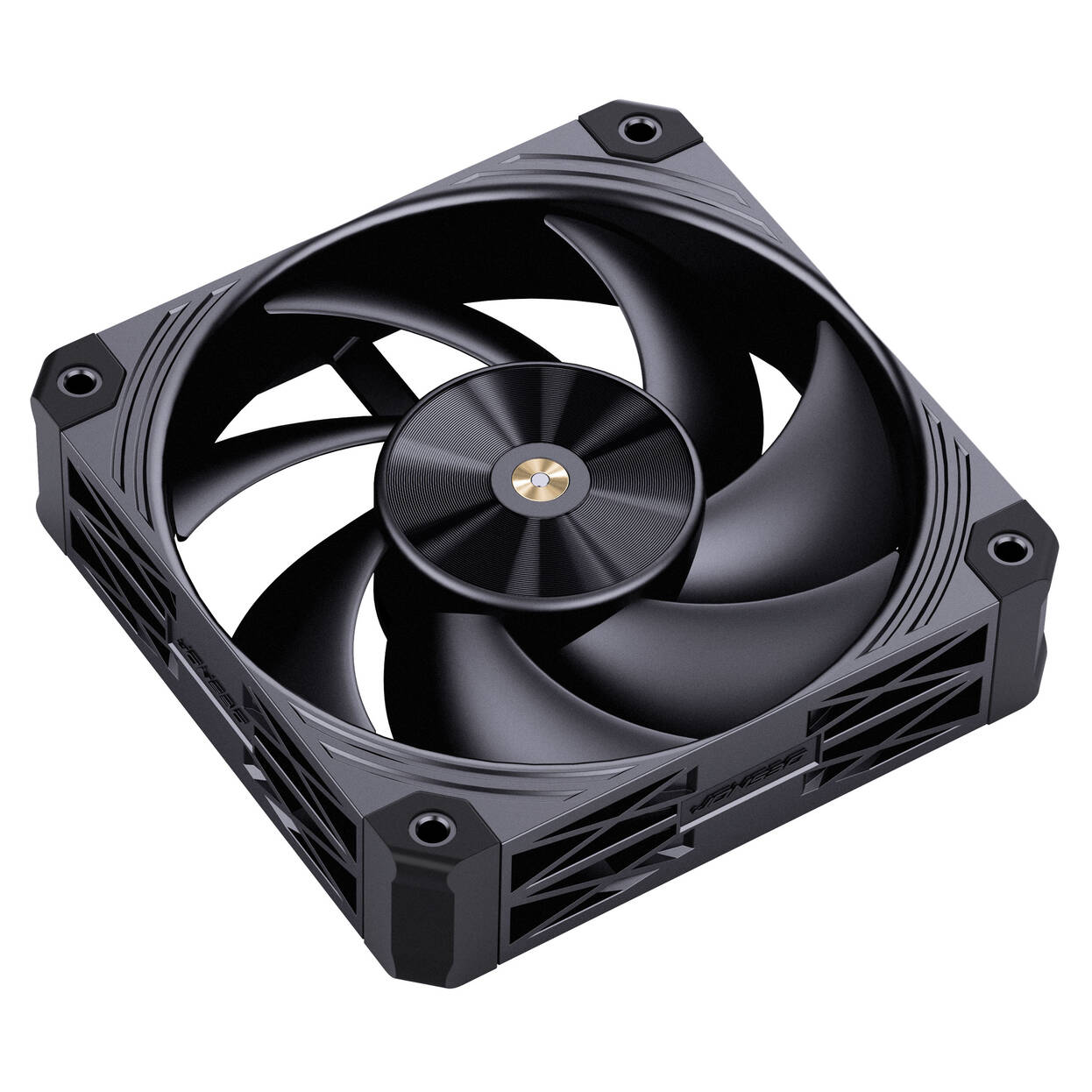

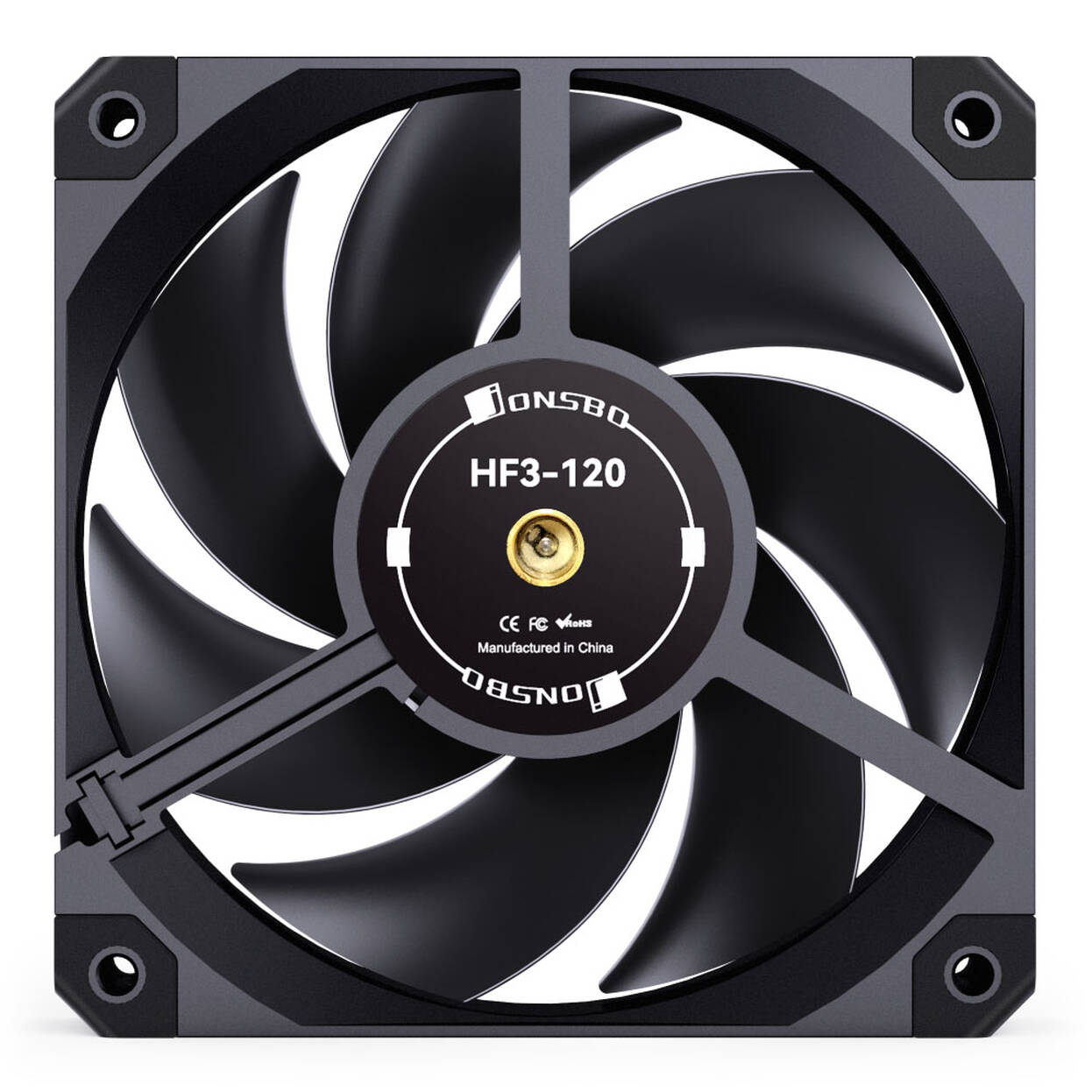

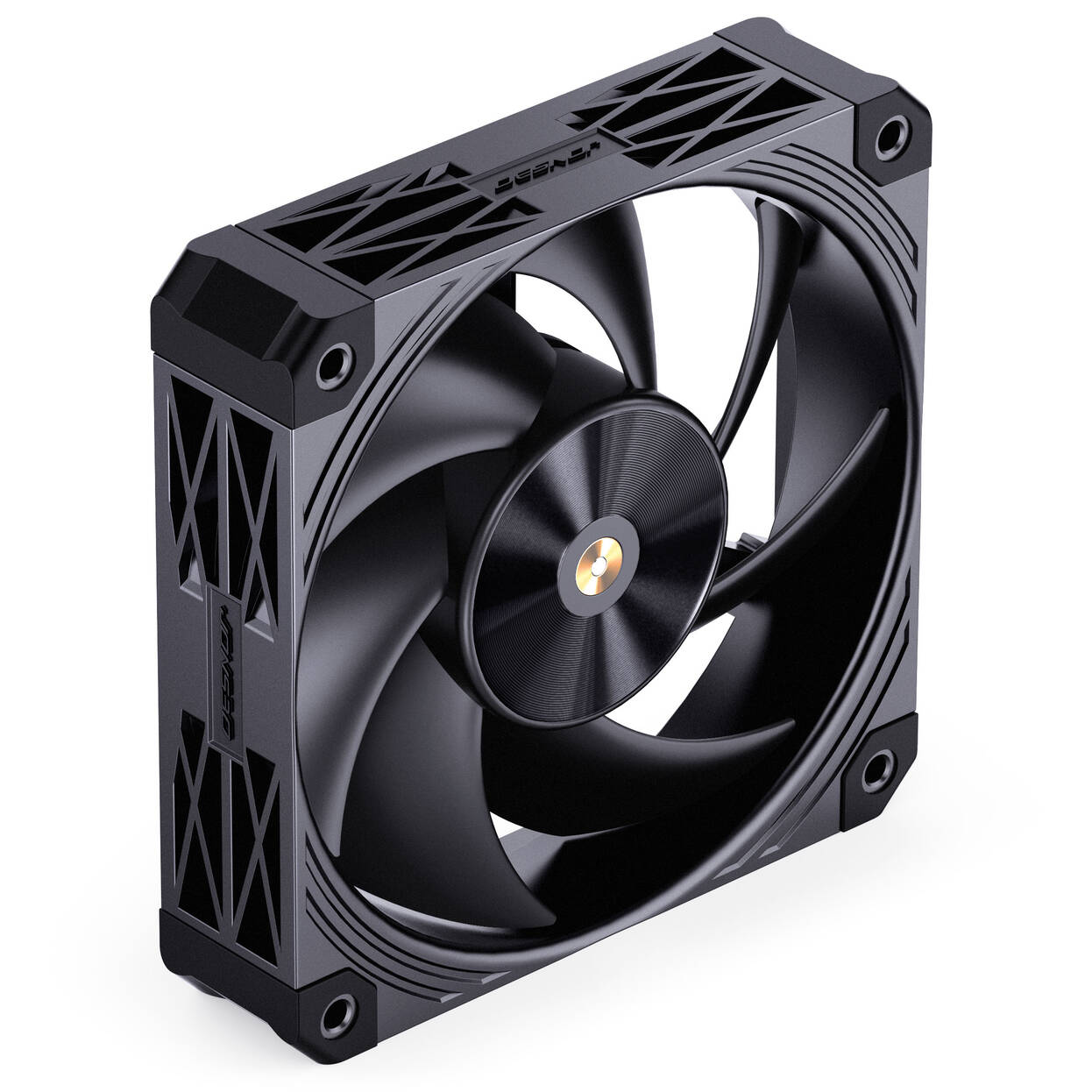

The Jonsbo HF3-120HB is a powerful 120mm PWM fan designed for demanding cooling applications in gaming and workstation systems. With high airflow, stable static pressure, and quiet operation, it is ideal for radiators, CPU coolers, or as an efficient case fan.
The Jonsbo HF3-120HB is a powerful 120mm PWM fan designed for demanding cooling applications in gaming and workstation systems. With high airflow, stable static pressure, and quiet operation, it is ideal for radiators, CPU coolers, or as an efficient case fan.
The Jonsbo HF3-120HB is a powerful 120mm PWM fan designed for demanding cooling applications in gaming and workstation systems. With high airflow, stable static pressure, and quiet operation, it is ideal for radiators, CPU coolers, or as an efficient case fan.
The Jonsbo HF3-120HB is a powerful 120mm PWM fan designed for demanding cooling applications in gaming and workstation systems. With high airflow, stable static pressure, and quiet operation, it is ideal for radiators, CPU coolers, or as an efficient case fan.
Features:
– Airflow up to 260.96 m³/h for reliable cooling
– Static pressure of 11.82 mmH₂O – ideal for radiators
– Hydraulic bearing for long-lasting and quiet operation
– PWM control from 300 to 4,000 RPM for optimal adjustment
– Maximum 58.67 dB(A) at full load
– Strong cooling performance with controlled noise levels
With an airflow capacity of up to 260.96 m³/h, the HF3-120HB ensures effective ventilation within the system. The static pressure of 11.82 mmH₂O allows use even with tightly spaced fin structures – such as on radiators or compact air coolers. Despite its high performance, the fan remains pleasantly quiet.
Reliable components for continuous operation
The integrated hydraulic bearing reduces friction during operation and extends the lifespan. At the same time, noise levels are minimized, making the HF3-120HB attractive for systems with multiple fans. The robust construction ensures stable operation – even with 24/7 usage.
Flexible control via PWM
Thanks to the 4-pin PWM connector, the fan can be dynamically regulated between 300 and 4,000 RPM. This allows the cooling performance to automatically adjust to the system load – with minimal energy consumption and optimal noise control. Installation is quick and easy thanks to the standard 120mm size.
| Colour | |
|---|---|
| Primary Colour | Black |
| Frame Colour | Black |
| Rotor Colour | Black |
| Dimensions | |
| Length / Depth | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Blade Direction | Standard |
| Speed Range | 300 – 4000 rpm |
| Max Airflow | 260.96 m³/h |
| Max Static Pressure | 11.82 mmH₂O |
| Noise | |
| Max Noise Level | 59.67 dB(A) |
| Connectivity | |
| Fan Connector | 4-Pin (PWM) |
| Lighting | |
| RGB Lighting | No |
£20.08£16.73 Inc VatEx Vat
