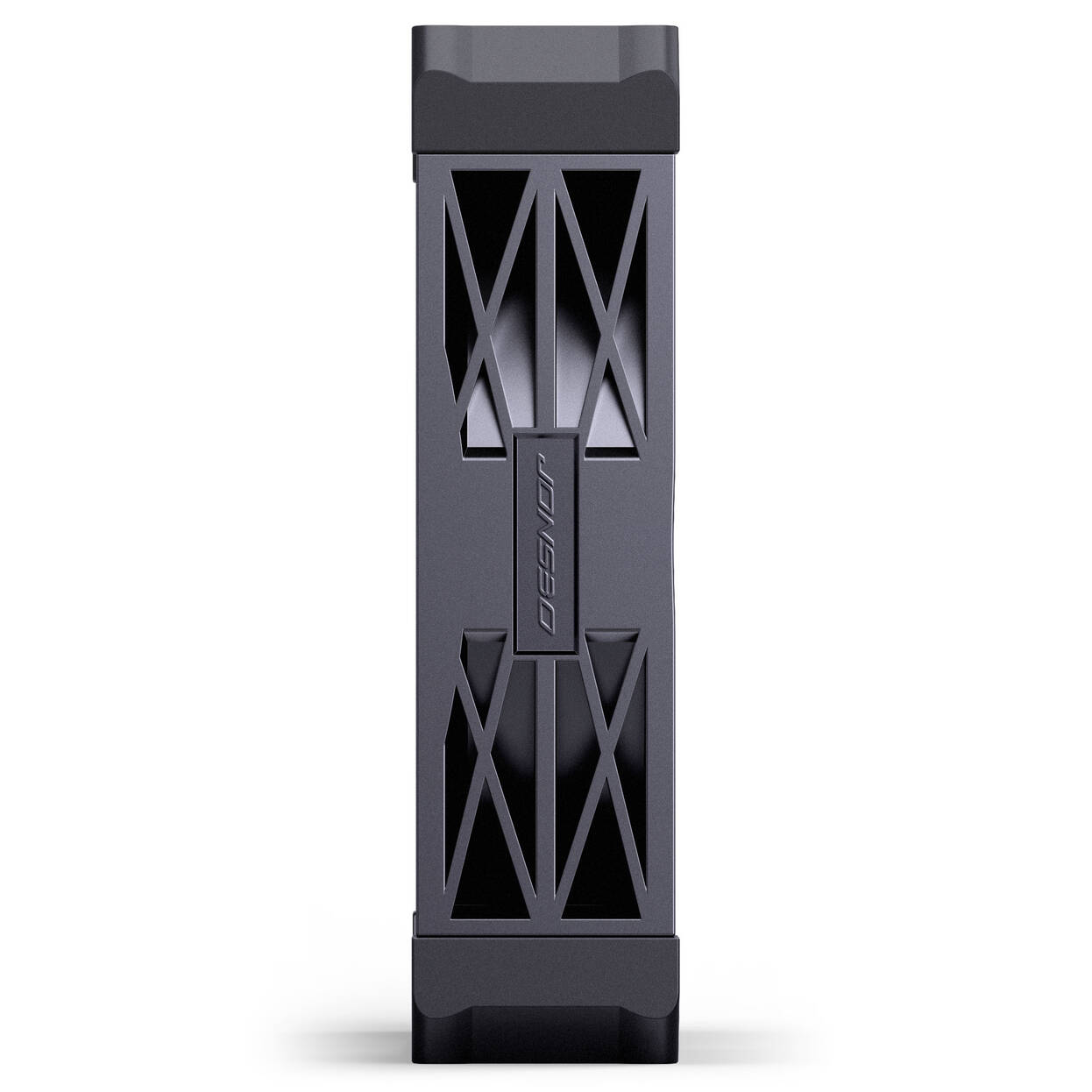

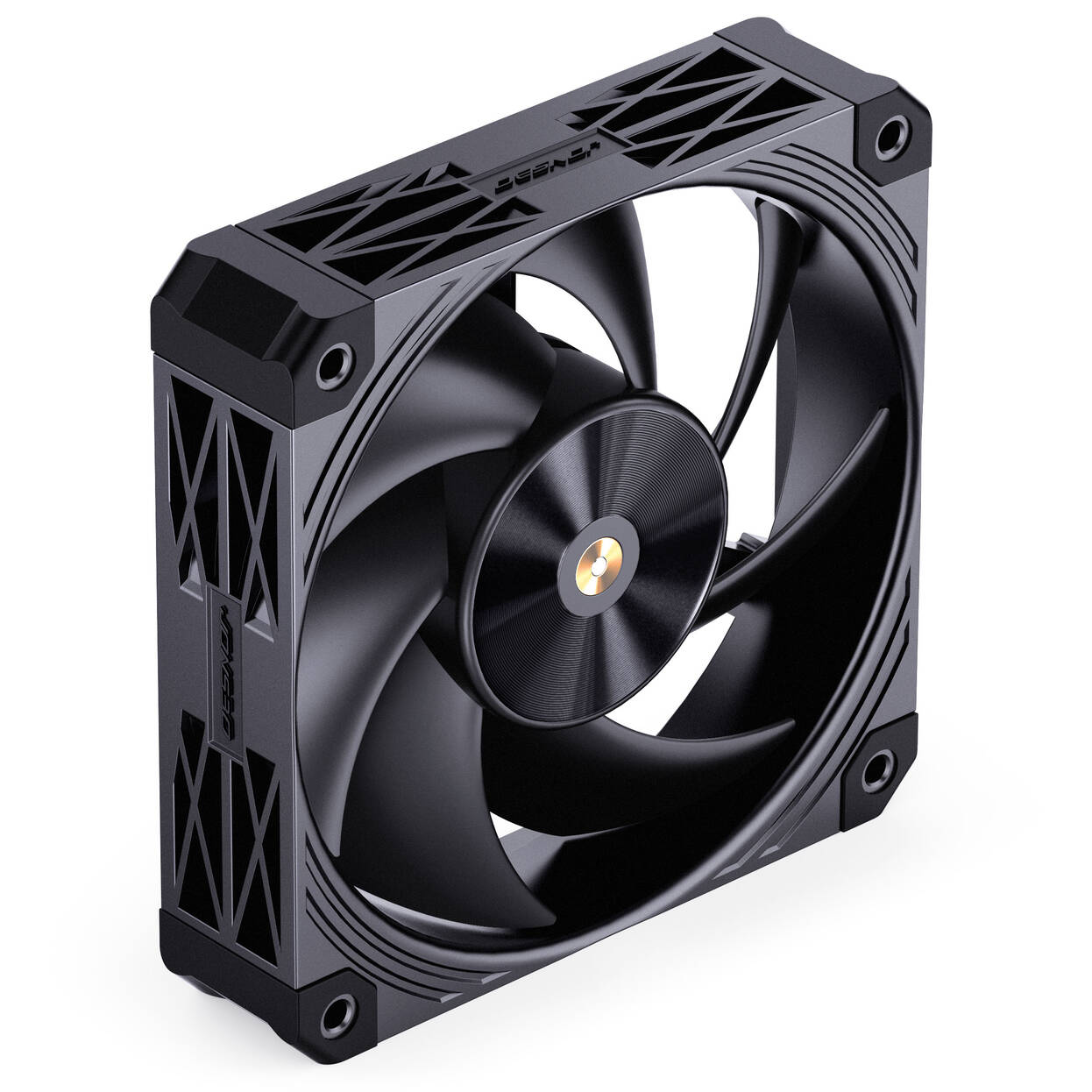

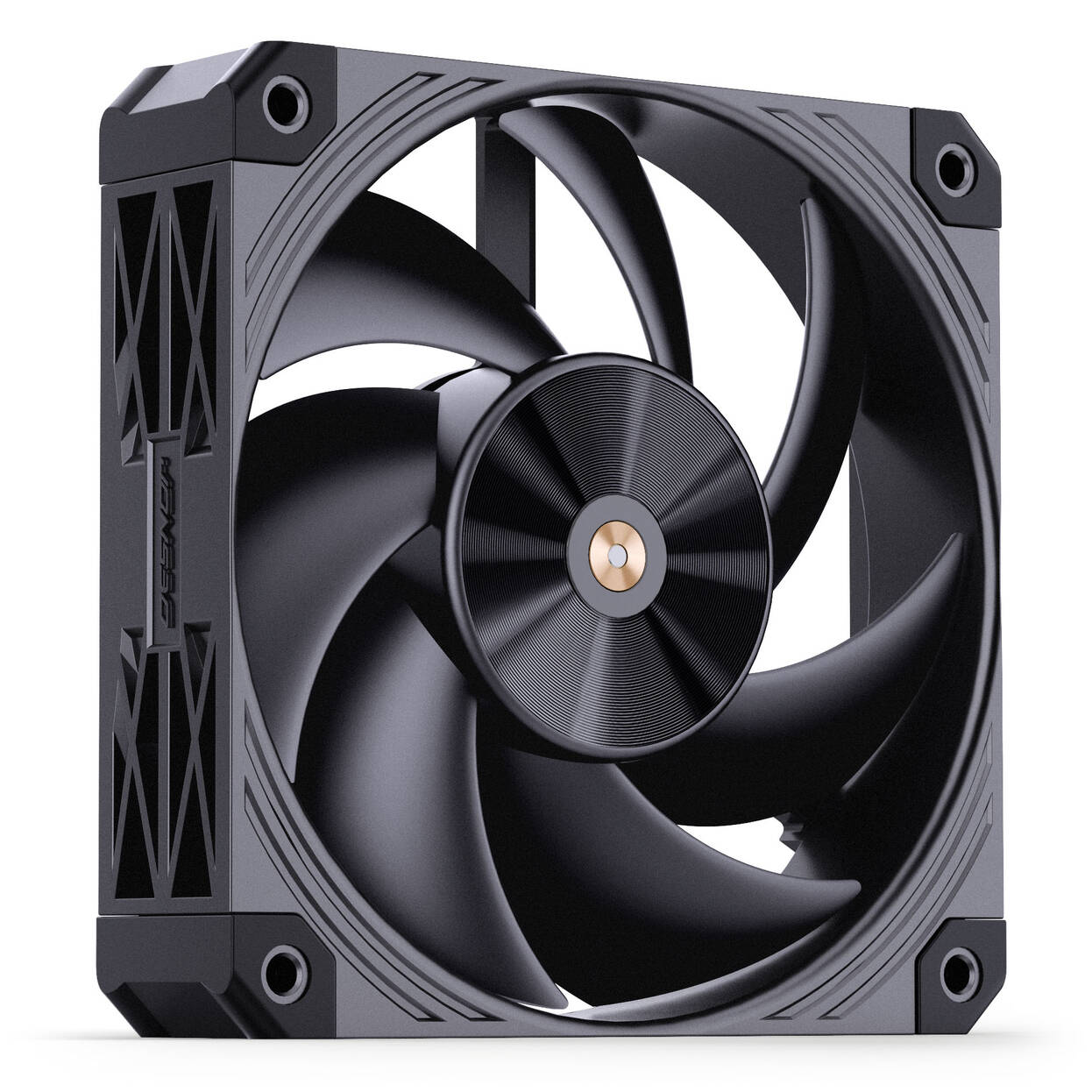

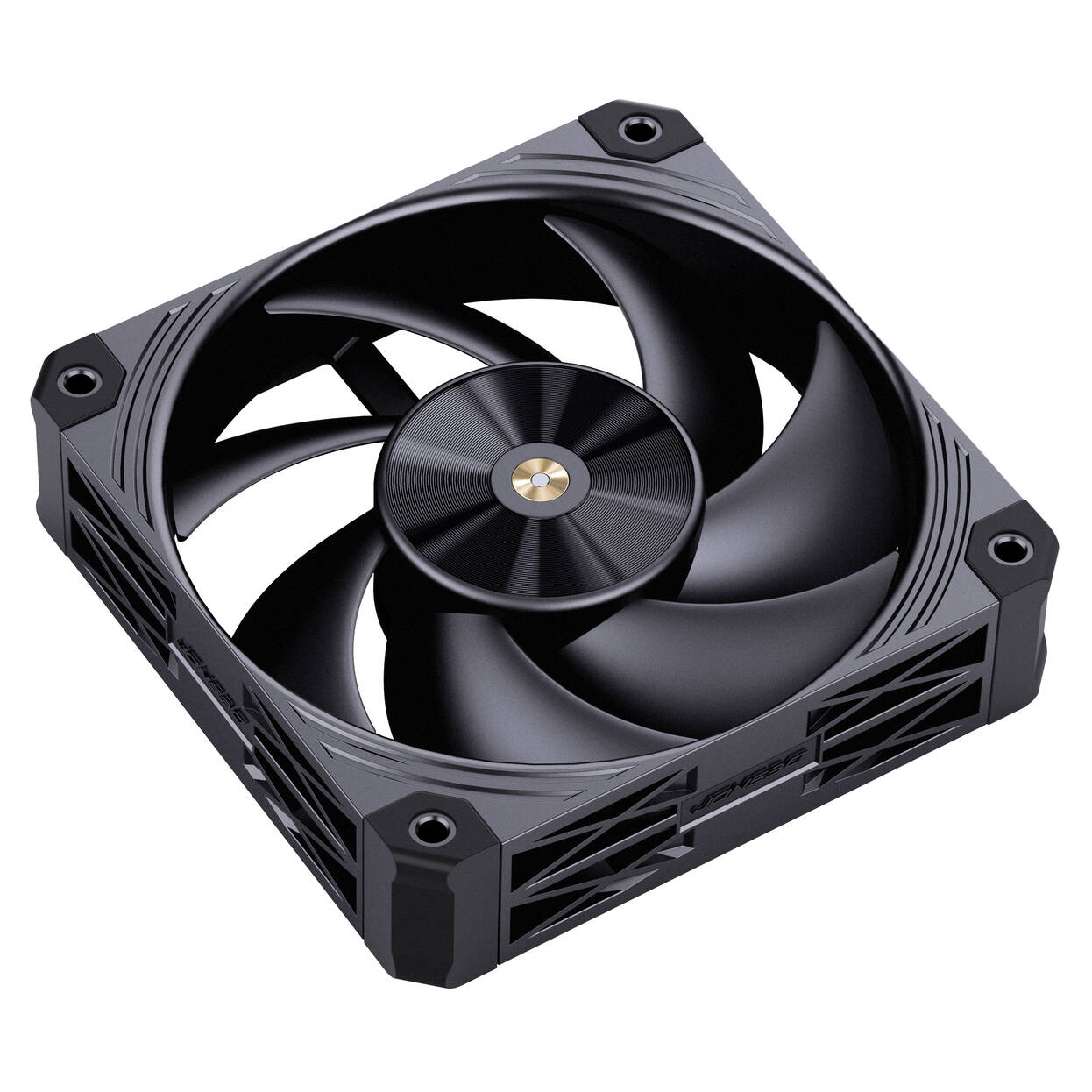

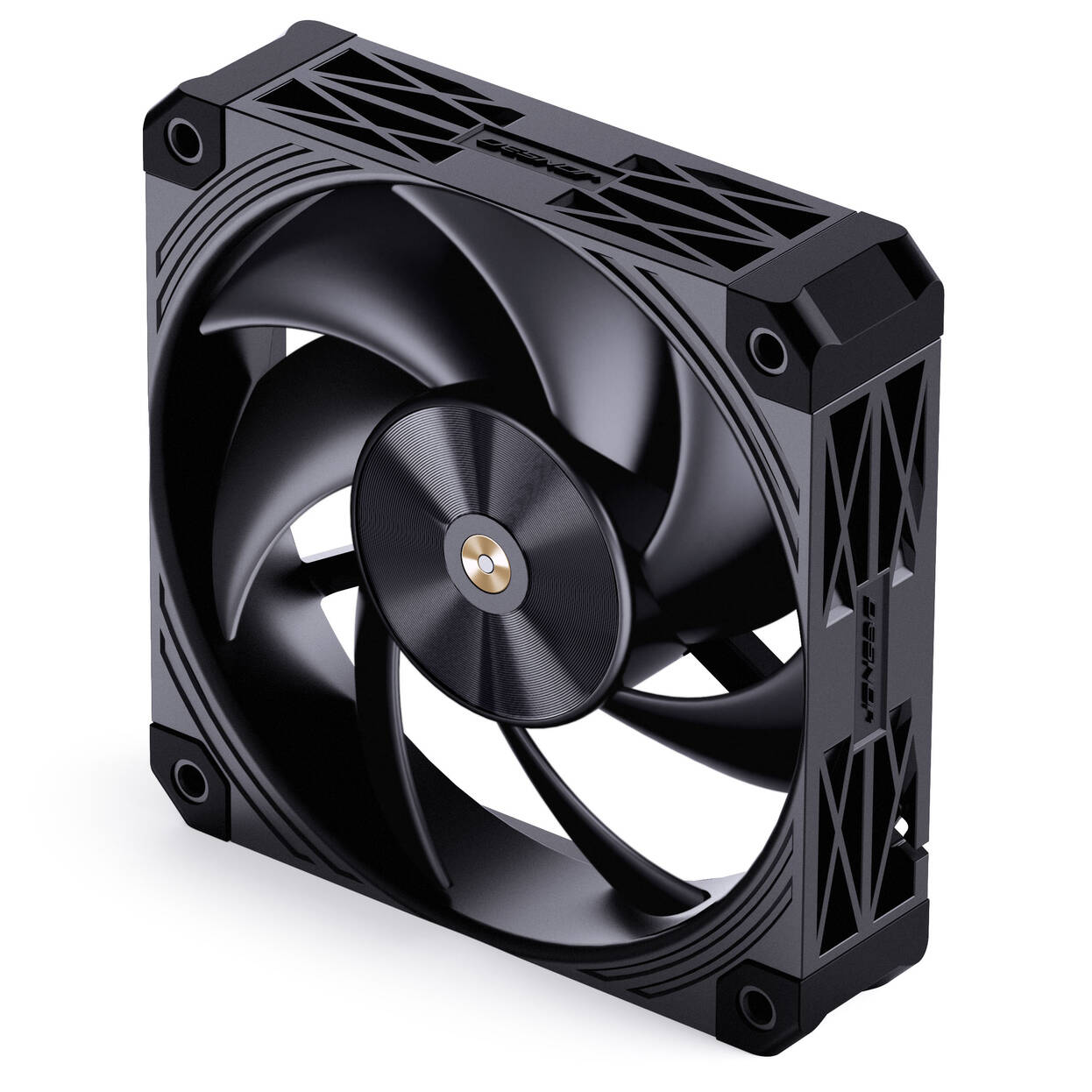

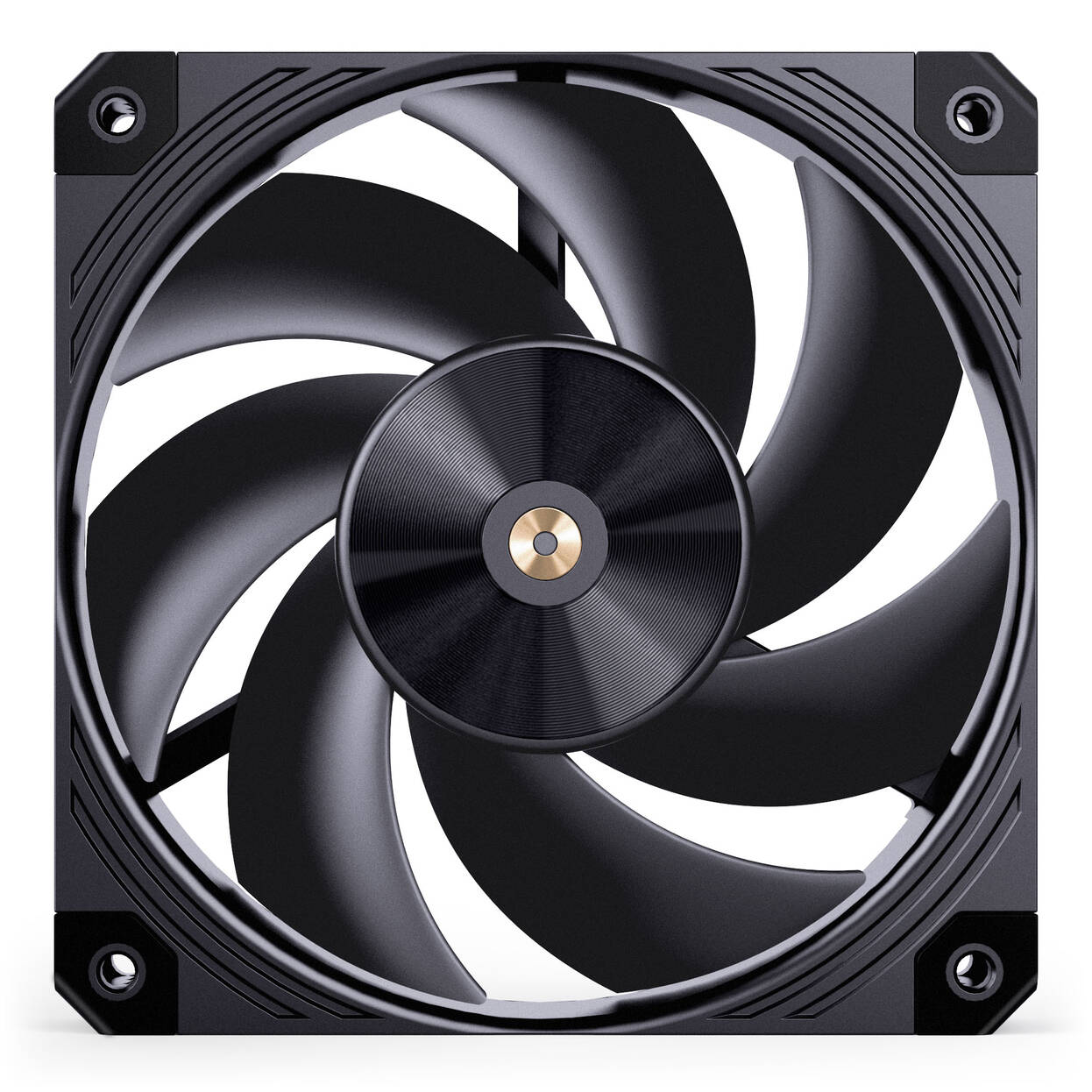

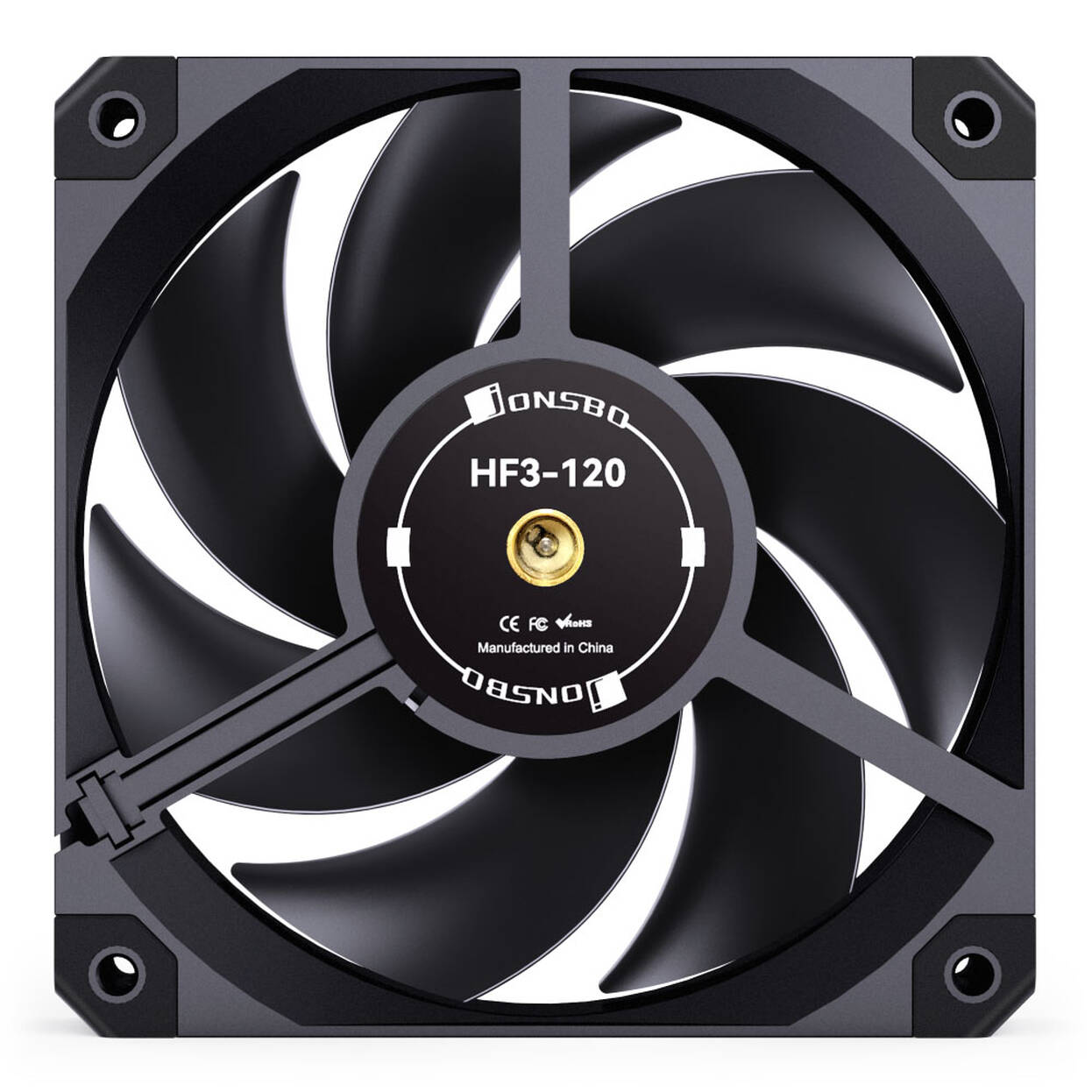

The Jonsbo HF3-120 is a powerful 120mm fan with PWM control and high static pressure. With speeds of up to 2,800 RPM, it is especially suitable for use on radiators and heatsinks with dense fin arrangements.
The Jonsbo HF3-120 is a powerful 120mm fan with PWM control and high static pressure. With speeds of up to 2,800 RPM, it is especially suitable for use on radiators and heatsinks with dense fin arrangements.
The Jonsbo HF3-120 is a powerful 120mm fan with PWM control and high static pressure. With speeds of up to 2,800 RPM, it is especially suitable for use on radiators and heatsinks with dense fin arrangements.
The Jonsbo HF3-120 is a powerful 120mm fan with PWM control and high static pressure. With speeds of up to 2,800 RPM, it is especially suitable for use on radiators and heatsinks with dense fin arrangements.
Features:
– Static pressure of up to 6.58 mmH₂O – ideal for radiators
– High airflow up to 182.4 m³/h for strong cooling performance
– Speed range from 300 to 2,800 RPM adjustable via PWM
– Quiet operation from 4.4 dB(A), maximum noise level 39.87 dB(A)
– Durable hydraulic bearing with ≥ 50,000 hours MTTF
– Maximum cooling for tight cooling structures
With a static pressure of up to 6.58 mmH₂O, the HF3-120 is perfectly suited for densely packed heatsinks or radiators. The high airflow of up to 182.4 m³/h ensures reliable cooling performance – even for demanding systems and overclocking setups.
Efficient speed control with PWM
The fan can be dynamically controlled via a 4-pin PWM connector within the range of 300 to 2,800 RPM. This keeps it whisper-quiet under low loads while delivering full power when needed – all without manual adjustments or separate controllers.
Durable and visually discreet
Thanks to the high-quality hydraulic bearing, the HF3-120 achieves an average lifespan of over 50,000 hours.
| Colour | |
|---|---|
| Primary Colour | Black |
| Fan Main Colour (Frame) | Black |
| Fan Main Colour (Rotor) | Black |
| Dimensions | |
| Length / Depth | 120 mm |
| Width | 120 mm |
| Fan height | 25 mm |
| Fan Specifications | |
| Fan Size | 120 mm |
| Fan Blade Direction | Standard |
| Min. Fan RPM | 300 rpm |
| Max. Fan RPM | 2800 rpm |
| Max. Single Fan Airflow | 182.4 m³/h |
| Max. Static Pressure | 6.58 mmH₂O |
| Noise | |
| Max. Single Fan Noise | 39.87 dB(A) |
| Internal Ports | |
| Fan connectors | 4 Pin (PWM) |
| Lighting | |
| Lighting / RGB | No |
£20.08£16.73 Inc VatEx Vat
