Features:
– Extremely compact and stylish case for Micro ATX motherboards
– Front, lid and side panels with mesh for optimal airflow
– Designed for vertical airflow with up to three possible fans
– GPUs may be at least 200 mm long and a maximum of 255 mm long
– For ATX power supply with a depth of up to 185 mm

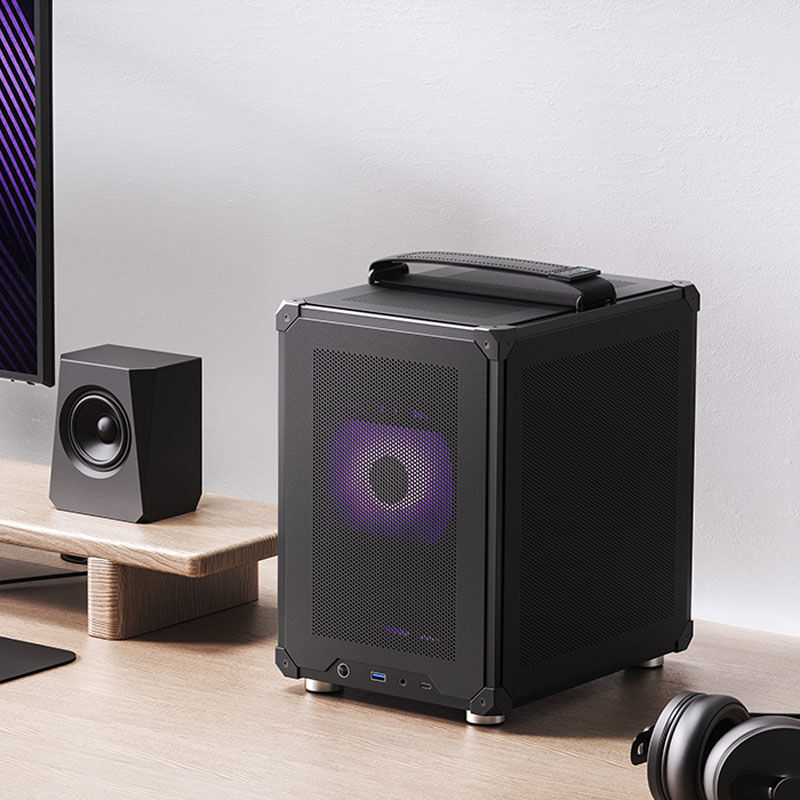

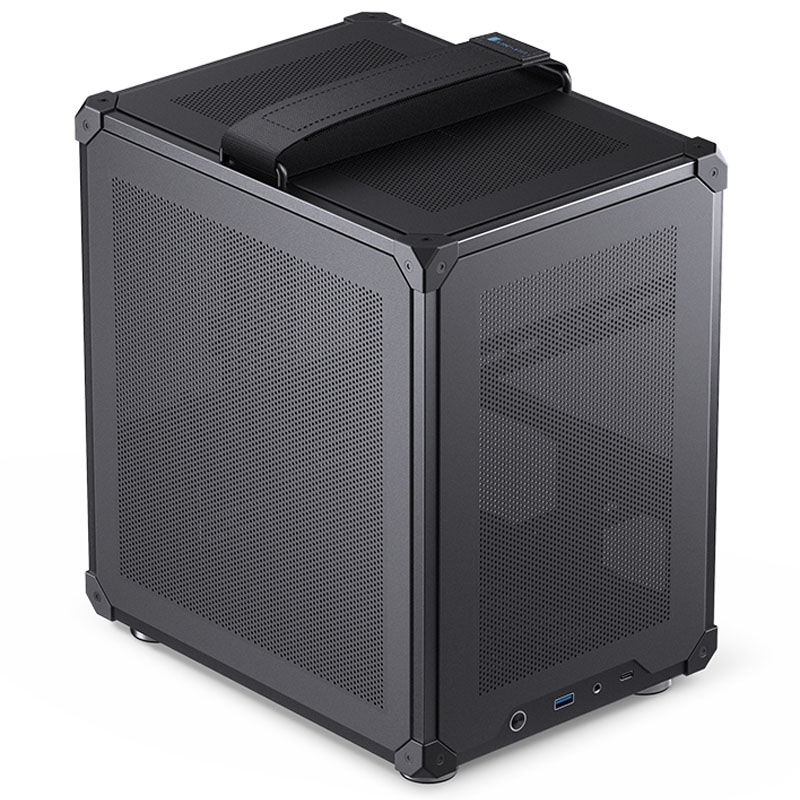

Jonsbo C6: The versatile Micro ATX case

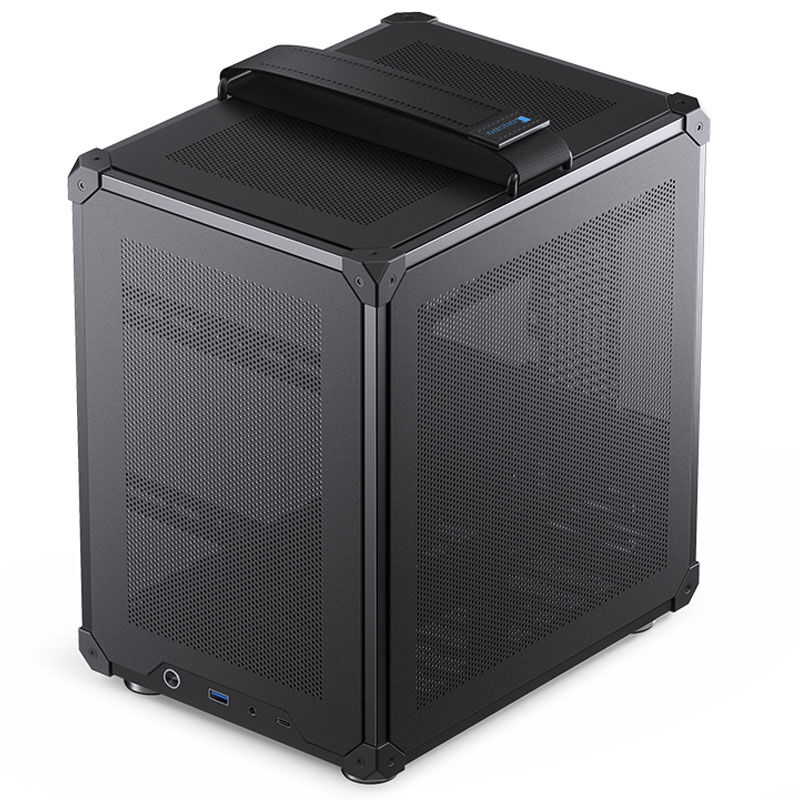

With the C6, Jonsbo presents a Micro-ATX case that is as compact and elegant as it is versatile. You can easily accommodate the latest gaming hardware in it. There is space for up to three 120 mm fans for perfect air cooling. You can also install two of them in the 140 mm format. Both the front and both side panels and the lid are perforated with fine holes and thus ensure good air exchange. This new edition of the case has a higher quality workmanship and has been improved in some details. This includes, for example, a practical carrying handle with which you can transport your PC effortlessly.
Gaming hardware: Well placed

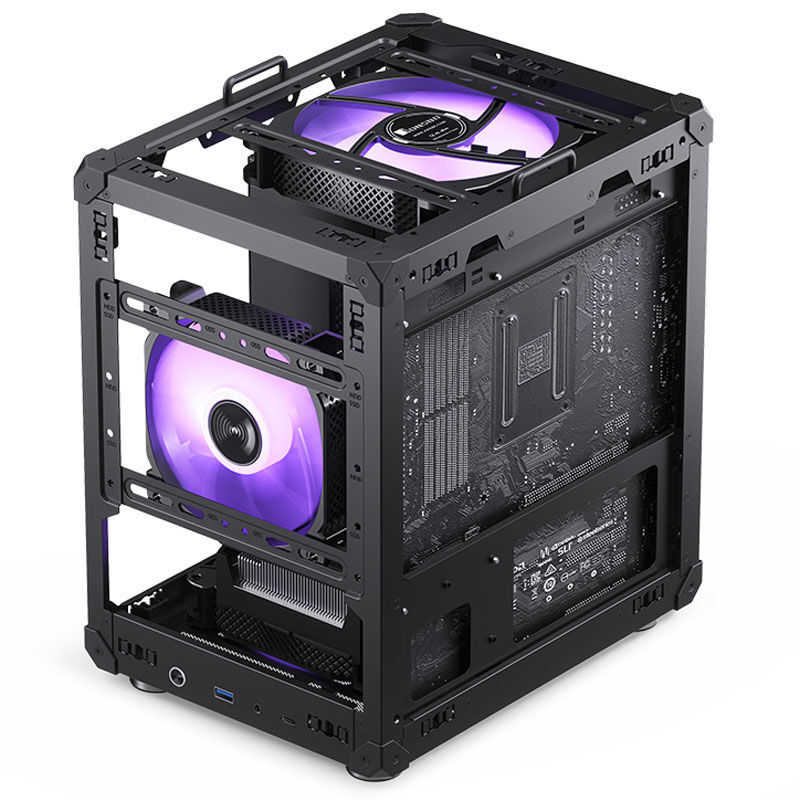

In addition to the Micro ATX mainboard, the Jonsbo C6 also fits a graphics card with a length of at least 200 mm and a maximum of 255 mm. An HDD or two SSDs can be placed at the front without a 120 mm fan. If you want to use a CPU cooler, it can be up to 75 mm high.
Well thought out and well equipped

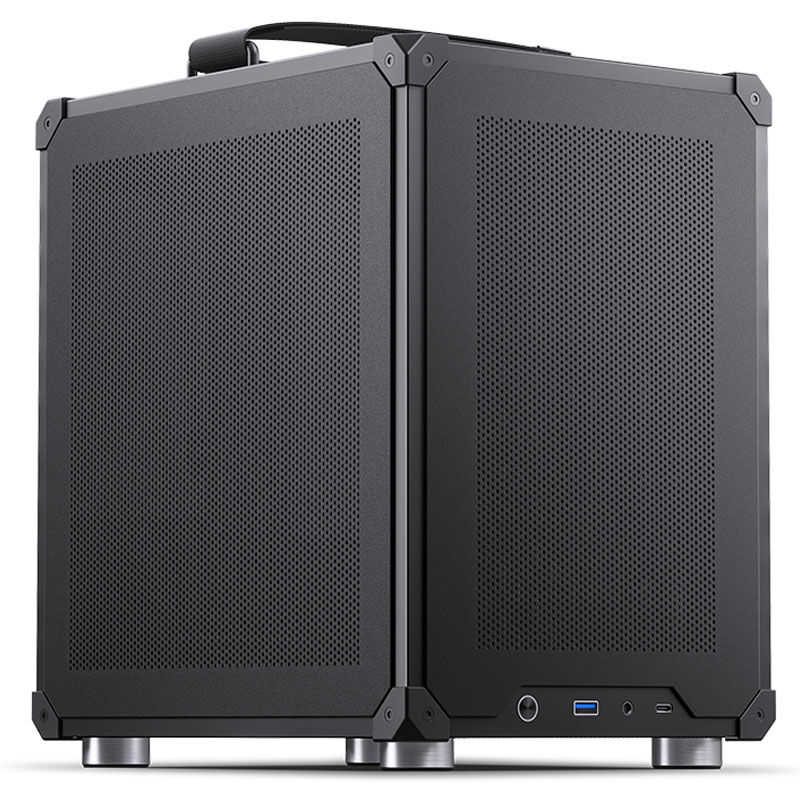

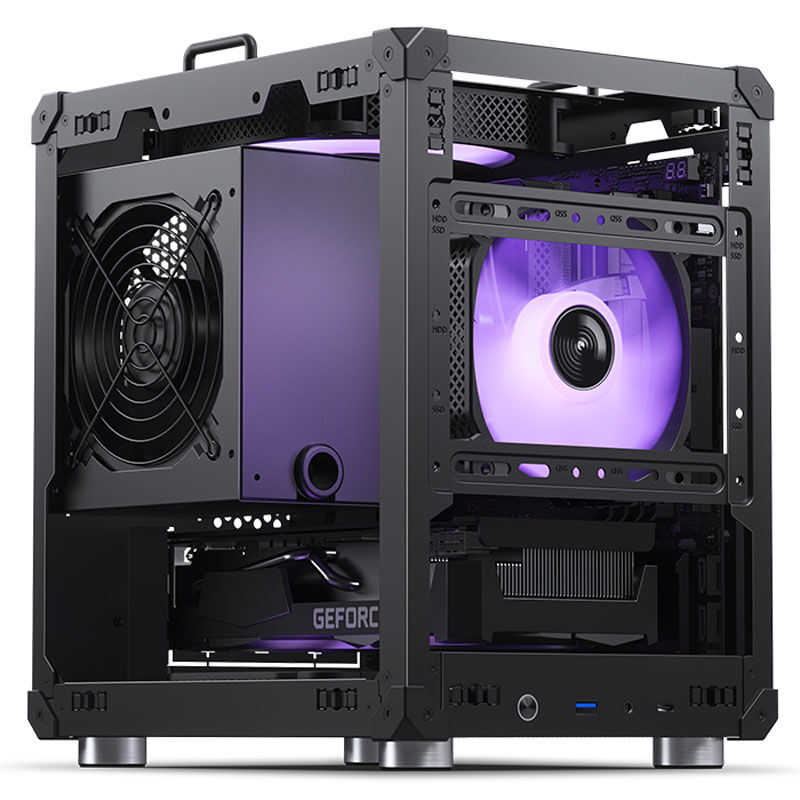

A power supply in the common ATX format is installed at the rear on the top and may be 185 mm deep. The I/O panel at the bottom right of the front offers a USB 3.0 port type C, a USB 3.0 port type A as well as a combined 3.5 mm audio jack and the usual power or reset -Switch.
| Technical Details | |
|---|---|
| Dimensions | 202 x 266 x 295.2 mm (W x H x D) |
| Material | Steel, Plastic |
| Weight | 2.3 kg |
| Colour | Black |
| Form Factor | |
| Supported Motherboards | Micro-ATX, Mini-ITX |
| Fan Support | |
| Front | 1 × 120 mm |
| Top | 1 × 120 mm / 2 × 140 mm |
| Bottom | 1 × 120 mm / 2 × 140 mm |
| Pre-installed Fans | None |
| Radiator Support | |
| Radiator Mountings | None |
| Drive Bays | |
| 3.5″ Drive Bays | 1× (front) |
| 2.5″ Drive Bays | 2× (front, by sacrificing front fan) |
| Expansion | |
| Expansion Slots | 2 |
| I/O Panel | |
| USB 3.0 Type-C | 1× (USB 3.2 Gen 1, 5 Gbit/s) |
| USB 3.0 Type-A | 1× (USB 3.2 Gen 1, 5 Gbit/s) |
| Audio | 1× 3.5 mm TRRS (mic/headphones) |
| Buttons | Power / Reset |
| Compatibility | |
| Max GPU Length | 200–255 mm (depending on front drive/fan) |
| Max CPU Cooler Height | 75 mm |
| Max PSU Length | ATX PSU up to 185 mm |
| Specification | Details |
|---|---|
| Primary Colour | Black |
| Length / Depth | 295.2 mm |
| Width | 202 mm |
| Height | 266 mm |
| Weight | 2.3 kg |
| Case Type | Mini Case |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Max. CPU Cooler Height | 75 mm |
| Max. GPU Length | 255 mm |
| Max. PSU Length / Depth | 185 mm |
| Display Included | No |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear side |
| 120 mm Fans Support | 3 |
| 140 mm Fans Support | 2 |
| Max. Radiator Compatibility | No |
| 2.5″ Internal Drive Bays | 2 |
| 3.5″ Internal Drive Bays | 1 |
| Hot Swap Drive Bays | No |
| USB 3.0 (external) Type-A | 2 |
| Audio Outputs & Inputs | 1x output/input combo (3.5 mm jack, 4-pin, TRRS) |
| Card Reader | No |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | Yes |
| Housing Feedthrough | No |
| Materials | Plastic, Steel |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Included Fans | None |
