Gigabyte Z390 M Gaming, Intel Z390 Motherboard - Socket 1151

Additionally, Z390 motherboards support the ninth-generation Intel Core processors (Coffee Lake-S Refresh). Also at the start are the chip-side WLAN support – but still a WiFi module must be present – and native USB 3.1 support, so they no longer need to be provided with additional chips.

The features of the Gigabyte Z390 M gaming motherboard at a glance:
– 2x PCIe 3.0 x16 (x16 / x4) & 2x PCIe x1
– 2x USB 3.1 (1x Type A & 1x Type C)
– A total of 4x USB 3.0 and 4x USB 2.0 (internal & external)
– 2x M.2 / 6x SATA 6G
– Supports max. 64 GB of DDR4 RAM
– RGB LED header

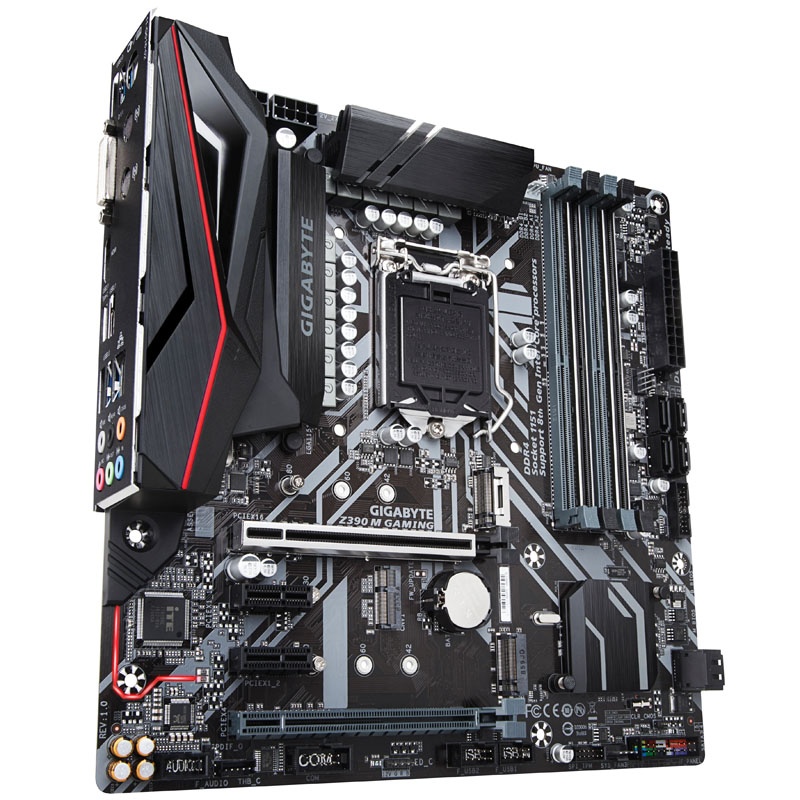

The Gigabyte Z390 M gaming in detail
The Gigabyte Z390 M gaming motherboard (mATX) provides a total of two PCIe x16 slots, one of which is connected to the chipset with a full 16 lanes, while the other is connected with four data lines. For additional plug-in and expansion cards, the motherboard has two PCIe x1 slots.

The four DIMM slots support up to 64GB of DDR4 memory in dual-channel mode. Native support of the Z390 chipset clock rates up to 2.666 MHz, OC allows the Gigabyte Z390 M gaming but also the operation of RAM kits up to 3,400 MHz. There are six SATA 6G connectors and two M.2 slots for hard drives and SSDs.

At the I / O panel, the Gigabyte Z390 M Gaming has a USB 3.1 connector with Type C socket. This new USB type C port is very thin and can be plugged in on both sides. USB 3.1 or USB 3.1 Gen 2 achieves maximum speeds of 10 Gbps per port, and USB ports with this standard generally support the fast charging function of smartphones and tablets. In addition to the I / O panel, in addition to a USB 3.1 Type A and four USB 3.0 ports, there is also an HDMI and a DVI-D connection. Internally, the motherboard provides a large selection of ports and headers.

Only compatible with Intel CPUs of the 8th and 9th generation!

Technical details:
– Format:
– Micro-ATX
– chipset:
– Intel Z390
– Base:
– 1151 (v2) (for Intel 8th and 9th generation CPUs)
– R.A.M:
– 4x DDR4 (2,666 MHz, up to 4,000 MHz using OC)
– Dual-Channel
– Max. 64 GB
– Slots (physical):
– 1x PCIe 3.0×16
– 1x PCIe 3.0 x16 (electric x4)
– Compatible multi-VGA configurations: 2-Way AMD CrossFire
– 2x PCIe 3.0×1

Internal connections:
– 6 x SATA 6G (2 of them as SATA Express)
– 2x M.2 (PCIe 3.0 x4; 2280)
– 2x USB 3.0 (one header)
– 4x USB 2.0 (two headers)
– 1x CPU fan header (4-pin)
– 3x fan header (4-pin)
– 1x COM header
– 1x TPM header
– 1x clear CMOS jumper
– 1x front panel audio C
– 1x RGB LED header (4-pin)

External connections:
– 1x PS / 2 keyboard / mouse
– 2 x USB 3.1 (1 x Type A and 1x Type C)
– 4x USB 3.0
– 1x HDMI
– 1x DVI-D
– 1x Gigabit LAN (Intel I219V)
– 2x WiFi antenna preparation
– 1x Wi-Fi / Bluetooth module
– 6x audio (ALC892)

Power supply:
– 1x 24-pin ATX 12V
– 1x 8-pin ATX 12V
– 1x 4-pin ATX 12V
