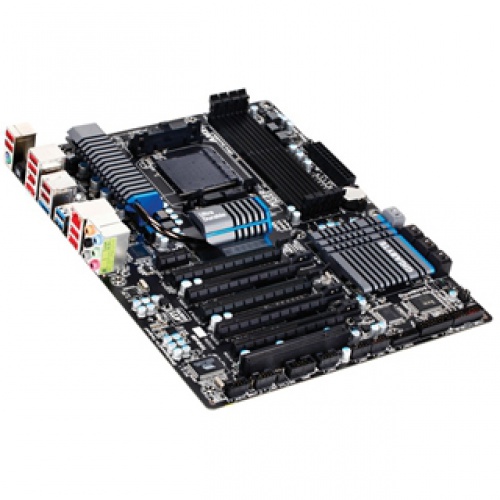

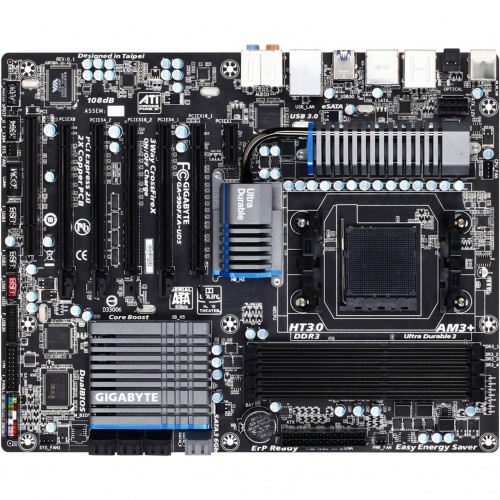

Gigabyte GA-990FXA-UD5 AMD 990FX Motherboard - Socket AM3

For this reason, the 990FX is ideal for multi-VGA configurations. Compared with the 890FX are not just combinations of several AMD cards (= Crossfire) is possible, but now also the use of multiple Nvidia cards (SLI =). The UD5 combines up to three AMD or Nvidia graphics cards, including all five PCIe x16 slots are available. In addition, the 990FX has a higher compatibility and is fully applicable to AM3 and AM3 + CPUs.

The UD5 has the black design of high-end motherboards from Gigabyte and has a very powerful Heatipipe-cooling, and several other OC features. With the variety of connections and number of which continues the superb list of features. This ranges from the modern USB 3.0 and SATA 6G and of course, includes many more like USB 2.0 and various audio connections.

Notes: To support new CPUs is necessary if a BIOS update. Through overclocking, and operation of the components outside of the specifications will void the warranty.

Technical details:
Format: ATX (305 x 244 mm)
Color: Black
Chipset: AMD 990FX / SB950
Socket: AM3 + (FX, Phenom II and Athlon II processors)
RAM: 4x DDR3 (up to 2,000 MHz [OC])
Dual-Channel
Slots:
5x PCIe x16
Connection: 16/16, 8/8/8, 4/4/4/4/4
Compatible Multi-VGA configurations: 2-/3-Wege-CrossFireX, 2-/3-Wege-SLI
1x PCIe x1
1x PCI
Internal connections:
8x SATA 6G
2x USB 3.0 (1x header)
6x USB 2.0 (3x headers)
1 x IEEE 1394a
1x S / PDIF Out
1x 4-pin fan
3x 3-pin fan
Power / reset / LED / Front panel audio
External ports:
1x PS / 2 keyboard / mouse
2x eSATA 6G
2x USB 3.0
8x USB 2.0
1x Gigabit LAN
1 x IEEE 1394a
1x S / PDIF optical
6x audio (7.1, ALC 889)
Power supply:
1x 24-pin ATX
1x 8-pin EPS
Compatibility: Windows XP, Vista, 7
Features:
Bulldozers ready
for AM3 + – and AM3 CPUs
3-way SLI and CrossFireX
Modern Ports: USB 3.0, SATA 6G, eSATA 6G
Ultra Durable design with durable components
Multiple OC-equipment (Heatpipe Cooler, dual BIOS UEFI)
