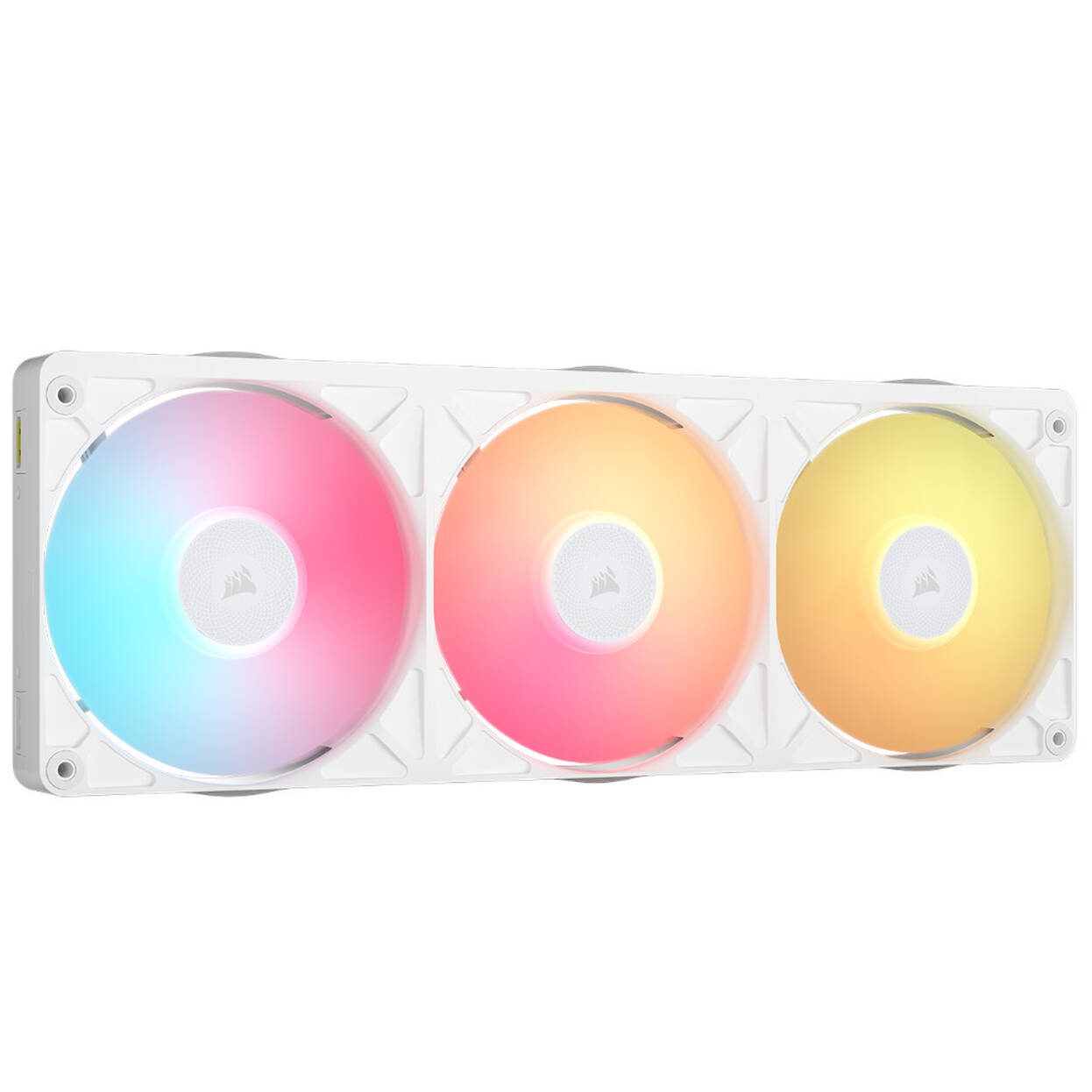

CORSAIR iCUE LINK RX360 II Unified Frame RGB Triple-Fan PWM Fan, 2,100 RPM – White

The CORSAIR iCUE LINK RX360 II combines three 120mm fans in a sturdy triple-fan frame. The fixed unit makes installation easier and reduces cable clutter in your gaming PC or workstation. Through PWM control, the performance adjusts to your system’s cooling needs. At low loads, the Zero-RPM mode can stop the fans completely.

–  The triple fan frame can be mounted with just four QuickTurn screws.
– The AirGuide vanes direct airflow precisely through radiators and dust filters.
– The magnetic levitation bearings support quiet and smooth operation.
– A total of 24 RGB LEDs provide customizable colors and lighting effects.
– The integrated temperature sensor enables precise fan control.
– Quick installation with fewer cables

The frame measures 360 × 129 × 26 mm and combines all three fans into a single unit. Power and data are routed directly through the frame. This makes the triple fan system easier to install and ensures a tidy white setup.

Powerful performance and quiet operation
The fans start at 400 RPM and reach a maximum of 2,100 RPM. Each fan moves up to 110 m³/h of air. The static pressure reaches up to 3.57 mmH₂O, reliably directing airflow through radiator fins and dust filters. Noise levels start at 10 dB(A) and reach a maximum of 32.8 dB(A).

RGB lighting and iCUE control

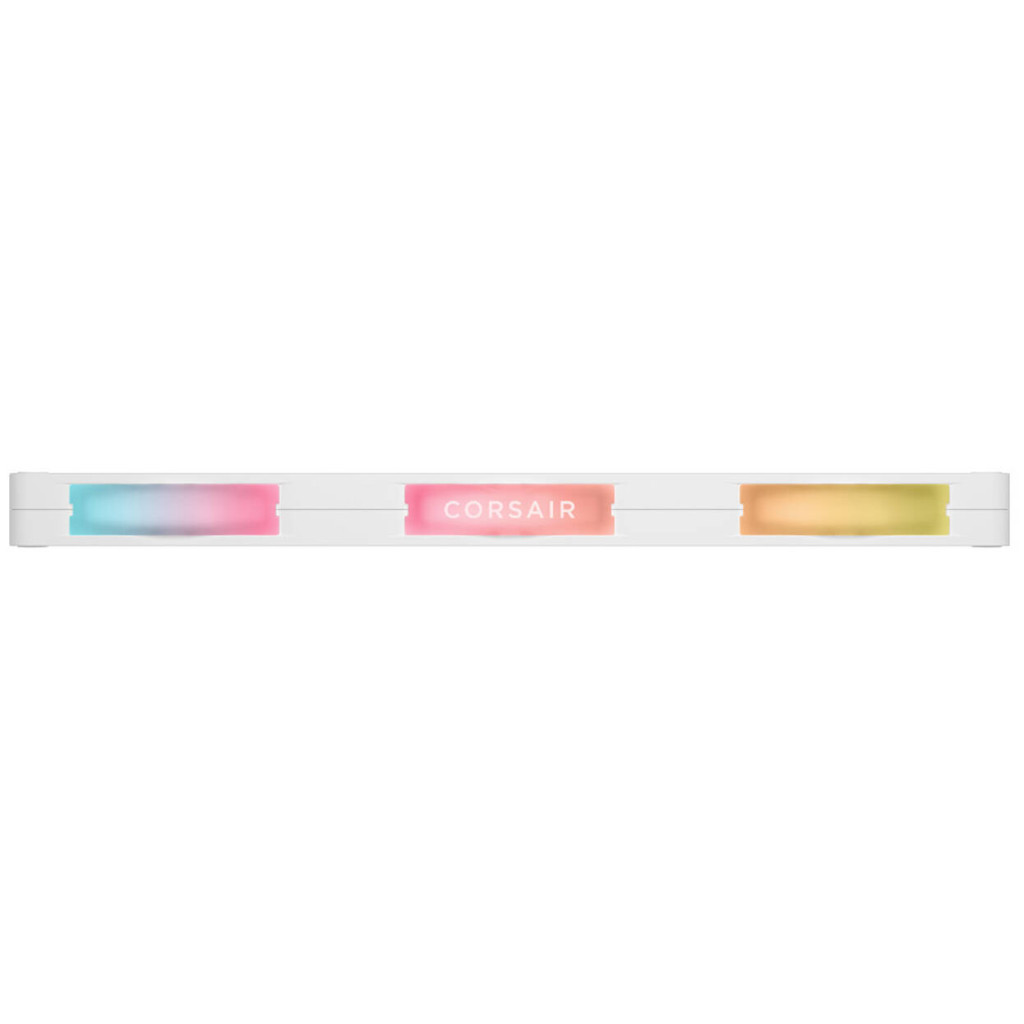

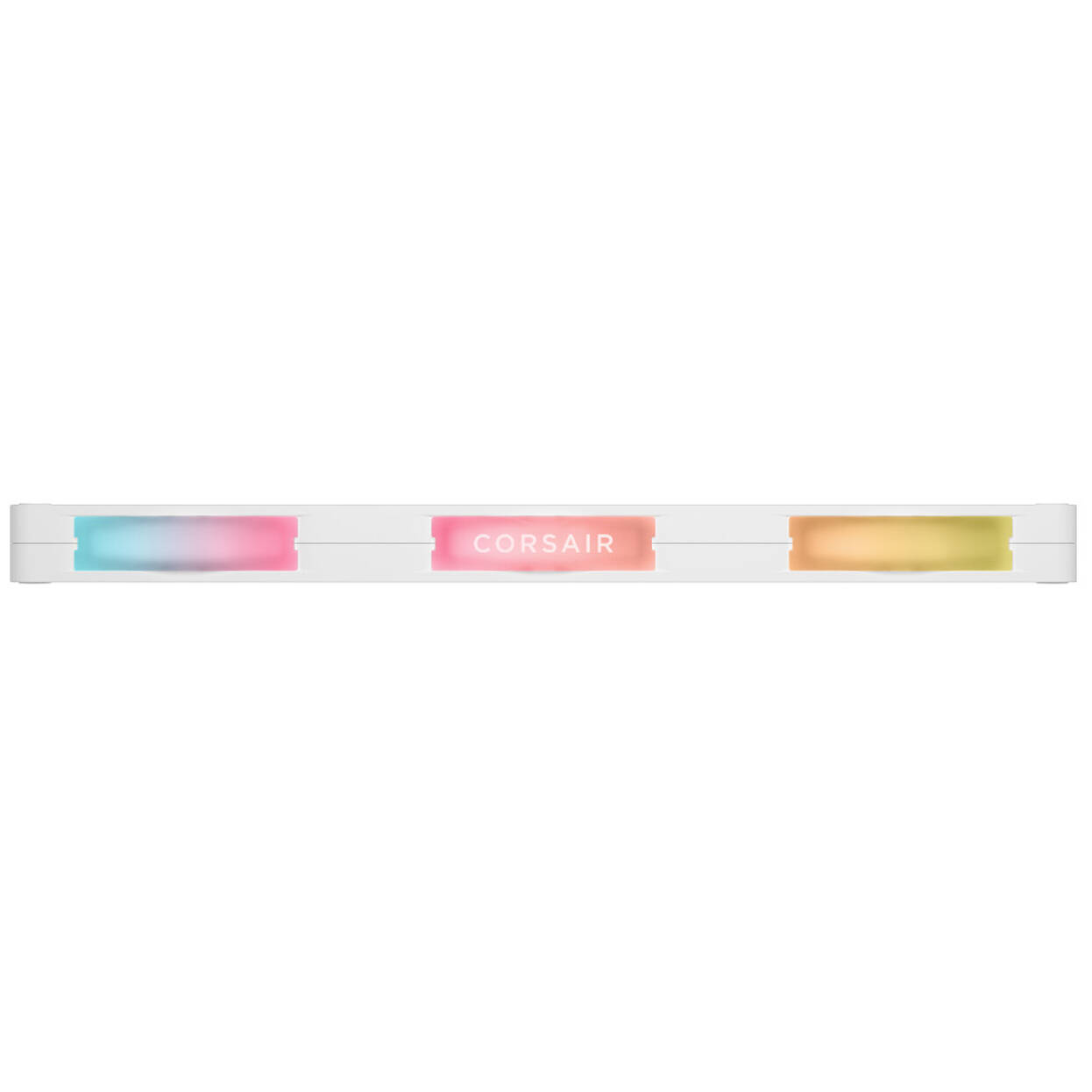

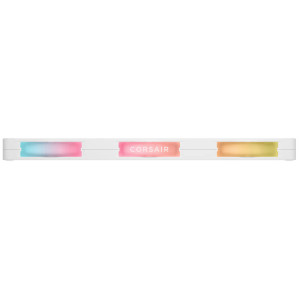

Each fan has eight RGB LEDs, which are also visible through the side viewing windows. With CORSAIR iCUE, you can adjust colors, effects, fan curves, and the Zero-RPM mode to suit your system. The temperature sensor provides current readings for more accurate control.

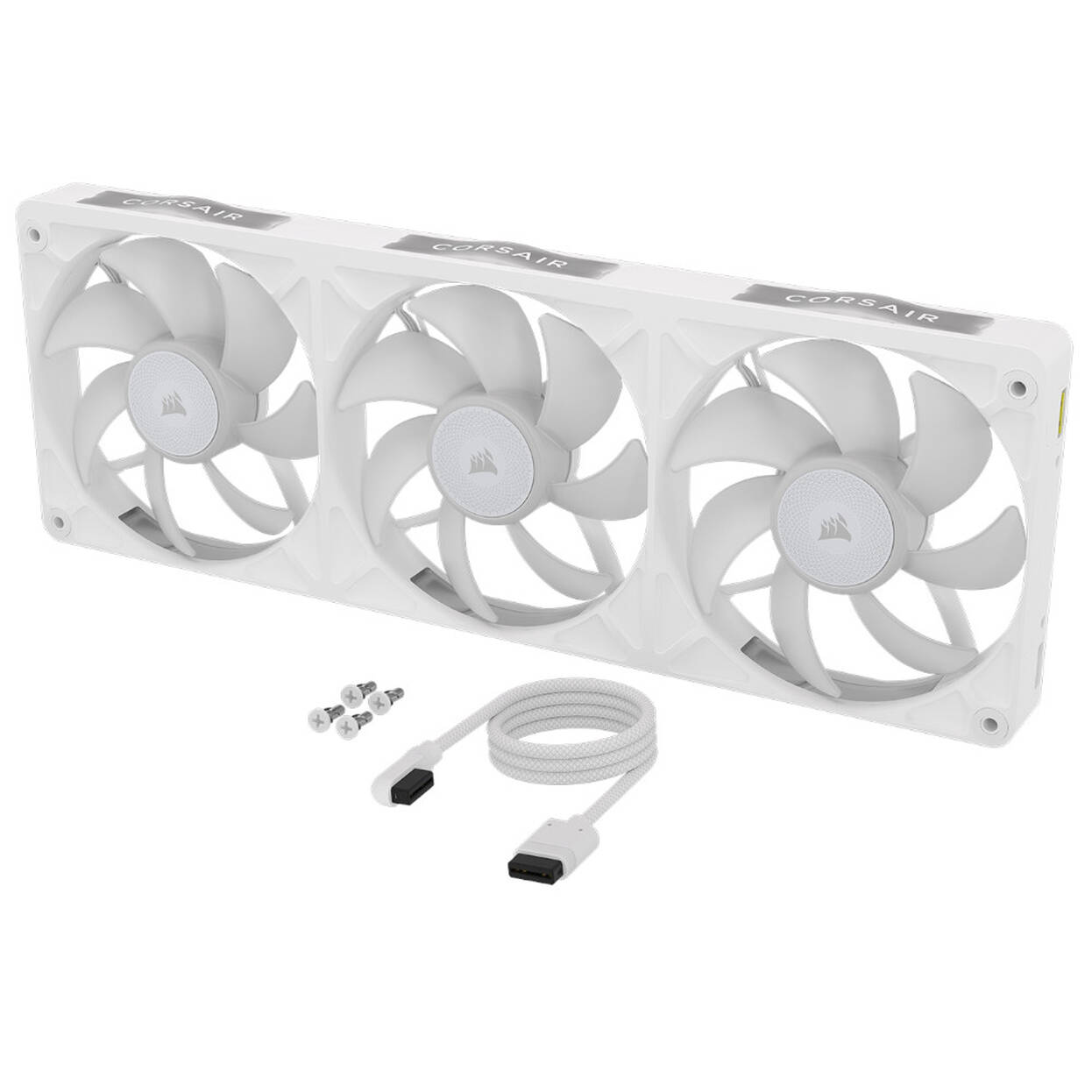

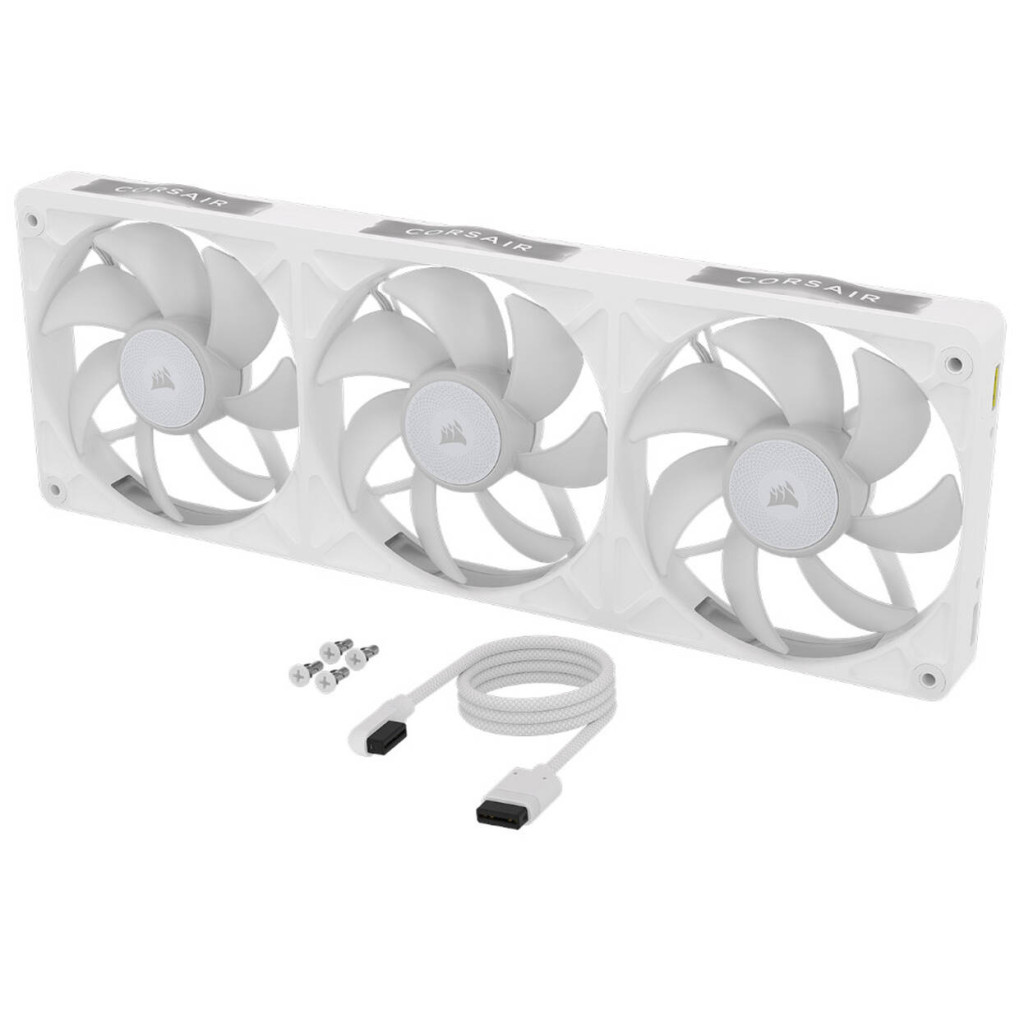

Note: The package includes an iCUE LINK System Hub, a USB-C cable, a 600mm iCUE LINK cable, a 135mm iCUE LINK cable, and four QuickTurn screws.

Features:

–  Unified frame for efficient airflow and easy installation with fewer screws and cables
– Optimized for low-noise operation at everyday fan speeds
– Magnetic Dome bearing with Zero RPM Mode support
– PWM control with speeds up to 2,100 RPM
– AirGuide technology for concentrated cooling
– 24 RGB LEDs for customizable lighting
– Swappable translucent side plates
– iCUE LINK System Hub required (sold separately)

With the release of the iCUE LINK LX360 and RX360 II fans, CORSAIR is introducing a different kind of cooling fan: the unified frame fan. Instead of using three separate fans mounted side by side to cool a radiator or provide system airflow, unified frame fans combine all three into a single unit.

Traditional triple-fan setups typically require more screws, more separate fan connections, and careful alignment to avoid uneven airflow and vibration. Unified Frame fans bring three 120mm fans together in a single rigid assembly that is easier to handle and faster to install.

By removing gaps between fans and integrating power and data routing directly into the frame, Unified Frame fans simplify installation, reduce cable clutter, and help maintain even airflow across a full 360mm radiator or mounting surface. The result is a cleaner build process and more consistent cooling behavior.

CORSAIR offers two Unified Frame families in the iCUE LINK ecosystem: RX360 II and LX360. Each is tuned for a different use case, but both share the same core advantages.
