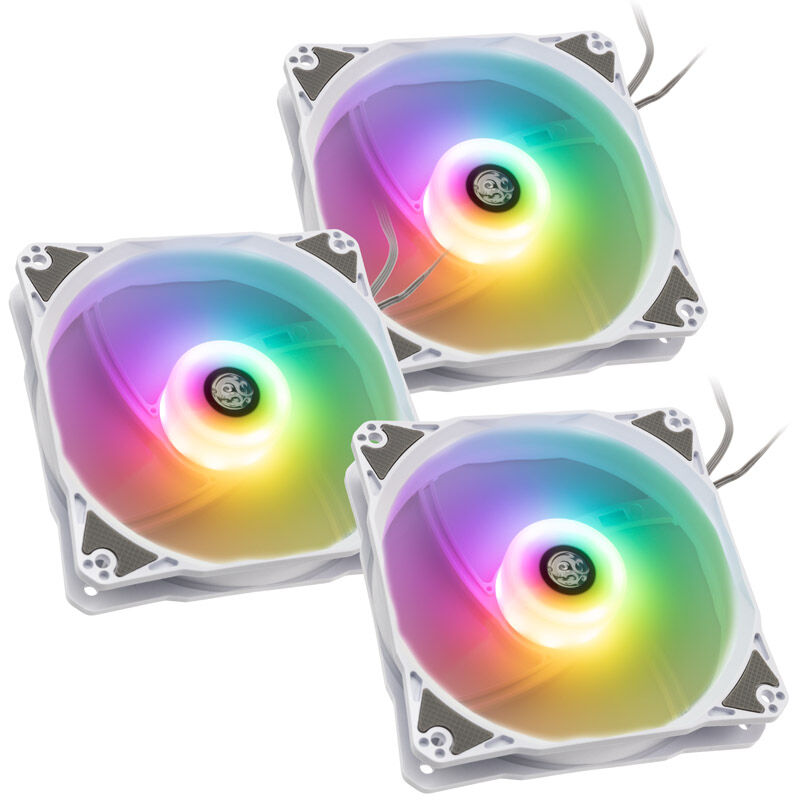

BitsPower Notos RGB PWM fan, 120mm - white, pack of 3

– Very suitable for radiator operation
– Rubber buffers at the corners to prevent vibrations
– DRGB lighting with beautiful effects
– Included RGB and PWM controllers

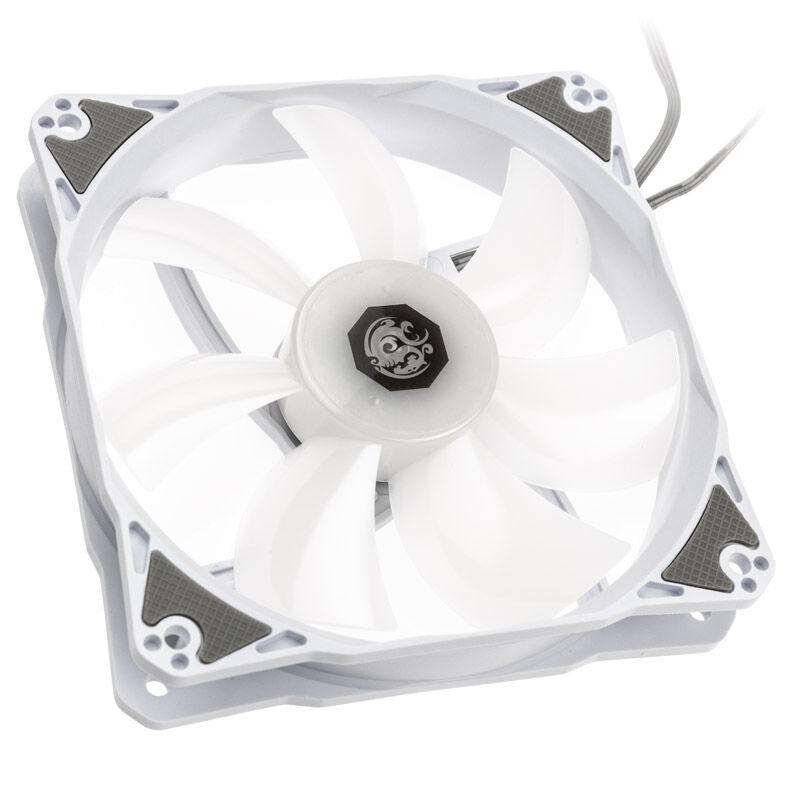

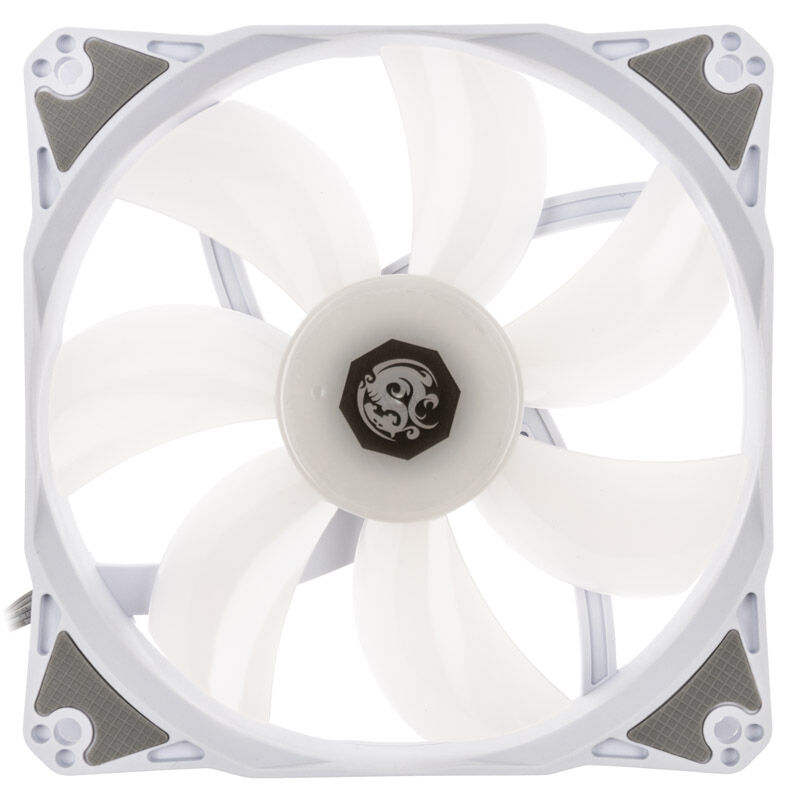

– White fan chassis

Suitable for radiator operation, controlled by included RGB and PWM controllers

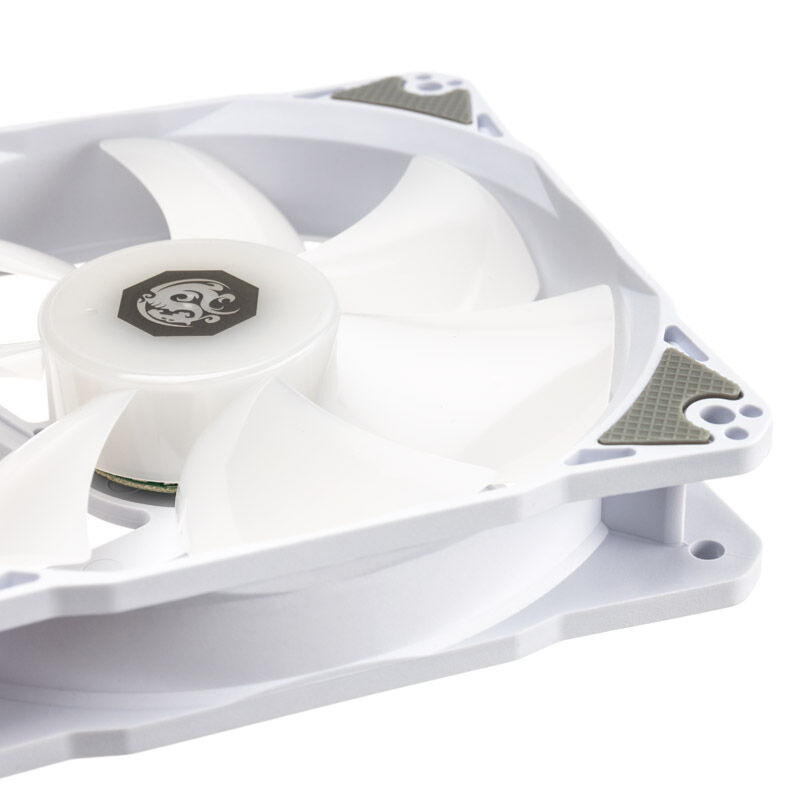

With the Notos 120, Bitspower has placed special emphasis on efficient cooling and a reasonable price. Due to the maximum speed of 1800 rpm, a maximum air mass is possible. Due to the good static pressure of 1.2 mmH2O, the Notos 120 are also suitable for operation in front of or behind a radiator. Rubber buffers at the corners of the fans ensure quiet operation, preventing vibrations and unsightly noise even at high speeds.

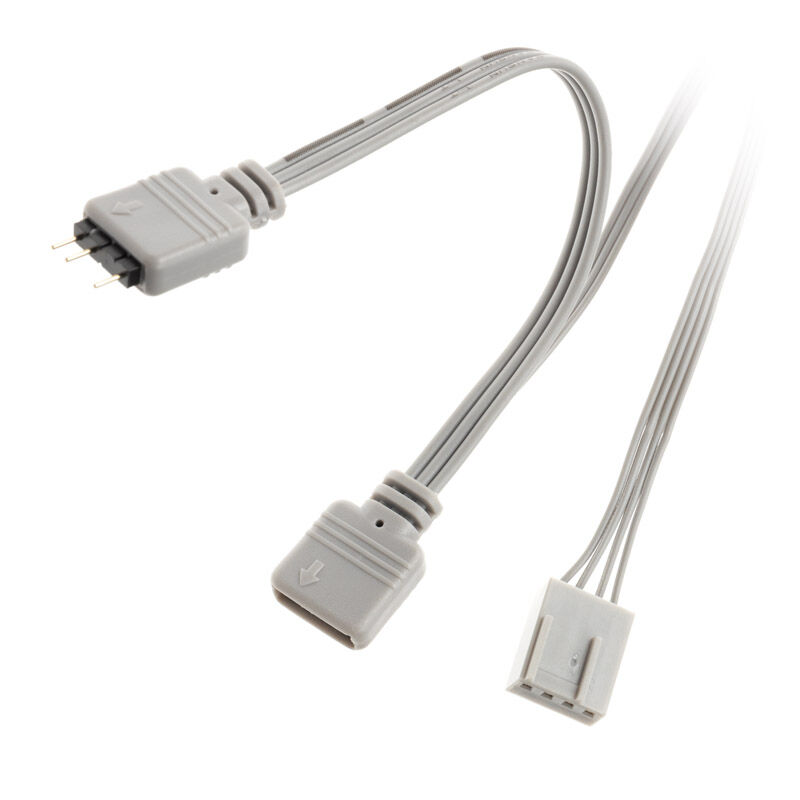

For individual control of the fan speed, the fans each have a 4-pin PWM connector that can be connected to the supplied PWM controller. It picks up the signal from a PWM header on the motherboard and runs the connected fans in series at the same speed. In addition, a 12V SATA connector is required for the power supply.

Easy commissioning thanks to series connection and RGB controller

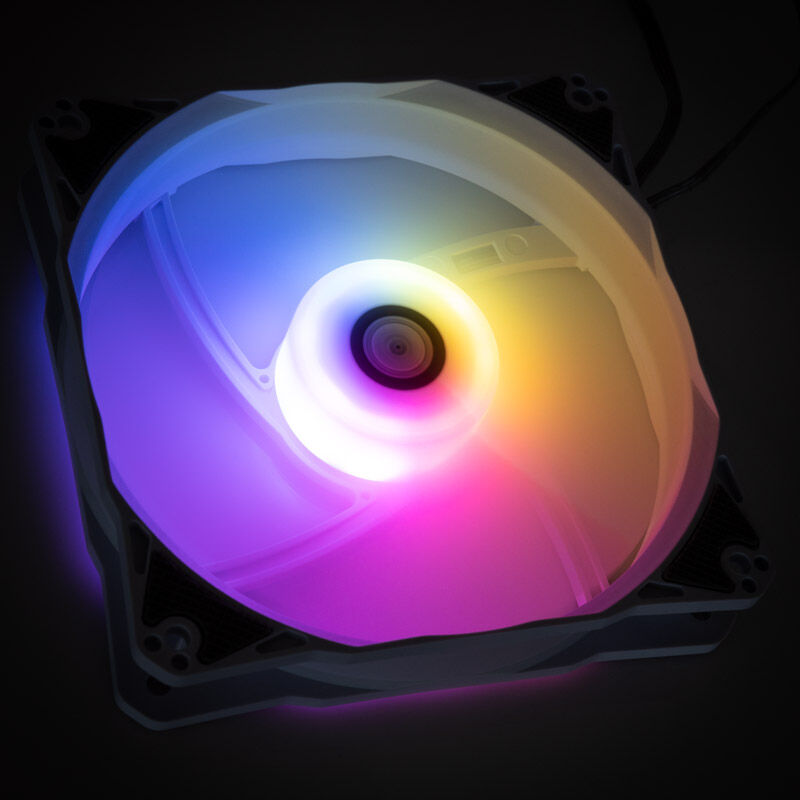

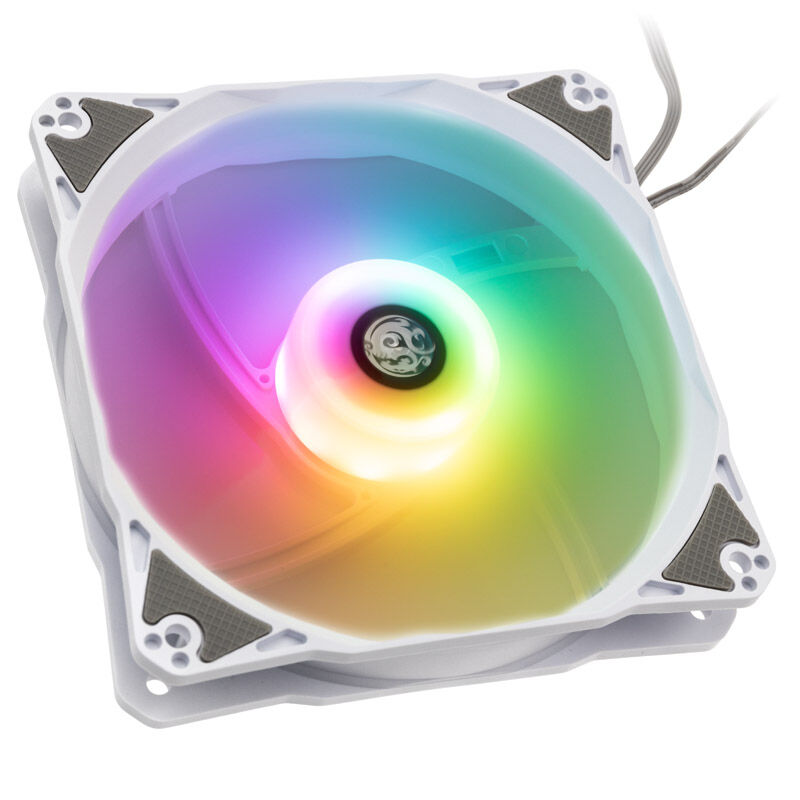

For individualization, RGB lighting with eight LEDs per fan is integrated. To adjust the lighting, programs such as ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, Biostar VIVID LED DJ and Razer Chroma can be used. The supplied RGB controller is connected to a 3-pin connector with 5VDG assignment on the motherboard and a 12 V SATA connector for power supply. A total of 8 fans can be connected to the controller and set via three switches.

Optionally, a fan can also be connected directly to the motherboard via 3-pin connector with 5VDG assignment. Additional fans can then be connected to it via daisy chaining.

Technical details
– Color: White
– Dimensions: 120 x 25 x 120mm (W x H x D)
– Material: plastic, rubber
– Volume: max. 28 dB(A)
– Speed: max. 1800 rpm
– Delivery volume: max. 100.24 m³/h
– Static pressure: max. 1.2 mmH2O
– Voltage: 12VDC
– Starting voltage: 7VDC
Power consumption:
– Fan: max 2.4W
– Illumination: max. 2.0 W
– Current:
– Fan: 0.2A max
– Illumination: max. 0.4 A
– RGB: addressable, 3-pin 5VDG
Power supply: 4-pin PWM connector

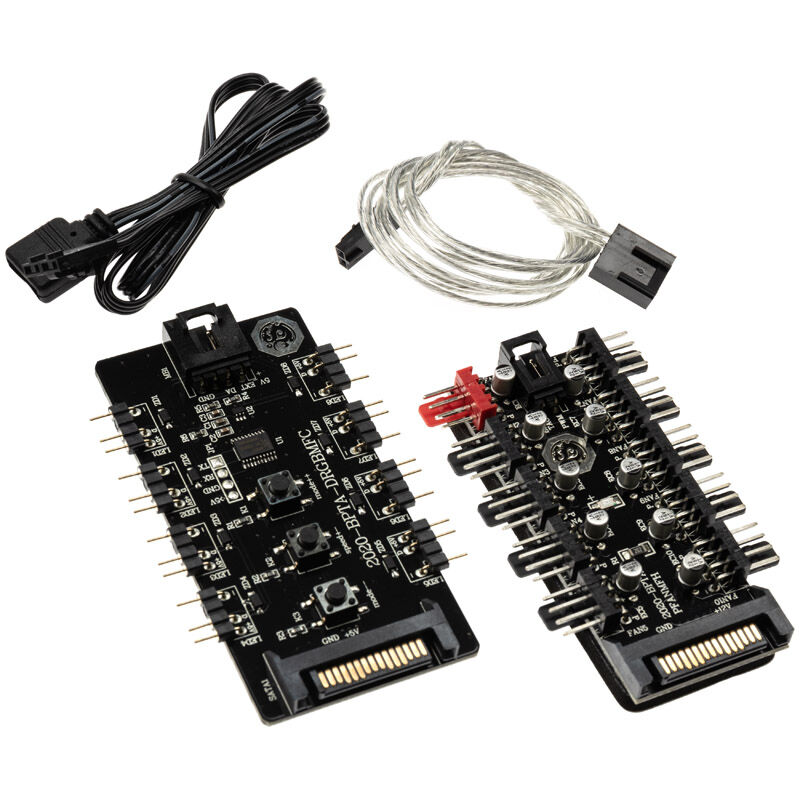

RGB controllers:
– Power connector: 1x SATA
– Rated voltage: 5V DC
– Current: < 1 watt
– Connection: 1x 5VDG
– Outputs: 8x 5VDG
– PWM controllers:
– Power connector: 1x SATA
– Rated voltage: 12V
– Connection: 1x 4-pin PWM
– outputs: 10x 4-pin PWM

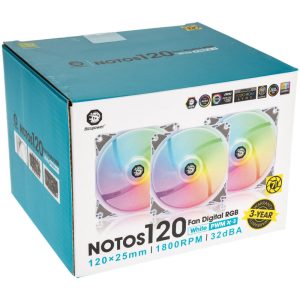

Scope of supply:
– 1x set of 3 Notos RGB PWM fans, 120 mm – White
– 1x RGB controller
– 1x PWM controller
