Versatile high-end fan in black with striking ARGB lighting
Features:
- High efficiency PWM for use in cases or on radiators
- 30mm in depth and aerodynamic fan blades for extra cooling
- Connect up to four fans with clips for easy daisy chaining
- Available in regular or reversed models to hide spokes and hub stickers
- Includes screw covers for clean builds
Versatile high-end fan in black with striking ARGB lighting
Features:
- High efficiency PWM for use in cases or on radiators
- 30mm in depth and aerodynamic fan blades for extra cooling
- Connect up to four fans with clips for easy daisy chaining
- Available in regular or reversed models to hide spokes and hub stickers
- Includes screw covers for clean builds
Versatile high-end fan in black with striking ARGB lighting
Features:
- High efficiency PWM for use in cases or on radiators
- 30mm in depth and aerodynamic fan blades for extra cooling
- Connect up to four fans with clips for easy daisy chaining
- Available in regular or reversed models to hide spokes and hub stickers
- Includes screw covers for clean builds
Features:
– High efficiency PWM for use in cases or on radiators
– 30mm in depth and aerodynamic fan blades for extra cooling
– Connect up to four fans with clips for easy daisy chaining
– Available in regular or reversed models to hide spokes and hub stickers
– Includes screw covers for clean builds

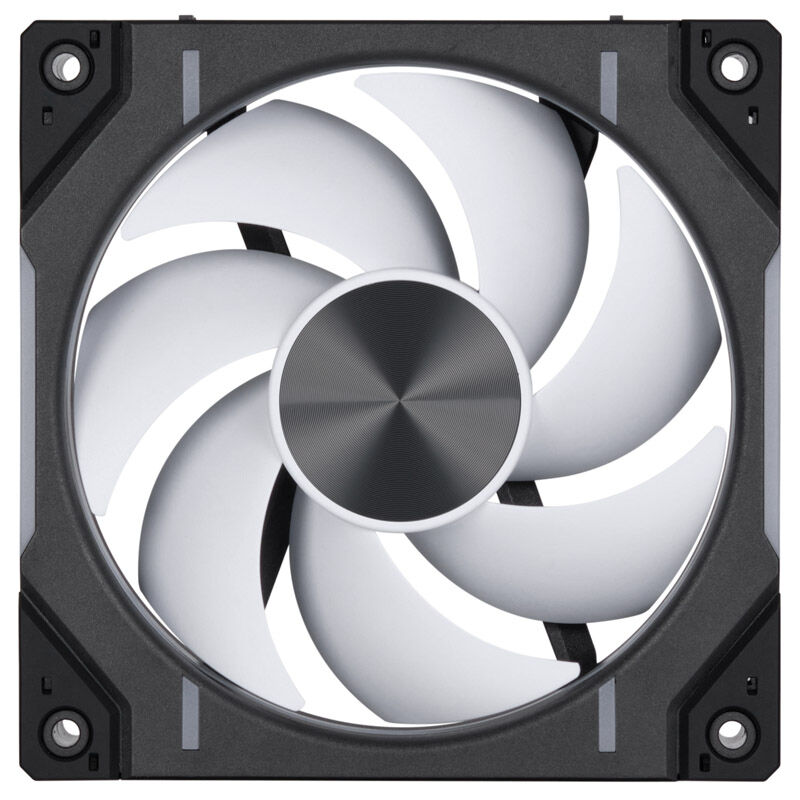

The Features of the PHANTEKS D30-120 Fan in detail

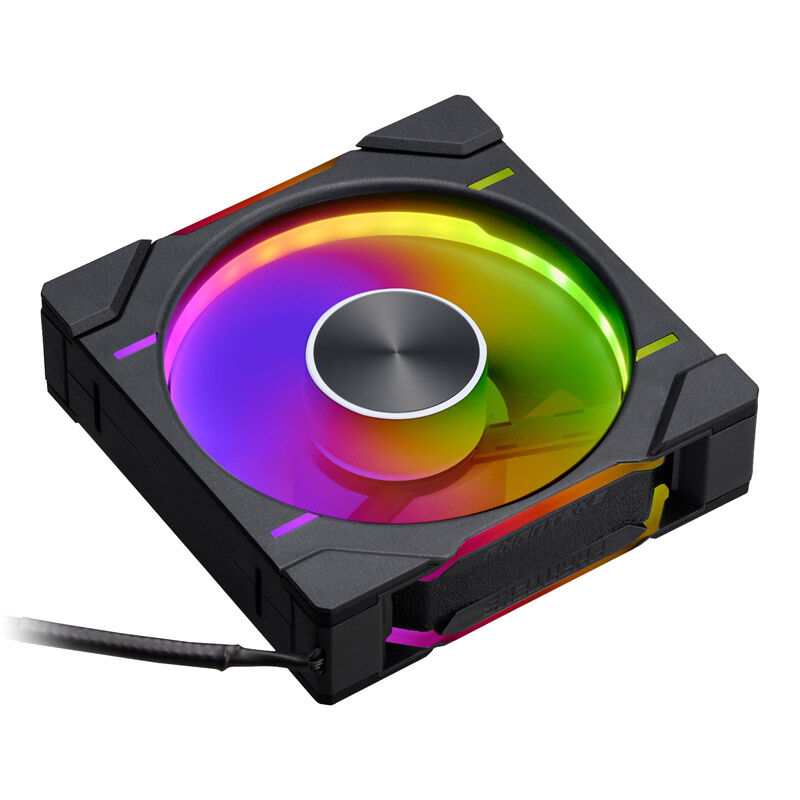

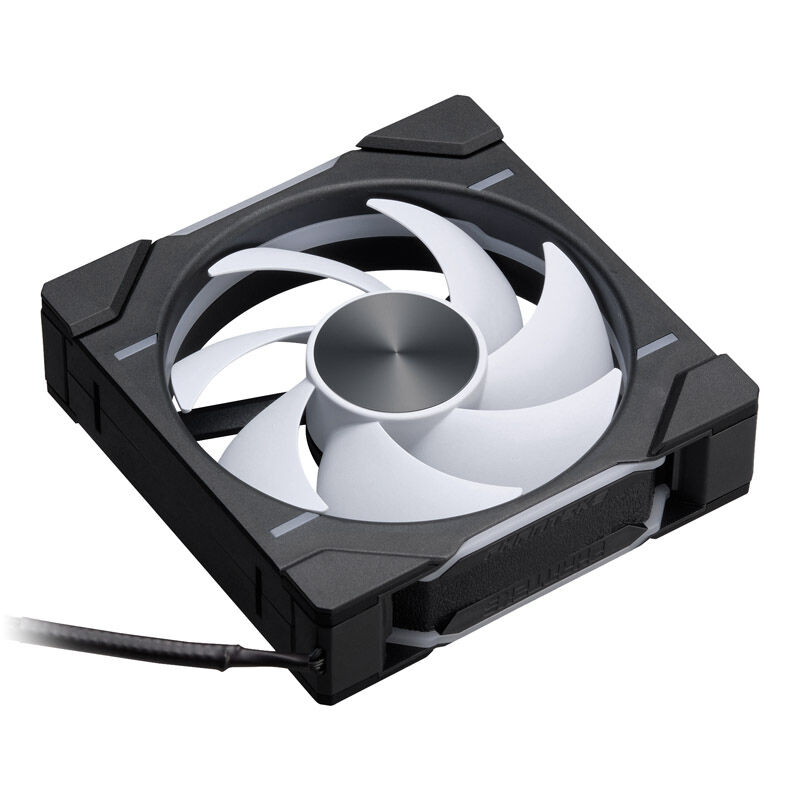

The PHANTEKS D30-120 PWM D-RGB fans are designed to provide high airflow and static pressure. Thanks to their depth of 30 mm and powerful hydrodynamic PWM motor and aerodynamic blades, they can used to cool your case with restrictive mesh and dust filters or be put on radiators. Furthermore, they provide extensive daisy-chaining capabilities without cable clutter. You can clip up to four of them together, using just one cable to connect to your motherboard for PWM and ARGB signals.

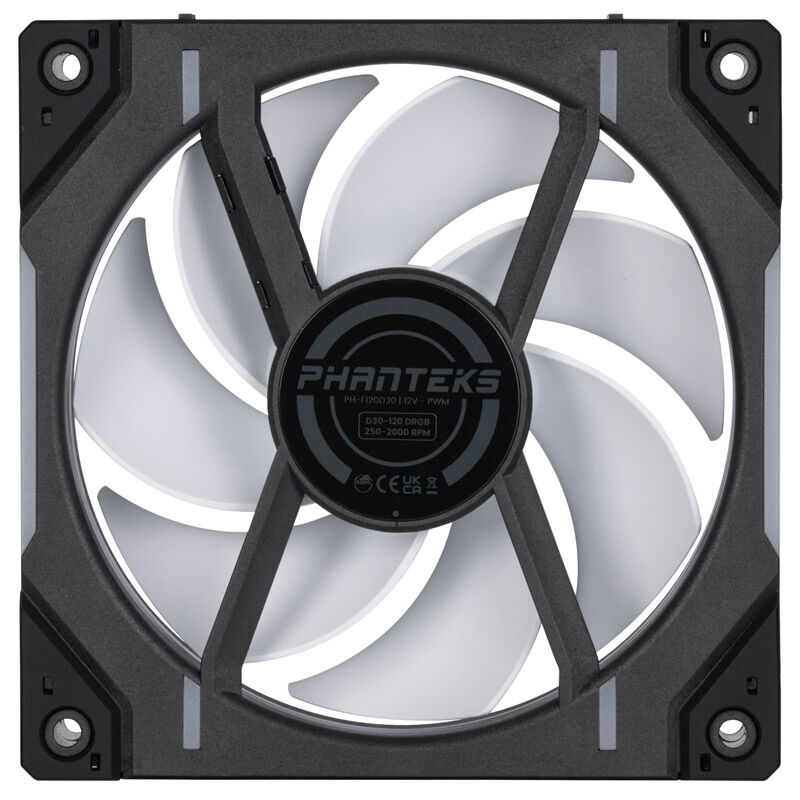

Available in regular and reversed airflow modes, you can choose the model you need, hiding unsightly hub stickers and spokes, avoiding obstruction of the integrated D-RGB lighting, enhanced by the reflecting blades, and keeping your build immaculate. This version runs in regular mode, moving air from the front to the rear and out of the case.

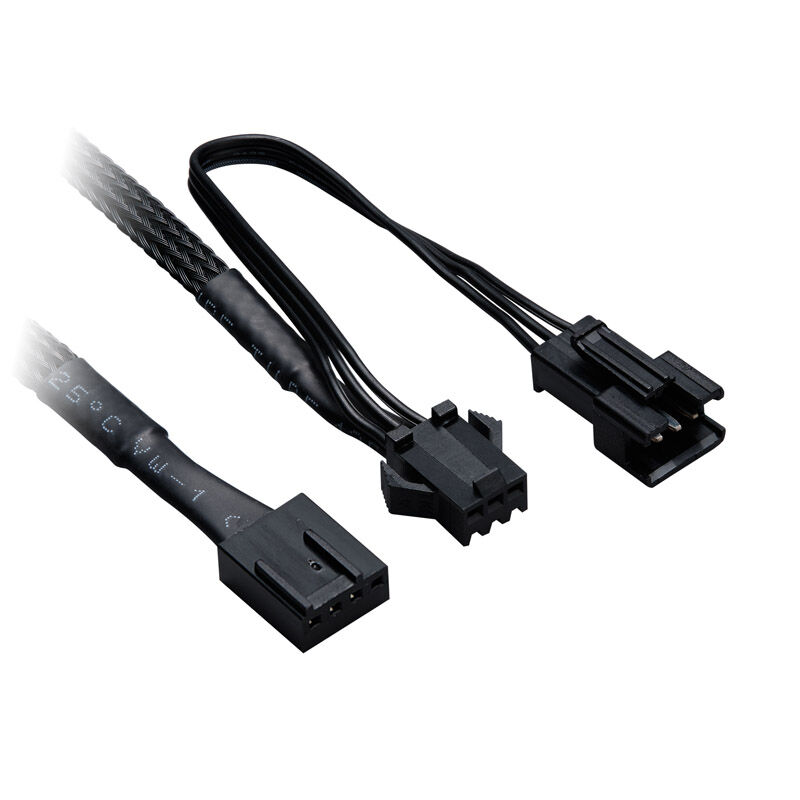

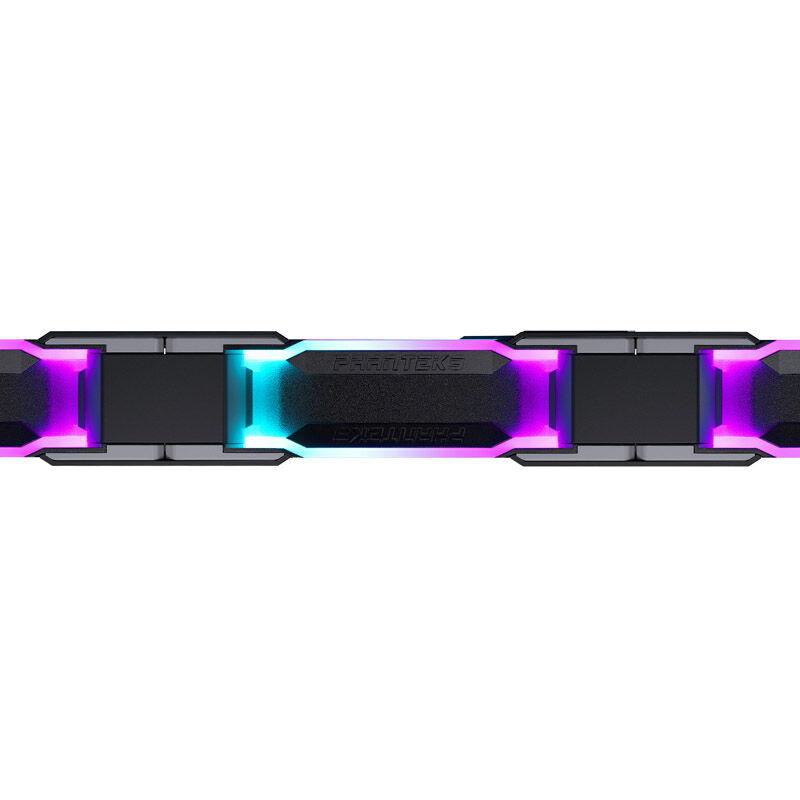

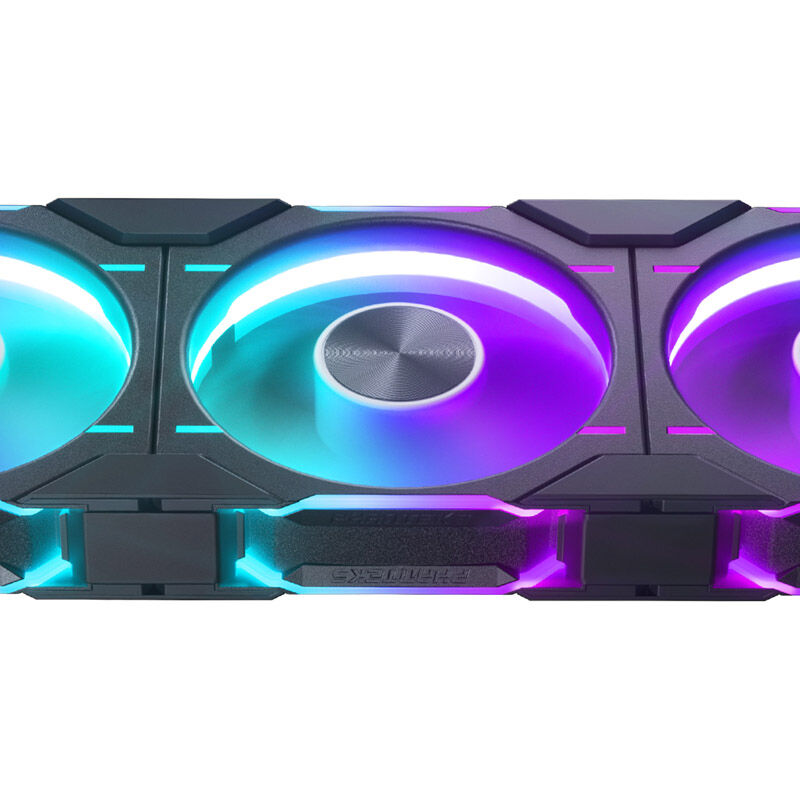

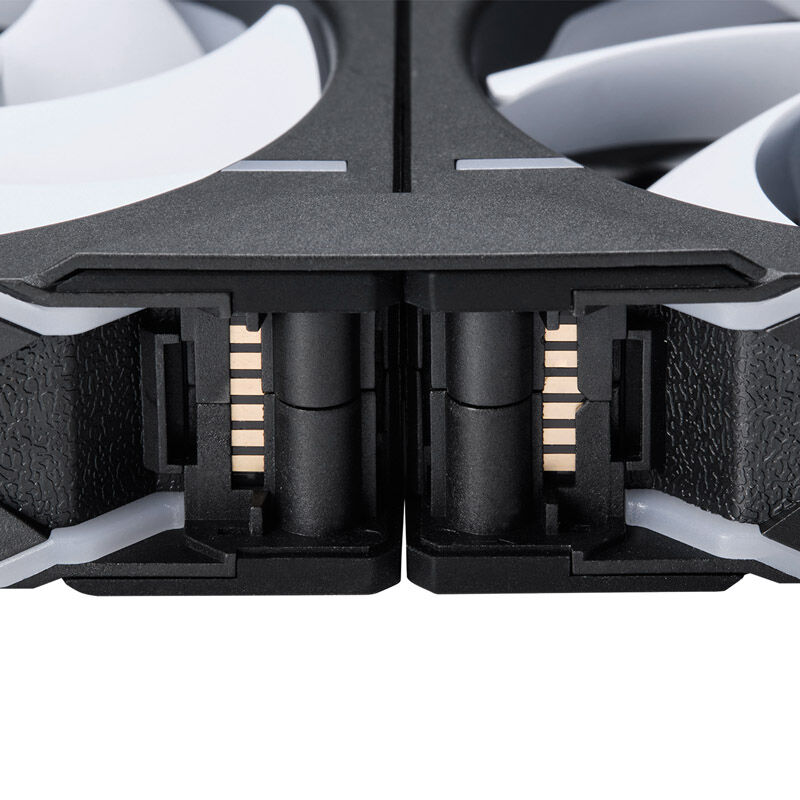

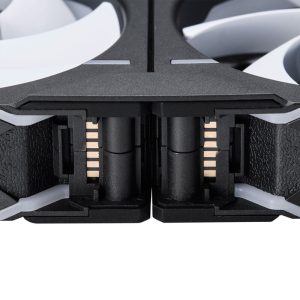

The fans can be connected by two clips on the sides of the fan, one of which passes the power from the first fan through a total of four. This reduces cable clutter, just the first fan needs to be connected to your PHANTEKS controller, via a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB adapter cable is provided to connect directly to your motherboard.
Specifications
| Dimensions | 120 x 120 x 30 mm (W x D x H) |
|---|---|
| Weight | 200 g |
| Colour | Black (frame), White (blades) |
| Material | Plastic (frame, rotor) |
| Bearing Type | Hydrodynamic |
| Airflow Direction | Regular (front to rear airflow) |
| Fan Speed | Up to 2,000 rpm |
| Airflow | Up to 109.24 m³/h |
| Static Pressure | Up to 3.01 mmH₂O |
| Noise Level | Up to 30.2 dB(A) |
| Current | Max. 0.20 A |
| Operating Voltage | 12V |
| Connections | 4-pin PWM 3-pin JST D-RGB |
| Cable Length | 100 mm + 500 mm extension cable |

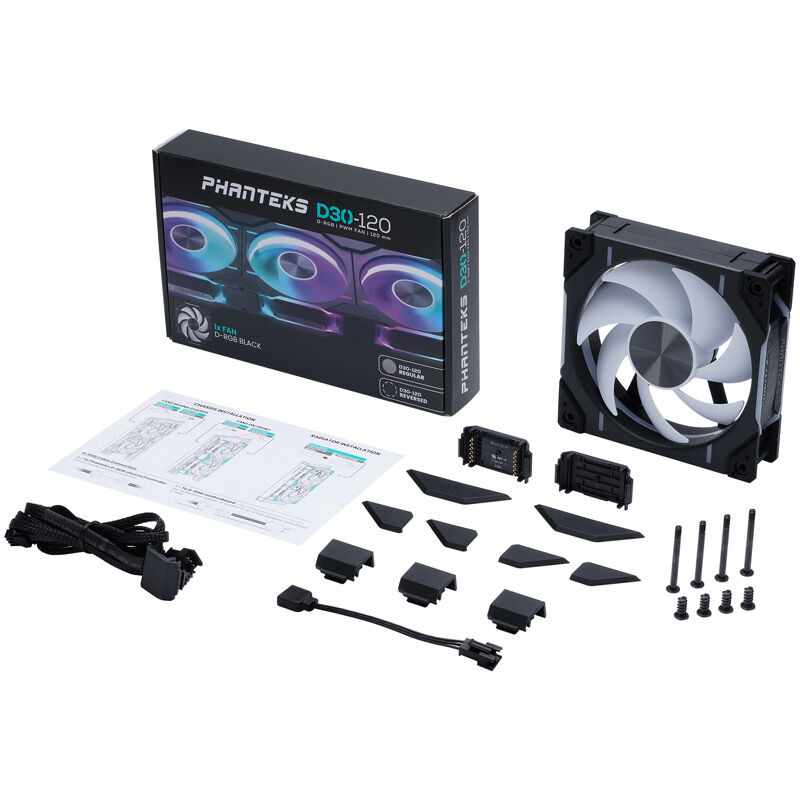

| Scope of Delivery | 1× D30-120 fan 1× 4-pin and 3-pin extension cable 1× corner clip cable 1× bridge clip connector 3× corner clips 1× bridge clip 2× bridge screw covers 2× corner screw cover L 2× corner screw cover R 4× fan screws 4× radiator screws D-RGB motherboard adapter |
£24.49£20.41 Inc VatEx Vat
