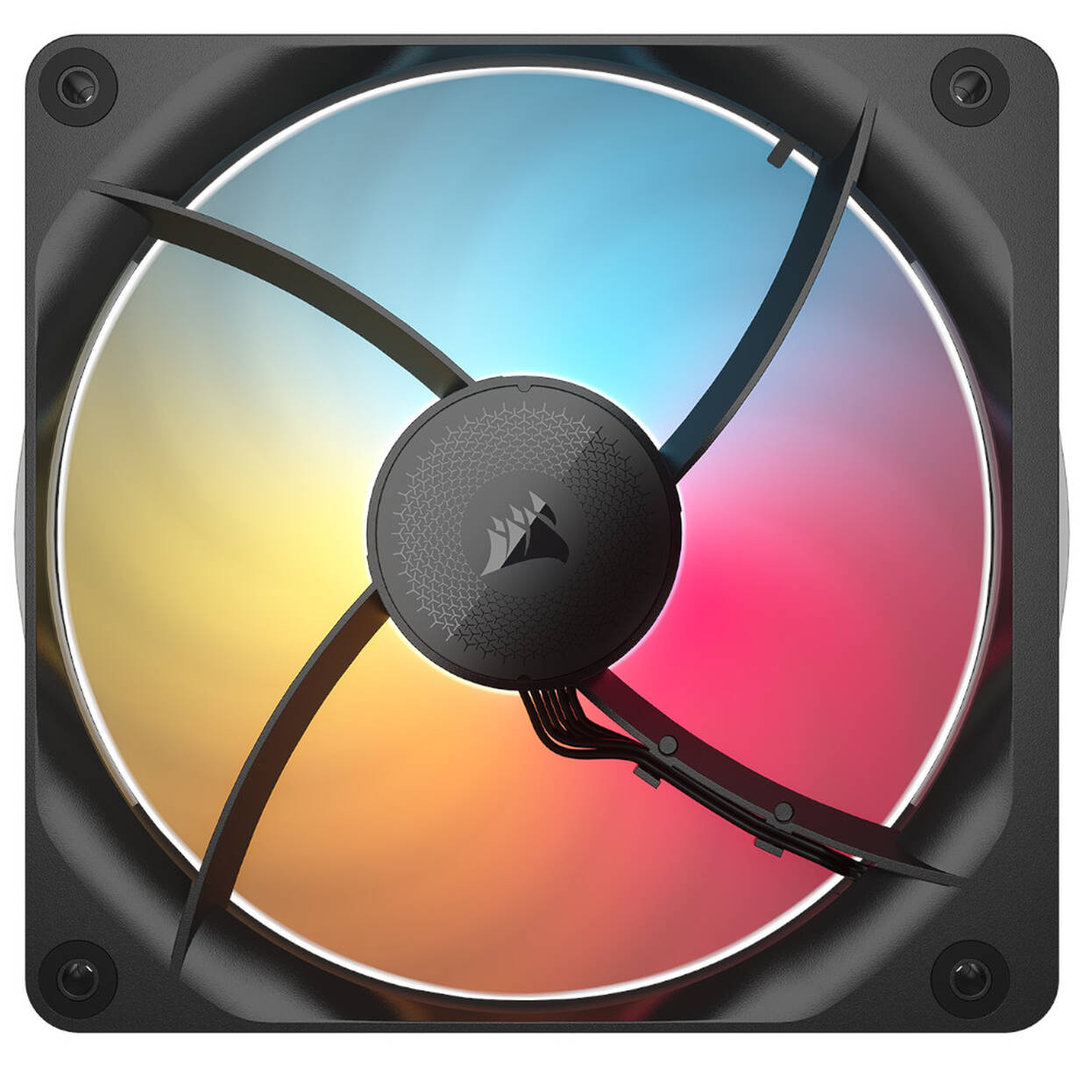

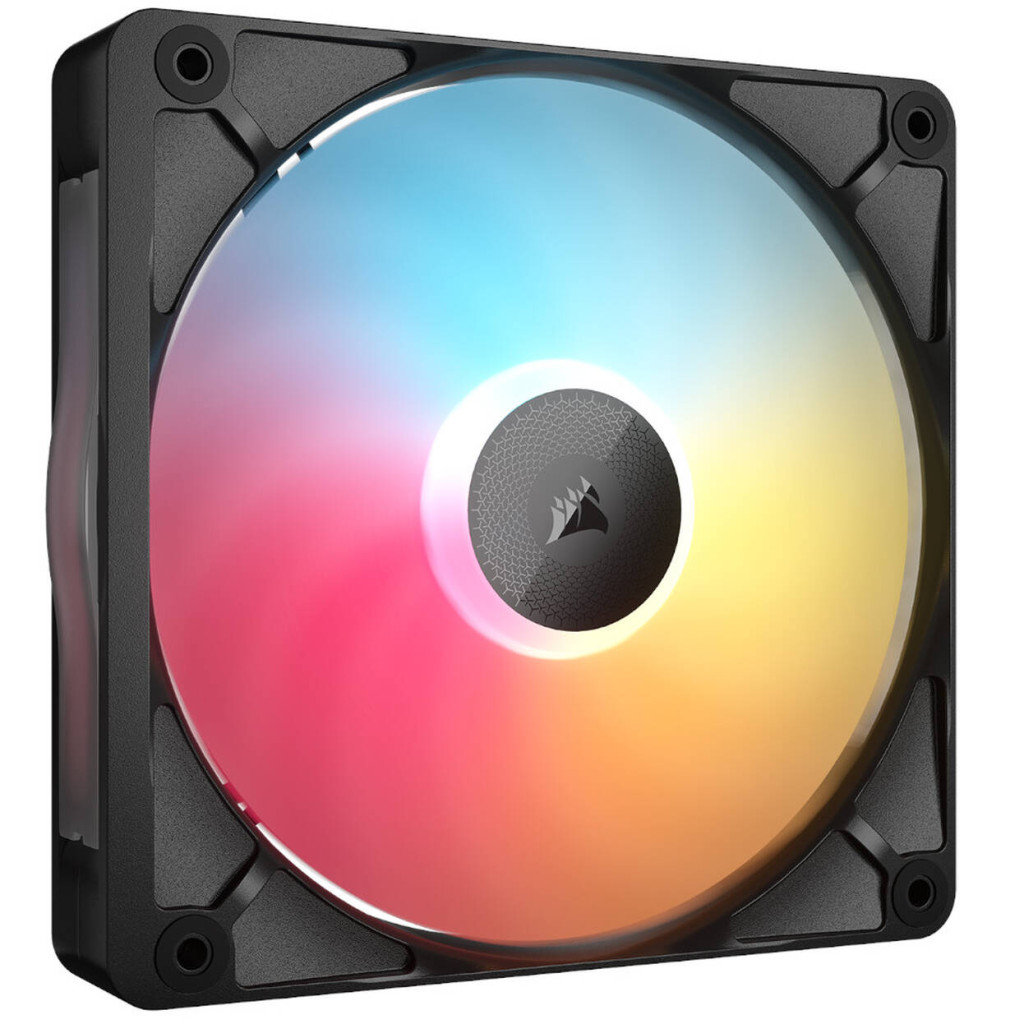

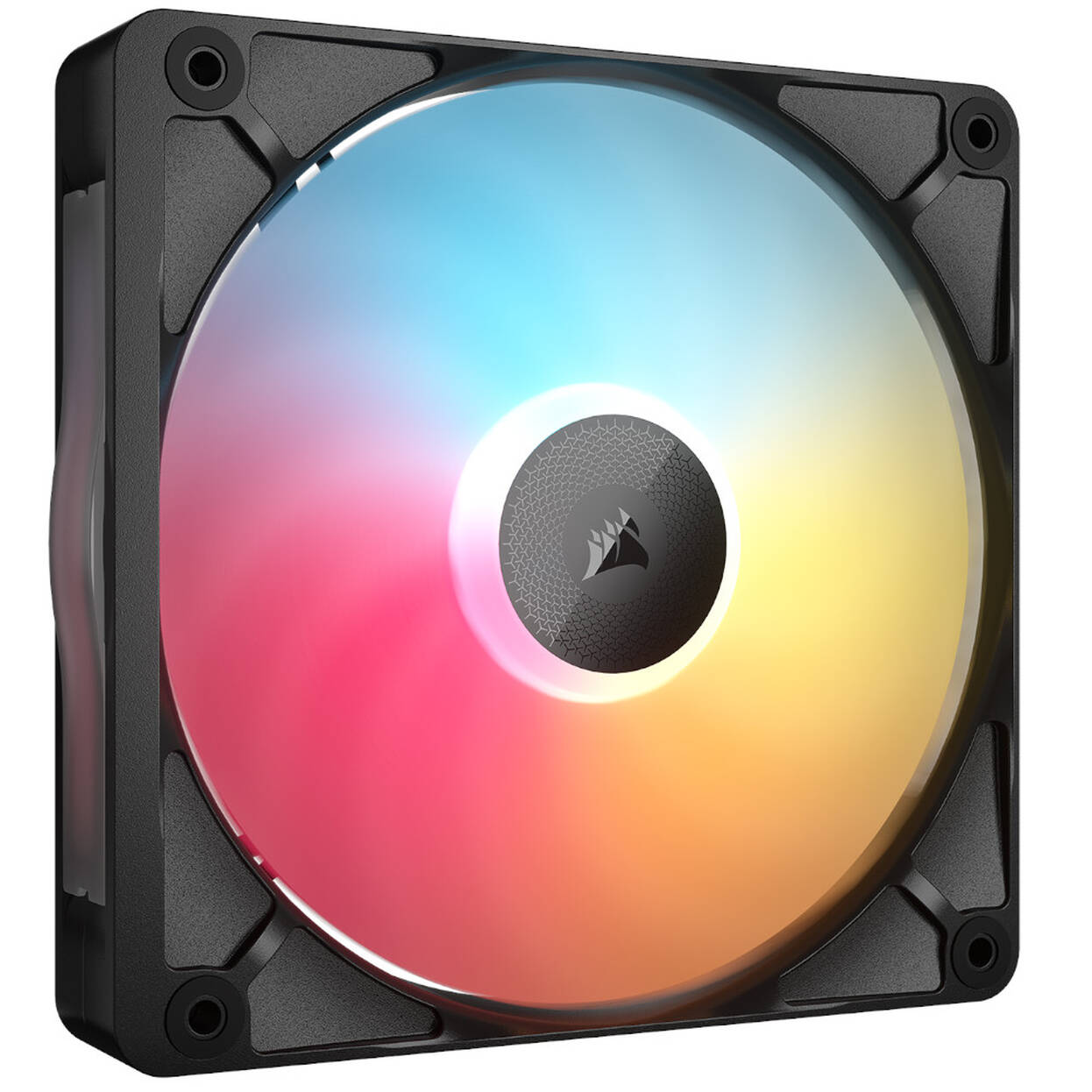

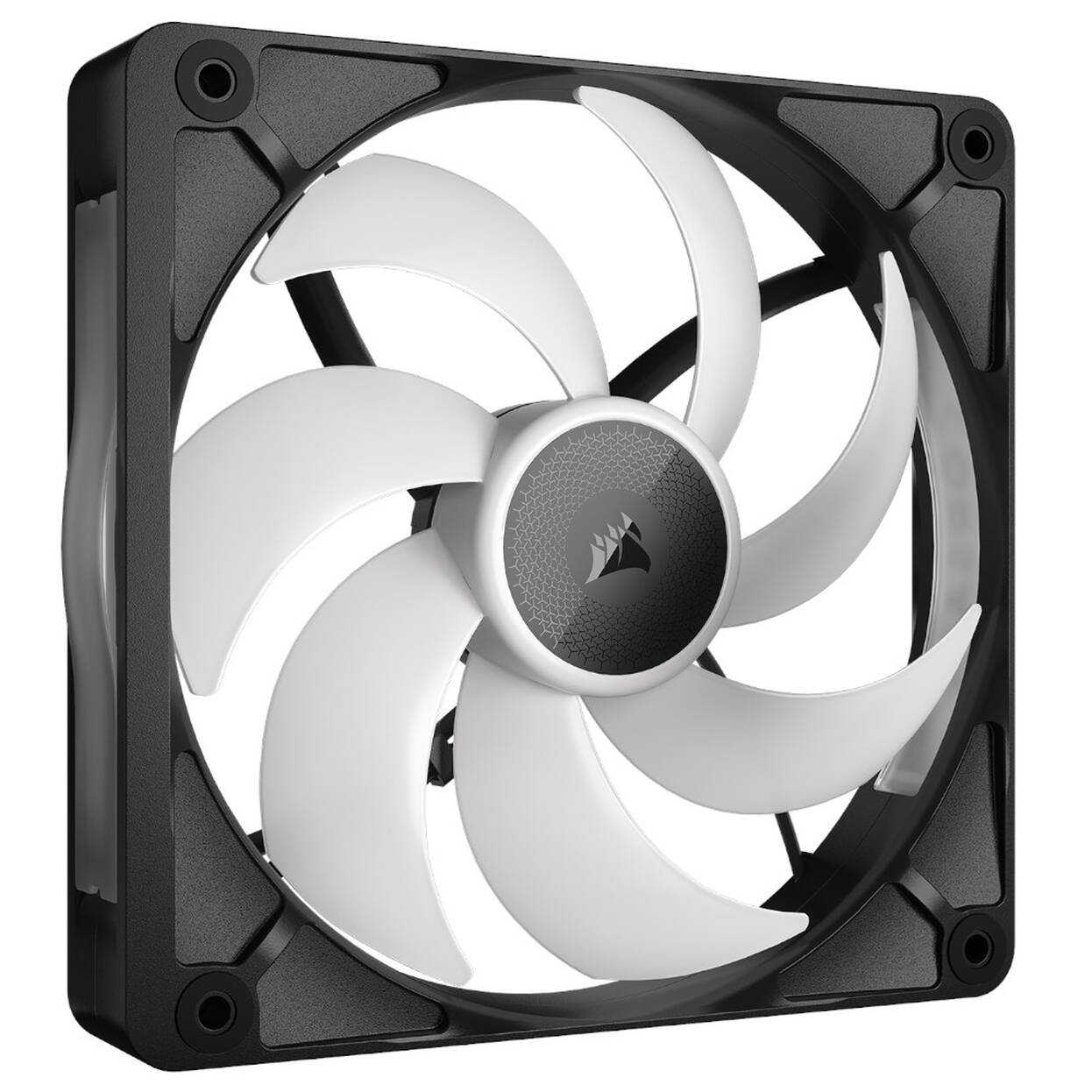

CORSAIR iCUE LINK RX140 RGB PWM Fan, 140mm, 1,700 RPM – Black

The CORSAIR iCUE LINK RX140 RGB delivers powerful airflow for gaming PCs and workstations thanks to its large 140mm form factor. PWM control adjusts the fan speed based on your system’s cooling needs, while RGB lighting complements your black setup with customizable colors and effects.

–  PWM control regulates fan speeds up to a maximum of 1,700 RPM.
– Airflow reaches up to approximately 161 m³/h, reliably dissipating heat.
– Static pressure peaks at 3.75 mmH₂O, making it suitable for use with radiators and dust filters.
– AirGuide vanes direct airflow precisely toward heat-generating components.
– A magnetic levitation bearing ensures quiet, smooth operation.
– Powerful 140mm Airflow

The larger fan surface area moves significant air through your case, supporting reliable cooling. This makes the RX140 RGB ideal for high-performance systems and radiator applications.

Flexible PWM Control
The fan operates at speeds up to 1,700 RPM, adjusting performance based on your PC’s heat output. Operation remains quieter during low-load periods, while airflow increases under heavier workloads.

Targeted Cooling for Radiators
With a maximum static pressure of 3.75 mmH₂O, the fan reliably pushes air through radiator fins, dust filters, and dense mesh surfaces. AirGuide vanes precisely direct the airflow.

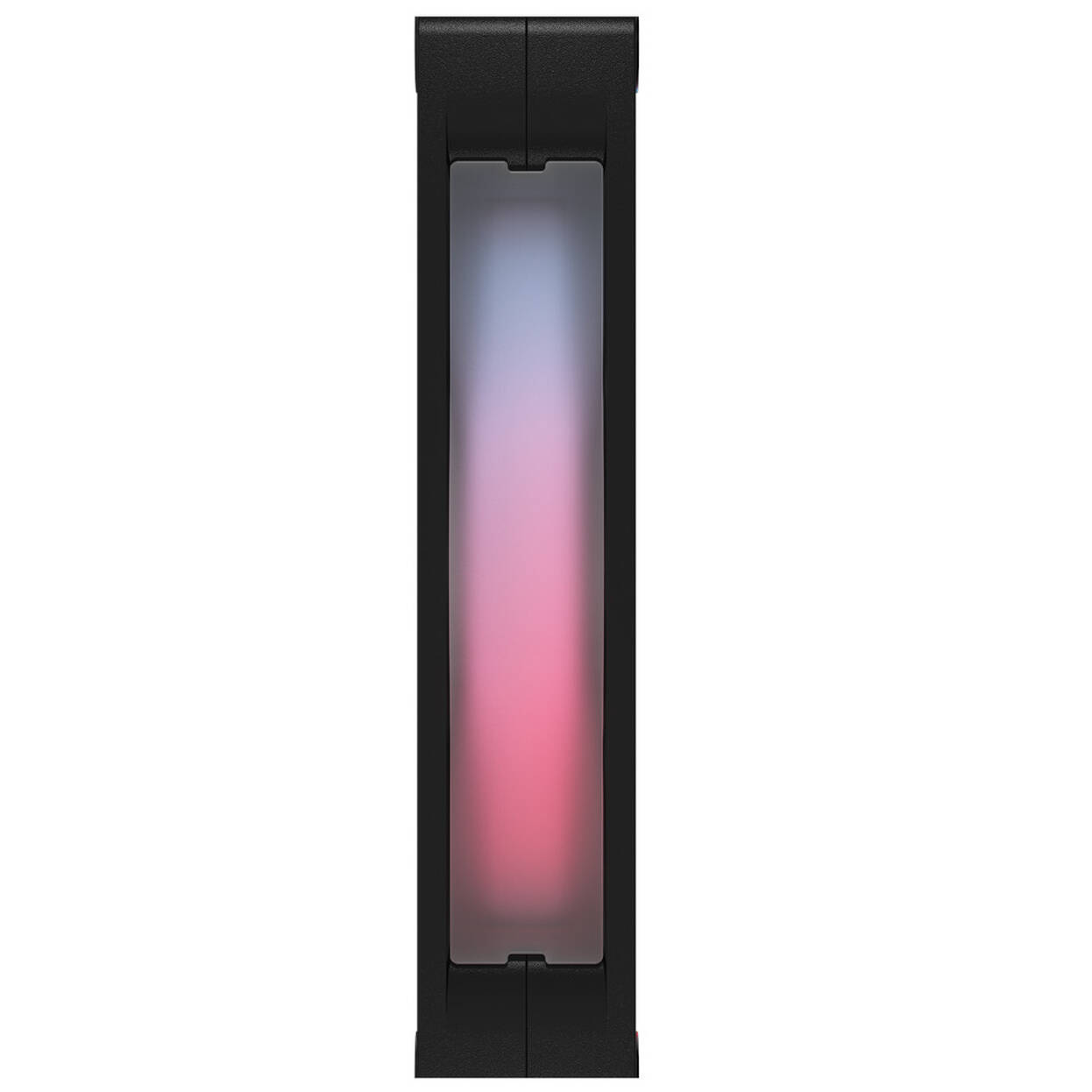

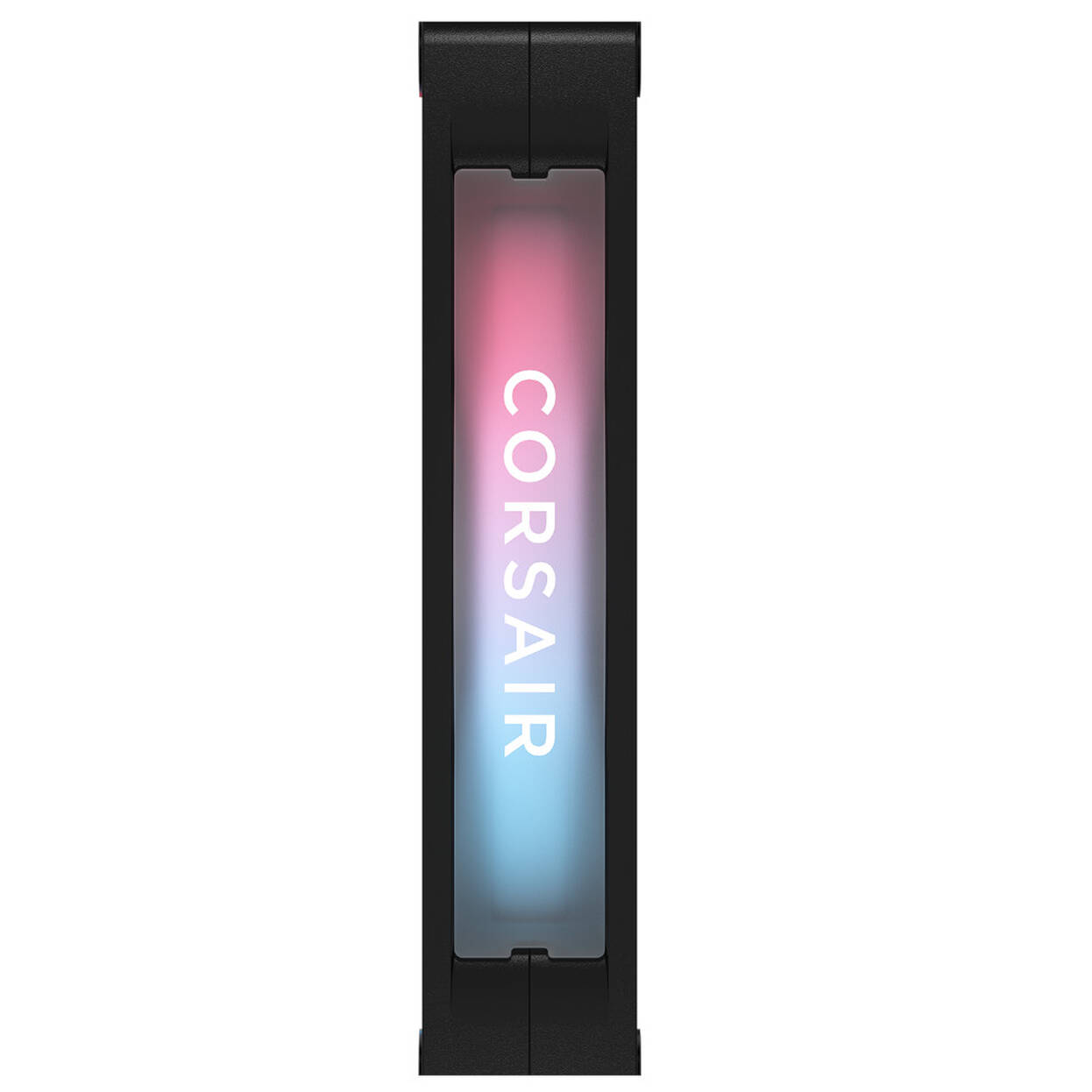

RGB Lighting for Your Black Setup
Use CORSAIR iCUE to customize colors, effects, and fan curves to match your gaming PC. The RX140 RGB combines powerful cooling with a modern aesthetic. Note: An iCUE LINK System Hub (sold separately) is required for operation. A single black RX140 RGB fan is included.

AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.

EVERY SOURCE OF NOISE ADDRESSED

CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.

Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.

REMOVING AGE-OLD ANNOYANCES

QUIKTURN SCREW REVOLUTION
Take CORSAIR’s QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

DIMENSIONS CONTROL STYLE
– 140 x 25mm PWM
– STATIC PRESSURE AIRFLOW (MAX)
– 0.15mm – 3.379mm H₂0 18.1 – 95.7 CFM
– RPM RANGE NOISE LEVEL (MIN)
– 300 – 1700 10 – 36 dBA
