Good cooling at a pleasant volume
– Very well suited for radiator operation

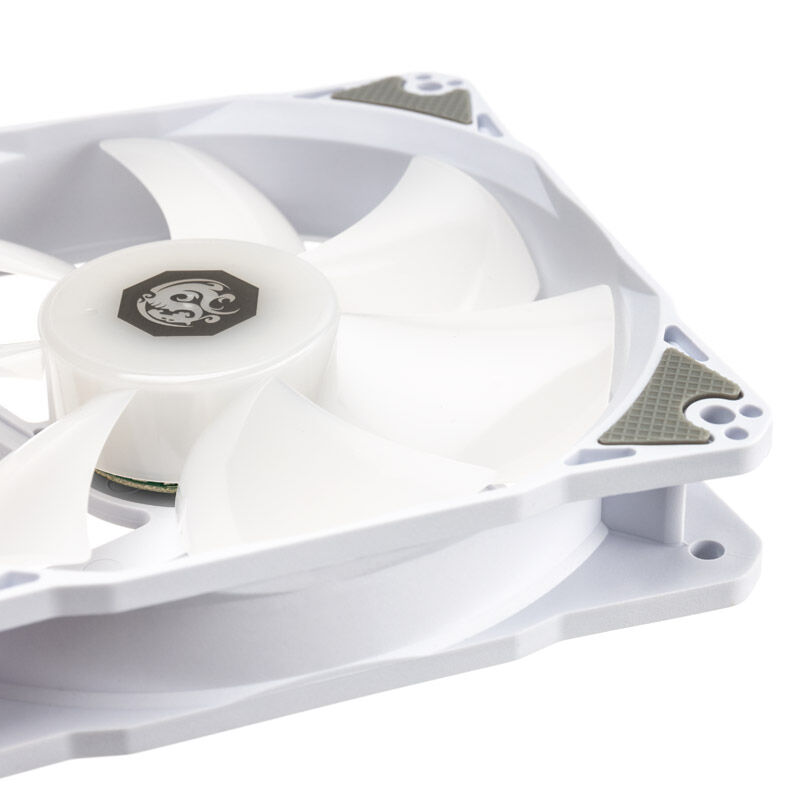

– Rubber bumpers on the corners to prevent vibration
– DRGB lighting with nice effects
– Included RGB and PWM controller

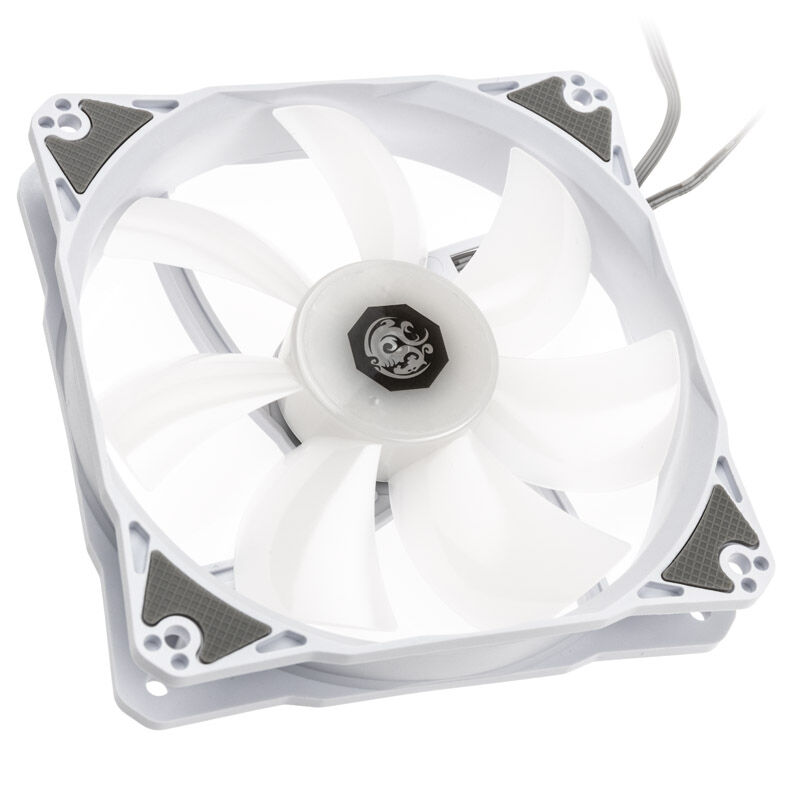

– White fan housing
Suitable for radiator operation, controlled by included RGB and PWM controllers
With the Notos 120, Bitspower placed particular emphasis on efficient cooling and a reasonable price. The maximum speed of 1800 rpm allows for maximum air mass. Thanks to the good static pressure of 1.2 mmH2O, the Notos 120 are also suitable for use in front of or behind a radiator. Rubber buffers on the corners of the fans ensure quiet operation, preventing vibrations and unpleasant noises even at high speeds.

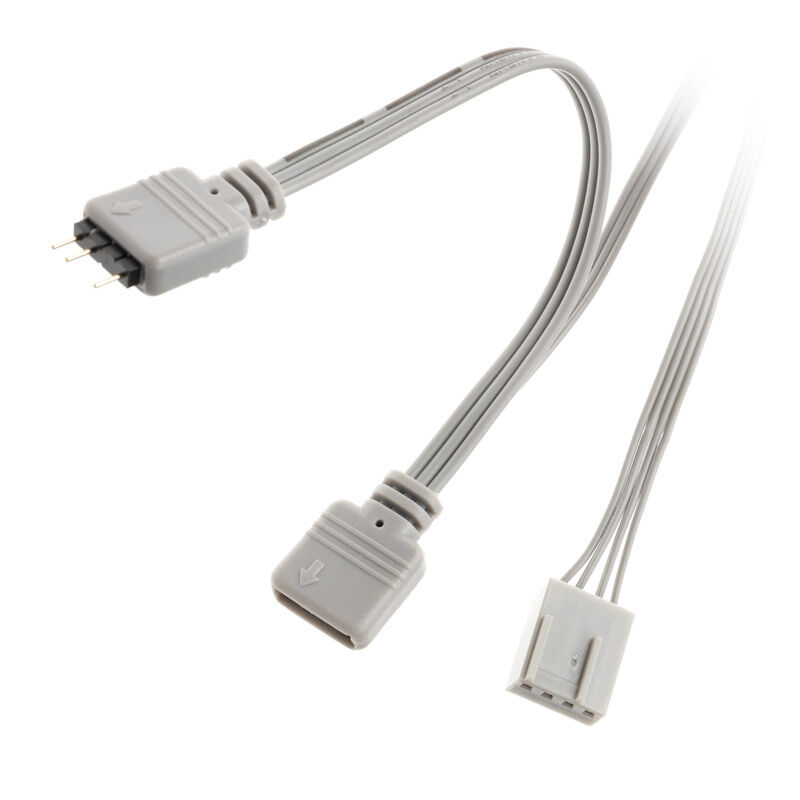

For individual control of the fan speed, the fans each have a 4-pin PWM connector that can be connected to the supplied PWM controller. It picks up the signal from a PWM header on the mainboard and runs the connected fans in series at the same speed. A 12 V SATA connector is also required for the power supply.
Simple commissioning through series connection and RGB controller

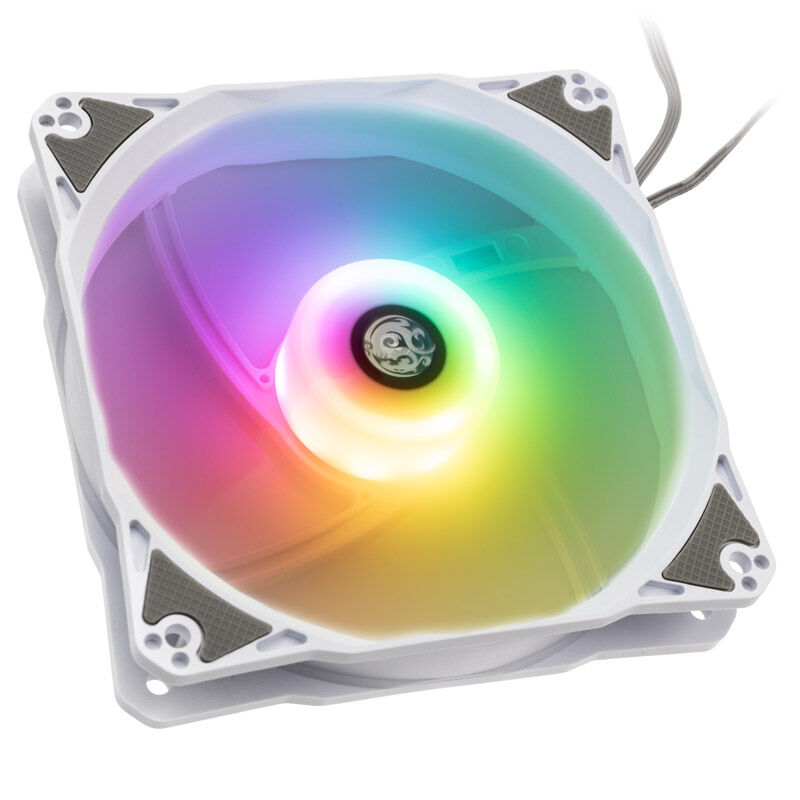

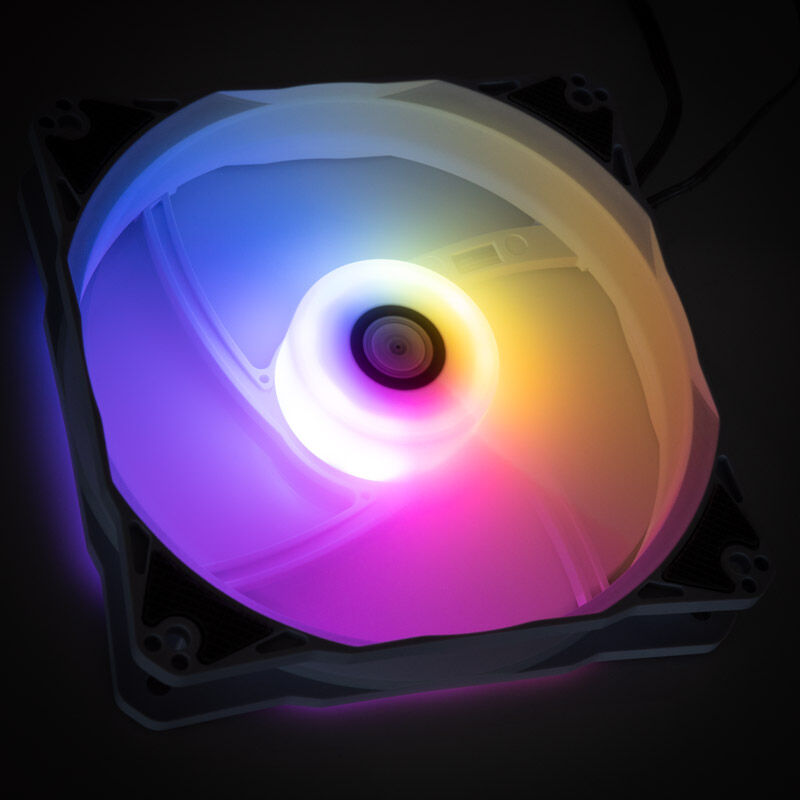

RGB lighting with eight LEDs per fan is integrated for individualization. To adjust the lighting, programs such as ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, Biostar VIVID LED DJ and Razer Chroma can be used. The supplied RGB controller is connected to a 3-pin connector with 5VDG assignment on the mainboard and a 12 V SATA connector for the power supply. A total of 8 fans can be connected to the controller and set using three switches.
Optionally, a fan can also be connected directly to the mainboard via a 3-pin connector with 5VDG assignment. Additional fans can then be connected via daisy chaining.
Technical details

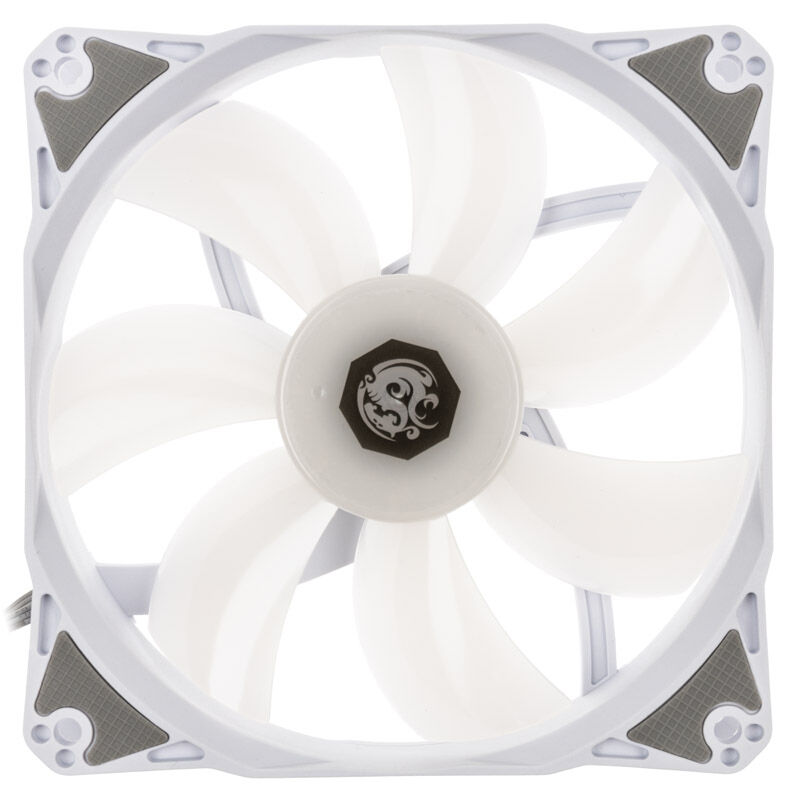

– Color white
– Dimensions: 120 x 25 x 120 mm (W x H x D)
– Material: plastic, rubber
– Volume: max. 28 dB(A)
– Speed: max. 1800 rpm
– Delivery volume: max. 100.24 m³/h
– Static Pressure: 1.2 mmH2O max
– – Voltage: 12VDC
– Starting voltage: 7V DC
– Power Consumption:
– Fan: Max 2.4W
– Lighting: max. 2.0 W
– Amperage:
– Fan: Max 0.2A
– Illumination: 0.4A max
– RGB: addressable, 3-pin 5VDG
– Power supply: 4-pin PWM connector

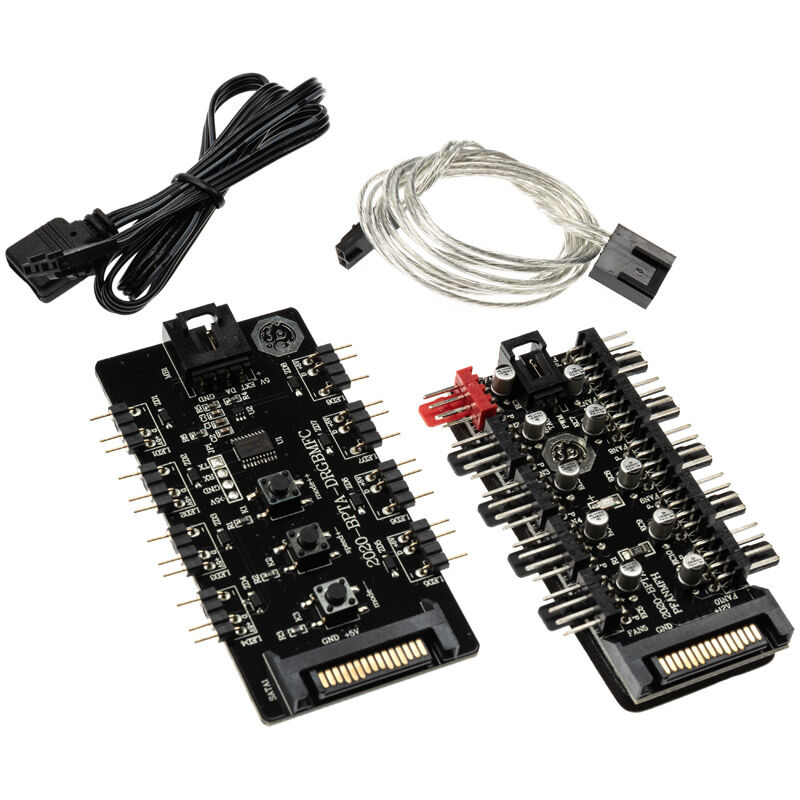

RGB controller:
– Power connector: 1x SATA
– Rated Voltage: 5VDC
– – Current: < 1 watt
– Connection: 1x 5VDG
– Outputs: 8x 5VDG
PWM controller:
– Power connector: 1x SATA
– Rated Voltage: 12V
– Connection: 1x 4-pin PWM
– Outputs: 10x 4-pin PWM
Scope of delivery:

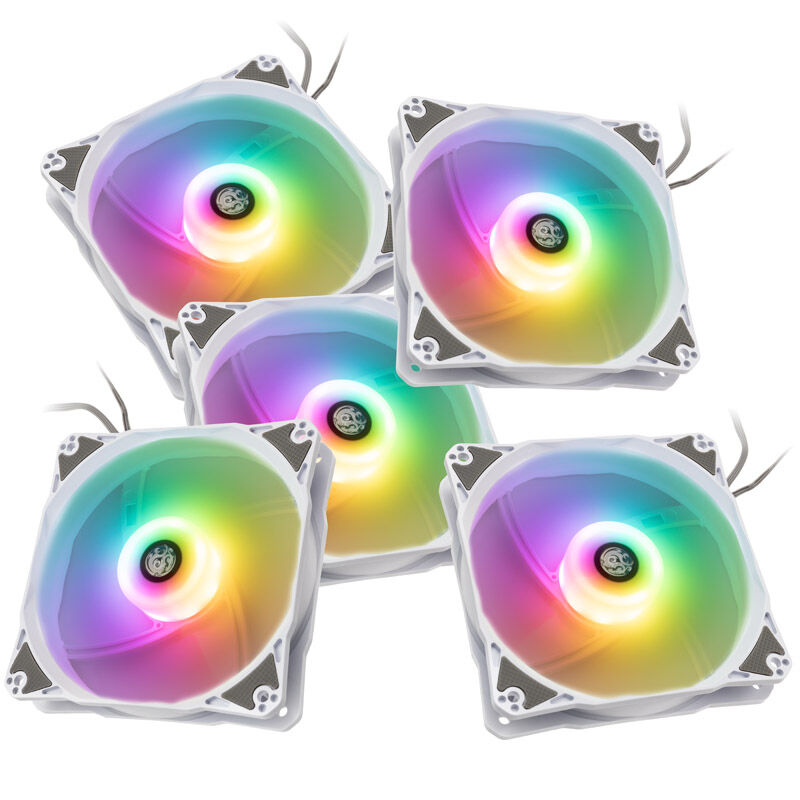

– 1x Set of 3 Notos RGB PWM Fans, 120mm – White
– 1x RGB controller
– 1x PWM controller
