Alphacools Core 120mm is a quiet and efficient fan with a wide control range up to 2500 rpm.

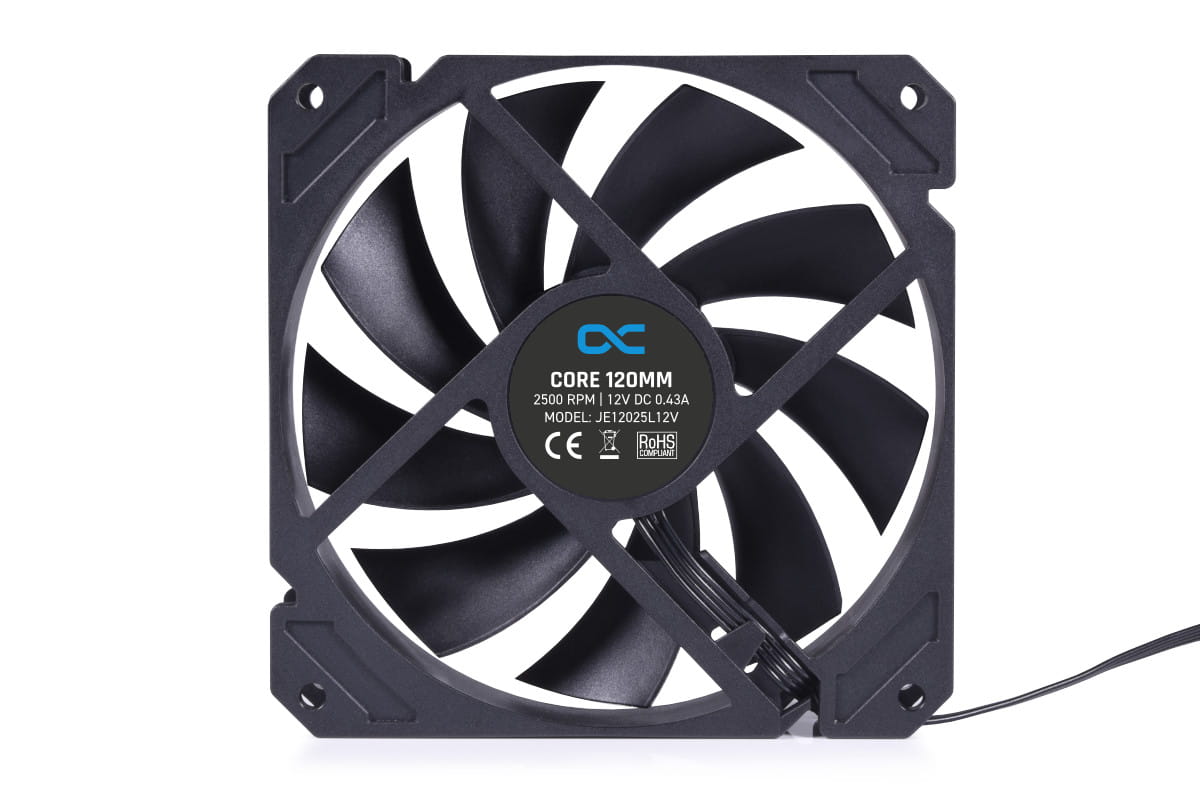

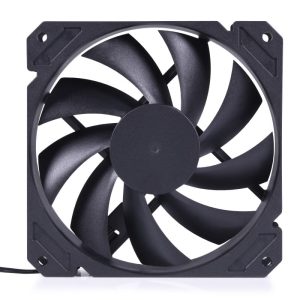

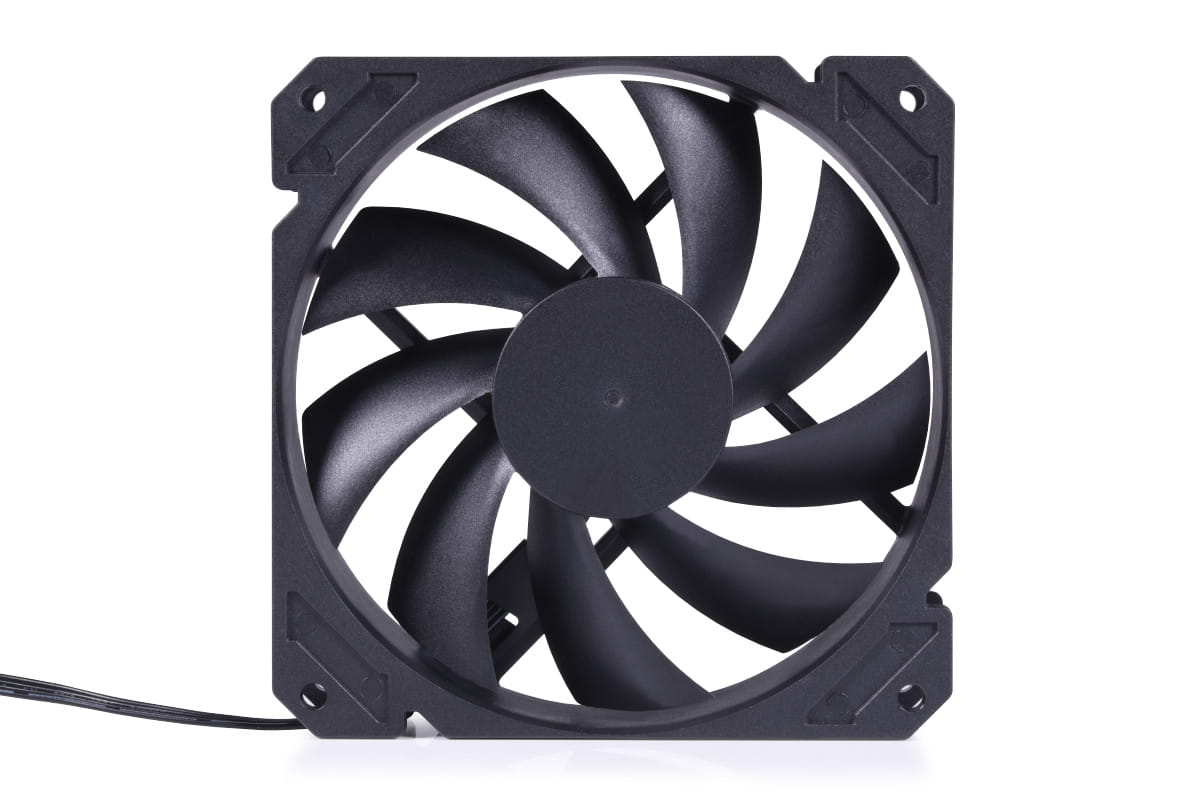

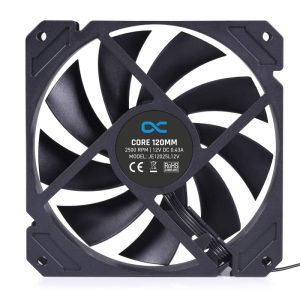

Alphacool Core 120mm fan PWM 2500rpm (120x120x25mm)
Alphacools Core 120mm is a quiet and efficient fan with a wide control range up to 2500 rpm.
Alphacools Core 120mm is a quiet and efficient fan with a wide control range up to 2500 rpm.
Earn 6 Points
We price match UK retailers. Try It Now!
- SKU: 1022468
- MPN: 24852
- EAN: 4250197248525
- Warranty: 12 Months
Details

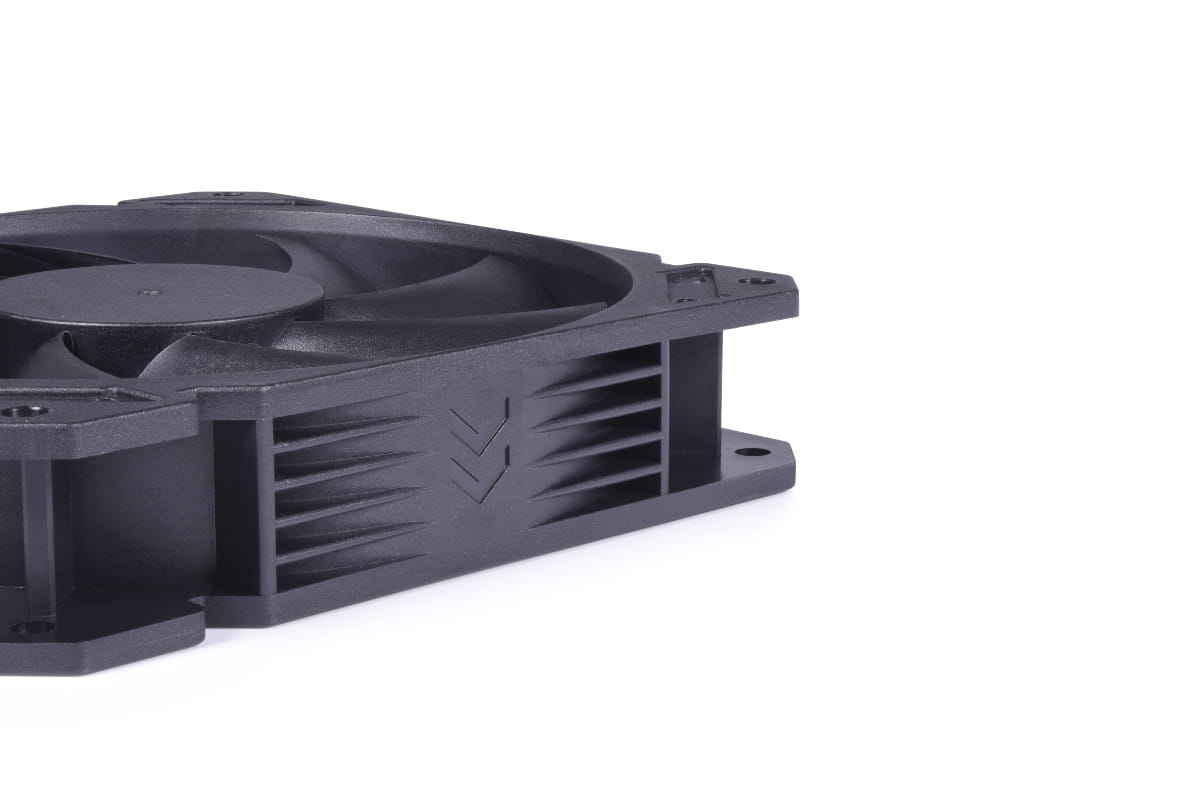

The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The hydraulically mounted fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacools Core 120mm model!
Connections

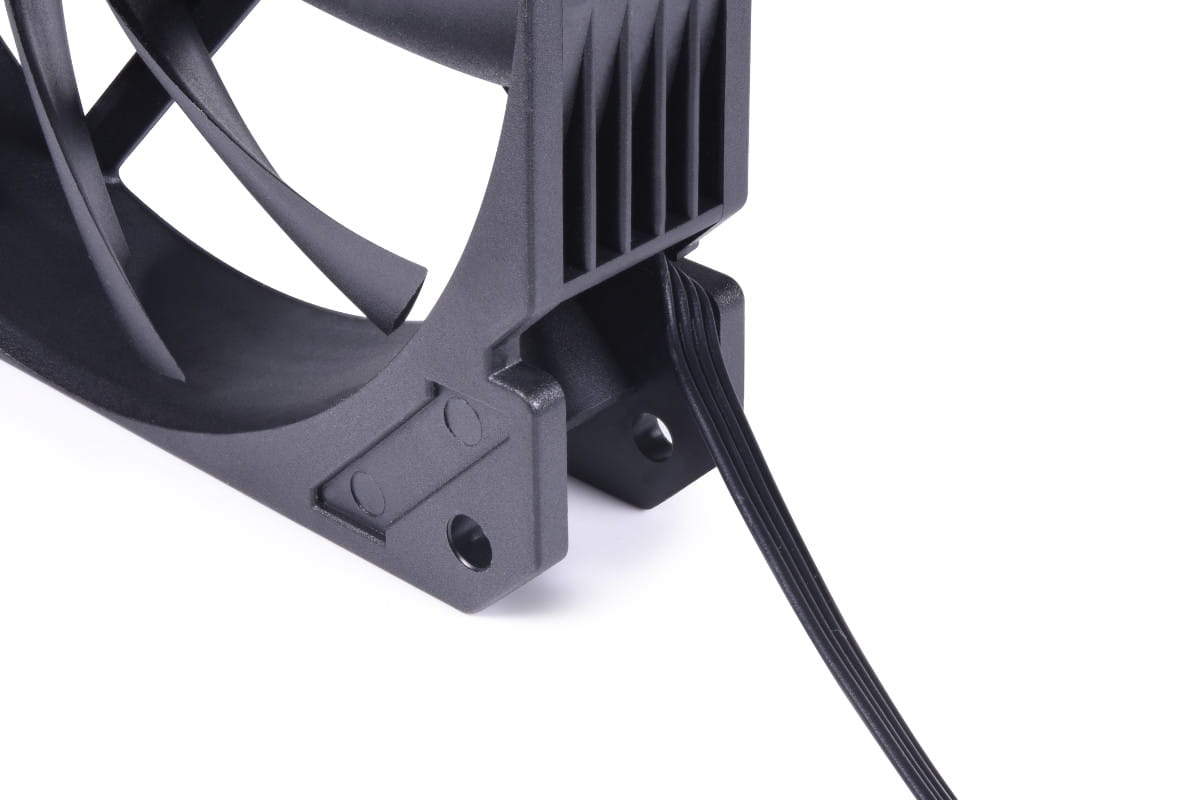

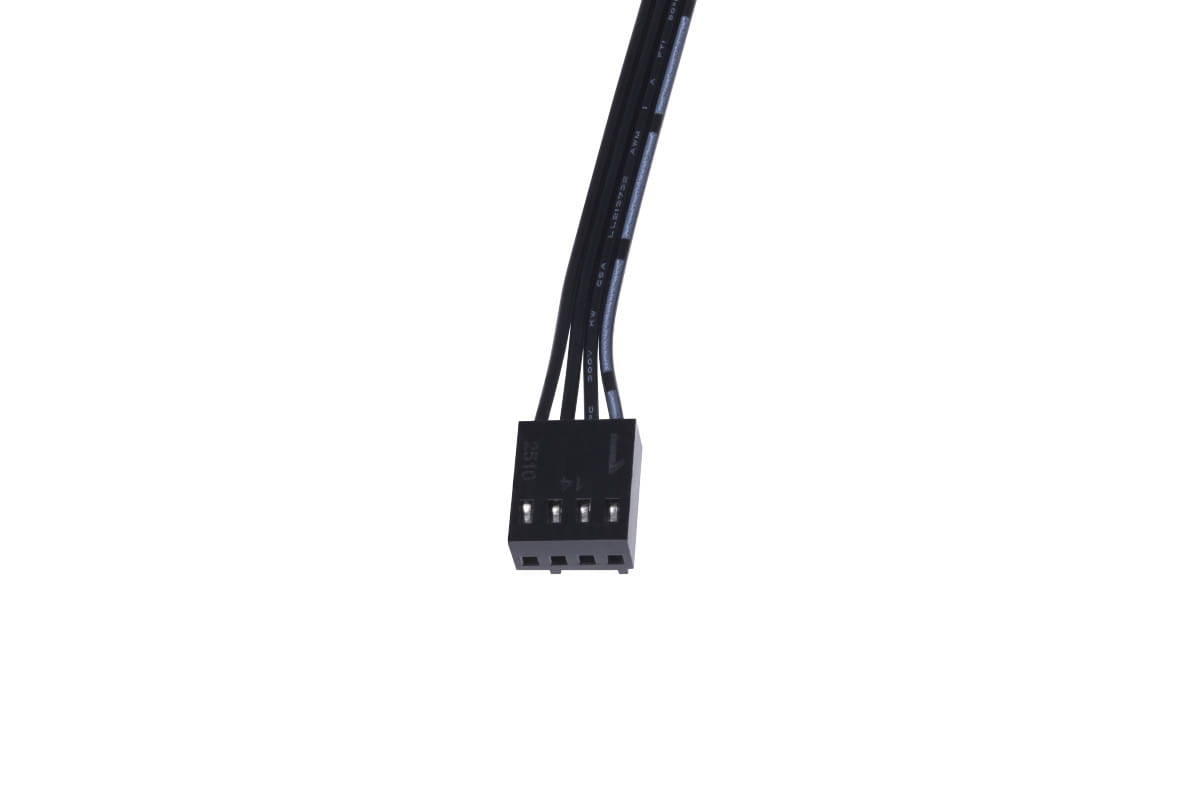

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.
Control range
The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 72.63 CFM combined with a high static pressure of 2.42 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 120 × 120 × 25 mm |
| Material | Synthetic material (PBT UL94V-0) |
| Bearing Type | Hydraulic Bearing |
| Electrical Specifications | |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 7-14V |
| Start-up Voltage | 7V |
| Rated Current | 0.3A (Max: 0.4A) |
| Rated Power | 3.6 W (Max: 4.8 W) |
| Performance | |
| Control Range / Speed | 0 – 2500 rpm ±10% |
| Max Air Flow | 72.63 CFM |
| Max Static Pressure | 2.42 mm/H₂O |
| Noise Level | 36.6 dBA (Max: 37.8 dBA) |
| Life Expectancy | 50,000 h at 25°C |
| Connections & Control | |
| Connection | 4-Pin PWM |
| Speed Control Mode | Via PWM |
| Operating Conditions & Features | |
| Operating Temperature | -10°C to +55°C |
| Other Features | Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22 |
