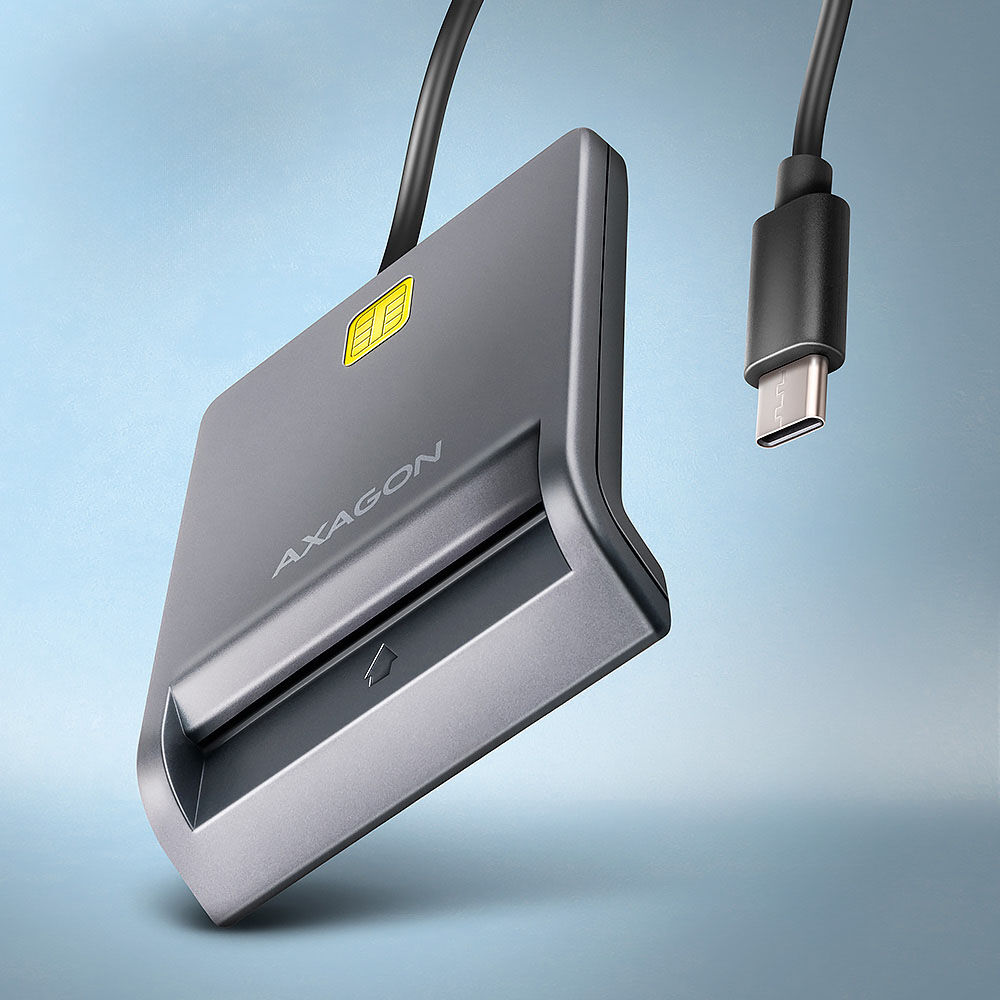

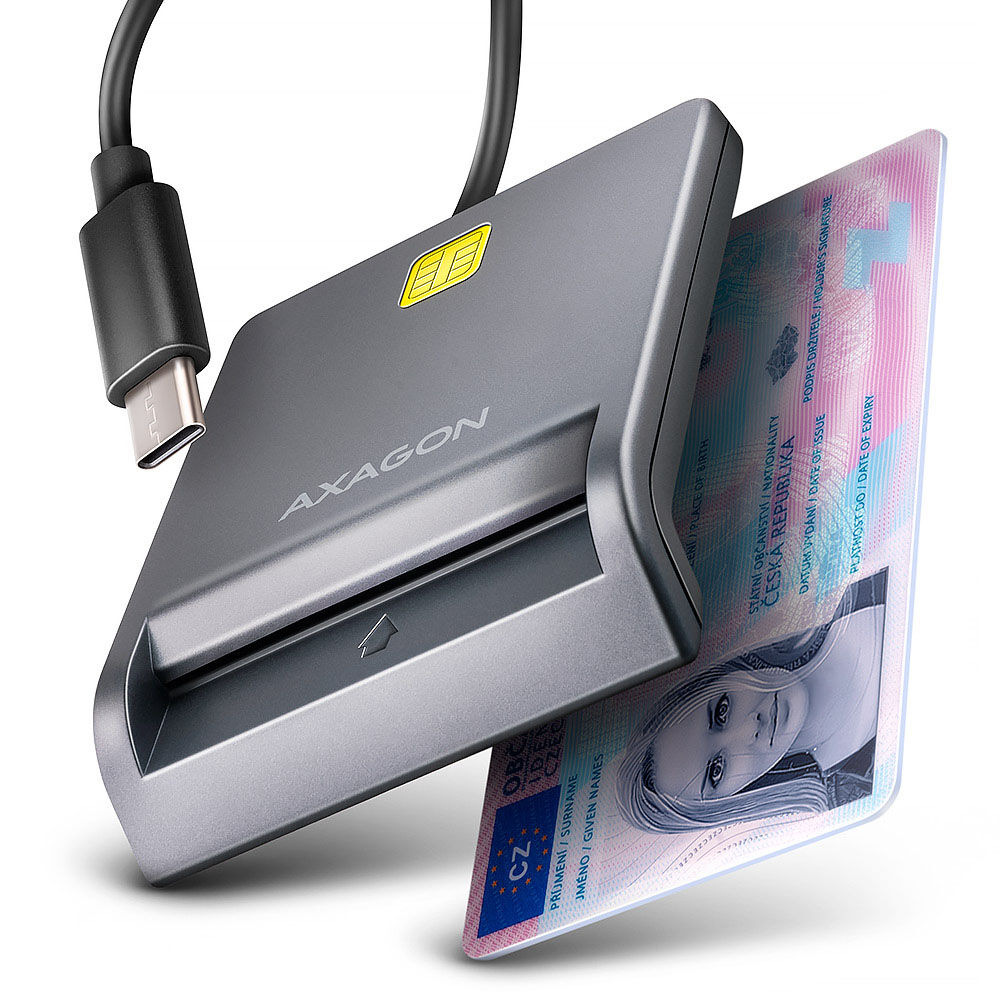

AXAGON CRE-SM3TC USB-C Card Reader - 1.2m CableAXAGON CRE-SM3TC USB-C Card Reader - 1.2m Cable

– SmartMedia
– Number of memory card slots: 1
– 480 Mbps
– Plastic
– Gray
– 1.2 m

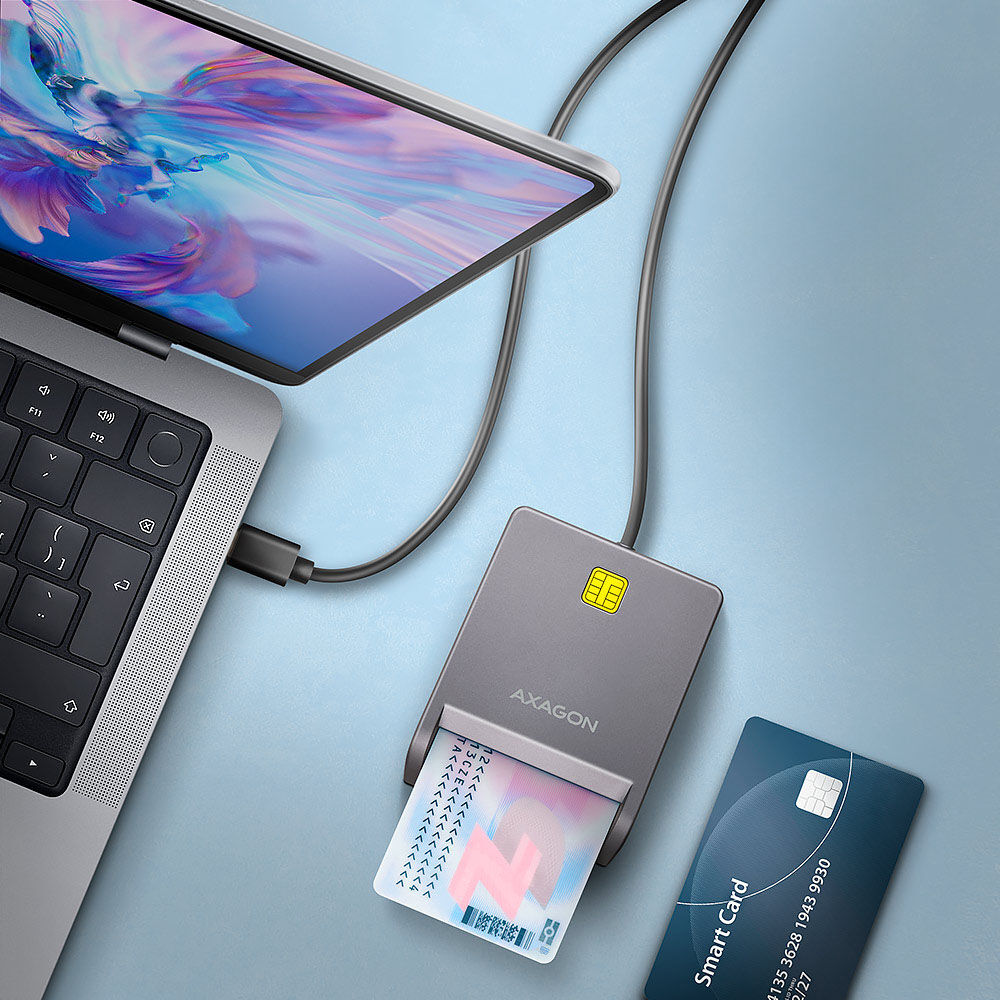

Compact desktop smart card / ID card reader AXAGON CRE-SM3TC FlatReader with a USB 480 Mbps interface. It is particularly suitable as an ID card reader for use with mobile phones and computers that have a USB-C port. The reversible USB-C connector simplifies use, as you no longer need to align the connector correctly when connecting it to your phone or laptop.

The Plug & Play function allows immediate use without the need to install any drivers. For further use with the inserted card, simply install the corresponding application.

The reader is compatible with most national applications for eID (electronic ID cards).

The card reader supports all common contact smart cards, cards for identification systems, and other chip cards, including contact bank payment cards and contact electronic ID cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide application on computers and laptops, as well as phones and tablets.

The intelligent LED indicator lights up briefly after a change in activity, then goes out, and does not disturb the user with unnecessary light. The compact design, high-quality connector, non-slip pad, and sufficiently long cable ensure simple and trouble-free use.

Input:
USB 480Mbps (USB 2.0), CCID protocol.
Connection to a computer via USB 2.0 Type-C connector.

Card reader:
Slot supports ATM/CAC/ID/IC/SIS cards.
Supports ISO 7816 contact smart cards of Class A, B, and C (5V, 3V, and 1.8V) standards.
… Supports ISO 7816 and EMV 4.1 (EMV 2000 Level 1) standards.
Supports T=0 and T=1, I2C, SLE 4432/42 (S=10), and SLE 4418/28 (S=9) protocols.
Supports PC/SC 2.0 PC Smart Cards.
Supports Microsoft Smart Card for Windows.
Supports SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, and AT45D041 I2C cards.
Complies with Microsoft WHQL USB Smart Card Reader.
Meets FIPS 201 requirements.

Other features:
Microsoft USB-CCID driver compatible.
Plug-and-play support.
Supports power-saving mode, automatically switches to power-saving mode.
Reader is powered via USB bus power.
LED indicates card insertion (solid light) and data transfer (flashing).
Non-slip rubber pads prevent spontaneous movement on the table.
Dimensions: 15 x 65 x 82 mm (H x W x D), cable length: 1.2 m.
Weight: 51 g.

Supported OS:
Windows 7 / 8.1 / 10 / 11 and newer, macOS, Linux, and Android.
To work with a smart card, a suitable application must be installed on the connected device.
* Note: The reader only supports contact cards with visible contacts on the surface. Contactless cards are therefore RFID and cannot be used in the reader.

The package contains:
USB smart card reader with 1.2 m fixed cable,
Multilingual user manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
Packaged in a cardboard box with a hanger.

Technical Details
– Color
– Main Color
– Gray
– Main Cable Color
– Black
– Main Plug / Socket Color
– Black
– Dimensions
– Length / Depth
– 89 mm
– Width
– 65 mm
– Height
– 15 mm
– Weight
– 51 g
– Cable Specifications
– Cable Type
– Adapter
– Angle
– Angle Connector
-No
