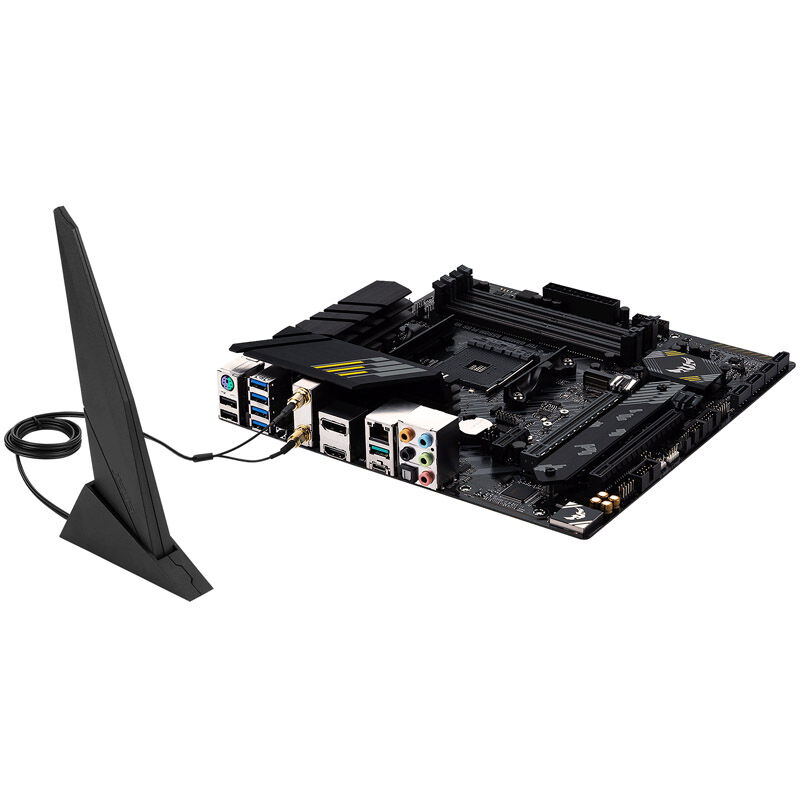

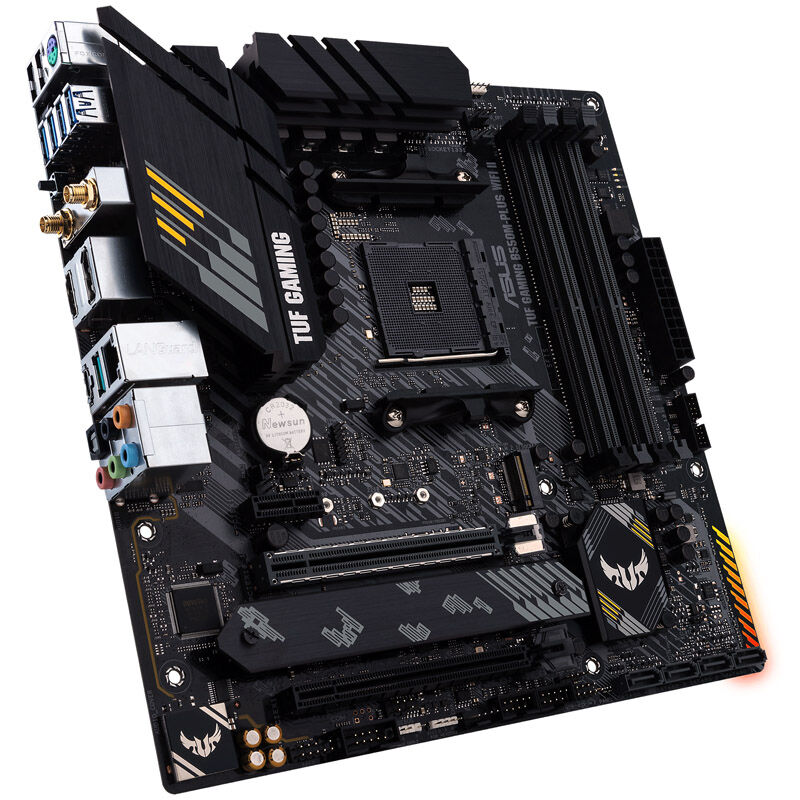

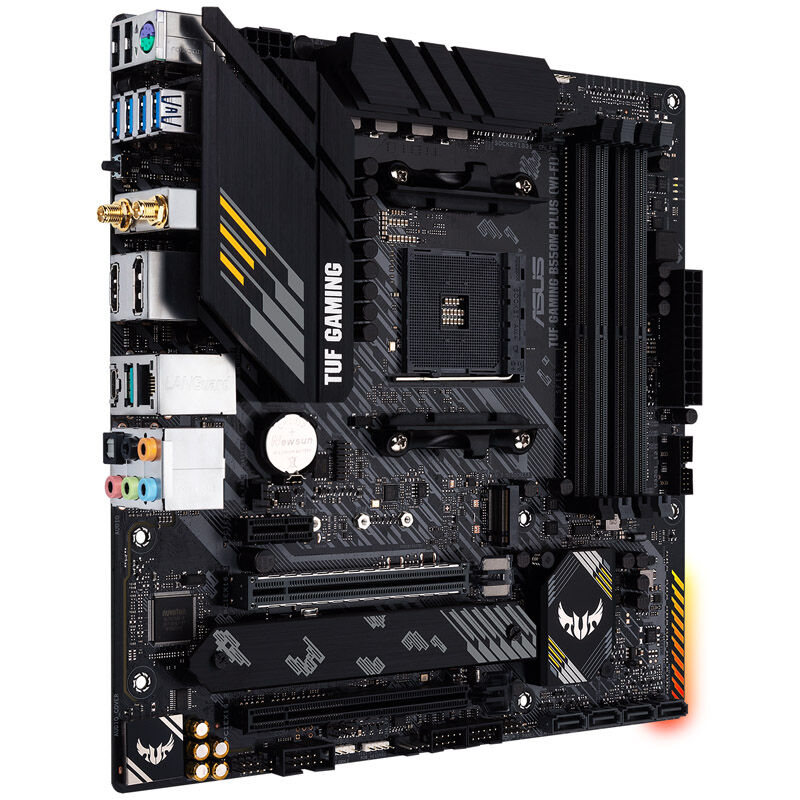

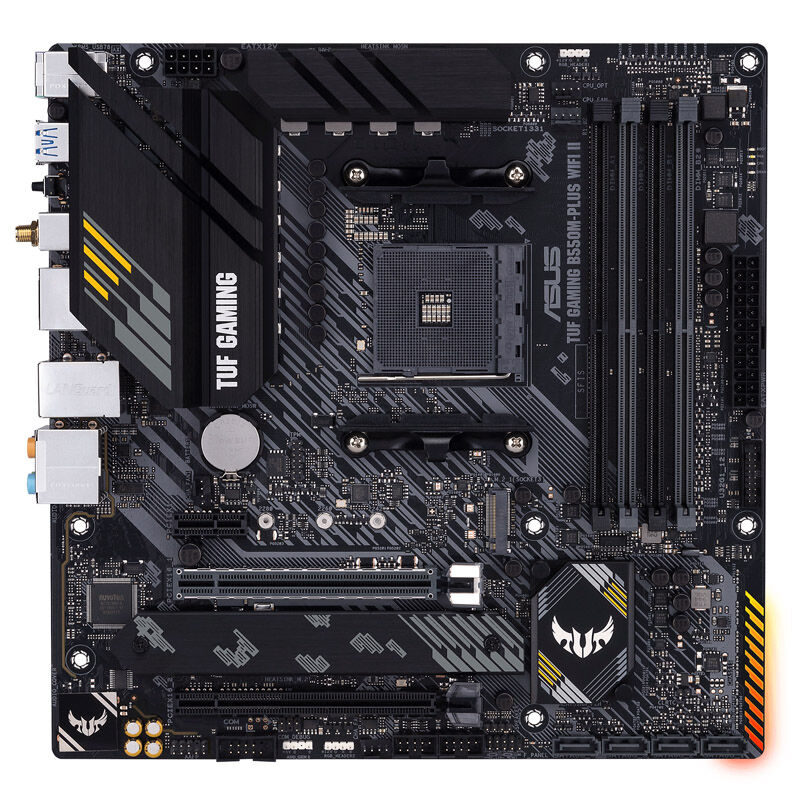

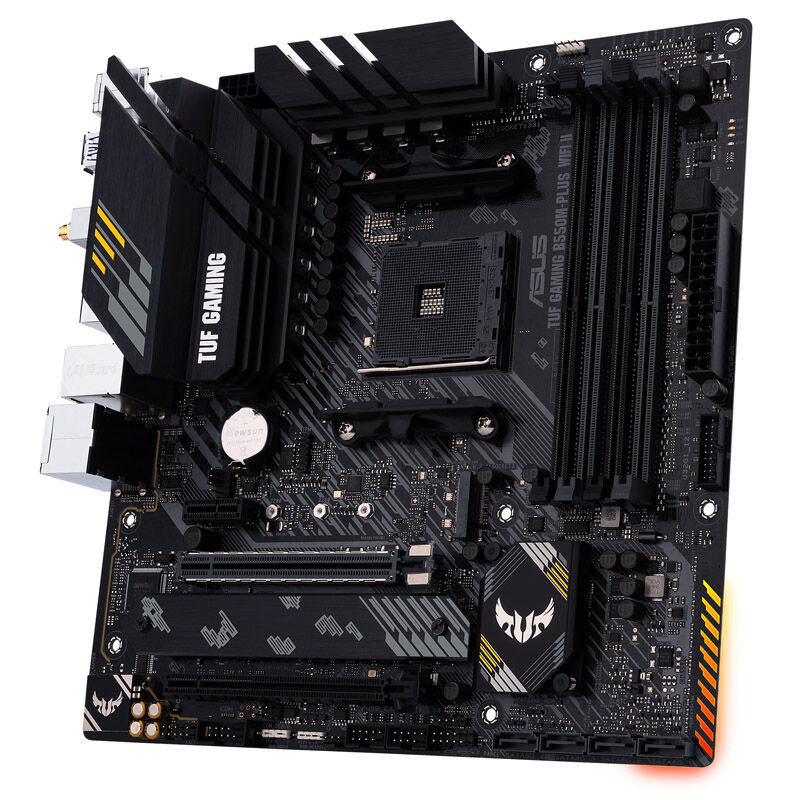

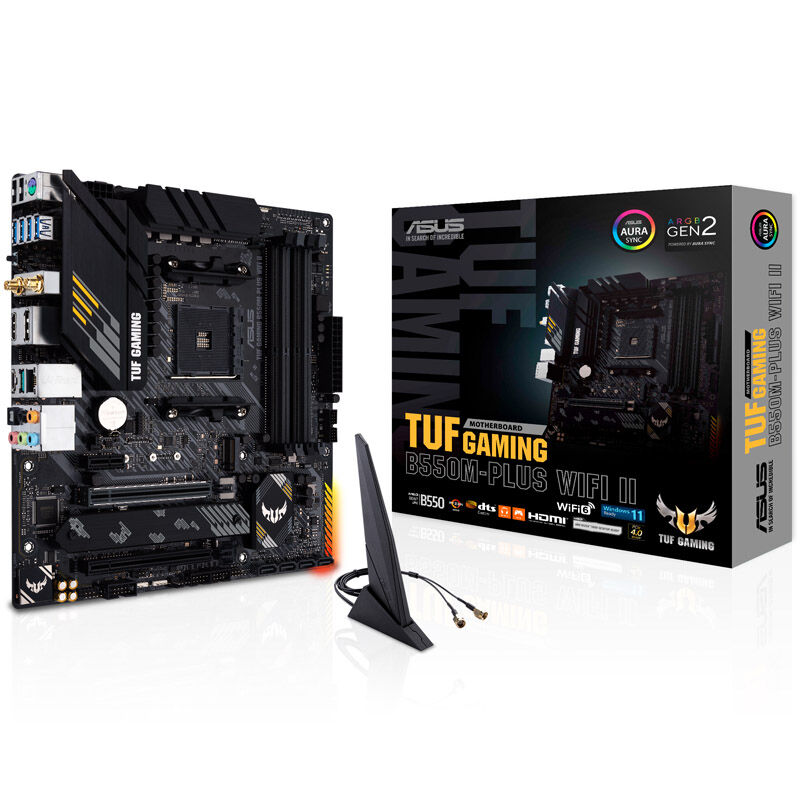

ASUS TUF Gaming B550M-Plus Wi-Fi II, AMD B550 motherboard - Socket AM4

Note: The following specifications regarding PCIe lanes, M.2 slot connections, and PCIe slot connections refer to the combination of a B550 chipset with a third- or fourth-generation Ryzen CPU (Zen 2 Matisse / Zen 3 Vermeer)! A BIOS update may be required for use with a Ryzen 5000 processor. This can be performed upon request by our King Mod Service.

Add BIOS update service to your cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

– Offers 2x PCIe x16 slots, including 1x PCIe 4.0
– 2x M.2 slots, including 1x PCIe 4.0
– DDR4 memory up to 4866 MHz via overclocking
– USB on the I/O panel: 1x USB 3.1 Type-C, 1x USB 3.1 Type-A, 4x USB 3.0, and 2x USB 2.0
– A total of 4x connectors for fans and pumps
– Offers 2x 4-pin RGB headers and 1x 3-pin ARGB header

The ASUS TUF Gaming B550M-PLUS Wi-Fi II ATX motherboard in detail:
The ASUS TUF Gaming B550M-PLUS Wi-Fi II is an ATX motherboard with the AMD B550 chipset and the AM4 socket. The motherboard is suitable for AMD Ryzen 5000 and 3000 series desktop processors, as well as the 4000 G series, and supports PCIe 4.0. It supports DDR4 memory up to 4866 MHz. The motherboard is particularly suitable as a motherboard for gaming PCs and fits into the trays of most common cases.

Technical Details:
Format
– Micro-ATX (244 x 244 mm)
– Chipset
– AMD B550
– Socket:
– AM4 (for Matisse / Vermeer)
– RAM:
– 4x DDR4 (max. 3200 MHz, 4866 MHz with overclock)
 -Dual-Channel
– max. 128 GB
– Slots:
– 1x PCIe 4.0 x16 (x16)
– 1x PCIe 3.0 x16 (electrical x16)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G (RAID 0, 1, 10)
– 1x M.2 (M-Key, PCIe 4.0 x4 & SATA, 2242 to 2280)
– 1x M.2 (M-Key, PCIe 3.0 x4 & SATA, 2242 to 22110)
– 2x USB 3.0 (USB 3.2 Gen1, one header)
– 4x USB 2.0 (two headers)
– 1x front panel audio connector
– 1x SPI TPM header
– 1x S/PDIF out header
– 1x Clear CMOS jumper
– 1x speaker header
– 1x COM port header
– Fan header:
– 1x CPU cooler (4-pin)
– 1x Optional CPU cooler (4-pin)
– 2x system fans (4-pin)
– RGB header:
– 2x 4-pin RGB header (12VGRB)
– 1x 3-pin RGB header (5VDG)

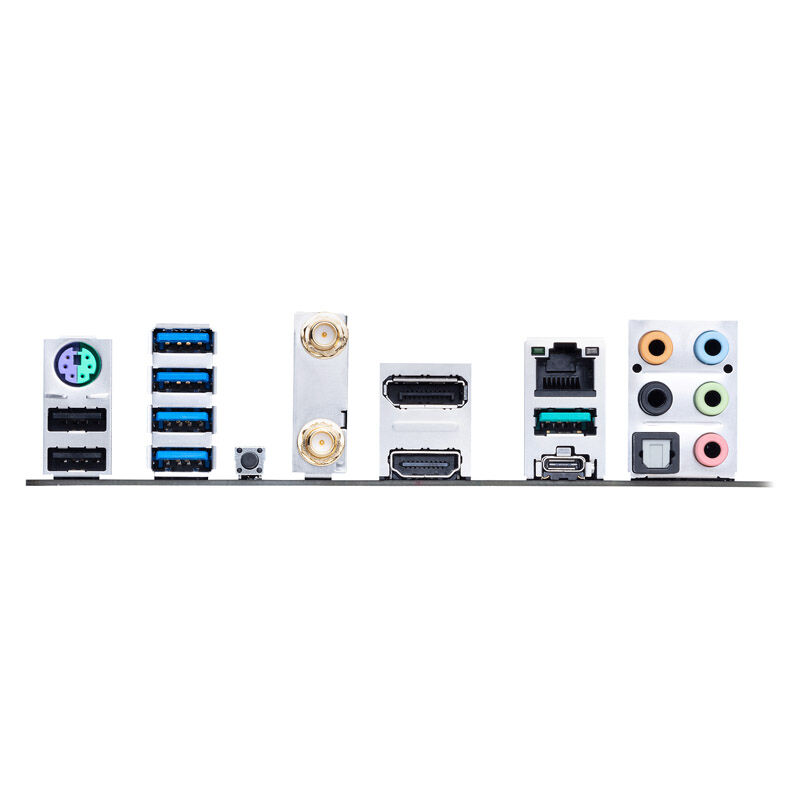

– External connections:
– 1x PS/2 combo
– 1x USB 3.1 Type C (USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 type A (USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 Type A (USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (max. 480 Mbps)
– 1x HDMI 2.1
– 1x DisplayPort 1.2
– 1x RJ-45 (Realtek, max. 2.5 Gbps)
– 2x Antenna (Wi-Fi 6, 802.11 ax, Bluetooth 5.2)
– 5x 3.5 mm jack (Realtek)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– Package contents:
– 1x ASUS Prime B550M-A Wi-Fi II motherboard
– 1x I/O shield (connector bracket)
– 2x SATA data cables
– M.2 mounting screws
– 1x Support DVD
– 1x Operating instructions
