The B450 chipset is the heart of the ASUS TUF B450M-Plus II Gaming motherboard and has been specifically optimized for Ryzen 2000 series (Pinnacle Ridge) CPUs. B450 motherboards support all features of the second-generation Ryzen processors, such as the new XFR2 overclocking feature. Additionally, the motherboards support up to 128 GB of RAM with a guaranteed clock speed of 2,666 MHz. Depending on the motherboard, significantly higher clock speeds are possible through overclocking, and the B450 chipset also allows processor overclocking.
The features of the ASUS TUF B450M-Plus II Gaming at a glance:
– 1x PCIe 3.0 x16 (x16) for high-end graphics cards
– 1x USB 3.1 Type-A / 5x USB 3.0 / 6x USB 2.0
– 1x M.2 (PCIe 3.0 x4 & SATA6G) / 6x SATA 6G
– 128 GB DDR4 memory up to 4400 MHz with overclocking
– LED lighting zone & RGB header
– Ready for AMD Ryzen 3000 processors
The features of the ASUS TUF B450M-Plus II Gaming in detail:

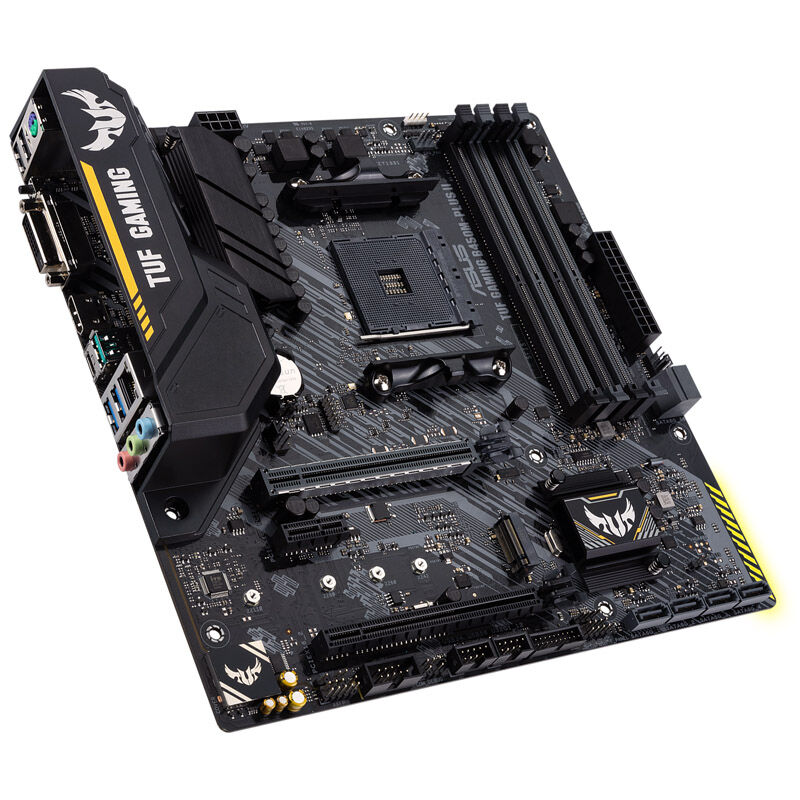

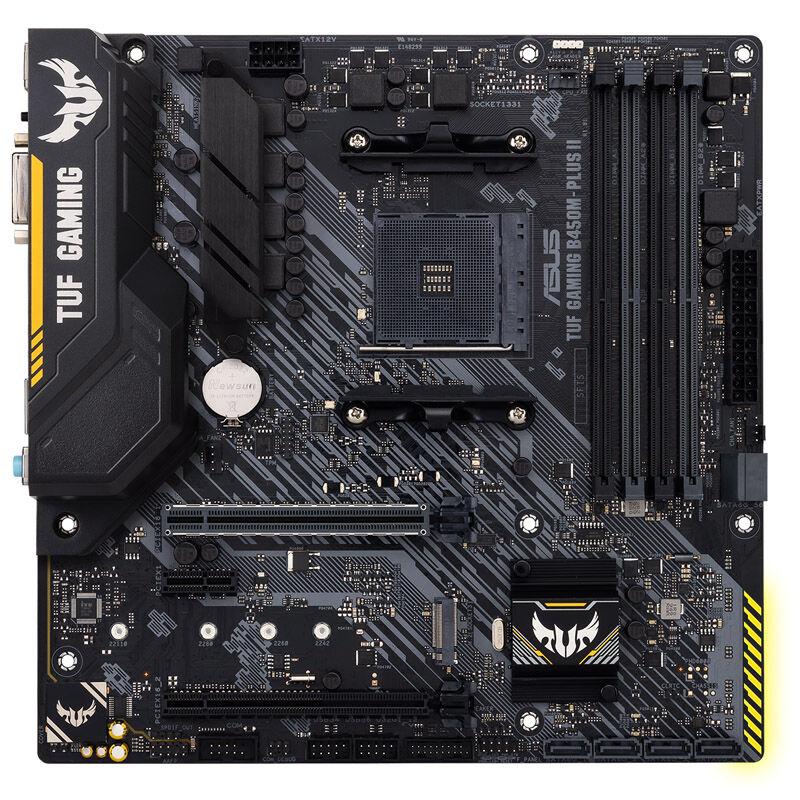

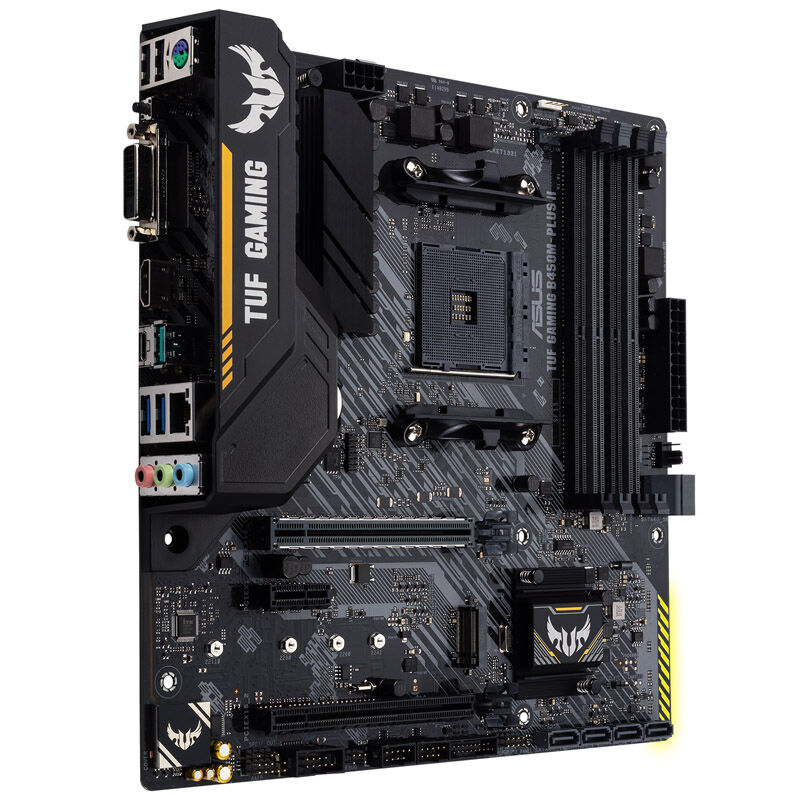

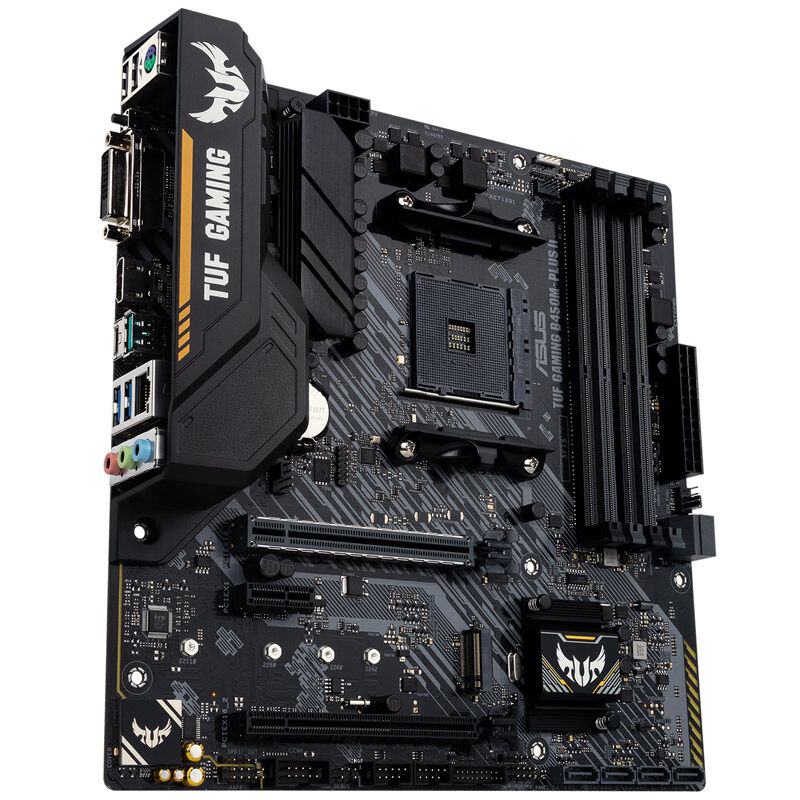

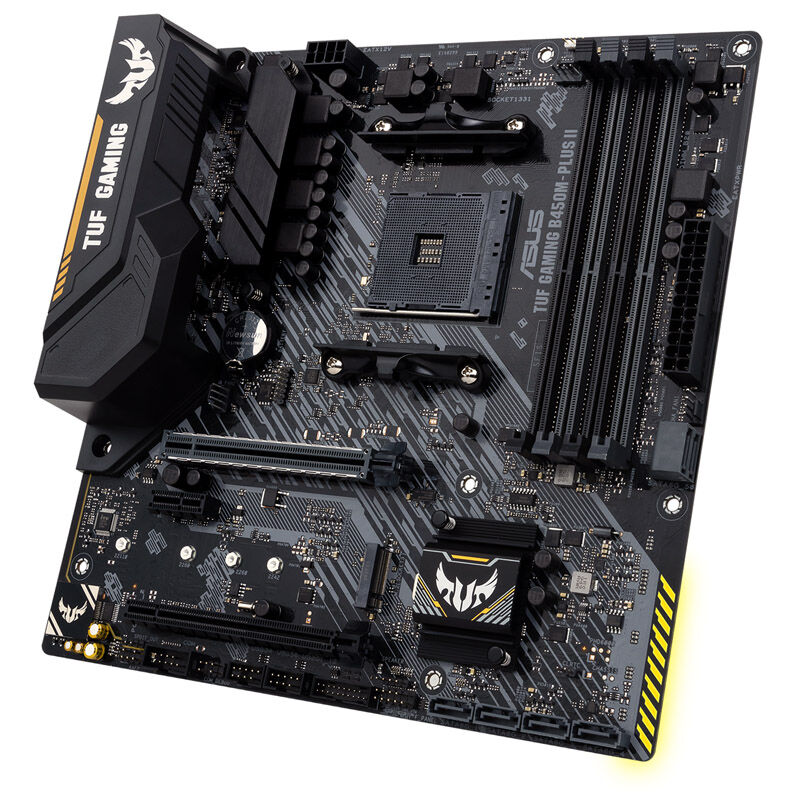

The ASUS TUF B450M-Plus II Gaming Micro-ATX motherboard features a PCI Express 3.0 slot with full x16 connectivity for graphics cards and a PCI Express 2.0 slot with four lanes. The motherboard provides a PCIe x1 slot for additional expansion cards. The four RAM banks support up to 128 GB of DDR4 memory with a clock speed of up to 2,666 MHz and can even handle clock speeds of up to 4,400 MHz when overclocked.
The AM4 motherboard provides an M.2 slot with PCIe 3.0 x4 and SATA 6G connectivity. M.2 SSDs with the advanced NVM Express (NVMe) protocol and a connection via four PCI Express 3.0 lanes are up to eight times faster than SATA 6G hard drives and support data transfer rates of up to 32 Gbps.
The ASUS TUF B450M-Plus II Gaming features a USB 3.0 Type-C port and a USB 3.1 Type-A port on the I/O panel. The USB Type-C port is reversible and is particularly thin. USB 3.1 Gen 2 achieves maximum speeds of 10 Gbps per port, and USB ports with this standard generally support fast charging for smartphones and tablets. An HDMI and DVI-D port are available for CPUs with integrated graphics, such as AMDs Raven Ridge APUs.
The ASUS TUF B450M-Plus II Gaming features a TUF GAMING lighting zone. The motherboard also features Japanese audio capacitors for clear, natural, and warm onboard sound.
Technical details:
– Format
– Micro-ATX (244 x 244 mm)
– Chipset
– AMD B450
– Socket:
– AM4 (for 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega)
– RAM:
– 4x DDR4 (max. 2666 MHz, 4400 MHz when overclocked)
– Dual-channel
– max. 128 GB
– Slots with 3rd/2nd/1st Gen Gen AMD Ryzen CPU:
– 1x PCIe 3.0 x16 (x16)
– Slots with 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
– 1x PCIe 3.0 x16 (electrical x8)
– Slots AMD B450 chipset:
– 1x PCIe 2.0 x16 (electrical x4)
– 1x PCIe 2.0 x1
– Multi-GPU configurations: 2-way AMD CrossFireX
– Internal connections:
– 6x SATA 6G
– 1x M.2 (M-Key, PCIe 3.0 x4 & SATA6G, sizes 2242 to 22110)
– 2x USB 3.0 (1 header)
– 4x USB 2.0 (2 headers)
– 1x Clear CMOS jumper
– 1x COM port header
– 1x front panel audio connector
– 1x speaker header
– 1 x S/PDIF Out Header
– 1x System Panel Connector
– 1x SPI TPM Header (14-1 pin)
– Fan Header:
– 1x 4-pin CPU Fan
– 2x 4-pin Chassis Fan
– RGB Header:
– 1x 4-pin RGB (12V, 12V)

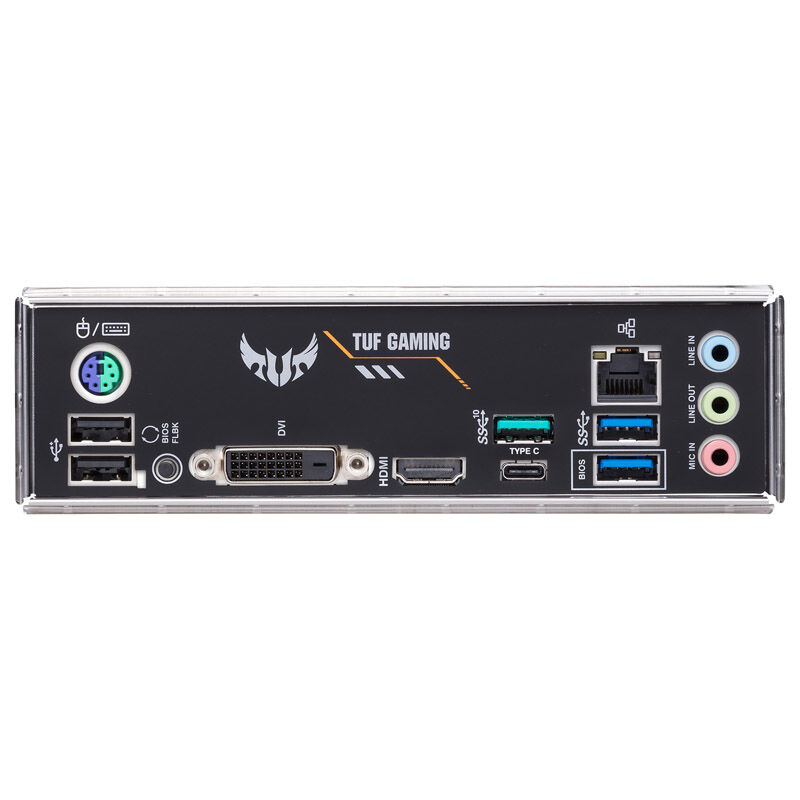

– External Connectors:
– 1x USB 3.1 Type A
– 3x USB 3.0 Type A (1x Type C, 2x Type A)
– 2x USB 2.0 Type A
– 1x DVI-D
– 1x HDMI 2.0b
– 1x Gigabit LAN (Realtek RTL8111H 1Gb)
– 3x 3.5 mm jack (Realtek ALC 887 7.1)
– 1x BIOS FlashBack Button
– 1x PS/2 Keyboard/Mouse Combo
– Power Supply:
– 1x 24-pin ATX 12V
– 1x 8-pin ATX 12V

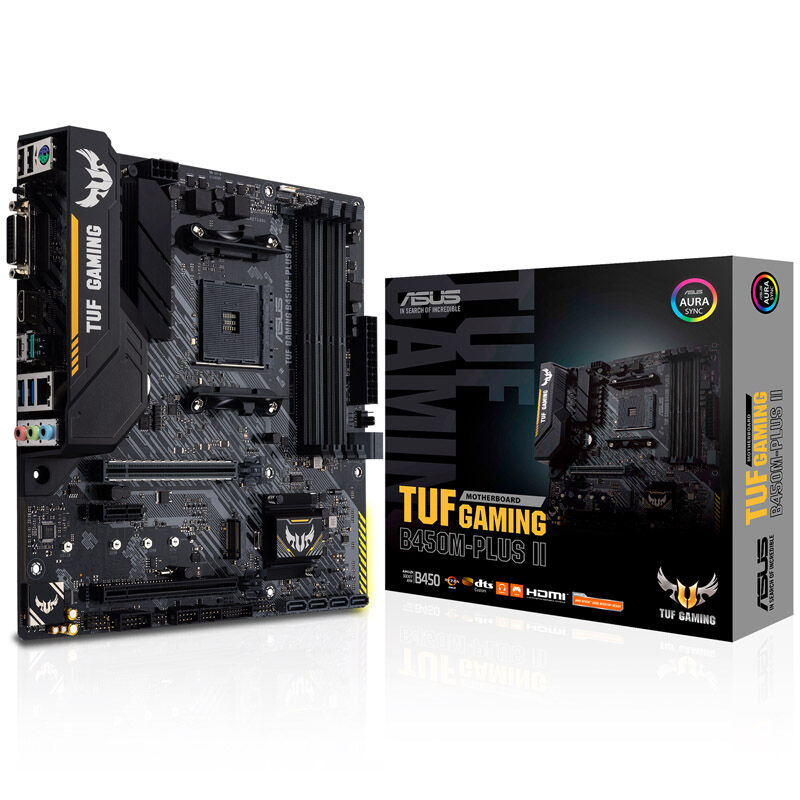

– Accessories:
– 2x SATA 6Gb/s Cable
– 1x I/O shield
– 1x M.2 SSD screw kit
– 1x TUF Gaming sticker
– 1x TUF certificate
– Manual
