ASUS ROG STRIX B550-F Gaming WiFi II, AMD B550 motherboard - Socket AM4

Note: The following specifications regarding PCIe lanes, M.2 slot connections, and PCIe slot connections refer to the combination of a B550 chipset with a third- or fourth-generation Ryzen CPU (Zen 2 Matisse / Zen 3 Vermeer)! A BIOS update may be required for use with a Ryzen 5000 processor. This can be performed upon request by our King Mod Service.

Add BIOS update service to your cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

– Offers 2x PCIe x16 slots, including 1x PCIe 4.0
– 2x M.2 slots, including 1x PCIe 4.0
– DDR4 memory up to 4800 MHz via overclocking
– USB on the I/O panel: 1x USB 3.1 Type-C, 1x USB 3.1 Type-A, 4x USB 3.0, and 2x USB 2.0
– A total of 6 connectors for fans and pumps
– Offers 2x 4-pin RGB headers and 1x 3-pin ARGB header

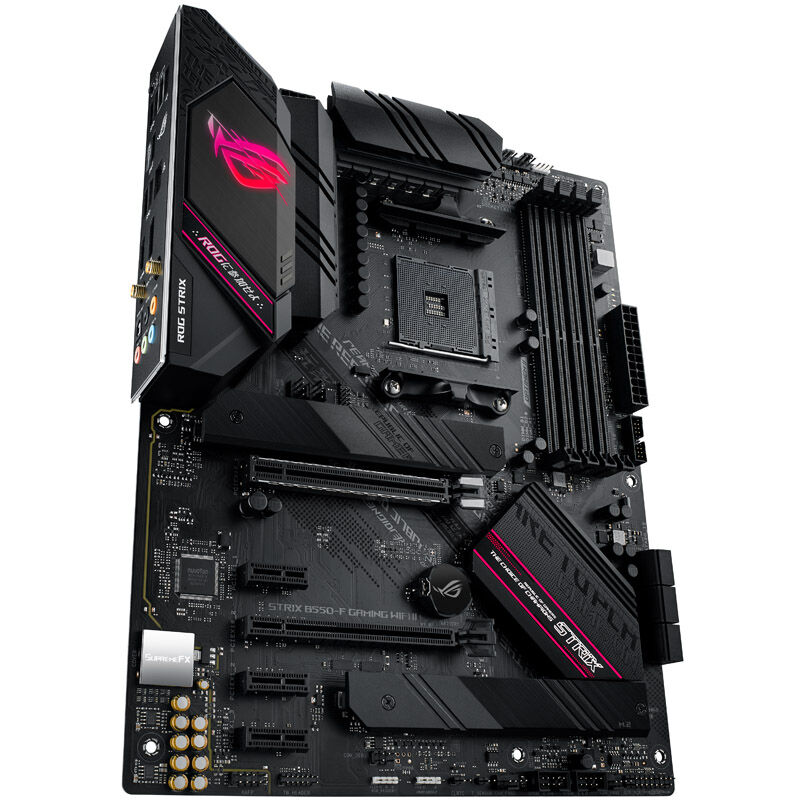

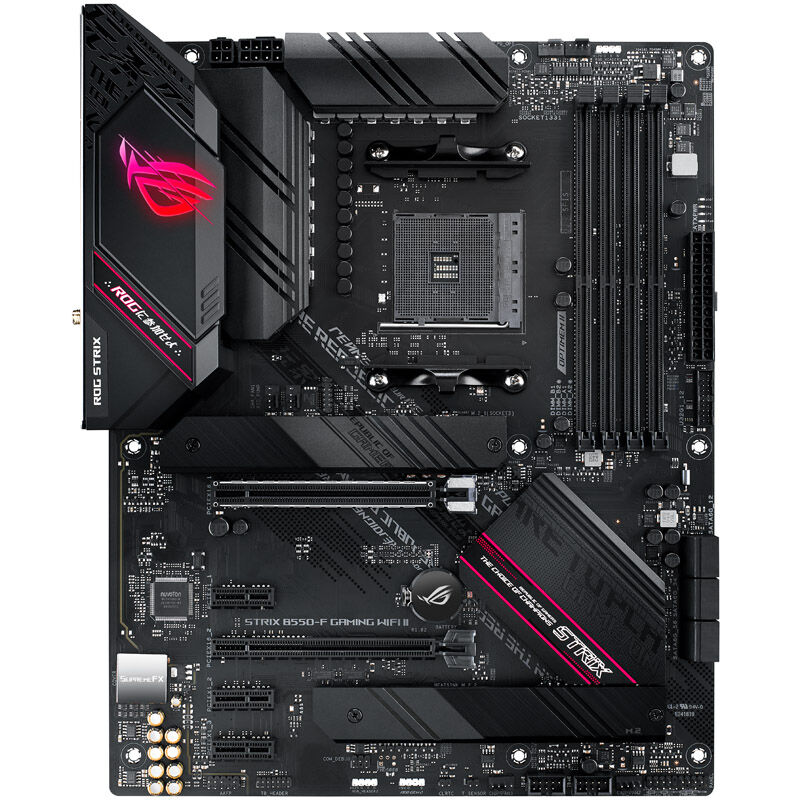

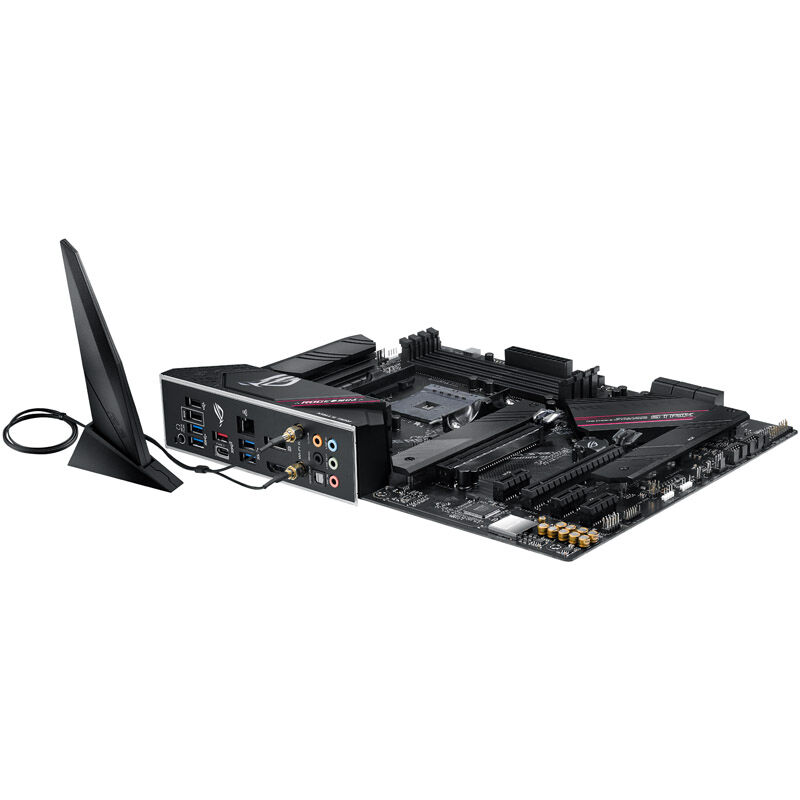

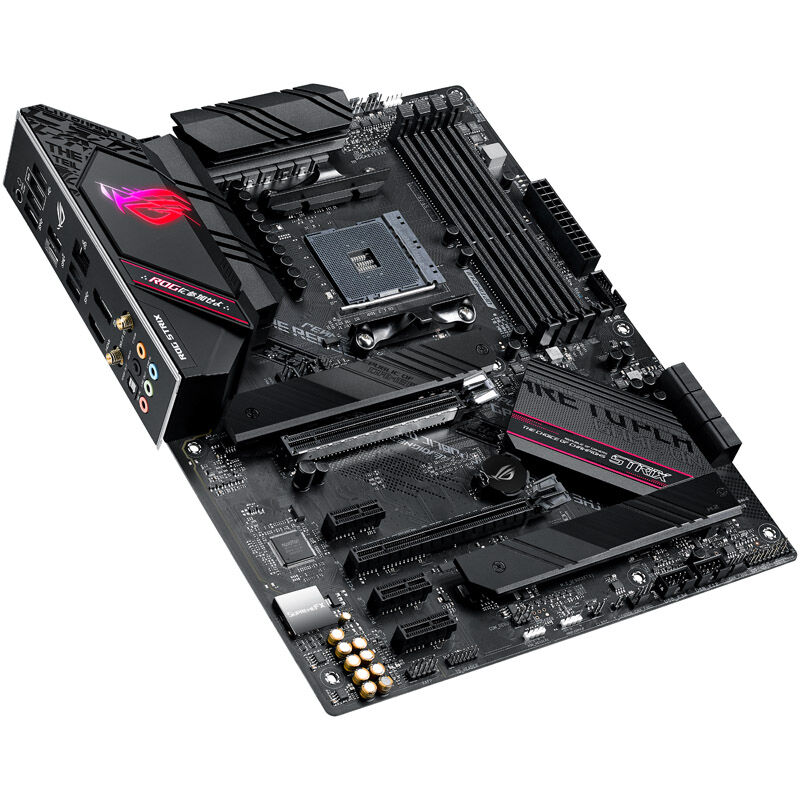

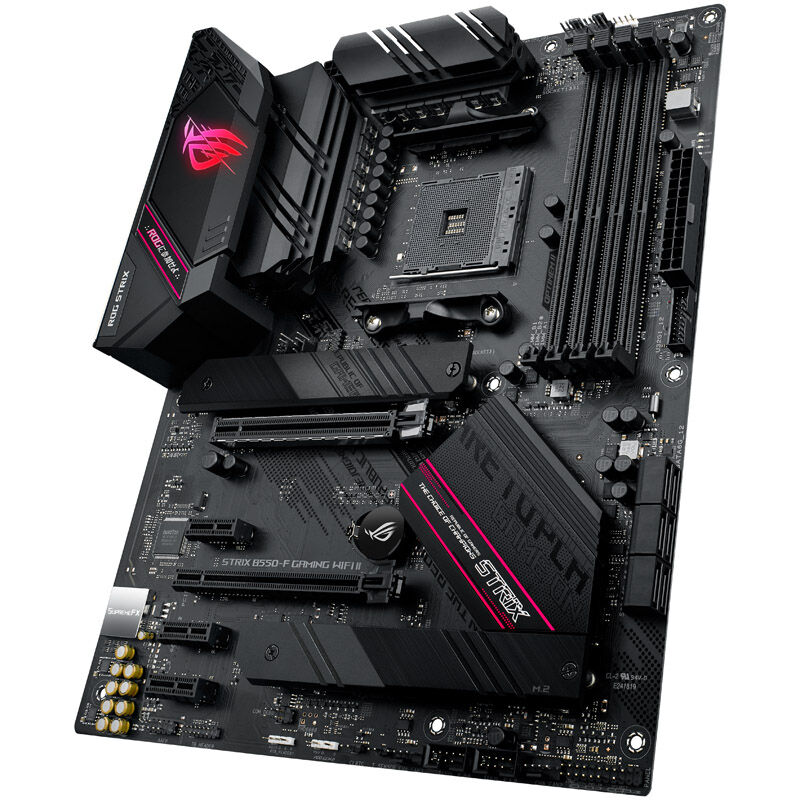

The ASUS ROG STRIX B550-F Gaming WiFi II ATX motherboard in detail:
The ASUS ROG STRIX B550-F Gaming WiFi II is an ATX motherboard with the AMD B550 chipset and the AM4 socket. The motherboard is suitable for AMD Ryzen 5000 and 3000 series desktop processors, as well as the 4000 G series, and supports PCIe 4.0. It supports DDR4 memory up to 4800 MHz. The motherboard is particularly suitable as a motherboard for gaming PCs and fits into the trays of most common cases.

Technical details:
format
– ATX (305x244mm)
– – Chipset
– AMD B550
– Base:
– AM4 (for Matisse / Vermeer)
– R.A.M:
– 4x DDR4 (max. 3,200 MHz, 4,800 MHz in OC)
– Dual channel
– max. 128GB
– Slots:
– 1x PCIe 4.0 x16 (x16)
– 1x PCIe 3.0 x16 (electrical x4)
– 3x PCIe 3.0 x1
– Internal connections:
– 6x SATA 6G (RAID 0, 1, 10)
– 1x M.2 (M-Key, PCIe 4.0 x4 & SATA, 2242 to 22110)
– 1x M.2 (M-Key, PCIe 3.0 x4 & SATA, 2242 to 22110)
– 2x USB 3.0 (USB 3.2 Gen1, one header)
– 4x USB 2.0 (two headers)
– 1x Front Panel Audio Connector
– 1x System Panel Connector
– 1x Thermal Sensor Header
– 1x Thunderbolt Header
– 1x Clear CMOS Header
– Fan Header:
– 1x CPU Cooler (4-pin)
– 1x Pump (4-pin)
– 1x Optional CPU Cooler (4-pin)
– 3x System Fans (4-pin)
– RGB Headers:
– 2x 4-pin RGB Headers (12VGRB)
– 1x 3-pin RGB Header (5VDG)

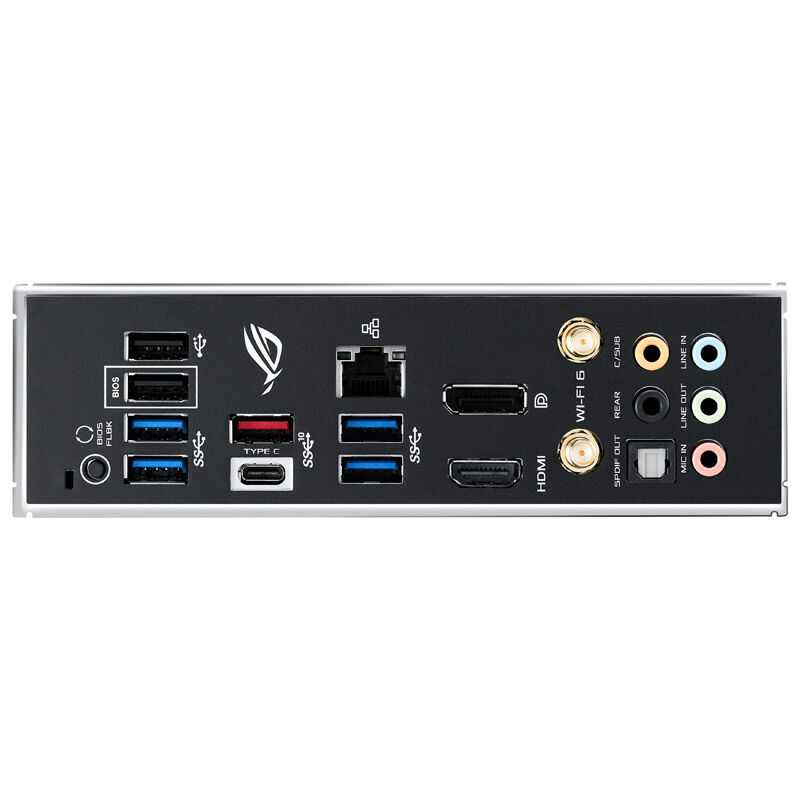

– External Connectors:
– 1x USB 3.1 Type-C (USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.1 Type-A (USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 Type A (USB 3.2 Gen 1, max. 5 Gbit/s
– 2x USB 2.0 (max. 480 Mbit/s)
– 1x DisplayPort
– 1x HDMI 2.1
– 1x RJ-45 (Intel I225-V, max. 2.5 Gbit/s)
 -2x antenna (Wi-Fi 6, 802.11 ax, Bluetooth 5.2)
– 5x 3.5 mm jack (ROG SupremeFX CODEC S1220A)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– 1x 4-pin ATX12V

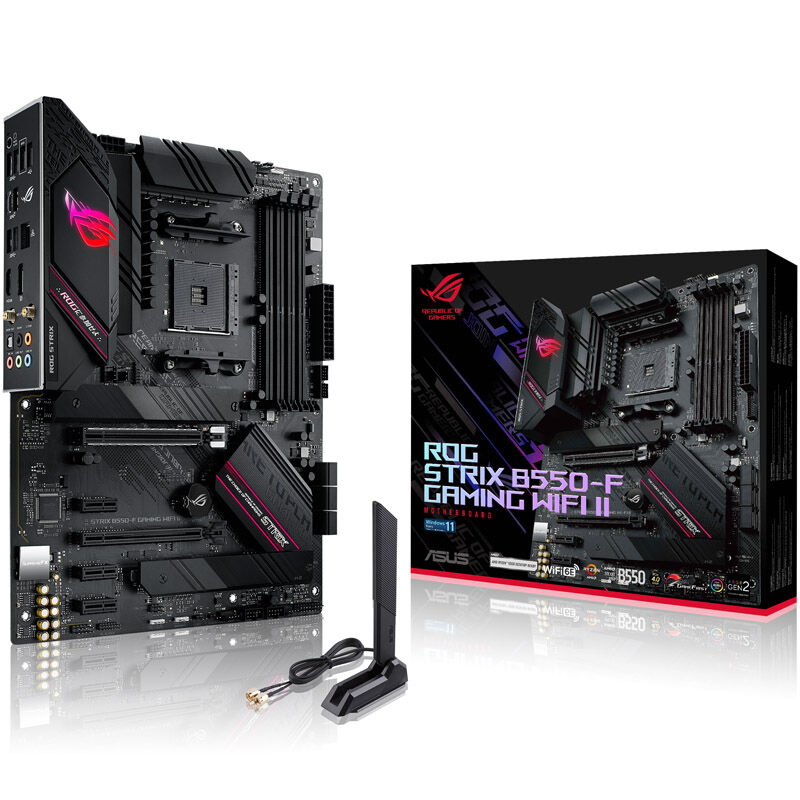

– – Scope of delivery:
– 1x ASUS ROG STRIX B550-F Gaming WiFi II
– 1x RGB cable
– 4x SATA cables
– 1x antenna
– 1x cable tie
– 1x ROG Accessories
– M.2 Mounting Screws
– 1x Support DVD
– 1x User Manual
