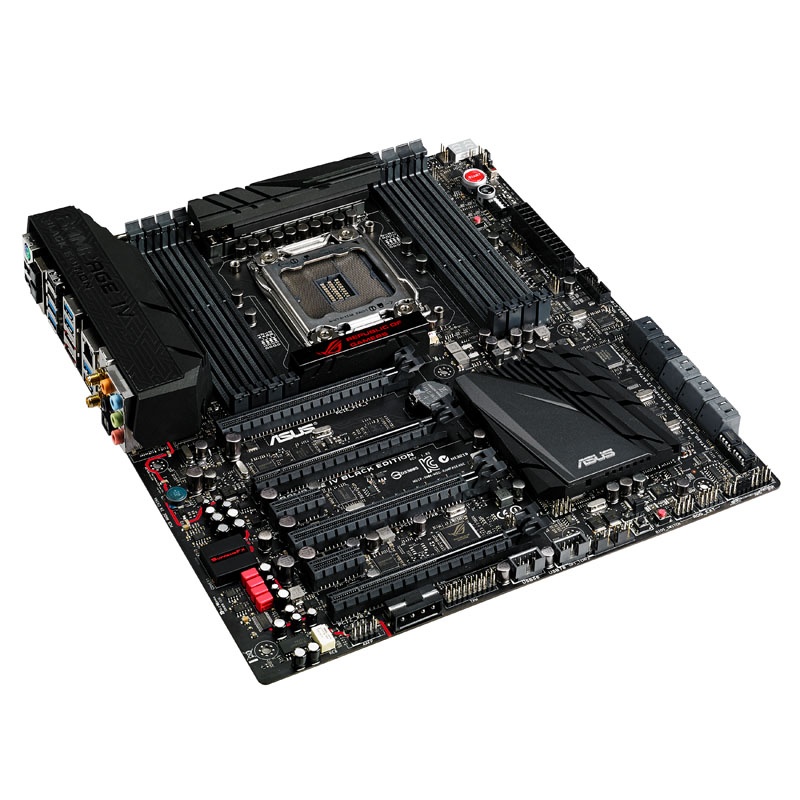

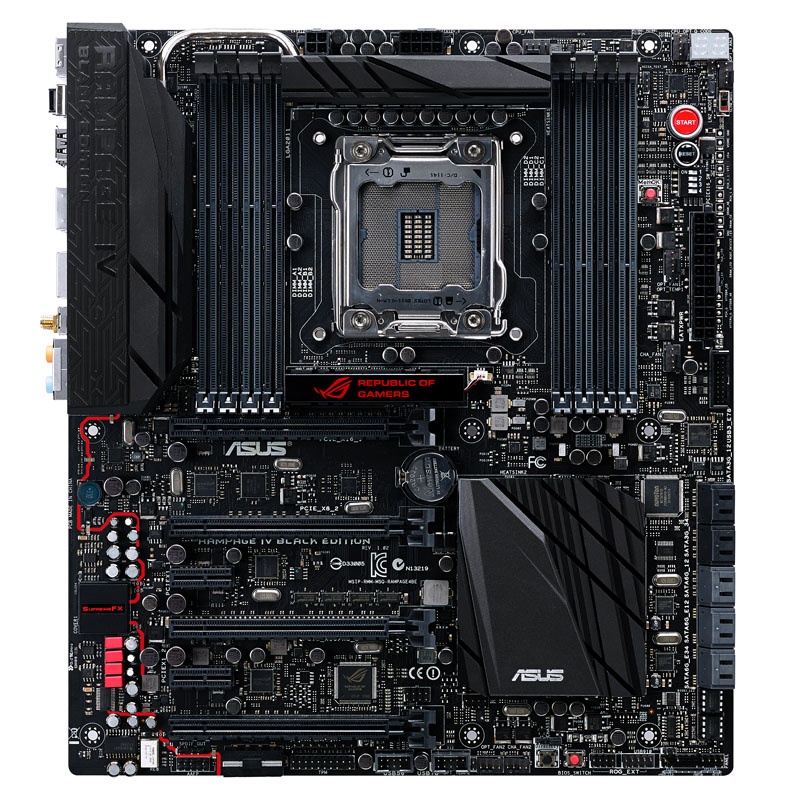

ASUS Rampage IV Black Edition, Intel X79 Motherboard - Socket 2011

Thus, this high- end motherboard is again valuable to some level. The mainboard has , according to its name, a black color scheme and a high recognition value . For this also ensures a very complex cooling design, which primarily means low temperatures and subsequently high OC potential in addition to the optical effect of course .

The mainboard provides a variety of internal and external connections and an almost unbelievable large capacity for expansion cards , memory modules and other components. So can be installed with a speed of up to 2,800 MHz DDR3 eight bars, which sometimes just 64 gigabytes in quad-channel mode are available. Also on board is to support the latest USB 3.0 technology and an elaborately designed cooling system that even up to natively supports eight PWM fan .

For the installation of expansion cards are ready four x16 and two x1 PCIe slots . All four x16 slots based on the new PCIe 3.0 standard . In addition, the motherboard offers the same eight USB 3.0 and ten USB 2.0 ports . The SupremeFX sound unit is an 8- channel HD audio solution with integrated technologies such as WIMA , Sonic, Radar, ELNA capacitors, headphone amplifier and 120 dB (A ) SNR . Thus, movies, music, and especially games are an impressive sound experience .

The built-in electronic components shine thanks to their High quality , load capacity and durability. Furthermore, the motherboard offers numerous overclocking options , built-in Wi -Fi and Bluetooth V4.0 interfaces with antenna jacks and a completely revised UEFI BIOS.

Notes: Through overclocking, and running the components outside the specifications, the warranty will be lost.

Technical details :

    Format: E-ATX
    Color: black
    Chipset: Intel X79
    Socket: 2011 ( for Intel Ivy Bridge-E CPUs)
    Memory: 8x DDR3 (up to 2,800 MHz)
    Quad-Channel
    Up to 64 GB
    slots:
    4x PCIe x16 ( 3.0)
    2x PCIe x1 ( 2.0)
    Internal connections:
    6x SATA 6G
    4x SATA 3G
    2x USB 3.0 ( 1x header)
    6x USB 2.0 ( 3x header)
    TPM 1x 1x ROG extension
    8x 4- pin PWM
    1x S / PDIF
    Power / reset / LED / Front Audio
    External connections :
    6x USB 3.0
    4x USB 2.0
    2x eSATA 6G
    1x Intel Gigabit LAN
    5x Audio ( SurpremeFX Black )
    1x optical S / PDIF
    1x PS / 2 keyboard / mouse
    1x USB BIOS Flashback 2x Dual-Band WiFi 802.11ac/Bluetooth V4.0
    Power supply:
    1x 24- pin ATX12V
    1x 4- Pin Molex
    1x 8 -pin EPS12V
    Compatibility: Windows XP, Vista , 7
    features:
    NVIDIA 4- Way SLI Support
    AMD 4- Way CrossFireX support
    High-quality components
    UEFI BIOS
    ROG OC Key
