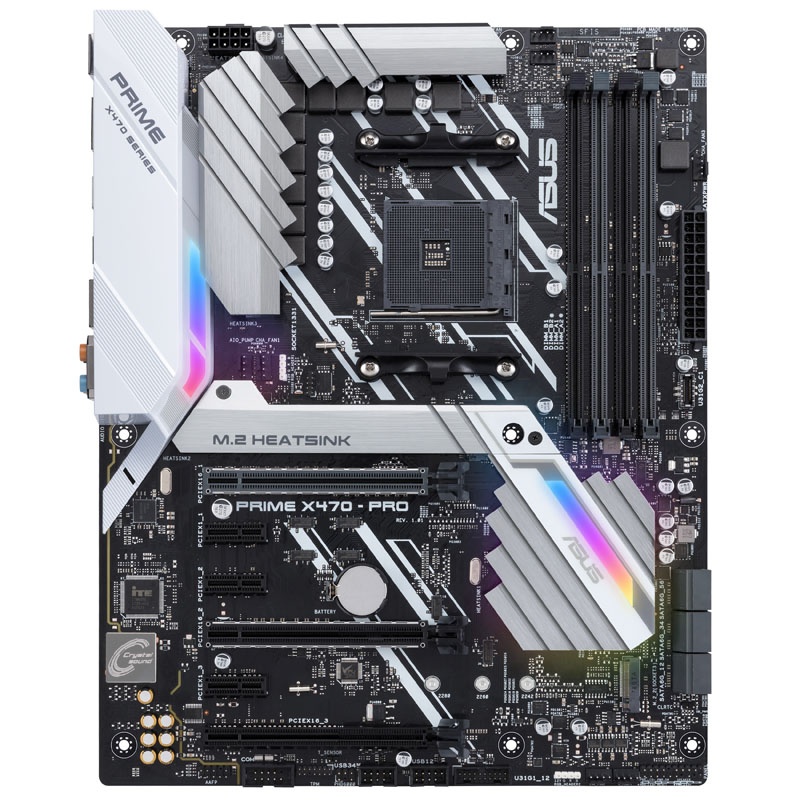

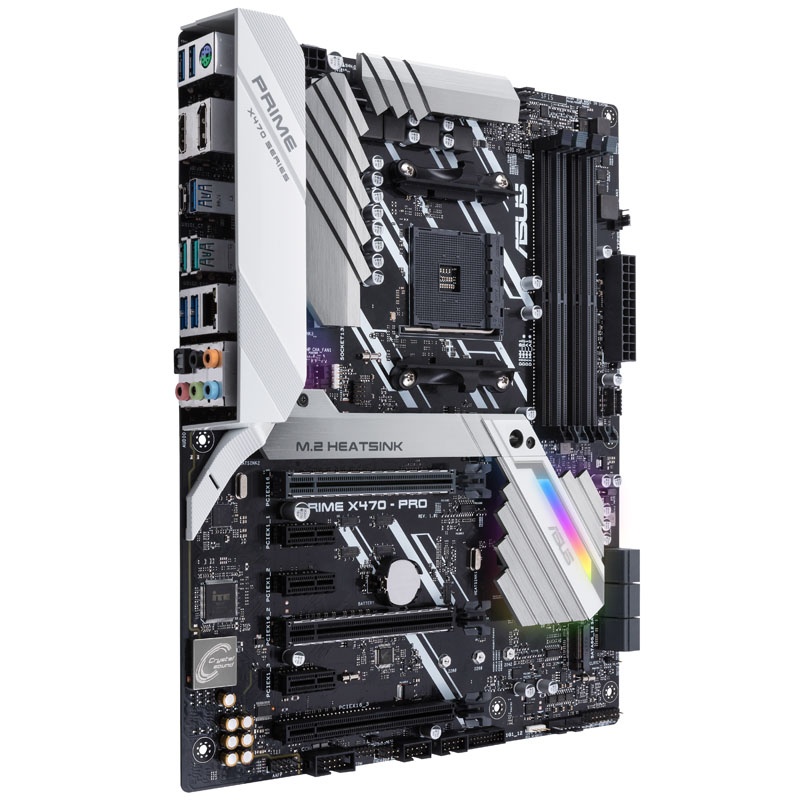

ASUS PRIME X470 Pro gaming, AMD X470 motherboard - AM4 socket

The high-end chipset supports up to 64 GB of RAM with a guaranteed clock rate of now 2,933 megahertz, which in conjunction with OC-RAM kits also significantly higher clock speeds can be achieved. In addition, the X470 chipset is compatible with all new features of the second-generation Ryzen processors (eg XFR2) and benefits from further optimizations.
The features of the ASUS PRIME X470 Pro Gaming at a glance:
2x PCIe 3.0 x16 (x16 / x8) for high-end graphics cards
3x USB 3.1 / 8x USB 3.0 (1x Type C) / 4x USB 2.0
1x M.2 PCIe 3.0×4 & SATA / 1x M.2 PCIe 3.0×2 & SATA / 6x SATA 6G
DDR4 memory up to 3,466 MHz
Aura Sync RGB lighting
The features of the ASUS PRIME X470 Pro Gaming in detail:
The ASUS PRIME X470-Pro Gaming is an ATX-format motherboard and features a fast PCI Express 3.0 slot with full x16 connectivity for graphics cards and another PCI Express 3.0 slot with x8 connectivity. The four RAM banks hold up to 64 GB of DDR4 memory with a clock rate of up to 2,933 megahertz and can even handle clock rates of up to 3,466 MHz via the OC.

The Socket AM4 motherboard provides two M.2 slots with PCIe connectivity. M.2 SSDs connected via four PCI Express 3.0 lanes, in conjunction with the NVM Express Advanced Protocol (NVMe), support data transfer rates of up to 32 Gbps, up to eight times faster than SATA-6G HDDs. The second M.2 slot is connected to PCIe 3.0 x2, but shares the bandwidth with the first and the second PCIe x1 slot and offers only SATA6G speed when used.

The ASUS PRIME X470 Pro Gaming I / O panel has a Type-C USB 3.0 port. The new USB type C port is very thin and can be plugged in on both sides. In addition, there are two USB 3.1 ports. USB 3.1 or USB 3.1 Gen 2 achieves maximum speeds of 10 Gbit / s per port. USB ports with this standard also support the quick-charging feature of mobile devices such as smartphones or tablets.

Special features include RGB lighting and gaming-specific features – such as the generous heatsinks for the VRMs and M.2 SSDs. For control and automatic synchronization with other RBG components via Aura Sync, the ASUS PRIME X470 Pro Gaming also has two headers for static RGB LEDs. Furthermore, the board has an HDMI and a DisplayPort connection.

Technical details:
Format:
ATX (305 x 244 mm)
chipset:
AMD X470
Base:
AM4 (for Pinnacle Ridge / Summit Ridge / Bristol Ridge / Raven Ridge)
R.A.M:
4x DDR4 (max 2.933 MHz, 3.466 in OC)
Dual-Channel
Max. 64 GB
Slots (with a Ryzen CPU of the 2000 series):
1x PCIe 3.0×16
1x PCIe 3.0 x16 (electric x8)
1x PCIe 3.0 x16 (electric x4)
Multi-GPU configurations: 3-way AMD CrossFire / 2-way NVIDIA SLI
3x PCIe 2.0 x1
Internal connections:
6x SATA6G
1x M.2 (M-Key, PCIe 3.0 x4 & SATA6G with up to 32 Gbps, horizontal, sizes 2242 to 22110)
1x M.2 (M-Key, PCIe 3.0 x2 & SATA6G with up to 20 Gbps, horizontal, sizes 2242 to 2280)
1x USB 3.0 header (2 ports)
2x USB 2.0 header (4 ports)
5x 4-pin fan (PWM)
2x pump connection
1x Temp Sensor Header
1x front-panel audio connector
2x 4-pin RGB header (12VGRB)
1x TPM header
1x system panel header
1x S / PDIF Out header
1x Clear CMOS jumper
1x COM port header
External connections:
1x PS / 2 Combi port (keyboard / mouse)
1x USB 3.0 (Type-C, max 5 Gbps)
2x USB 3.1 (Type-A, max 10 Gbps)
5x USB 3.0 (Type-A, max 5 Gbps)
1x Gigabit LAN (Intel I211)
3x audio (Realtek ALC1220, 7.1 sound)
1x DisplayPort
1x HDMI
Power supply:
1x 24 pin ATX12V
1x 8-pin ATX12V
