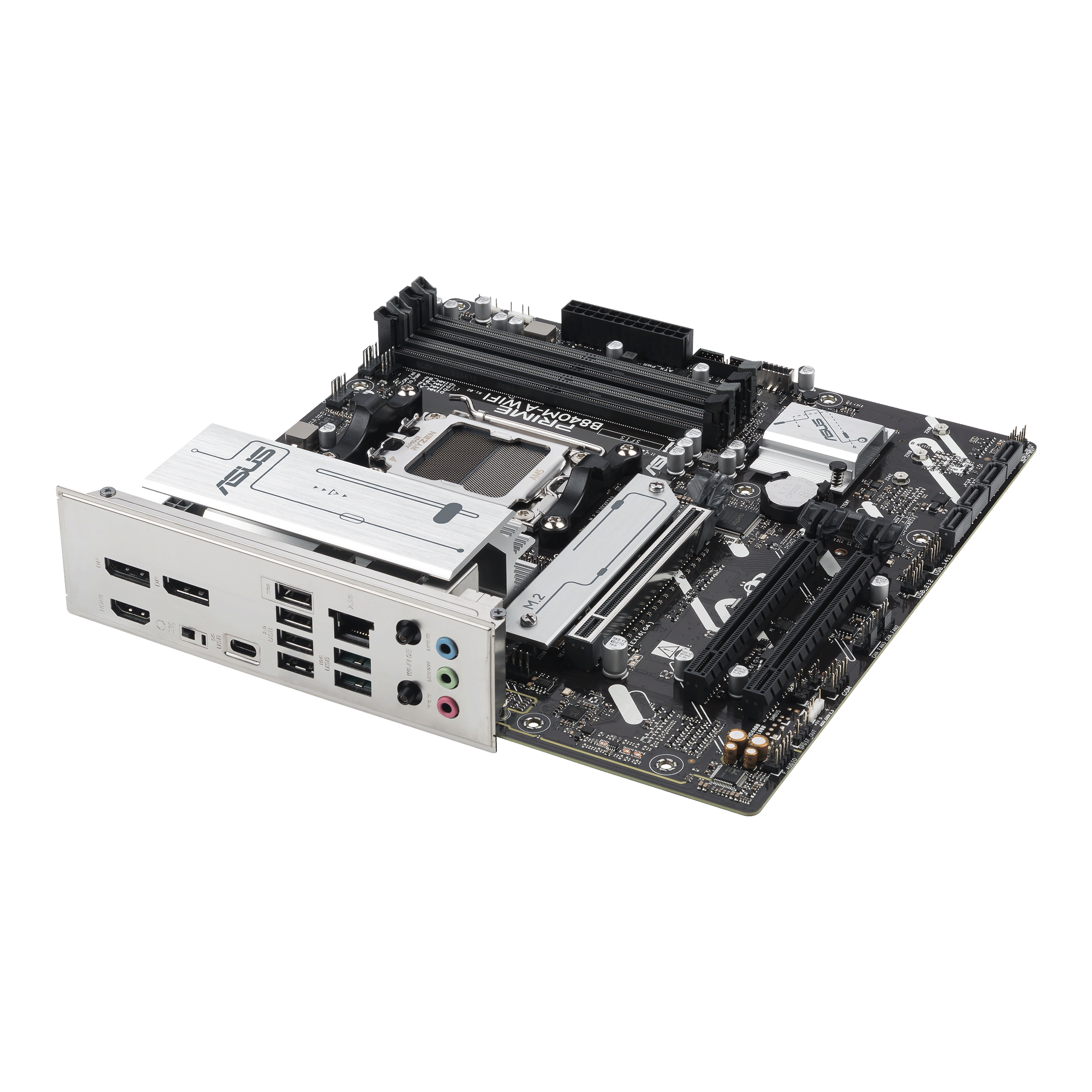

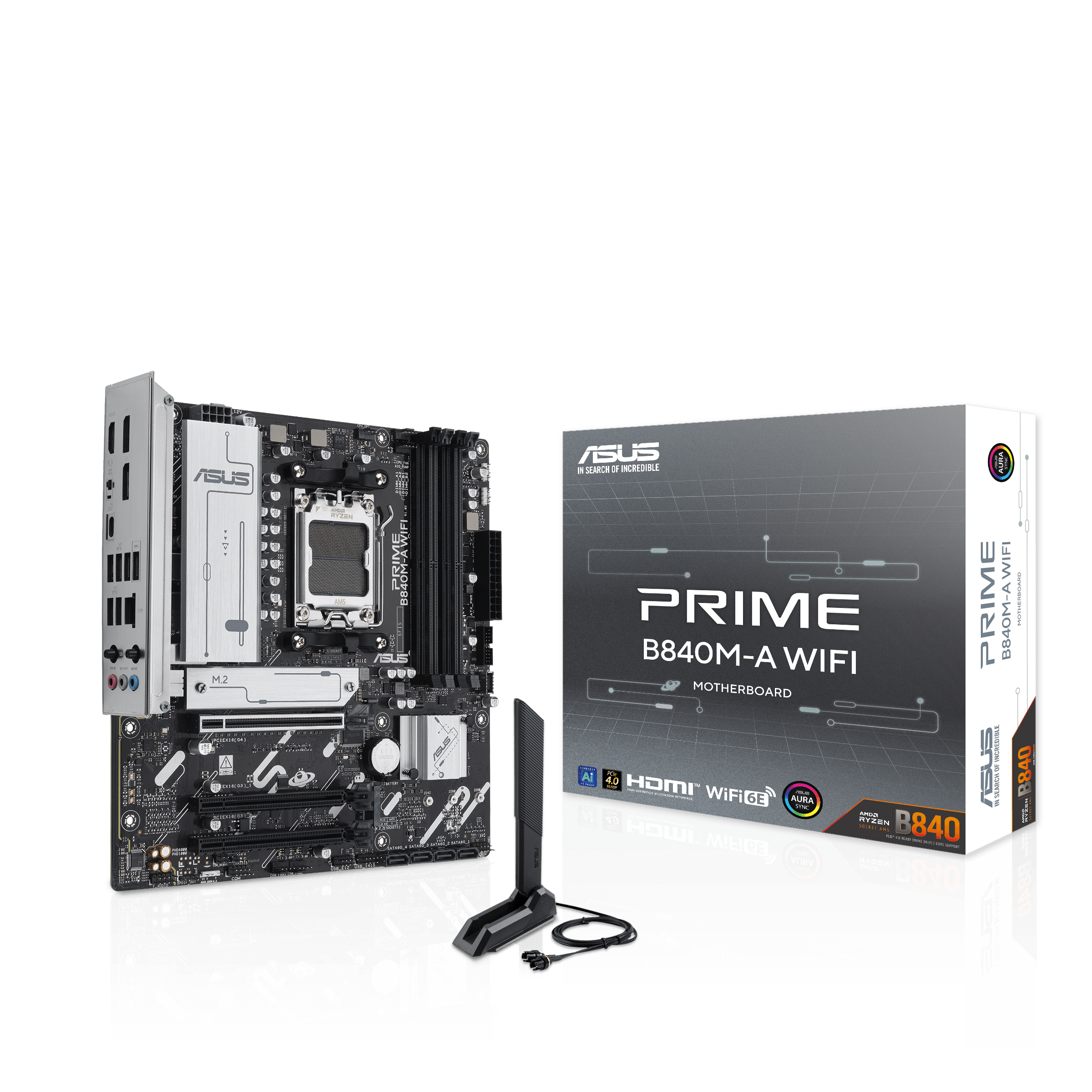

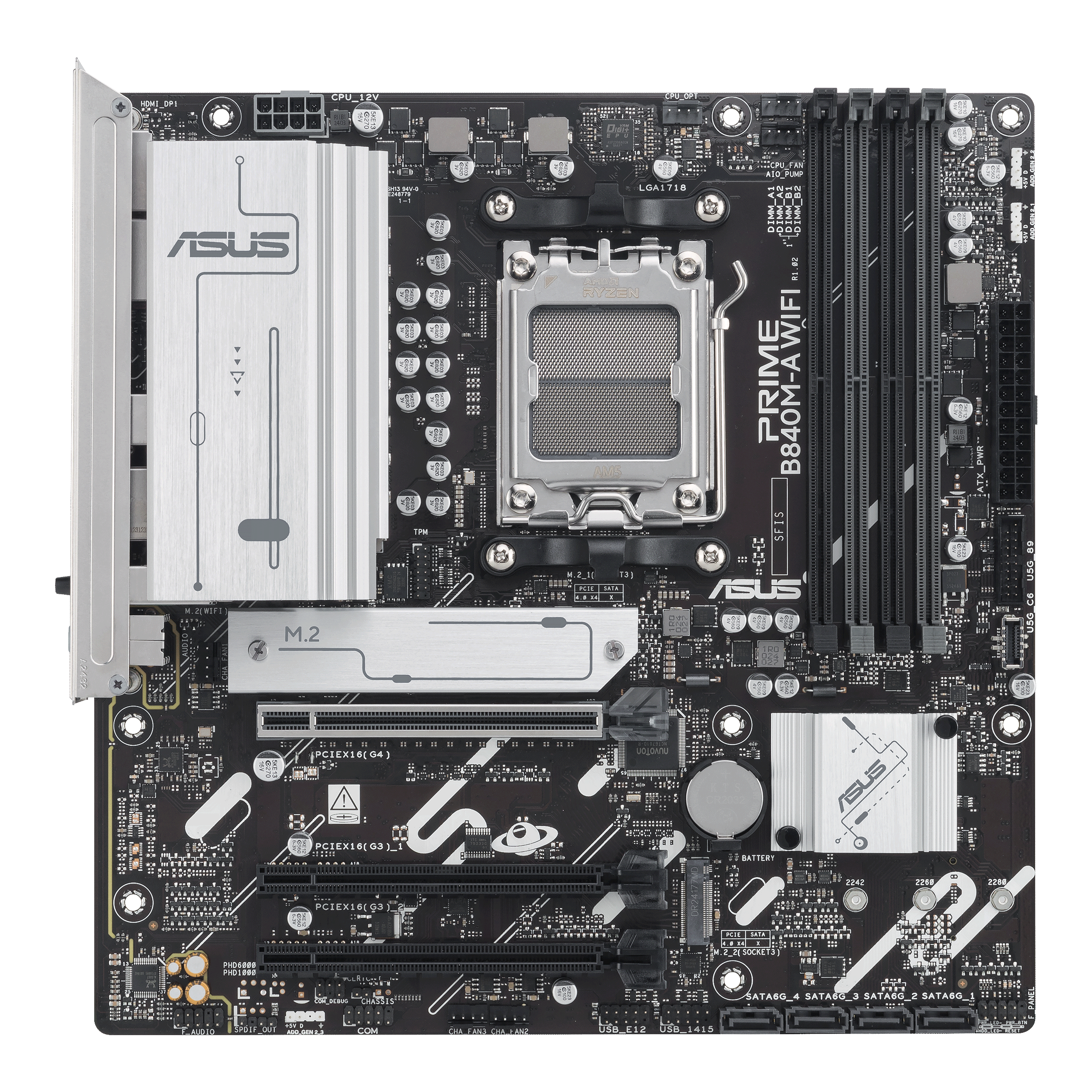

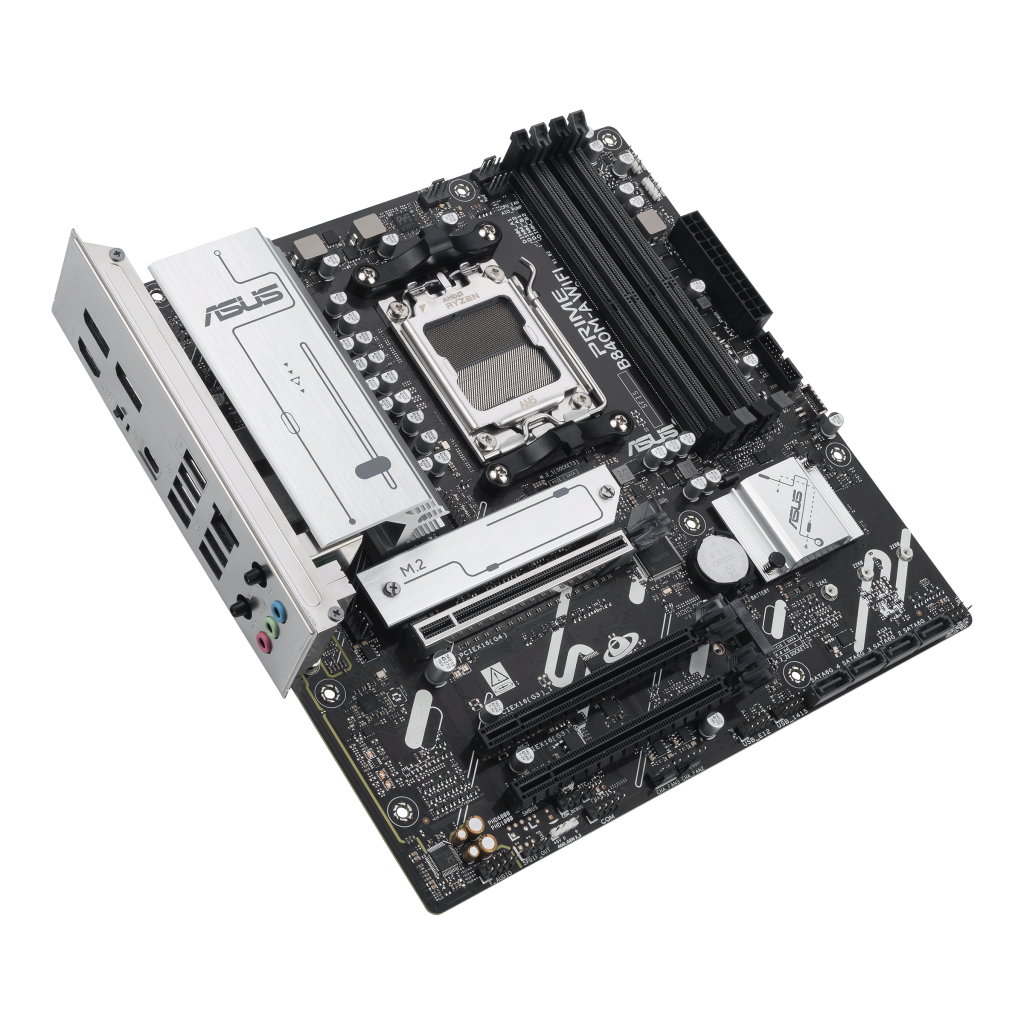

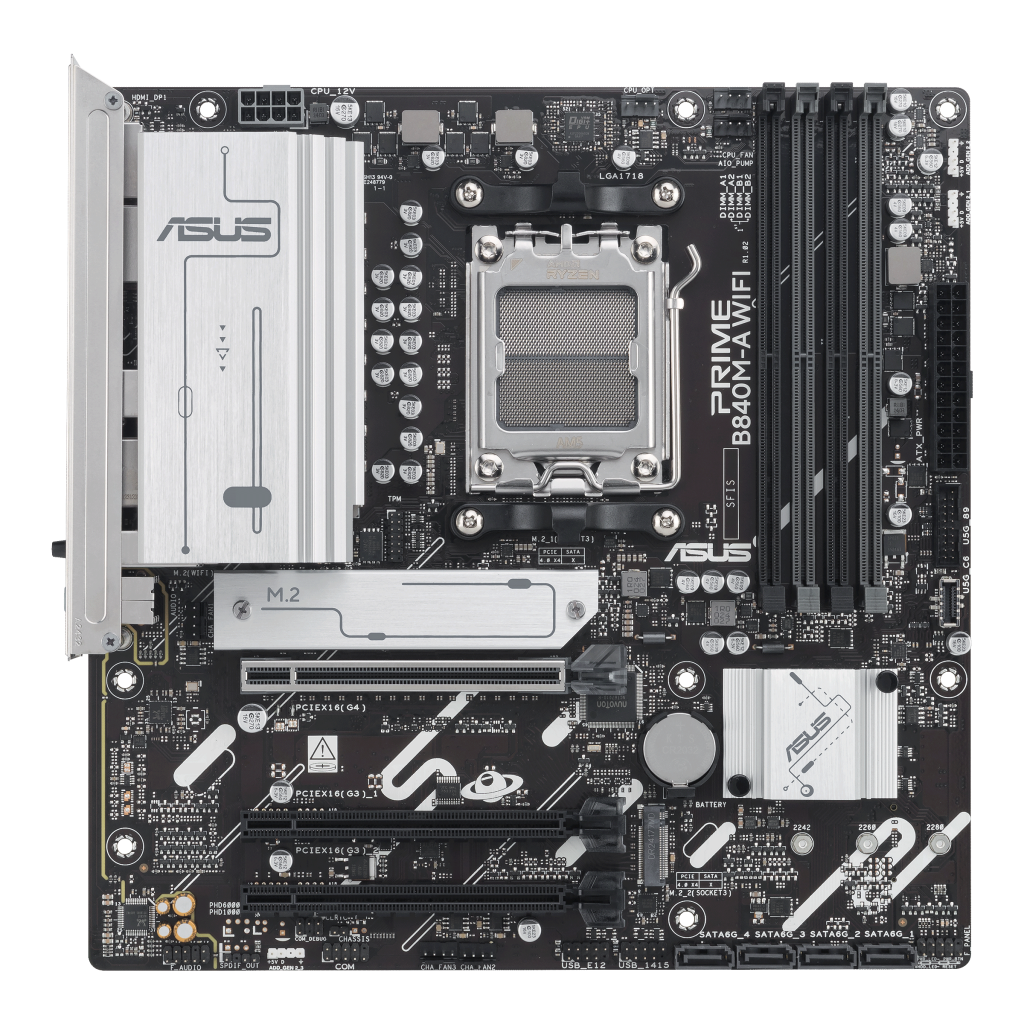

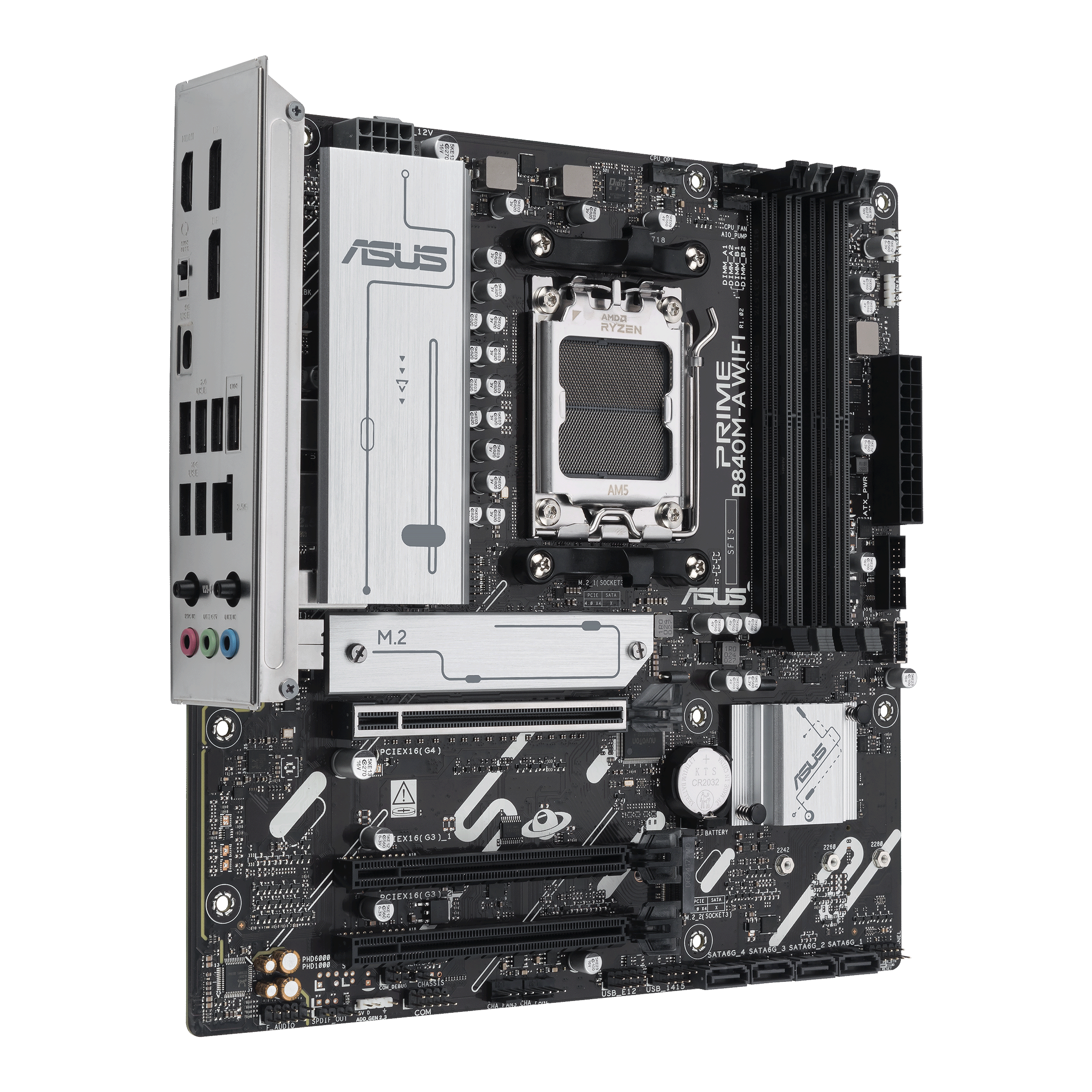

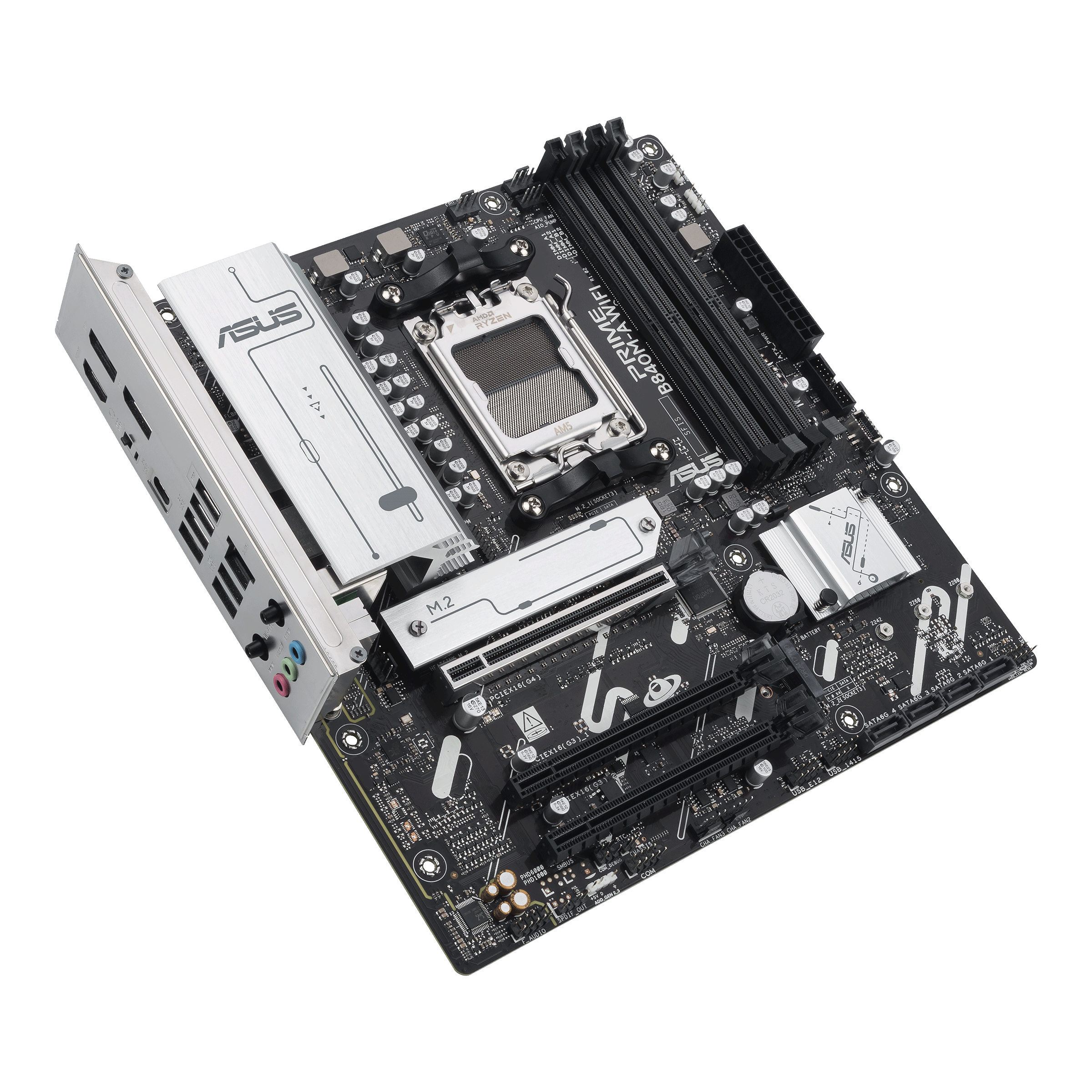

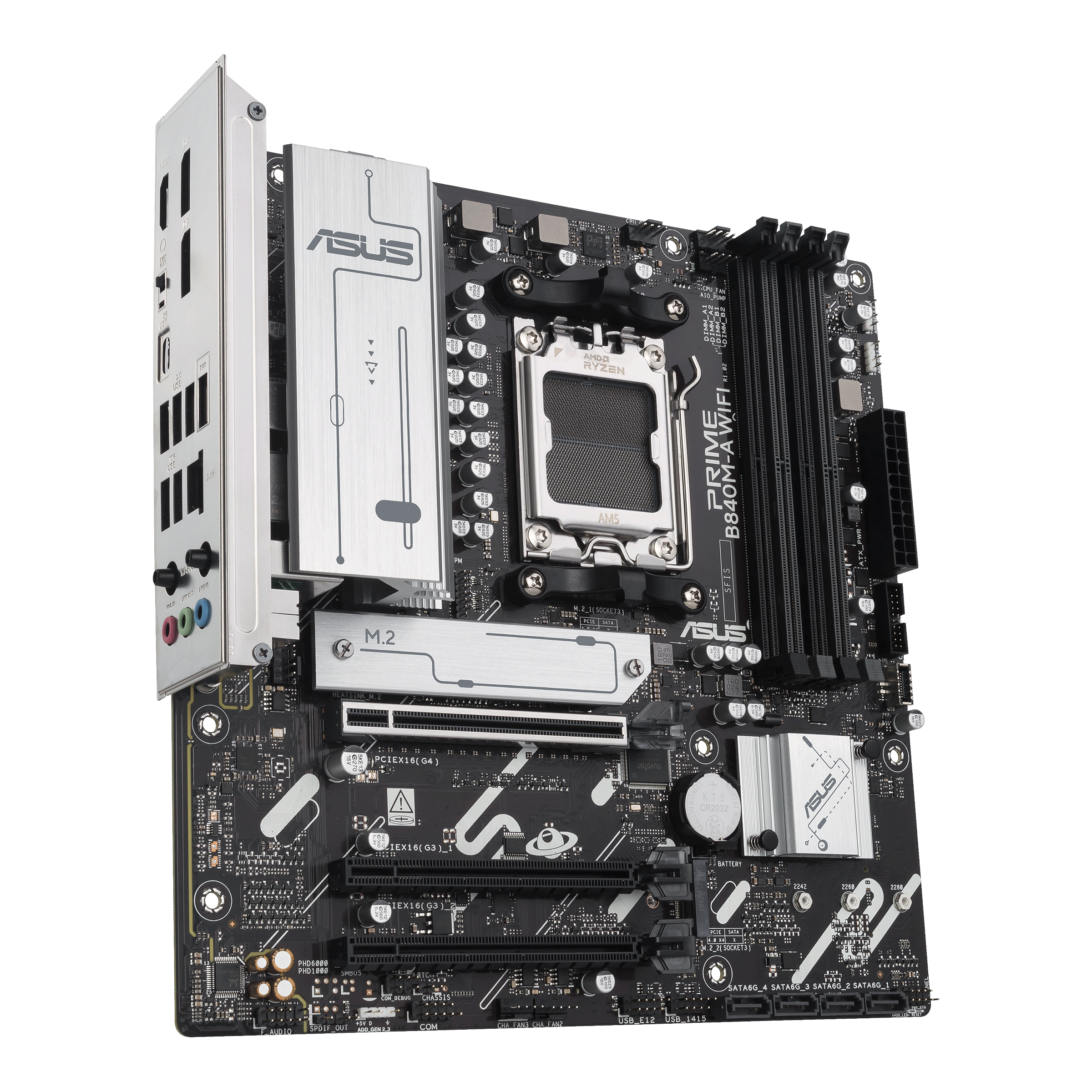

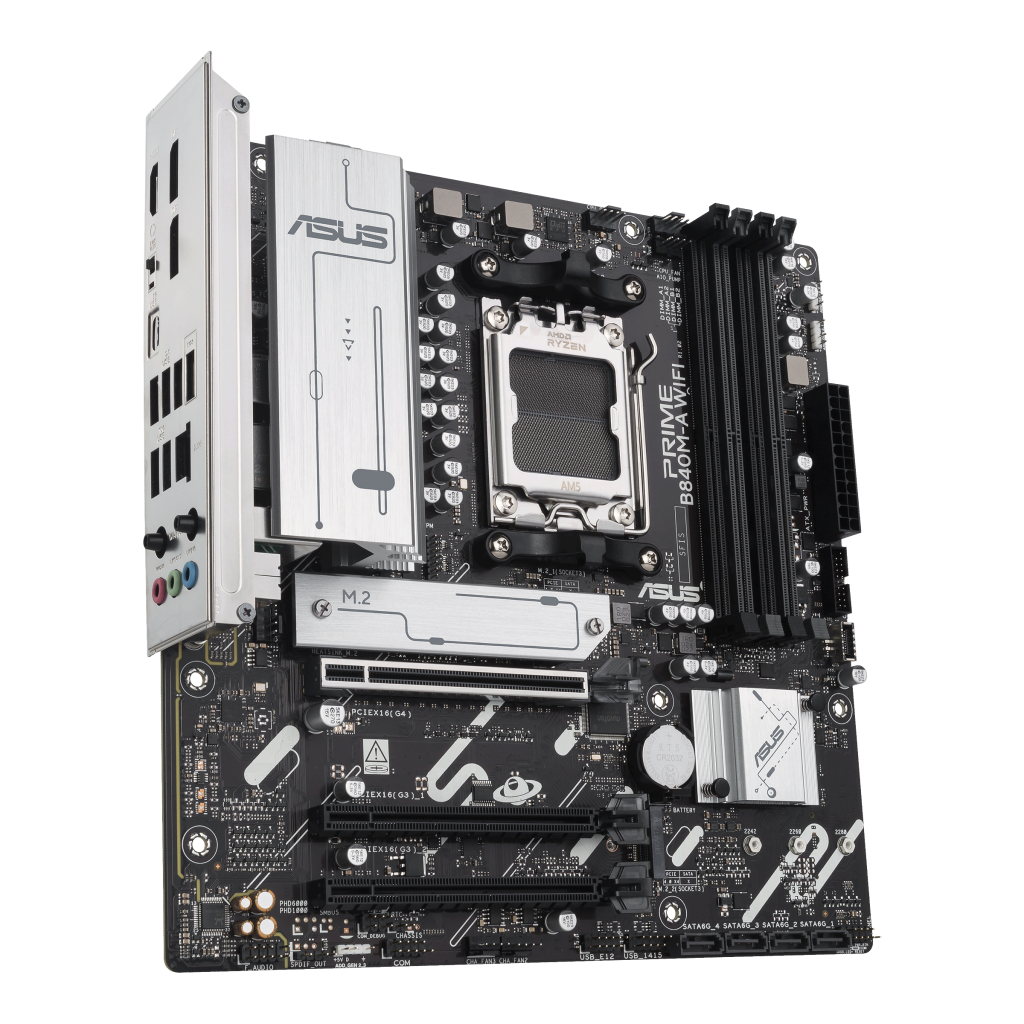

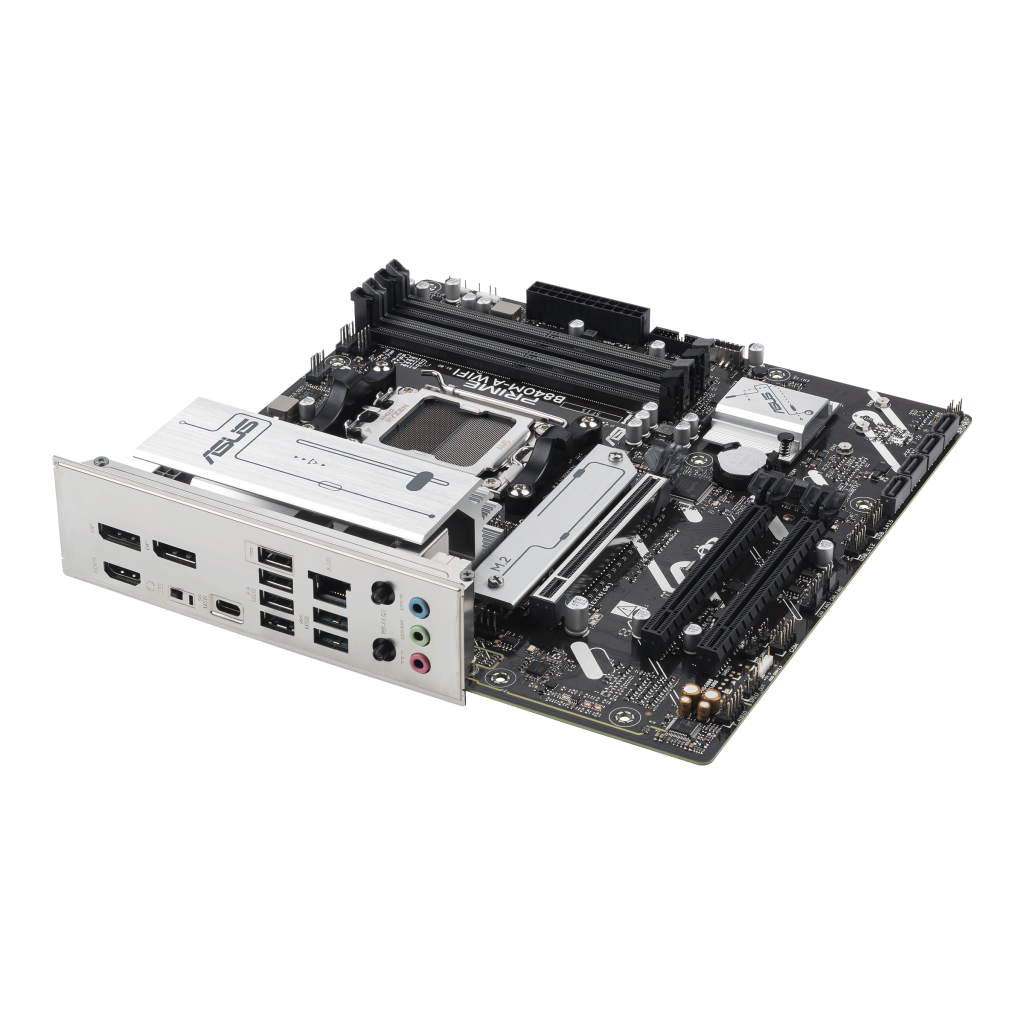

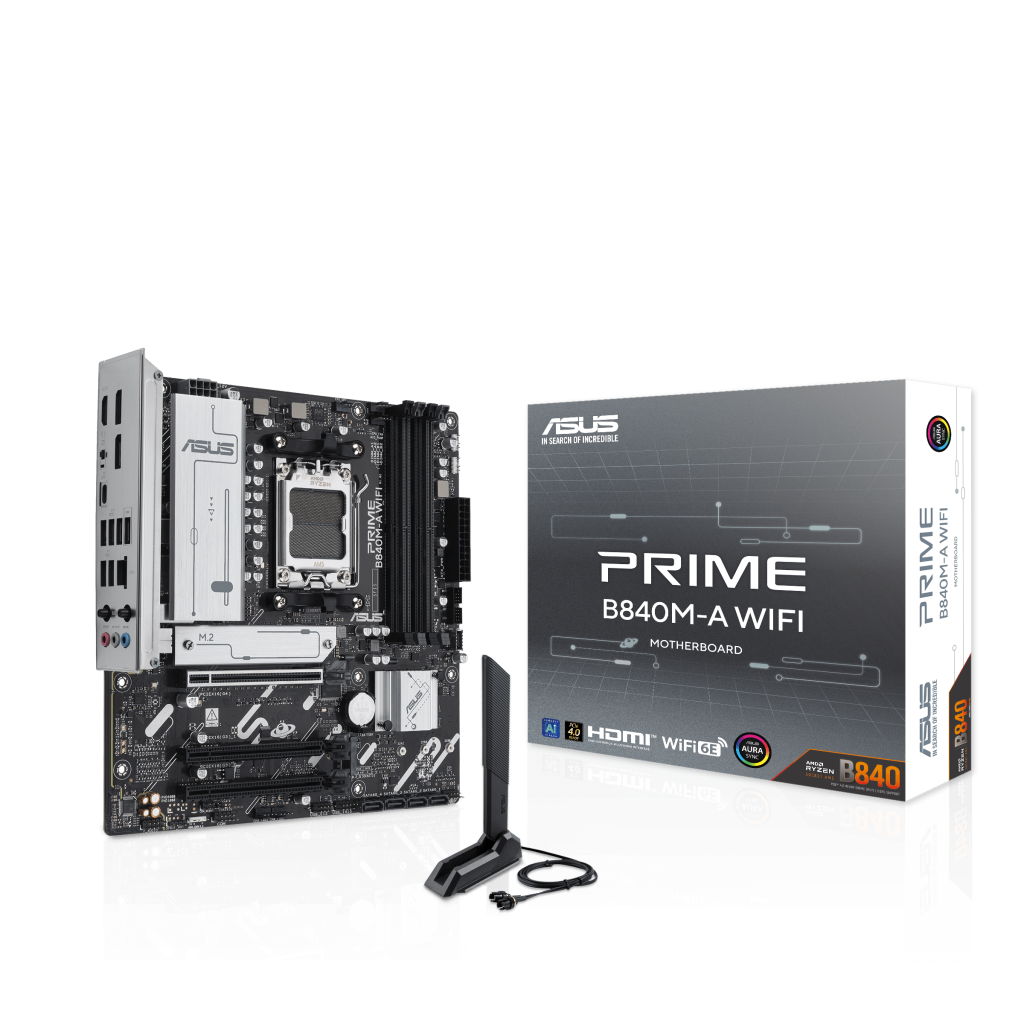

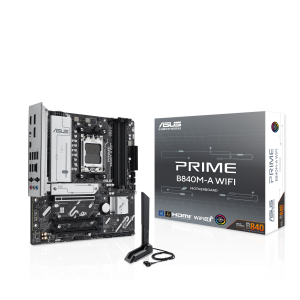

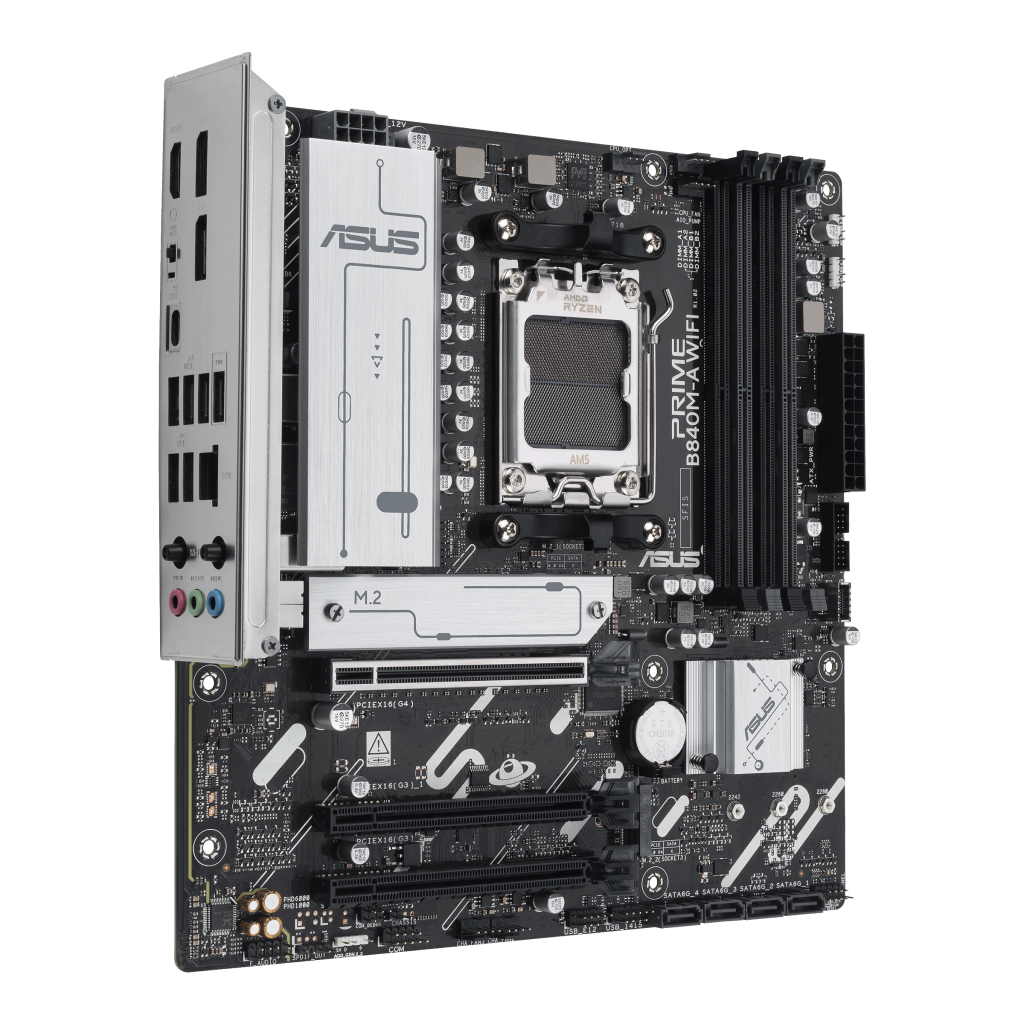

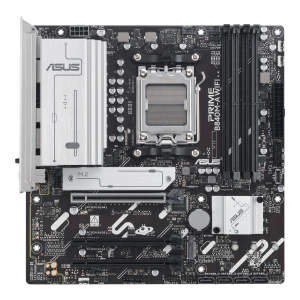

ASUS PRIME B840M-A WiFi motherboard, socket AM5, AMD B840, Micro-ATX, DDR5

– Slots: 1x PCIe 4.0 x16 (x16) and 2x PCIe 3.0 x16 (x1)
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 7,600 MT/s
– Storage: 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0) and 4x SATA
– USB: 2x USB 3.1, 1x USB-C 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

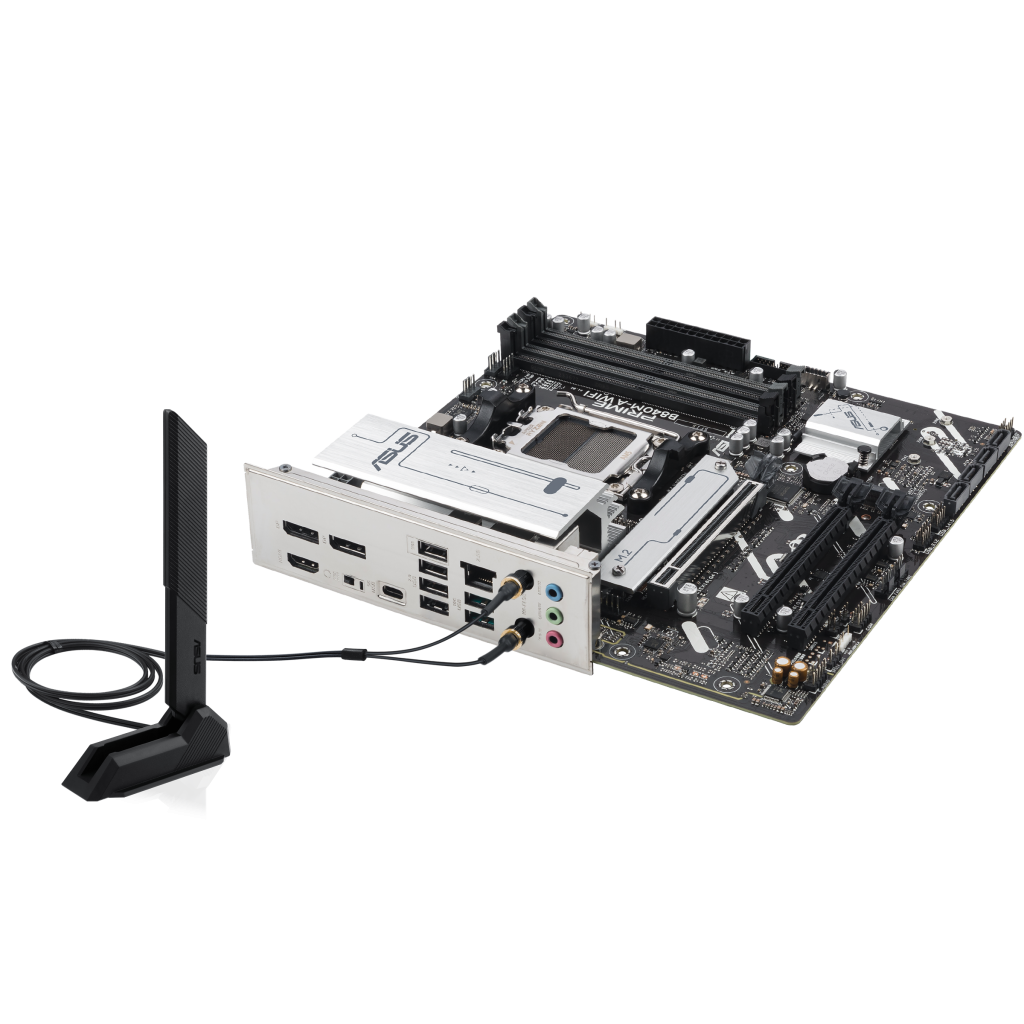

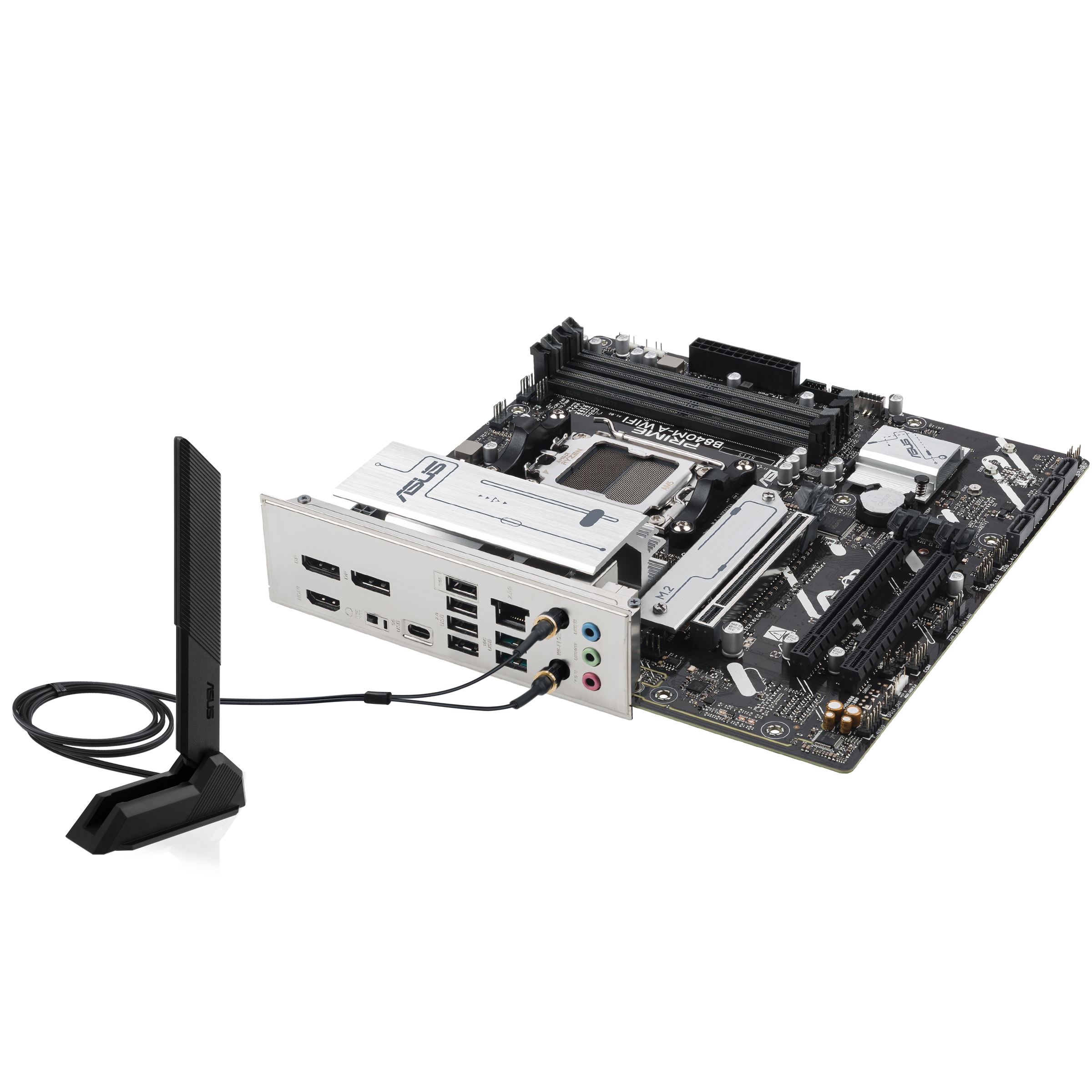

– Connectivity: Wi-Fi 6E and Bluetooth 5.3

ASUS PRIME B840M-A WiFi: Micro-ATX motherboard with AMD AM5 socket and B840 chipset
The ASUS PRIME B840M-A WiFi is a Micro-ATX motherboard with the Entry-level AMD B840 chipset with AMD Socket AM5. It supports both Ryzen 9000, 8000, and 7000 CPUs. While the DDR5 RAM can be overclocked, the processor cannot.

Connecting graphics cards and NVMe SSDs is supported via PCIe 4.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1. As the most affordable chipset in the AMD B800 series, it is suitable for office work and casual gaming.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 244 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B840
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 7600 MT/s
– – ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.3
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

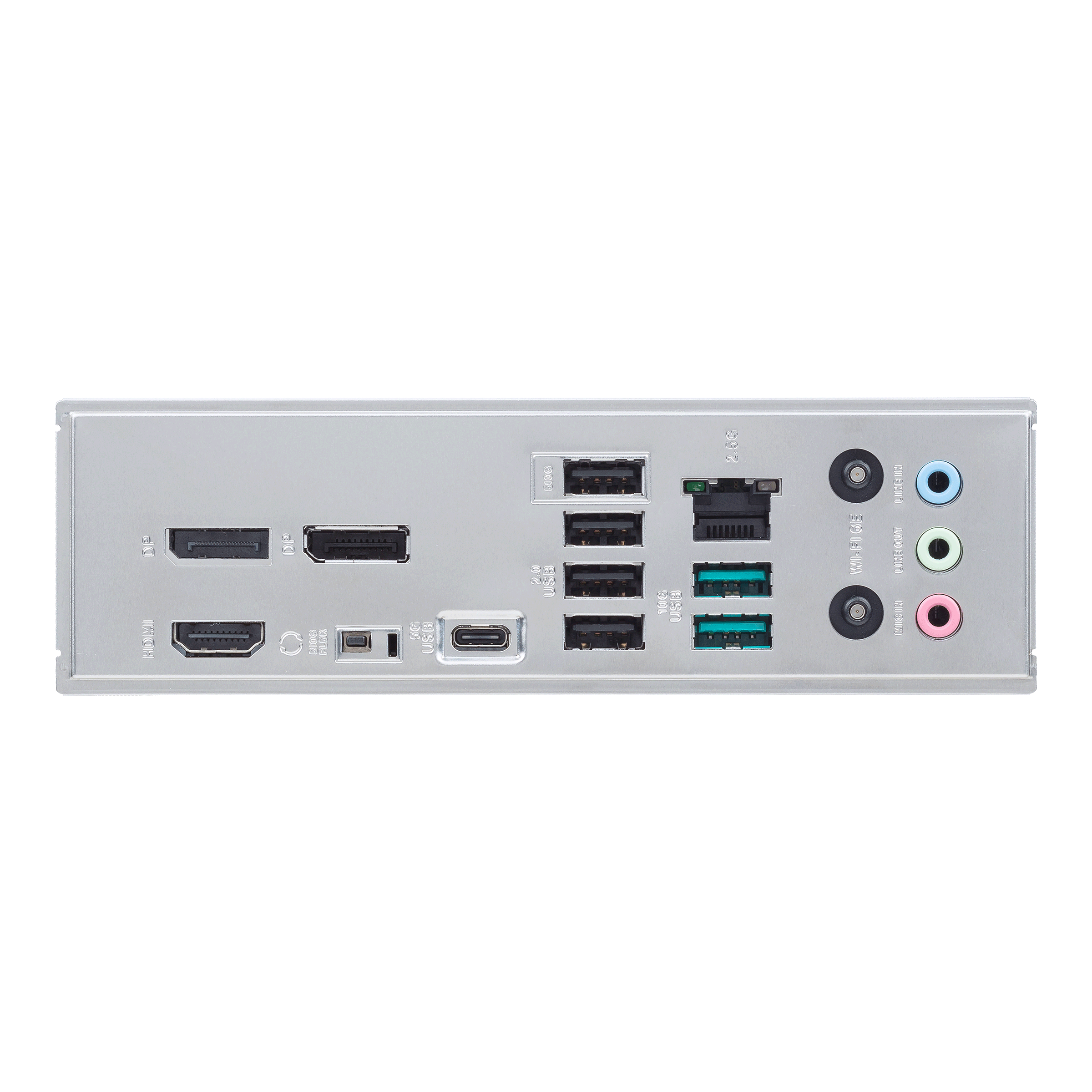

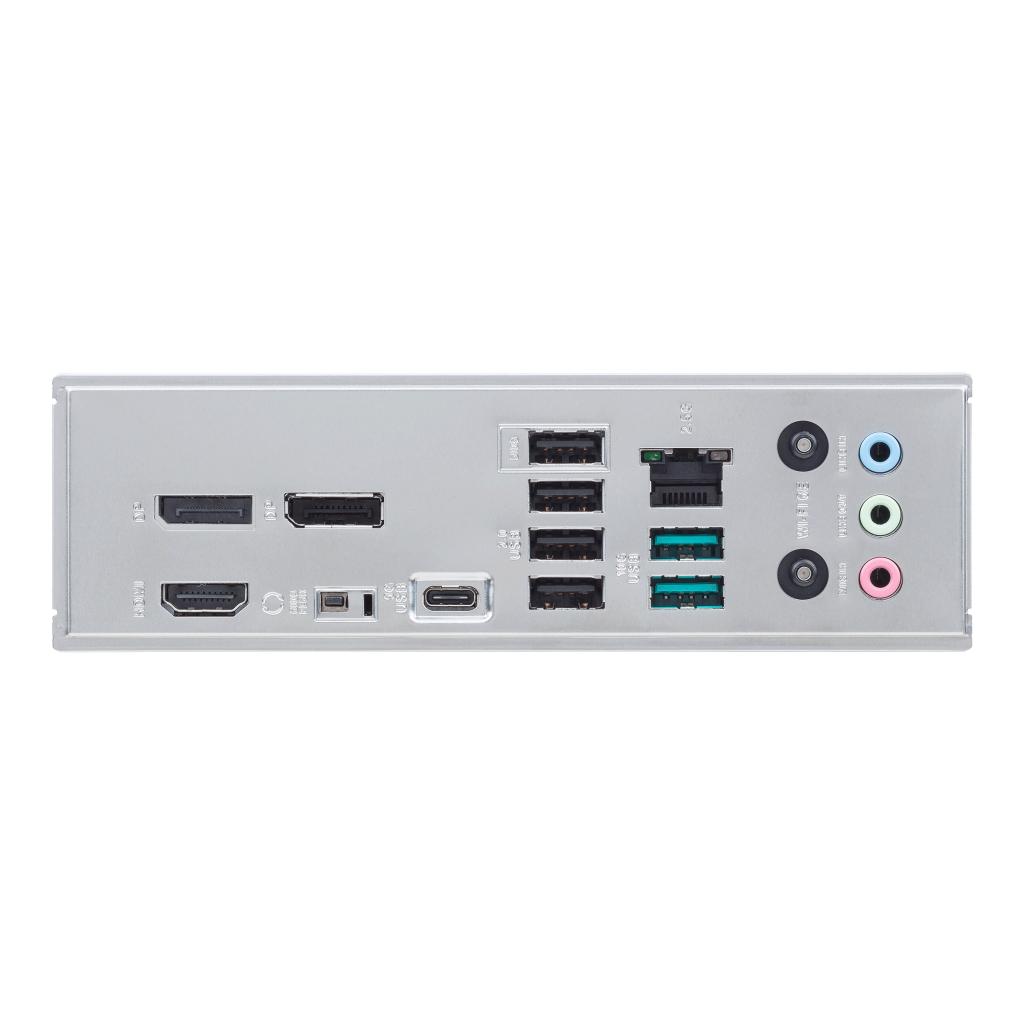

– External Connectors
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-C
– 1
– USB 2.0 (external) Type-A
– 4
– Display Ports
– Display Port (2x), HDMI (1x)
– Storage Connectors
– M.2 PCIe 3.0 x4
– 1
– M.2 PCIe 4.0×4
– 2
– – SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
