The motherboards with the Intel chipset H110 from the Sunrise Point -Chipsatzfamilie feature LGA 1151 and support the Skylake-Intel processors of the sixth generation. In addition to supporting the Skylake processors the H110 boards have other improvements over its direct predecessors. In addition to providing a PCIe 3.0 x16 slot for graphics cards supported motherboards with H110 chipset up to ten USB ports, of which up to four in the fast USB 3.0 standard.
The motherboards with the Intel chipset H110 from the Sunrise Point -Chipsatzfamilie feature LGA 1151 and support the Skylake-Intel processors of the sixth generation. In addition to supporting the Skylake processors the H110 boards have other improvements over its direct predecessors. In addition to providing a PCIe 3.0 x16 slot for graphics cards supported motherboards with H110 chipset up t...
The motherboards with the Intel chipset H110 from the Sunrise Point -Chipsatzfamilie feature LGA 1151 and support the Skylake-Intel processors of the sixth generation. In addition to supporting the Skylake processors the H110 boards have other improvements over its direct predecessors. In addition to providing a PCIe 3.0 x16 slot for graphics cards supported motherboards with H110 chipset up t...
No products found
For two memory DIMM slots are available in dual-channel mode for either DDR3L- or DDR4 RAM and prepared for connection of storage devices Up to four SATA 6G slots be used. Motherboards with the H110 chipset represent a cost-effective variant of Sunrise Point family and are particularly suitable as a business solution, or as a basis for a powerful home-office PC.

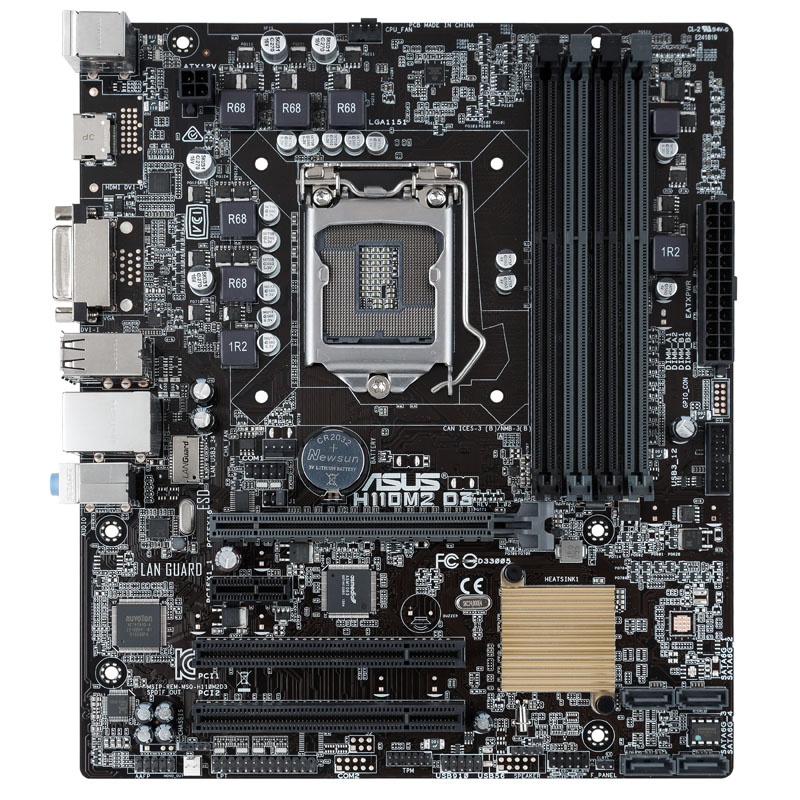

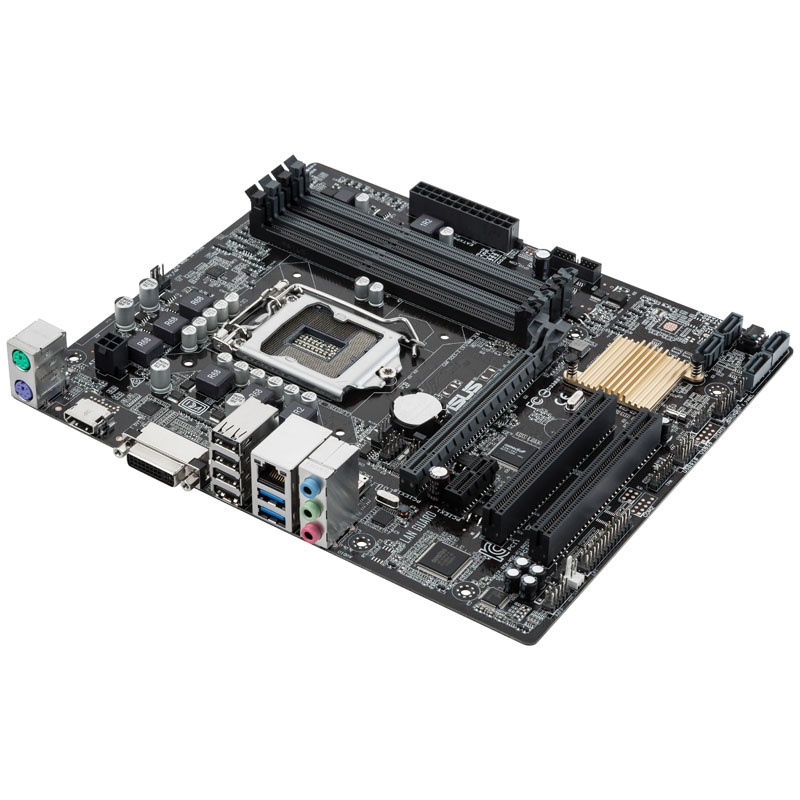

When H110M ASUS K-D3 is a H110 mainboard in MicroATX format. The black and gray board has four DIMM slots for DDR3L memory and a single PCIe x16 slot for graphics cards in the fast PCIe 3.0 standard. For insertion and expansion cards PCIe x1 slot in the PCIe 2.0 standard as well as two PCI connectors are available.
Thanks to the built-in Skylake CPU GPU monitors can be connected directly to the H110-motherboard. There are two basic connections are available with DMI and VGA. The ASUS motherboard can convince with many other features. These include four SATA 6G connections, four USB 3.0 and six USB 2.0 ports, a serial and a parallel port, a chassis-intrusion ever, LPT, TPM, COM and SPDIF header and an integrated Gigabit LAN port with Realtek RTL8111F chipset and onboard sound through the Realtek ALC887 chip.
Technical details:
Format: Micro ATX
Color: Black, Grey
Chipset: Intel H110 (Sunrise Point)
Socket 1151 (for Intel CPUs the 6th generation Core Skylake)
RAM: 4 x DDR3L (regularly DDR3-1.600 / 1133)
Dual-Channel
Slots (physically):
1 x PCIe 3.0 x16
1 x PCIe 2.0 x1
2 x PCI
Internal connections:
4 x SATA 6G
2 x USB 3.0 (a header)
2 x USB 2.0, a header)
1 x chassis intrusion header
1 x SPDIF header
1 x LPT header
1 x TPM header
1 x Internal speaker connector
1 x SPDIF header
1 x Serial Port (COM header)
2 x fan (4-pin)
Power / reset / LED / front-Audio
External connections:
2 x PS / 2 keyboard / mouse
2 x USB 3.0
4 x USB 2.0
1 x Gigabit LAN (Realtek RTL8111F)
1 x HDMI
1 x DVI-D
1 x Serial port (COM)
1 x Parallel Port
3x audio (7.1, Realtek ALC887)
Power supply:
1 x 24-pin EATX 12V
1 x 4-pin ATX 12V
