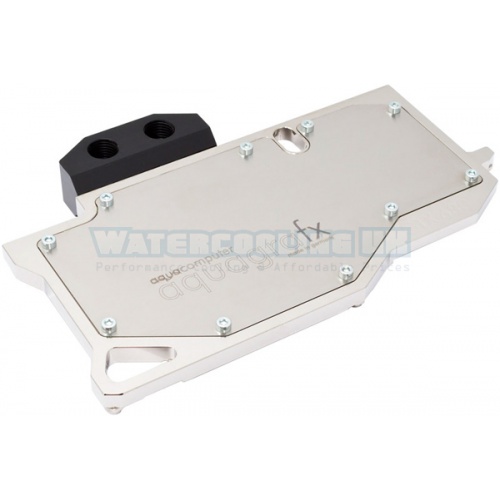

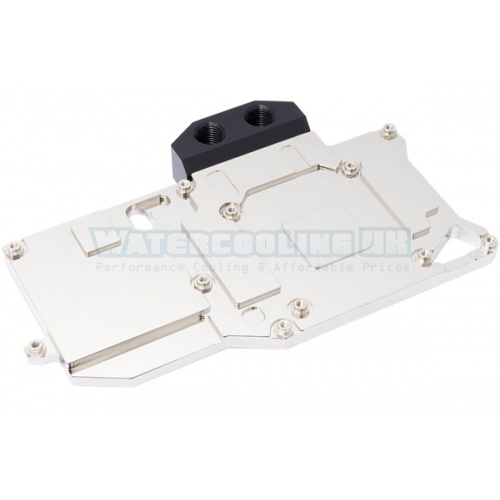

Aquacomputer aquagraFX for GTX 680 G1/4, Nickel Plated
No products found
Combined GPU / RAM / VRM-cooler for graphics cards NVIDIA GeForce GTX 680 type with 2048 MB of RAM for reference design.
This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler.
The GTX 680 may aquagraFX to come up with excellent values in terms of flow and cooling performance. The cooling channel was here in the range of the voltage converter out what is just for overclocking projects absolutely necessary.
All are equipped with threaded mounting spacers, this allows the graphics card is not forgiven more practical and installation is easy. The contact surfaces for the GPU and RAM are polished for optimal contact. Included is a high-end thermal pad for the voltage regulator area.
The cooler is equipped with the GTX 480/470/460 aquagraFX for well-known port terminal made of Delrin. This is fixed from the side with 3 mounting screws and provides the opportunity to screw terminals on both sides. Corresponding to two Tighten locking are included. The threads are G1 / 4. The terminal can be connected for SLI operation twinConnect exchange for direct connection kits (Art. 17 110 bzw.17117 not included).
materials:
Body: Copper, nickel-plated
Lid: Stainless Steel
Connection terminal: Delrin
delivery:
Cooler without fittings (G1 / 4)
Mounting hardware including thermal pad
two locking screws
Torx screwdriver (for removing the original air cooler)
Note: supplied without graphics card! The cooler is delivered without connections, please order separately the appropriate lines. Threads are executed as G1/4-Gewinde.
For assembly is required additional thermal paste.
