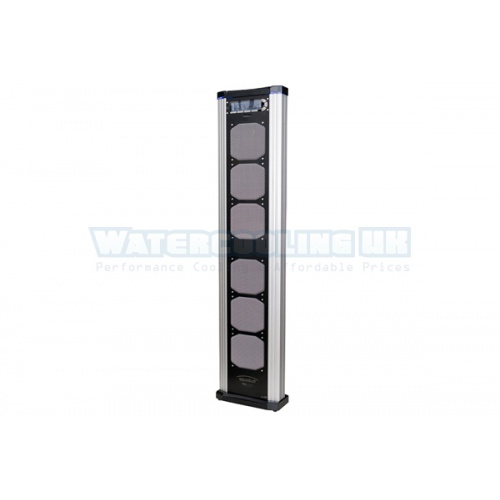

Aquacomputer Aquaduct 720 XT Mark IV Ceramic External Watercooling Kit

The aquaduct 720 XT mark includes a ceramic-ceramic bearings IV microprocessor-controlled pump 12 V, two radiators and a triple to the special requirements of external watercooling systems control and monitoring electronics. May mark the IV line is equipped with a comparison to previous generations newly developed control system, which significantly increased functionality and a graphical display exhibit. The new controller can be optionally operated via touch controls on the device or via the included infrared remote control with the remote control can also be operated via USB to the aquaduct connected PC (keyboard and mouse function). For integration into your home entertainment system, the aquaduct control via built-in IR transmitter other components. The Mark IV generation neuerste now expands continuously monitors the quality of the coolant. Furthermore, of course, are all known control and monitoring functions of the Mark III series, such as flow measurement, multi-point temperature measurement, parametric fan control and USB connection to PC software aquasuite available. The Vario-lighting function of the previous generation (dependent on temperature with alarm function) was upgraded by an RGB output. The lighting is integrated on both sides in the upper part of the aquaduct and provides a very attractive visual effect, both inside the visible through the Plexiglas lid, and reservoir in the upper part of the lateral rip. The new aquasuite 2012 offers a completely revised user interface with user-configurable summary pages for a better overview about the current condition of your cooling system.

For installation in the PC is a PCI (e)-slot bracket on. About these the aquaduct power. To supply the board a free power connector of the PC power supply is needed. The board has connectors for an additional fan and two other temperature sensors (each sold separately) that can be evaluated and controlled by the integrated control unit. A tachometer output signal with artificially generated speed signal also allows, for example, the BIOS of the motherboard to implement an emergency shutdown of the PC. A shutdown of the system also provides for connecting the floating output of the aquaduct aquaero mounted, for example, can be switched off in the event of a malfunction, the entire PC (aquaero PowerConnect connection cable is required as an additional accessory). In the case of an alarm (user configurable) can also be an audible and visual signal output from the device. The alarm analysis is very extensive and includes also a temperature and fan monitoring.
In addition, two cutouts in the mounting bracket allow the easy implementation of the plug & cool water hoses into the housing interior.

Important notes:
The given dissipated power of 1400 W NOT referring to the size of your power supply, but indicates the dissipated heat power. This is determined in this indication at only 15 degrees C temperature difference between air and water. Problems are well tolerated in general and 30 degrees C., so that they can Dubail double again. It is then possible to dissipate to 2.8 kW of heat. The aquaduct itself requires only max. 20 W of power for pumps, fans, and electronics, which is negligible at current PC power supplies sooner.

Details:
Radiator: two per 360 airplex
Fan: airstream 120 mm, temperature-dependent or manual speed control possible
Pump: 12 V, microprocessor controlled with adjustable power and function monitoring

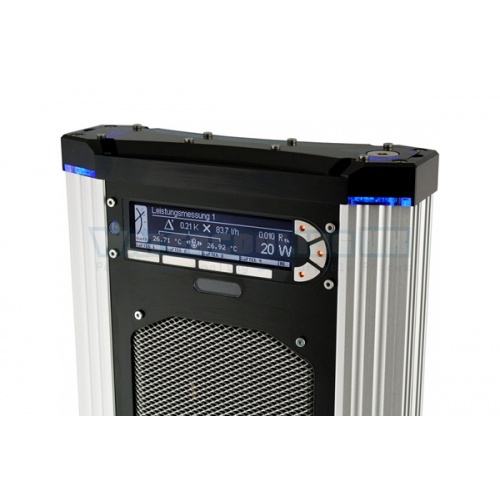

Control: Standalone control with graphic display, USB 2.0 interface to PC
Internal temperature sensors for water supply and return temperature, air temperature and exhaust air
Integrated flow sensor

Dimensions:
980 x 224 x 108 mm
Weight 12.5 kg

Delivery:
aquaduct 720 XT mark IV external water cooling completely assembled
aqua remote infrared remote control
two connectors plug & cool straight G 1 / 4 (mounted on the device)
PCIe Slot plate with board
Cable aquaduct to slot bracket (length about 2 m)
-USB connection cable (length 2 m)
plug & cool-tube flow and return pipe (length of about 2 m)
Coolant Double Protect Ultra (2000 ml)
