Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.
New and yet proven
Alphacool also has been able to combine the best quality with the most beautiful design for the
NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In

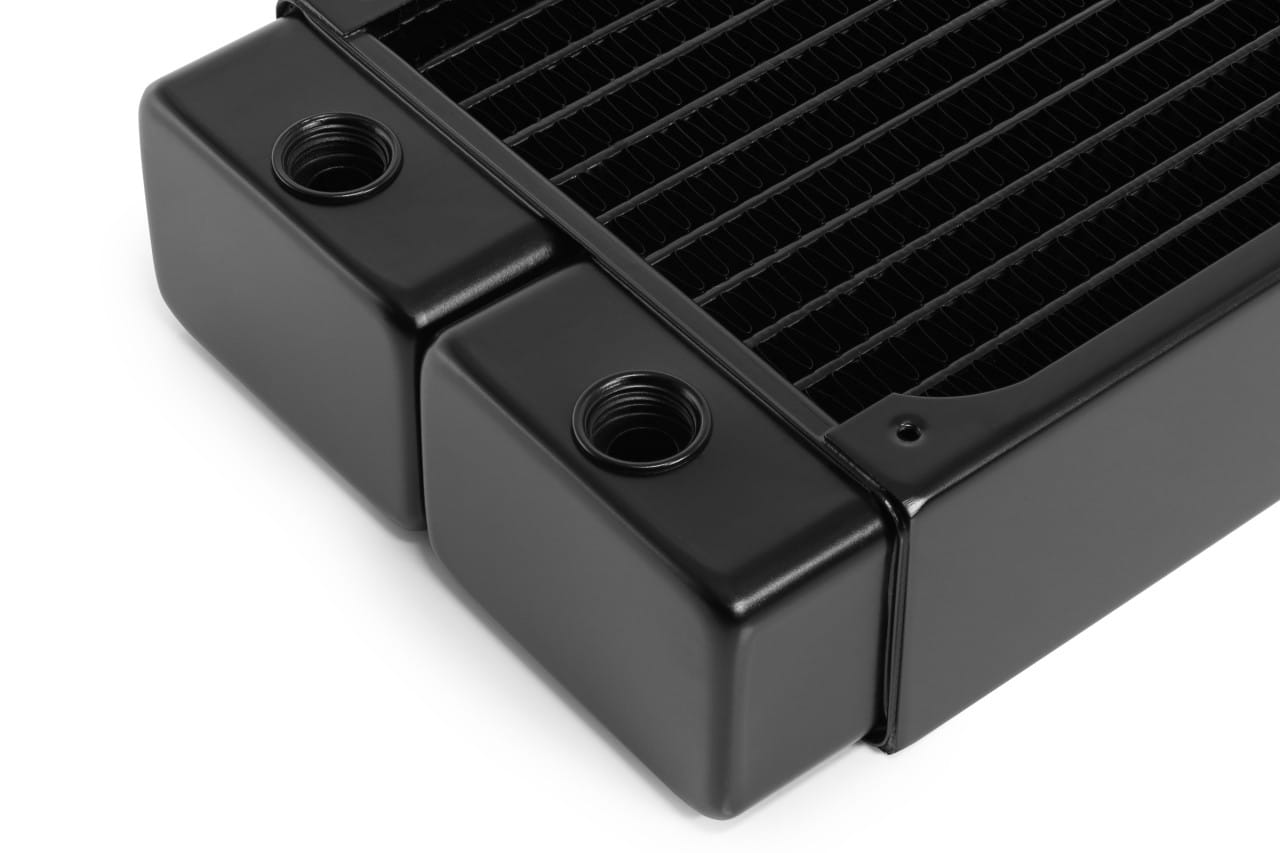

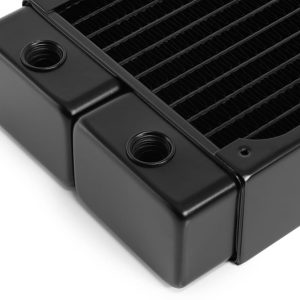

addition, the NexXxos ST30 V.2 radiators now also have a G1/4; connection at the opposite end
chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator
in any position, the possibilities are unlimited.

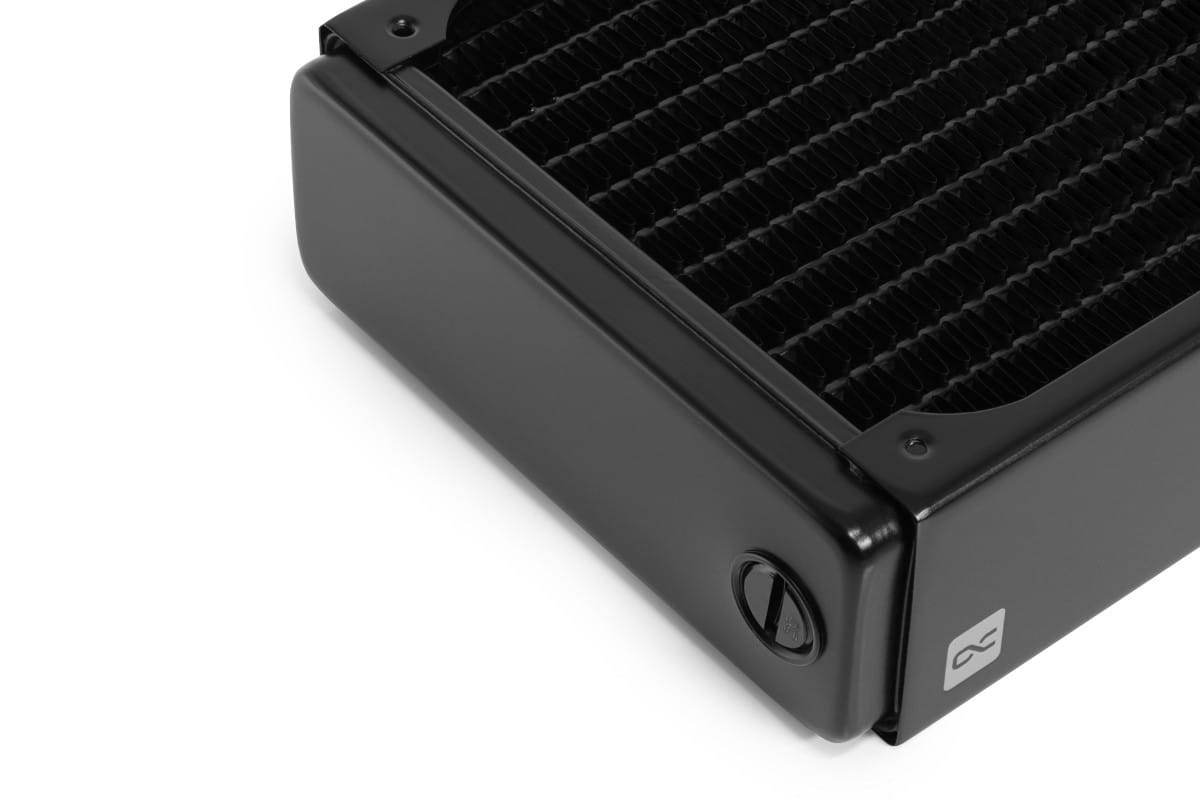

Countersunk screw plugs – anything but ordinary
For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This
unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator.
Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you
remain individual and unique.
Solid copper – the best performance at the highest level
As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the
Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance.
Rely on the No. 1 in materials.
Different sizes – same quality
The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its
special shape, installation is childs play, even with the larger radiators. Decide for yourself which
size is perfect for your system and always choose the best quality.
ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.
| Technical Details | |
|---|---|
| Dimensions (W × D × H) | 154.5 × 124 × 45.5 mm |
| Net Weight | 571 g |
| Maximum Working Temperature | 180 °C |
| Material (Fins / Channels / Outer Shell) | Copper |
| Fins per Inch (FPI) | 12 |
| Connections | 5 × G1/4 |
| Fan Mounting Thread Size | M3 |
| Supported Fan Size | 120 mm |
| Fan Support | 1 per side (2 total) |
| Pressure Tested | 1.5 bar |
| Certifications | CE, FCC, RoHS |
| Scope of Delivery | |
| Radiator | Alphacool NexXxoS XT45 Full Copper 120 mm Radiator V.2 |

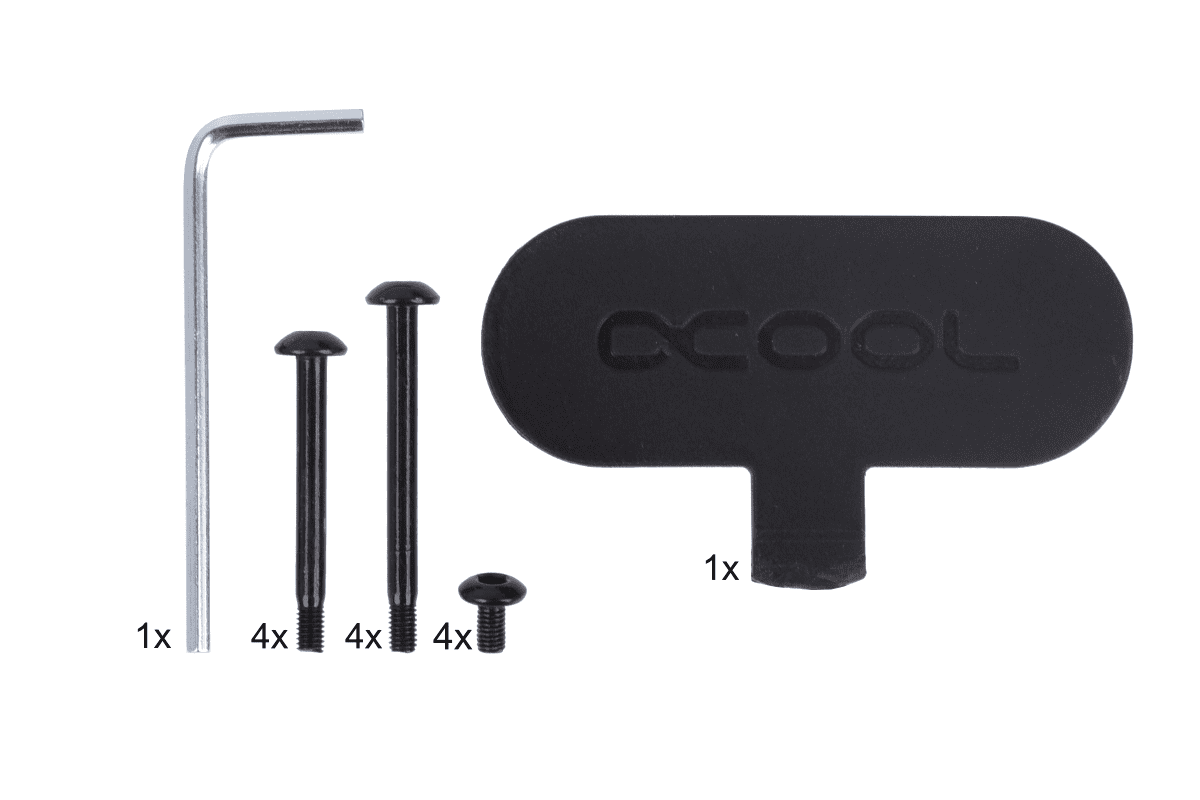

| Accessories | Mounting Material |
