The Alphacool ES 4U Server Rack has been specifically optimized to accommodate water cooling kits capable of dissipating up to 2400W of waste heat. To this end, the chassis features a mounting frame designed for up to one 3x120mm full-copper radiator from the Alphacool NexXxoS series. Optional Alphacool ES 120mm PWM-controlled fans ensure optimal cooling performance.

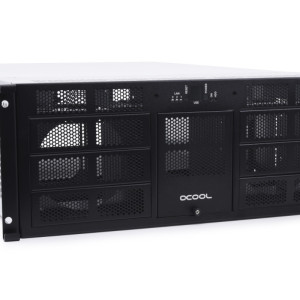

Alphacool ES 4U - 19 inch - Server Rack - Watercooling ready
The Alphacool ES 4U Server Rack has been specifically optimized to accommodate water cooling kits capable of dissipating up to 2400W of waste heat. To this end, the chassis features a mounting frame designed for up to one 3x120mm full-copper radiator from the Alphacool NexXxoS series. Optional Alphacool ES 120mm PWM-controlled fans ensure optimal cooling performance.
The Alphacool ES 4U Server Rack has been specifically optimized to accommodate water cooling kits capable of dissipating up to 2400W of waste heat. To this end, the chassis features a mounting frame designed for up to one 3x120mm full-copper radiator from the Alphacool NexXxoS series. Optional Alphacool ES 120mm PWM-controlled fans ensure optimal cooling performance.
Earn 317 Points
We price match UK retailers. Try It Now!
Details
The Alphacool ES 4U Server Rack has been specifically optimized to accommodate water cooling kits capable of dissipating up to 2400W of waste heat. To this end, the chassis features a mounting frame designed for up to one 3x120mm full-copper radiator from the Alphacool NexXxoS series. Optional Alphacool ES 120mm PWM-controlled fans ensure optimal cooling performance.
Drive Bays

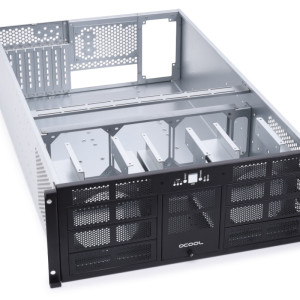

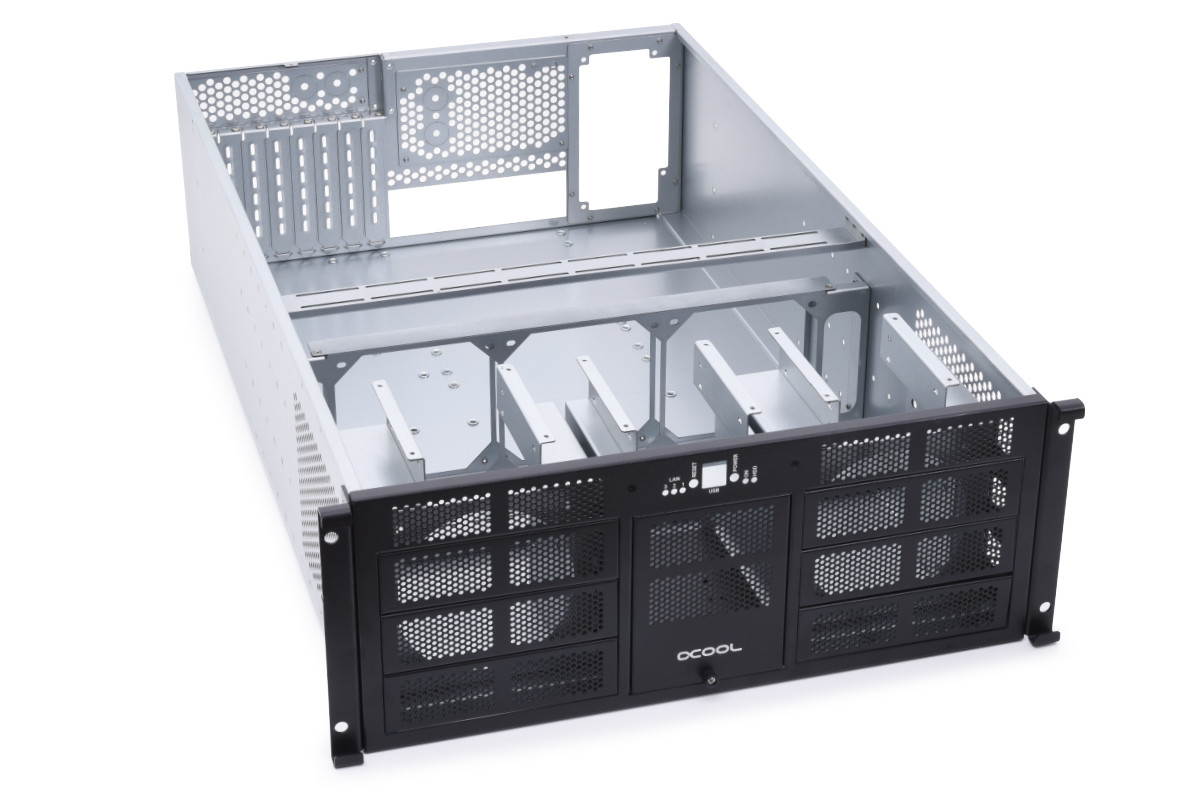

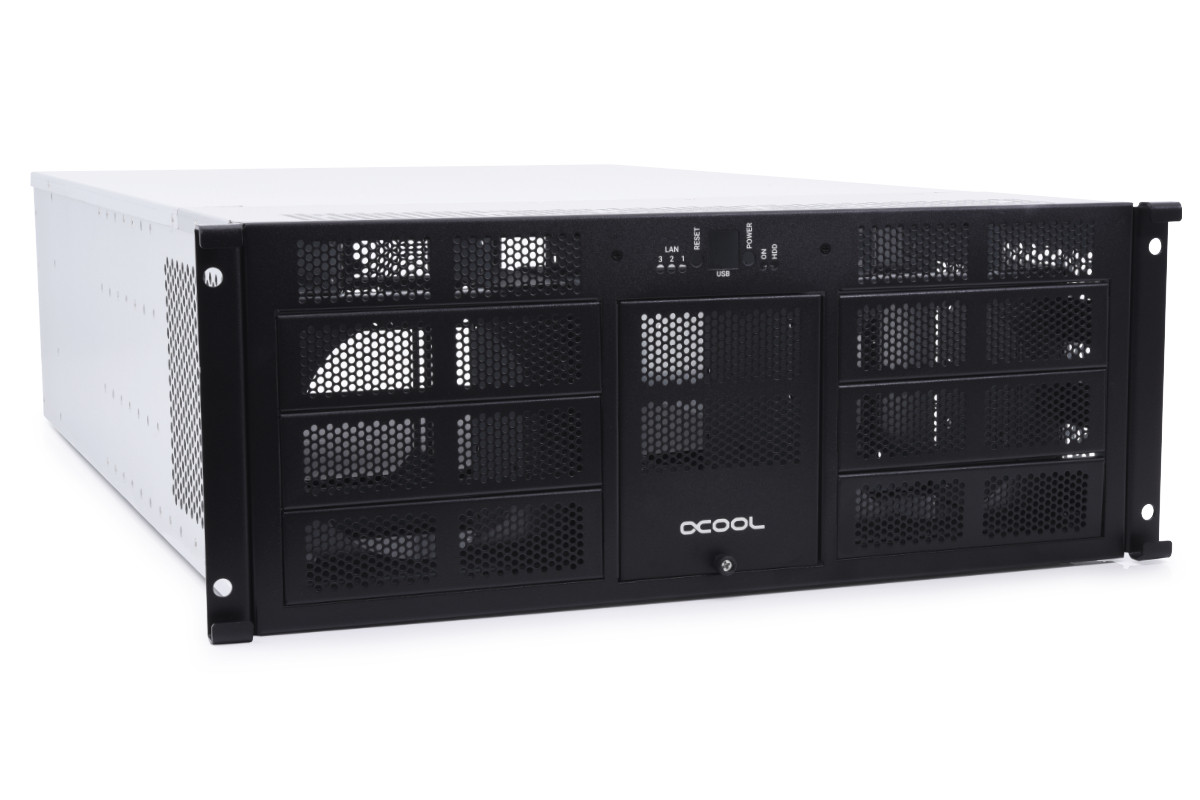

The 4U server rack offers mounting options for six 5.25″ drives on the left and right sides of the front panel. Six mounting slots for 2.5″ drives are located in the upper front section. The center area accommodates three 3.5″ drives or a combined reservoir and pump unit.
Motherboard

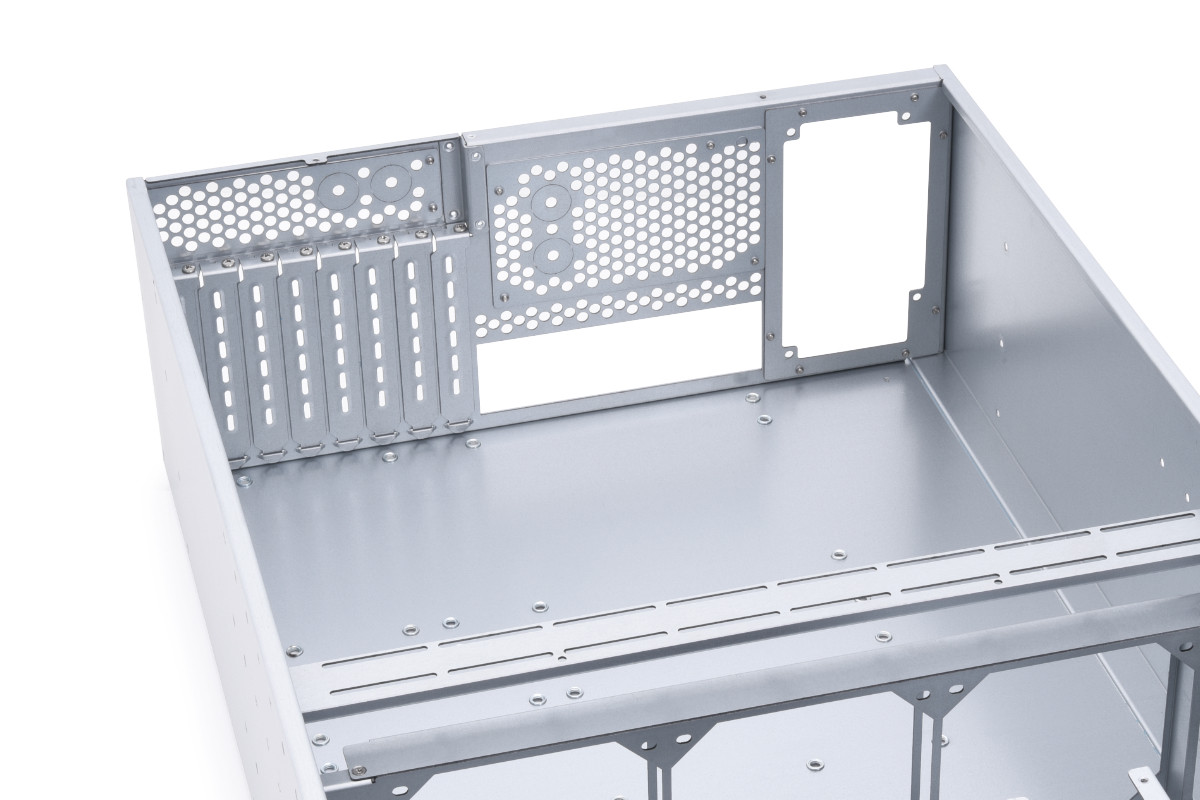

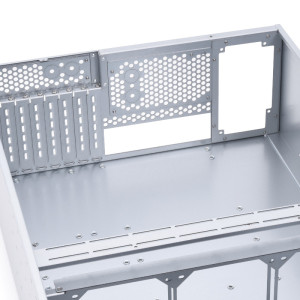

Standard ATX-format mounting points are available for installing an SSI-EBB motherboard, supporting form factors ranging from Mini-ITX to EE-ATX.

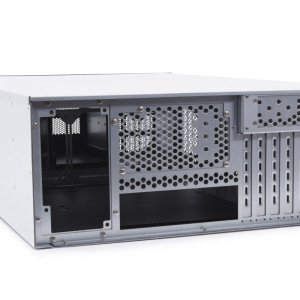

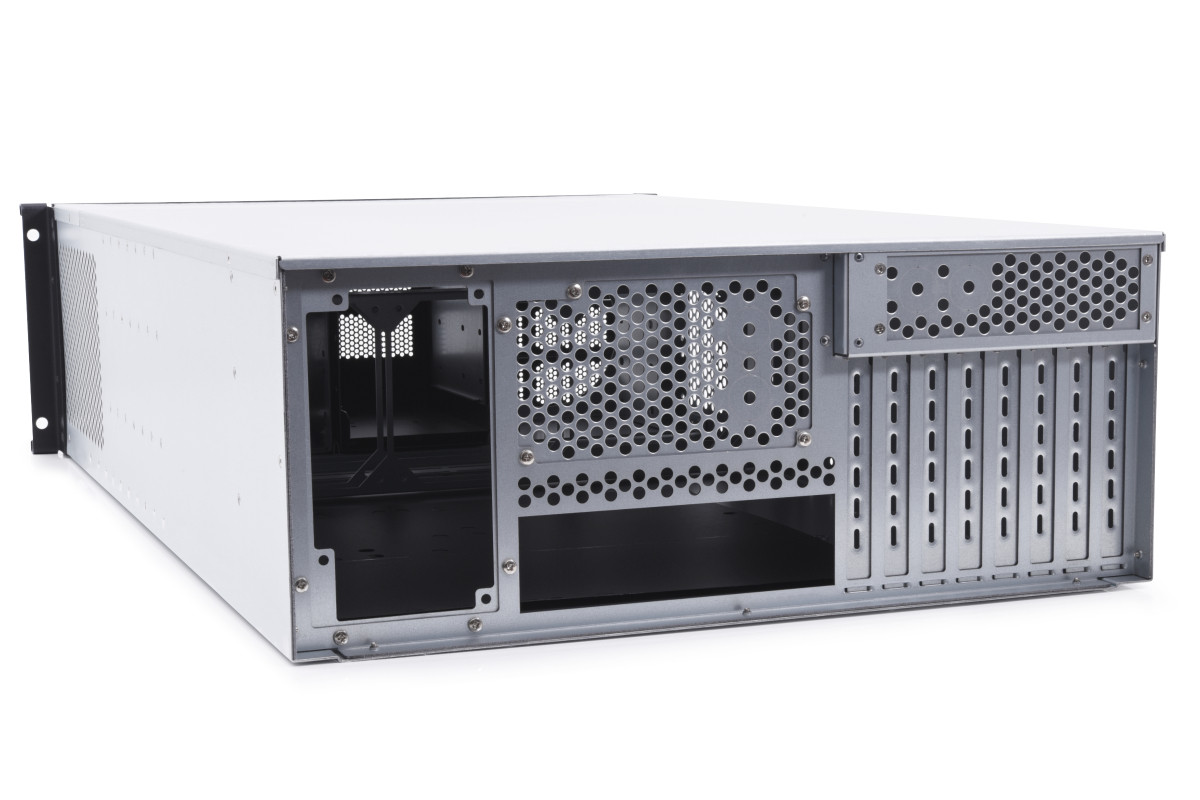

The chassis provides space for up to eight PCIe cards.
Water Cooling for 2400W Waste Heat

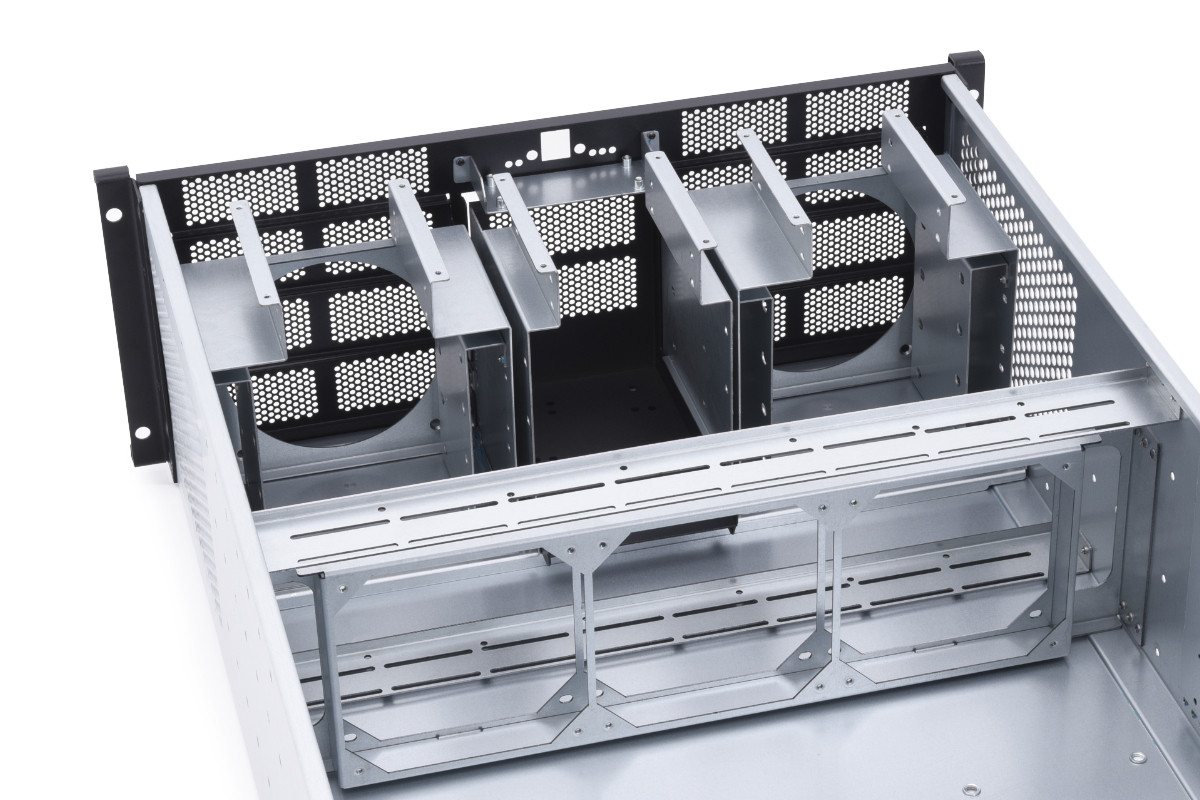

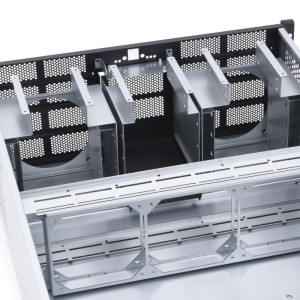

With the appropriate water cooling setup, this chassis can dissipate up to 2400W of waste heat. Alphacool offers specialized water cooling kits for this purpose; these can be individually configured and are delivered to customers pre-filled. The mounting frame for the radiator and fans can be repositioned within the chassis to suit any specific configuration.
Note: The I/O panel must be purchased separately. A compatible model is available under manufacturer part number 25054.
Note: The maximum height for the CPU cooler is 140mm.
| Technical Data | |
|---|---|
| Dimensions (L x W x H) | 736.85 x 478.50 x 177.8 mm |
| Weight (chassis only, excluding slide rails) | 17.22 kg |
| Form Factor | 4U |
| Material | Galvanized sheet steel |
| Material Thickness | 1.2 mm |
| External Hose Pass-Throughs | 4 x 20 mm |
| Mainboard Form Factor | SSI-EEB: Mini-ITX, Micro-ATX, ATX, E-ATX, EE-ATX |
| Fan/Radiator Mount | 3 x 120 mm |
| Chassis Color | Gray |
| Front Panel Color | Black |
