Alphacool Eisstation VPP with D5 VPP655 PWM Pump Reservoir

It comes in three different versions. A DDC, a D5, and a DC-LT version are available. This version is incl. D5 VPP655 PWM pump.

Note: The Alphacool VPP Apex pump (13339) is not compatible with this reservoir.

Highlights

1. The cap is made of sturdy Nylon
2. Three versions for all current pumps
3. Numerous mounting options
4. Illuminated logo and LED mounting options

Mounting possibilities
The installation options are numerous and comprehensive. The Eisstation can be screwed onto a 2.5 SSD bracket. It can also be mounted in a 3,5 bay. In either case, the special decoupling screws included with the Eisstation are used for mounting it. This minimises the transfer of vibrations to the case, lowering the operating volume significantly. Another installation option is the included Velcro fastener. One part of the Velcro is glued to the bottom of the Eisstation, while the other part is glued to the case. Then all thats left is to press the Eisstations bottom against the corresponding Velcro on the case. The size of the Velcro ensures secure positioning even during transport.
The Eisstation can be mounted vertically or horizontally, depending on personal taste and available space.

Connection possibilities

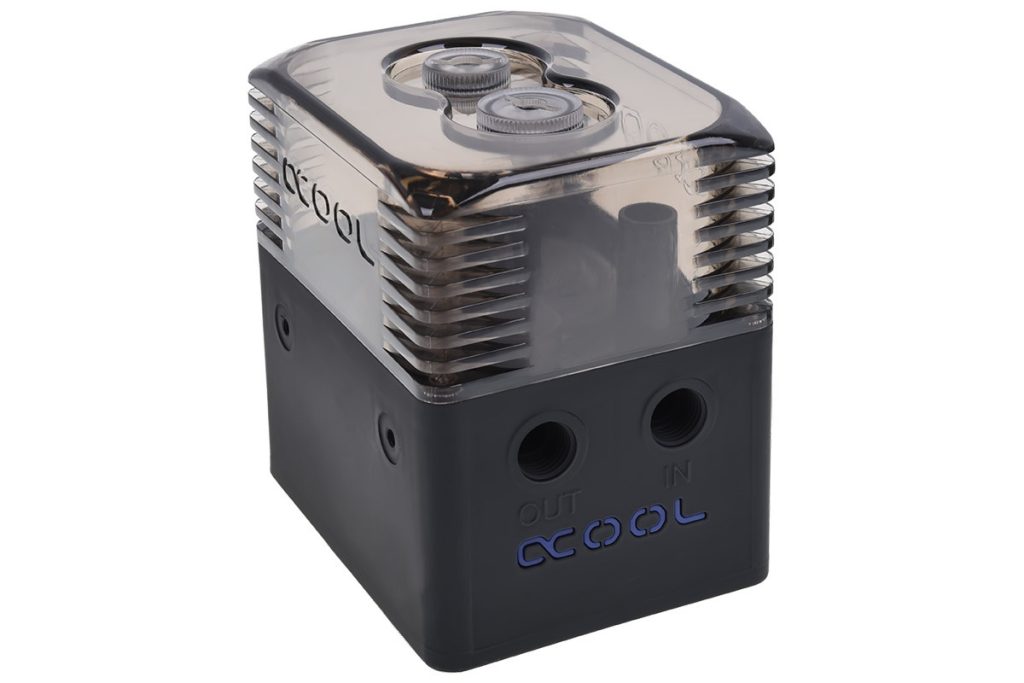

There are four possibilities for connection. An IN and an OUT with G1/4 threads are located on the top, with the illuminated logo. In the cap, there is one G1/4 and one G3/8 connection available. The G3/8 connection, with its larger size, simplifies filling the Eisstation and can also serve as a lighting module for 5mm LEDs. Two additional 5mm LED places can be found in the bottom of the reservoir and illuminate the water-filled portion from below.

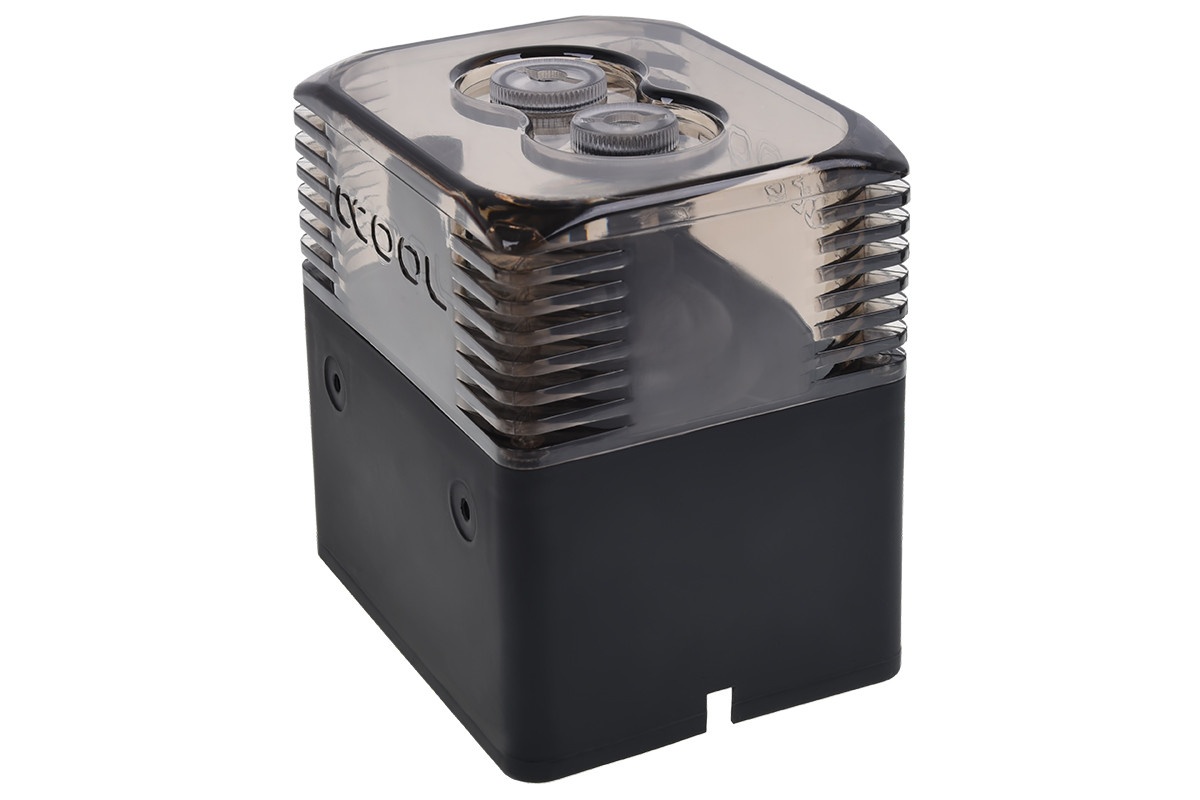

A highlight of the Eisstation is the materials it is composed of. The bottom portion has a high-quality soft-touch surface which gives it an outstanding look and feel. The upper portion and the reservoir itself are not made of simple, easily breakable Plexiglas, but rather of extremely sturdy Nylon. While normal reservoirs made of glass or Plexiglas can break or crack due to falls, even from a small height, or due to improper handling, it is nearly impossible to damage the Eisstations clear container.

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
