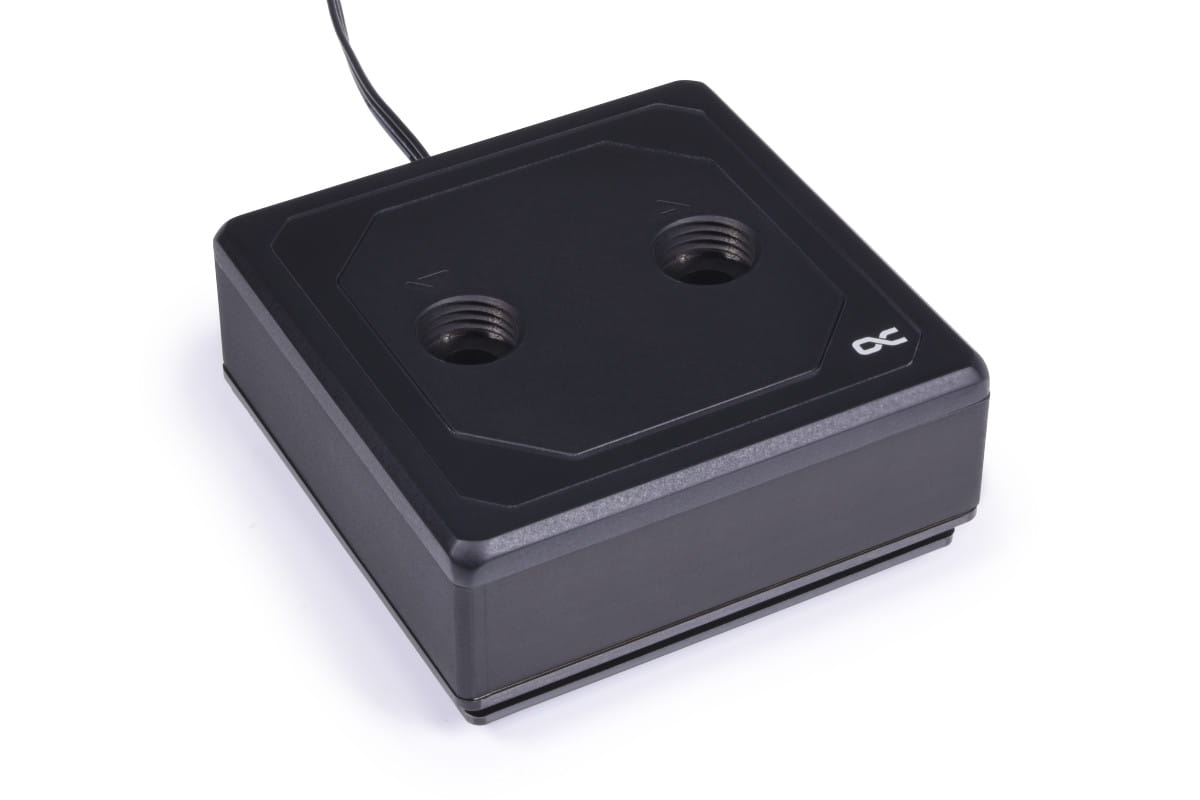

The Eisblock XPX Aurora Edge is a powerful CPU cooler that shows its strength especially on multi-core processors with 4, 6, 8, 12 and more CPU cores.
The Eisblock XPX Aurora Edge is a powerful CPU cooler that shows its strength especially on multi-core processors with 4, 6, 8, 12 and more CPU cores.
The Eisblock XPX Aurora Edge is a powerful CPU cooler that shows its strength especially on multi-core processors with 4, 6, 8, 12 and more CPU cores.

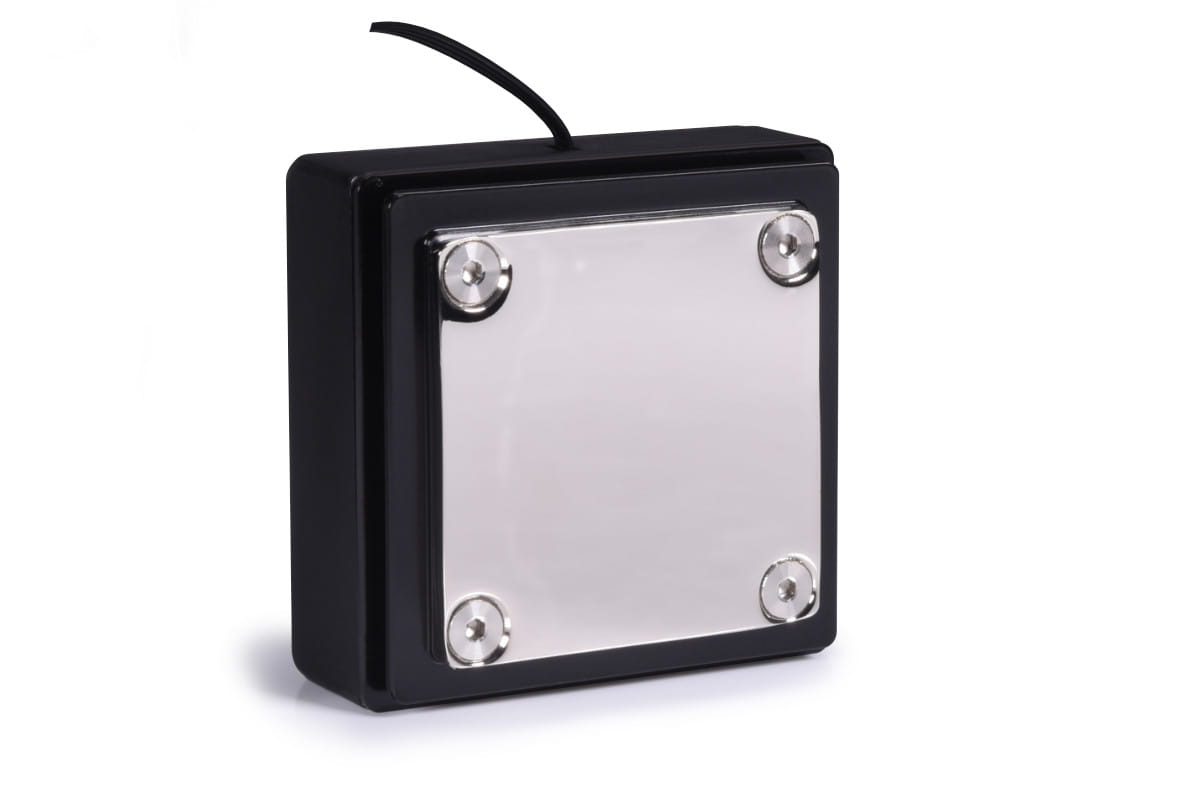

The total area of the cooling channels on the CPU cooler base is 34 x 32 mm. This means that the Eisblock XPX Aurora Edge cooler also copes with large CPU DIEs.
Performance in overflow!
The Eisblock XPX Aurora Edge has a special injection technology that was developed and patented by Alphacool itself. The so-called ramp system is located in front of the nozzle plate and ensures an even flow of water within the cooler. The water is pressed through the nozzle plate in a controlled manner and distributed evenly over the cooler base. The radiator bottom itself has 81 cooling fins with a fin structure of only 0.2 mm per fin. In this way, the largest possible surface area has been created in the available space in order to dissipate the CPUs waste heat to the water as quickly as possible.
Lighting

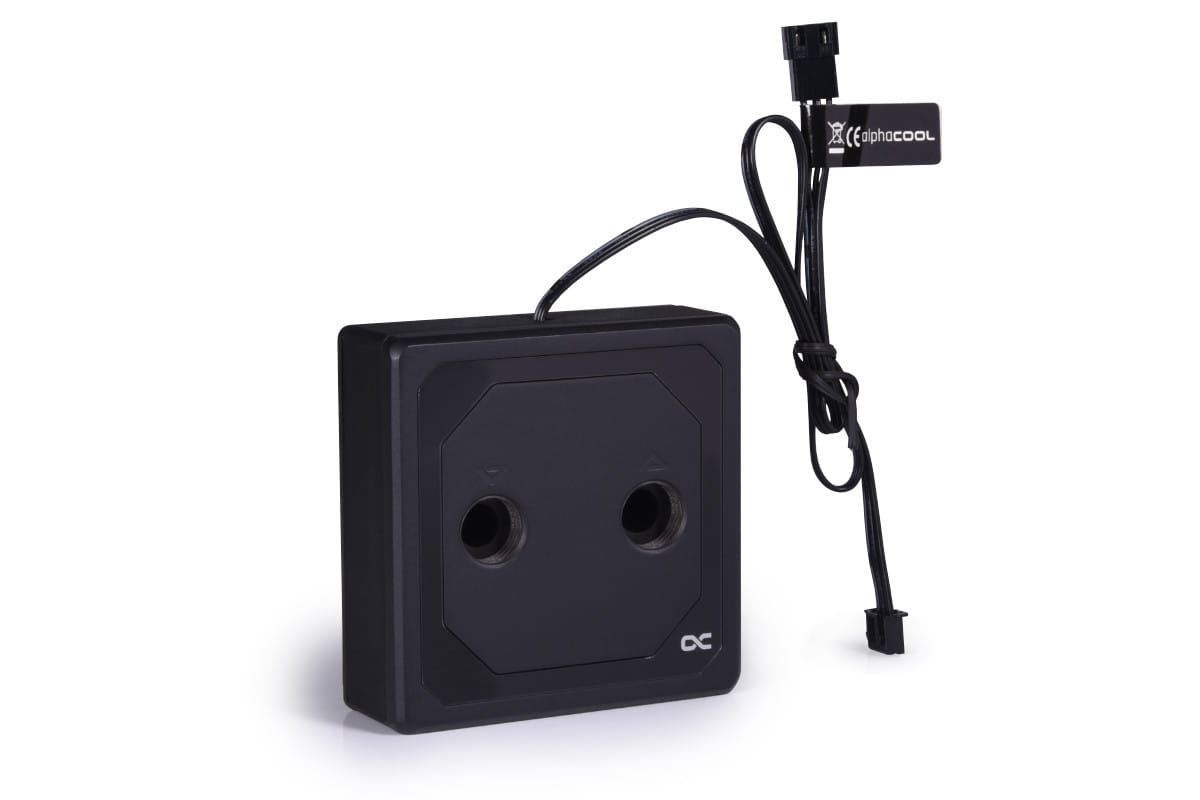

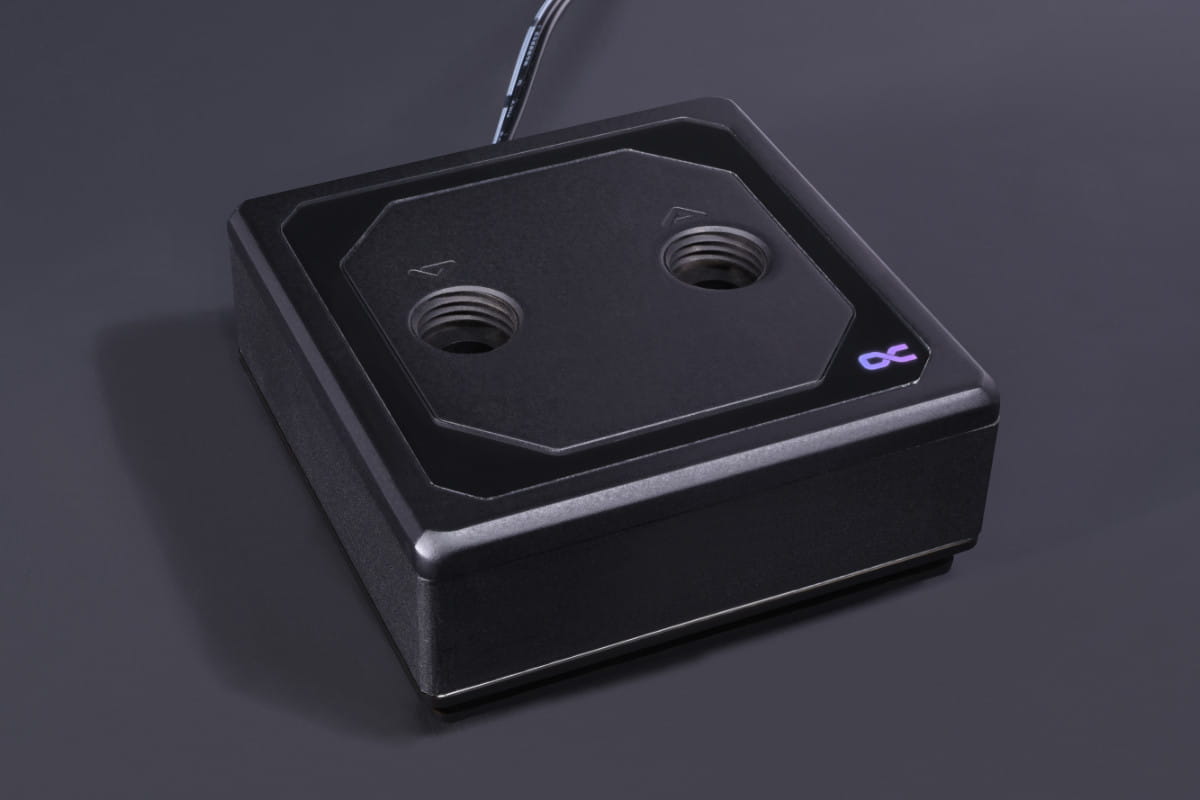

Behind the Alpahcool logo, 2 digitally addressable 5V RGB LEDs are installed, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector. To control the digital RGB lighting, the enclosed adapter must be connected to the 3-pin female connector and connected to a digital RGB controller or a digital RGB-capable mainboard. Additional digital RGB LEDs can be connected to the remaining 3-pin male connector.
Discreet appearance
The matt finish gives the cooler, which is made entirely of brass (except for the cooler bottom), a noble look. This makes it interesting for users who prefer a discreet appearance and want to do without a complex aRGB illumination.
Thermal grease
The thermal paste included in the delivery is Alphacools Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive thermal grease is particularly suitable for high contact pressures, but can still be processed perfectly due to its viscosity of 850000 TF.
Compatibility:
Compatibility Intel: LGA 115x / 1200 / 1700 / 2066
AMD Compatibility: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 70 × 70 × 32.5 mm |
| Net Weight | 680 g |
| Color | Black |
| Materials | |
| Cooler Base | Nickel-plated copper |
| Bottom Part | Brass |
| Top Part | Brass |
| Connections | |
| Threads | 2 × G1/4 |
| Lighting | |
| aRGB LEDs | 2 × digital aRGB LEDs |
| aRGB Power Supply | 3-Pin 5V |
| Operating Limits | |
| Maximum Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
£80.58£67.15 Inc VatEx Vat
