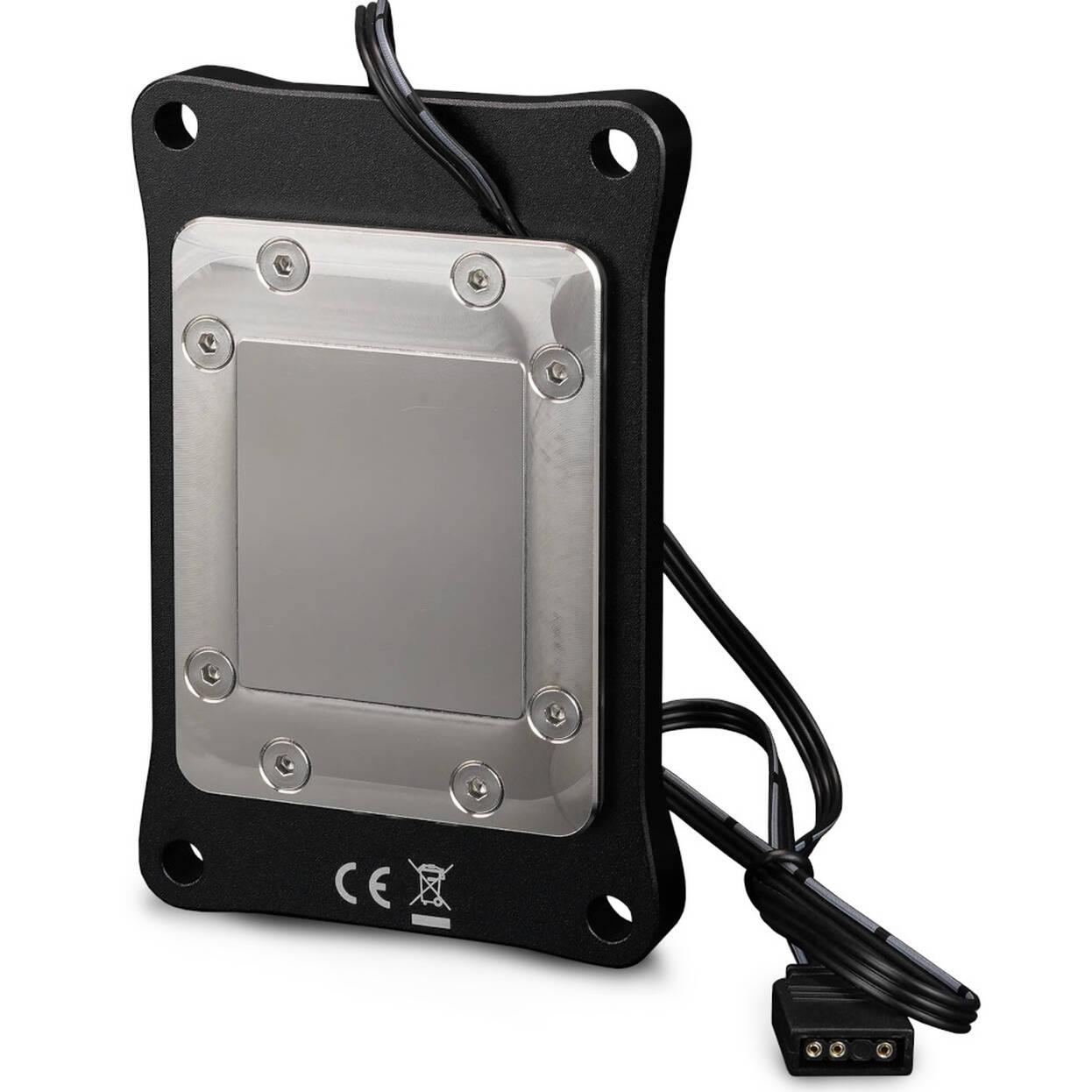

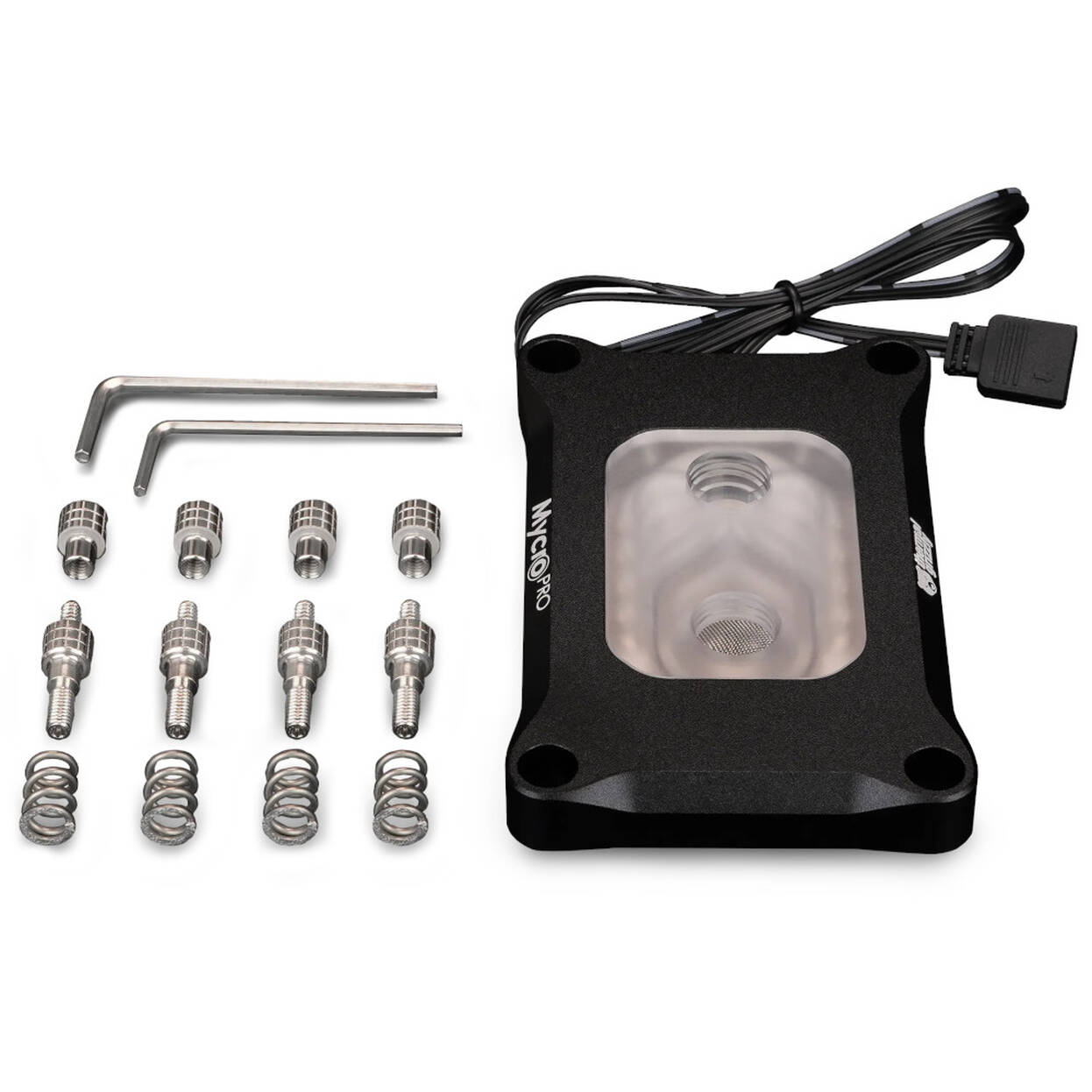

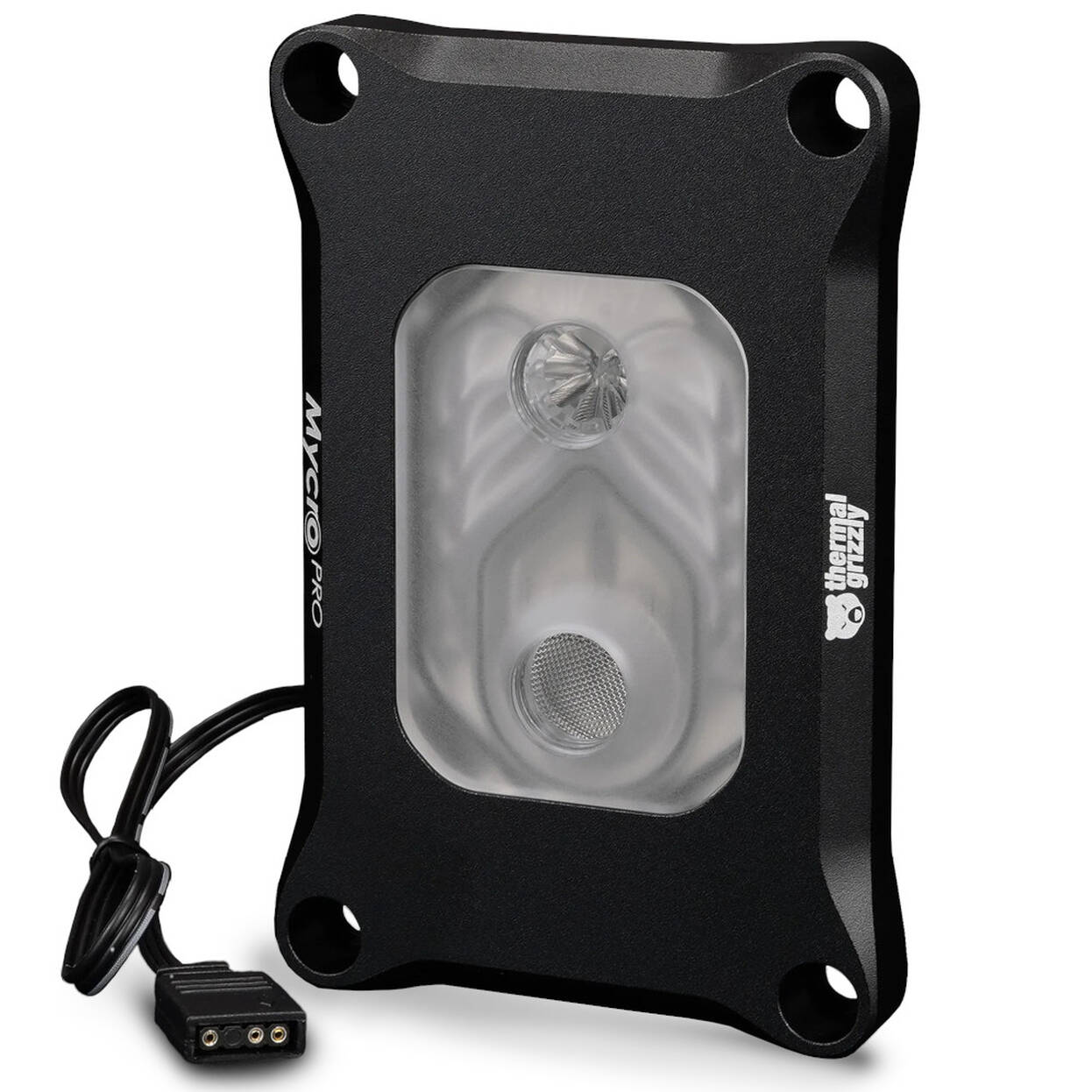

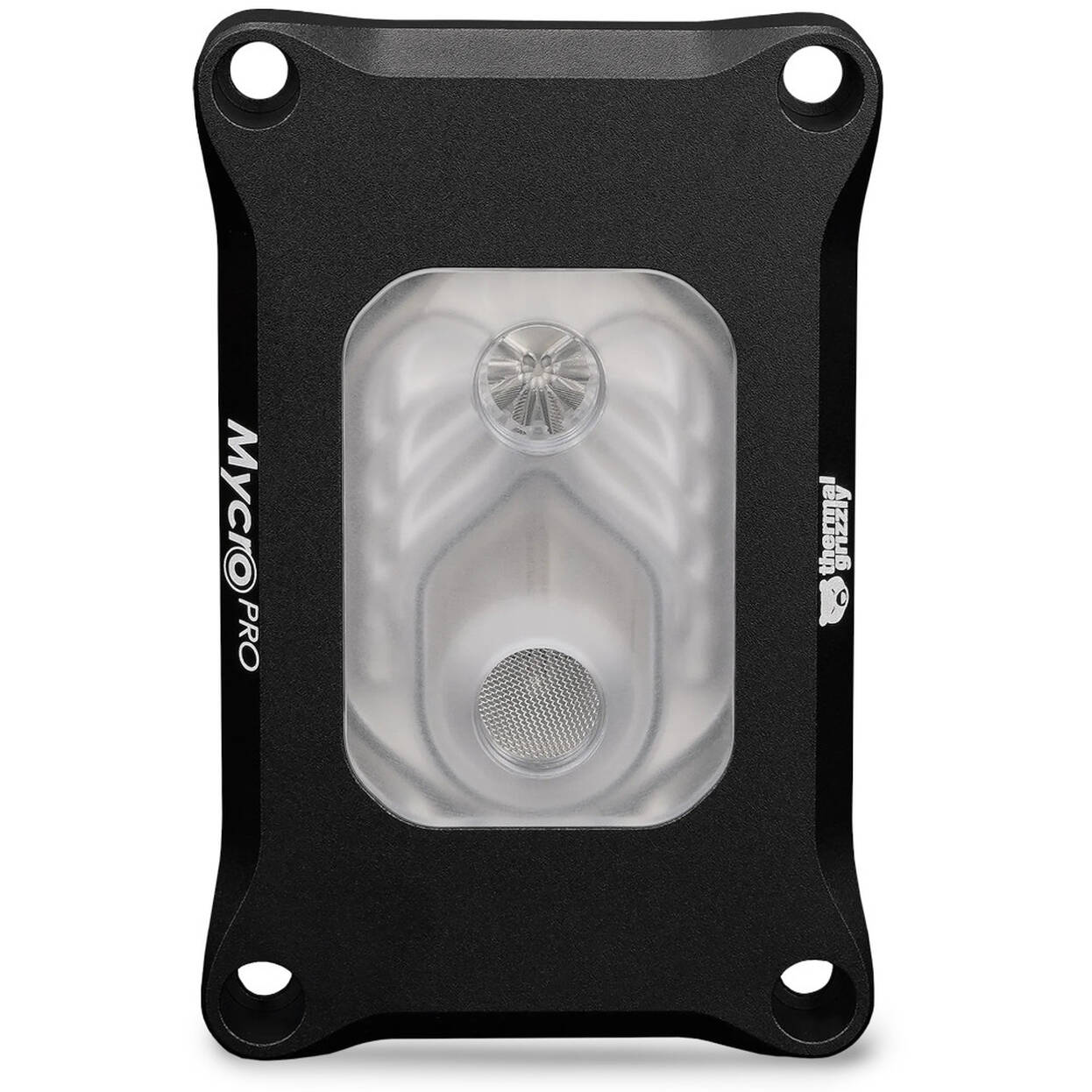

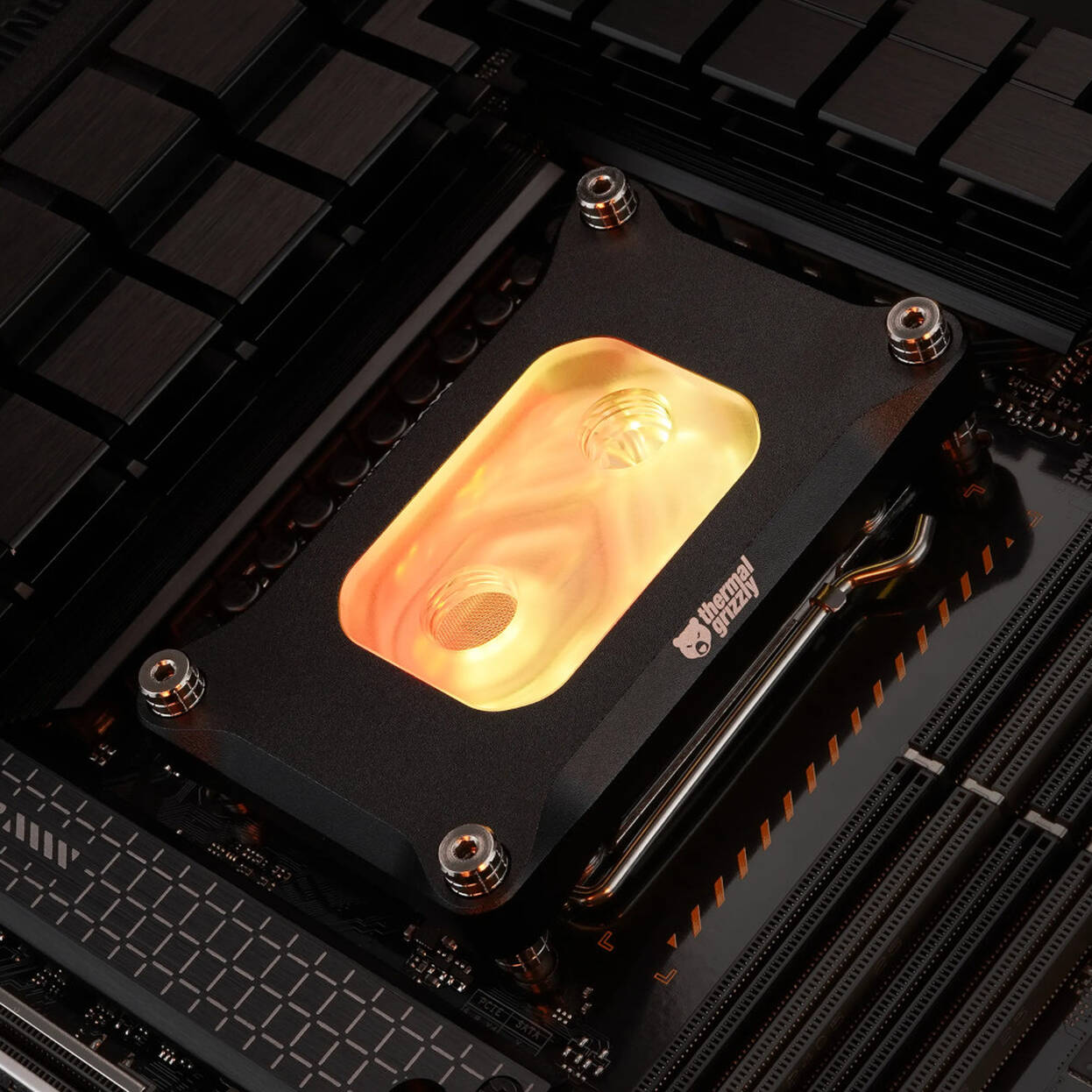

Thermal Grizzly TG AMD AM5 Mycro Pro RGB

The Thermal Grizzly AM5 Mycro Pro RGB is a CPU water cooler designed for AMD’s AM5 socket and is also compatible with AM4. It targets demanding users seeking maximum cooling performance and a well-thought-out design for their custom water cooling setups.

–  Ultra-high-performance cold plate – ensures efficient heat dissipation through fine microfins
– Integrated filter – protects the cooling structure from particles and maintains performance
– Flow-optimized design – improves flow for stable temperatures
– RGB lighting – adds subtle visual accents to the system
– G1/4-inch fittings – compatible with many water cooling components

Functionality
The AM5 Mycro Pro RGB is a CPU water cooler for AMD’s AM5 socket and is backward compatible with AM4. The nickel-plated copper base plate features 68 microfins, each 0.2 mm wide, creating a large surface area for heat absorption. In combination with the jet plate and flow-optimized design, the coolant is directed precisely over the fins. This ensures efficient and even heat dissipation.

Design and Materials

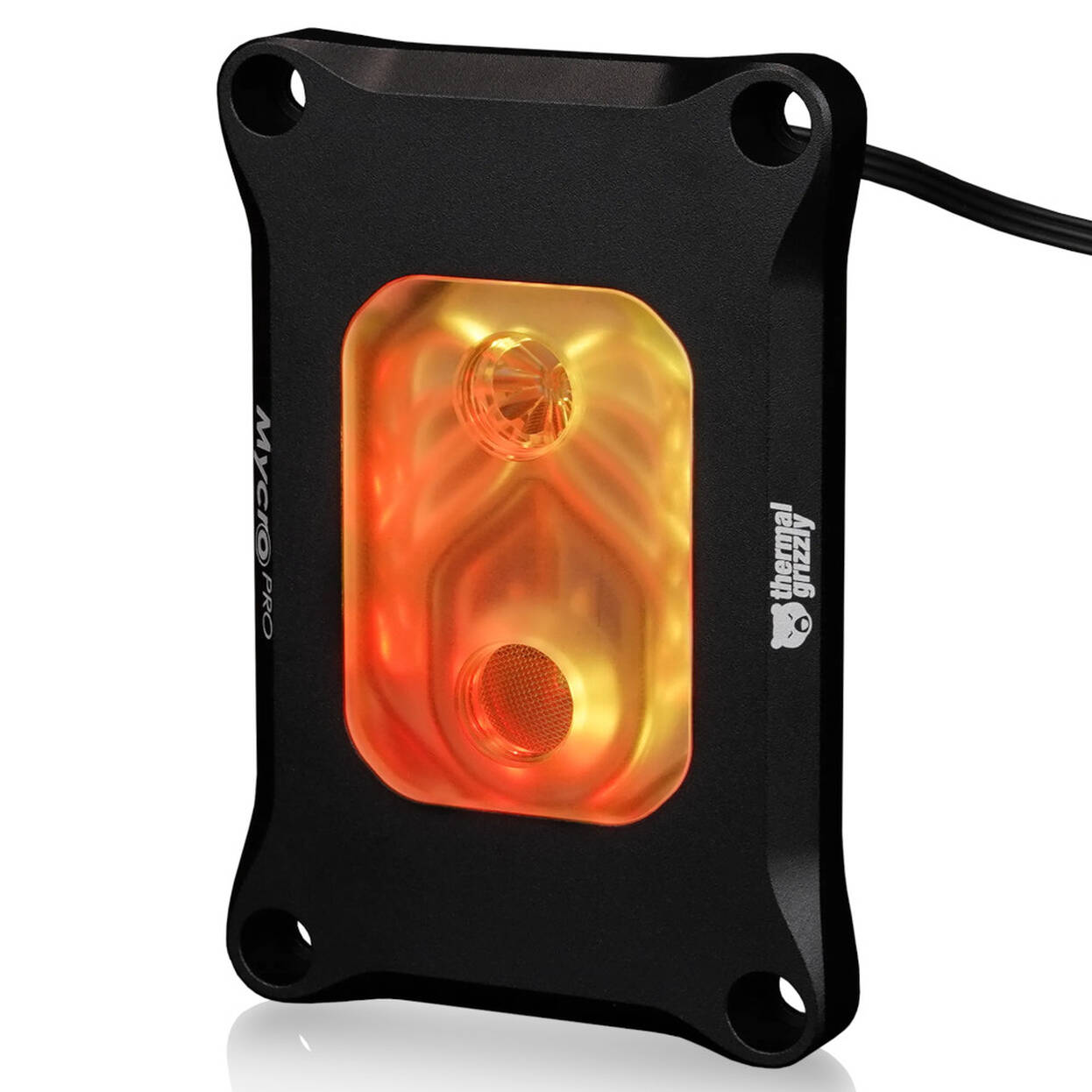

The cooler consists of a nickel-plated copper plate, tempered acrylic glass, and a cover made of anodized aluminum. The acrylic glass is tempered after processing to reduce stress and increase durability. Beneath the cover is integrated RGB lighting that visually complements the system. The simple design can be easily integrated into various builds.

Installation and Compatibility
Connection is made via G1/4-inch threads for inlet and outlet, providing broad compatibility with common components. The inlet port features a fine mesh filter that removes particles from the loop, protecting the microfins. EPDM O-rings ensure a reliable seal and are resistant to UV and ozone. An optional adapter kit may be required for use with certain additional products.
