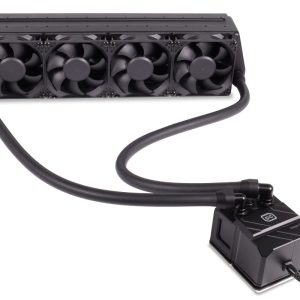

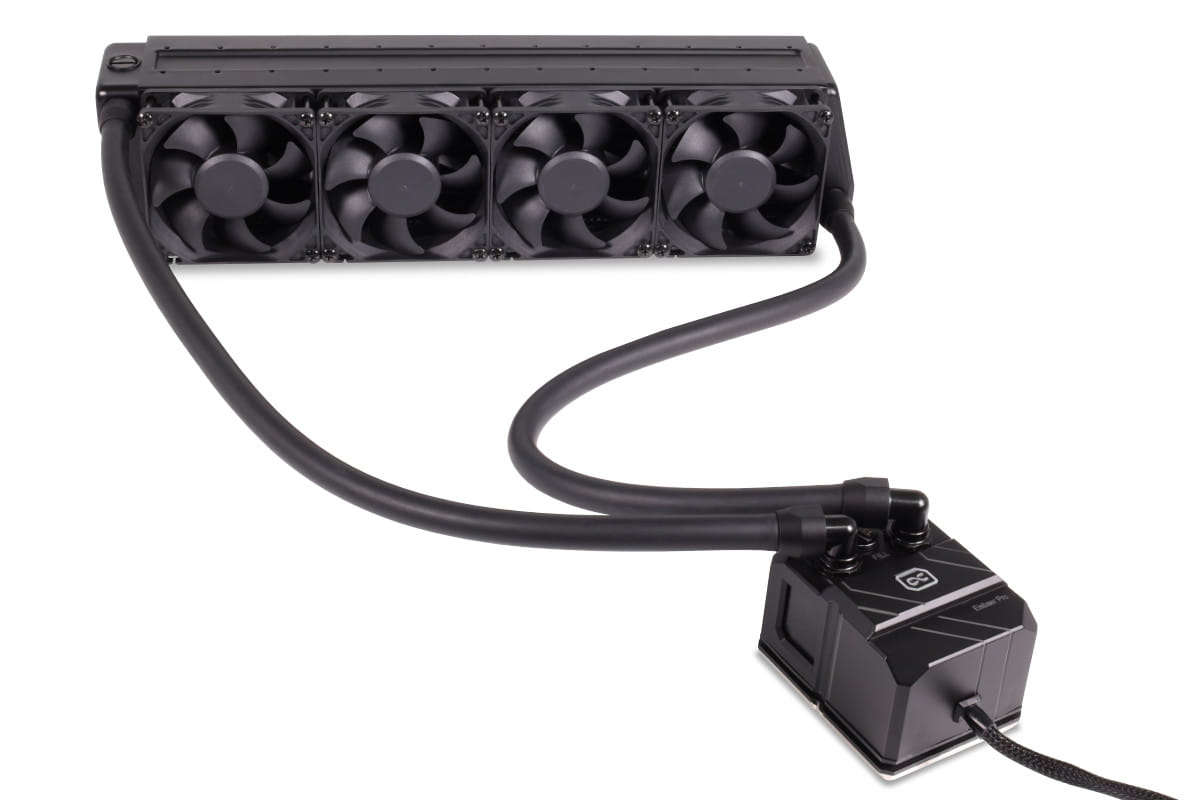

The Eisbaer Pro ES 2U 80mm Quad HPE AIO water cooling system features an extremely powerful NexXxos 80mm Quad full copper radiator equipped with high-throughput 80mm ES fans.
The Eisbaer Pro ES 2U 80mm Quad HPE AIO water cooling system features an extremely powerful NexXxos 80mm Quad full copper radiator equipped with high-throughput 80mm ES fans.
The Eisbaer Pro ES 2U 80mm Quad HPE AIO water cooling system features an extremely powerful NexXxos 80mm Quad full copper radiator equipped with high-throughput 80mm ES fans.
All components are from the Enterprise Solutions water cooling range. The Eisbaer Pro ES 2U 80mm Quad HPE AIO is a professional all-in-one water cooling solution that is easy to install and offers the performance of a custom loop.

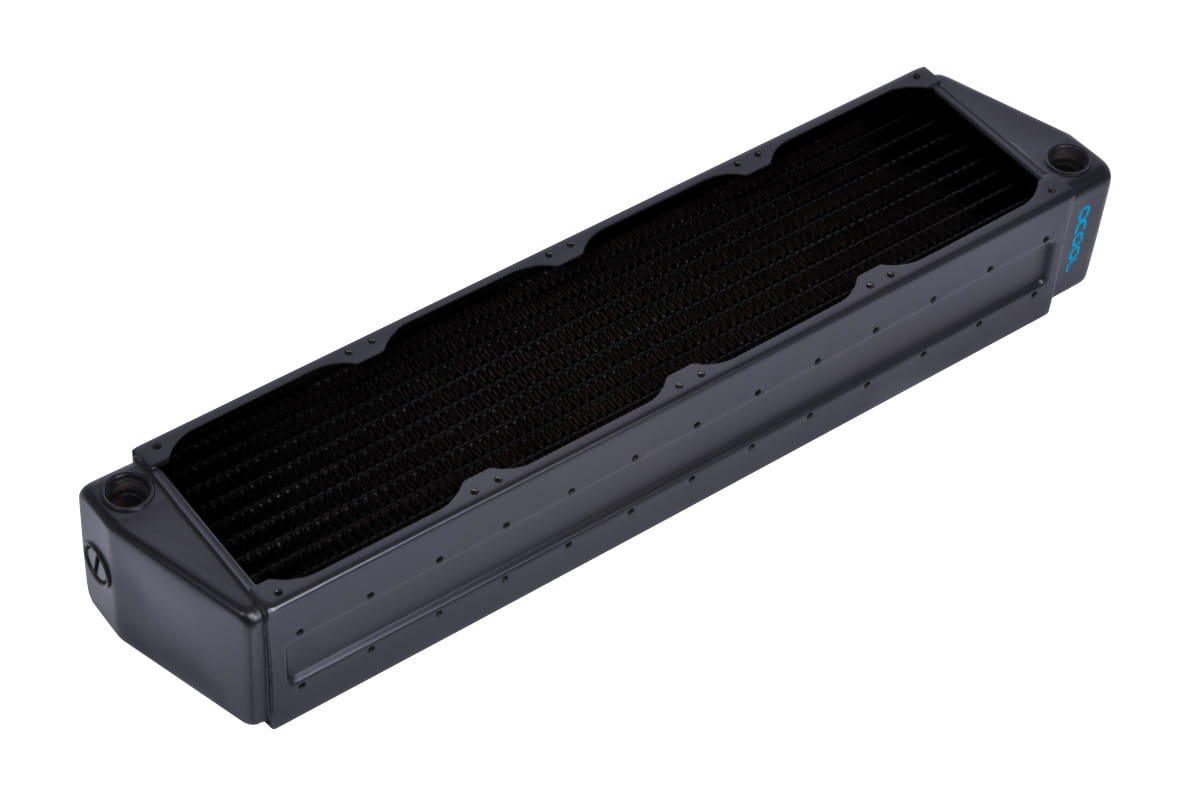

High performance full copper radiator
The 80mm NexXxoS radiators have been specifically designed for server racks and workstations. With the special M3 mounting holes on the top and bottom and a height of just 80mm, the radiator fit perfectly into 2U server racks. The copper cooling fins are extremely thinly coated compared to other manufacturers, in order not to reduce the cooling performance. The fin spacing of 10 FPI has been optimally chosen, so the fins are close enough to provide plenty of cooling surface area, but far enough apart to not impede the airflow. Additionally, all cooling fins are covered with flaps to ensure controlled air turbulence, allowing the flowing air to better absorb and carry away heat from the cooling fins.
Optimum cooling

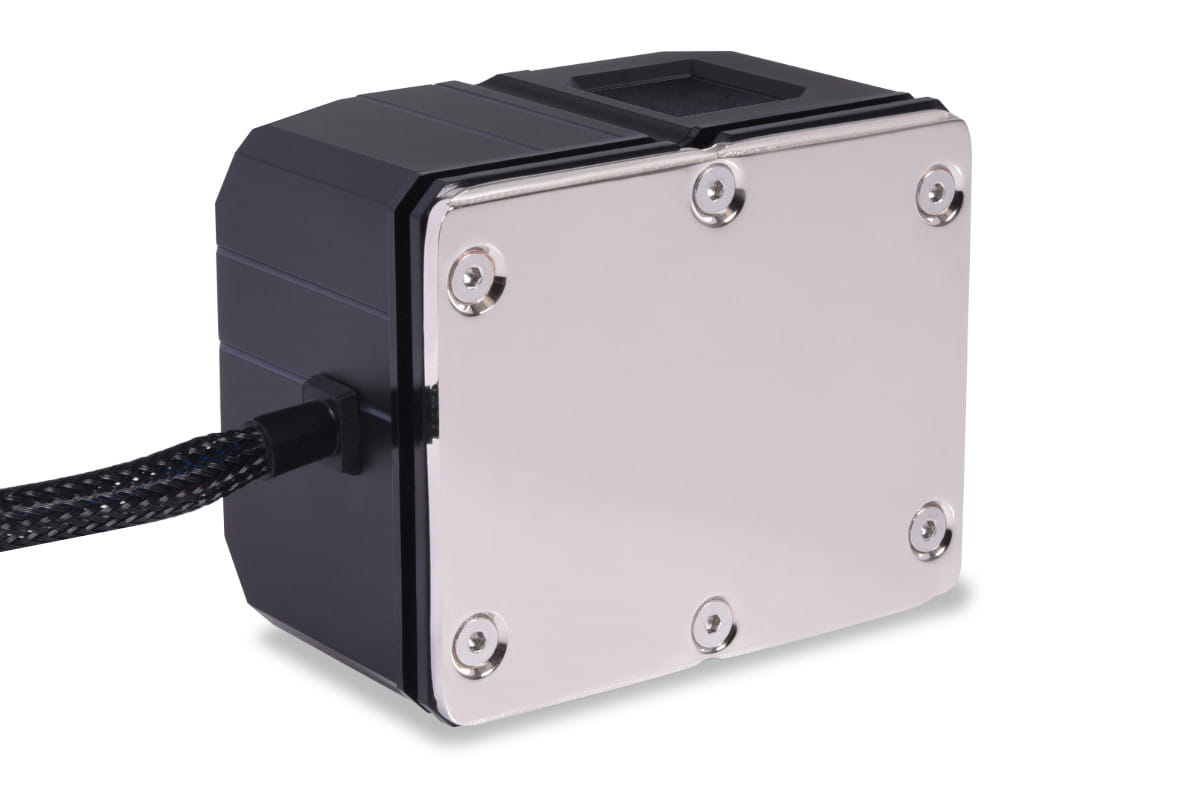

The cooler base covers the entire surface area of the respective processors. The cooling fins have a surface area of around 55 x 42mm, surpassing all known processor cores. This ensures that all CPU hotspots are directly and optimally cooled. The cooling fins are 0.4mm thick and are optimally spaced 0.4mm apart. There are a total of 58 cooling fins on the cooler base. The cooler base is only 3mm thick, allowing the heat to quickly reach the water and be carried away.
Reliable pumps
The Eisbaer Pro ES cooler uses the very compact DC-LT 2 pump, which provides enough power to include additional components such as GPU water coolers or radiators in the water loop.
High quality TPV pants
The hose connectors come from the normal DIY segment and use a G1/4 thread, making them easily replaceable. The TPV hose does not contain plasticizers and does not deform at high temperatures, unlike classic PVC hoses.
Compatible:
– Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
– AMD: TR4 / sTRX4 / SP3 / sWRX8 / AM4 / AM5
Technical data radiator
– Dimensions (L x W x H) 364.5 x 80 x 60mm
– Material cooling fins, prechambers & cooling channels Copper
– Pressure tested 1.5 bar
– connectors G1/4
– Color black
Technical data fan
– Dimensions (L x W x H) 80 x 80 x 25mm
– Air flow 130.93 m³/h
– Rated speed range 800 – 6000 rpm
– RPM signal transmission Yes
– Color black
Technical data tube
– Material TPV (EPDM/PP)
– Tube size 12.7/7.6mm
– Hardness grade 35 Shore A to 50 Shore D
– Maximum working temperature -50 to +155 degreesC
– Color black
– Note on application
– Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the – manufacturers warranty as well.

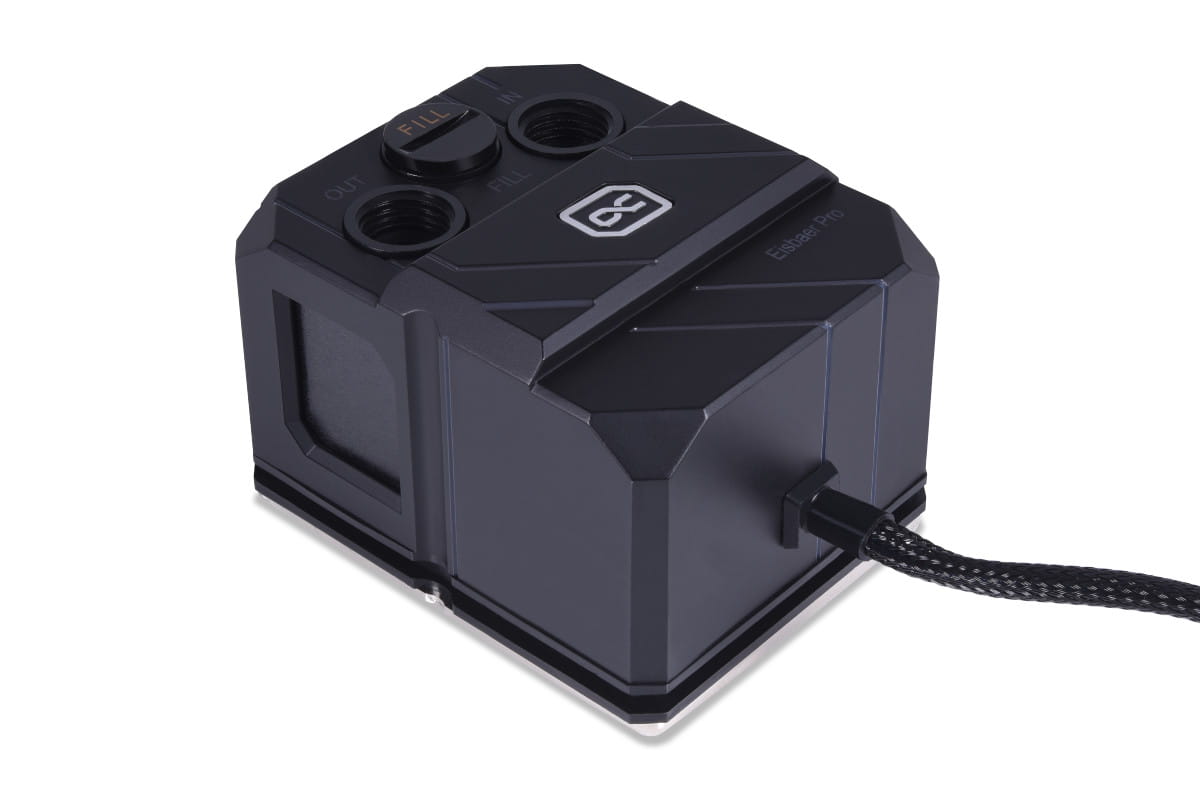

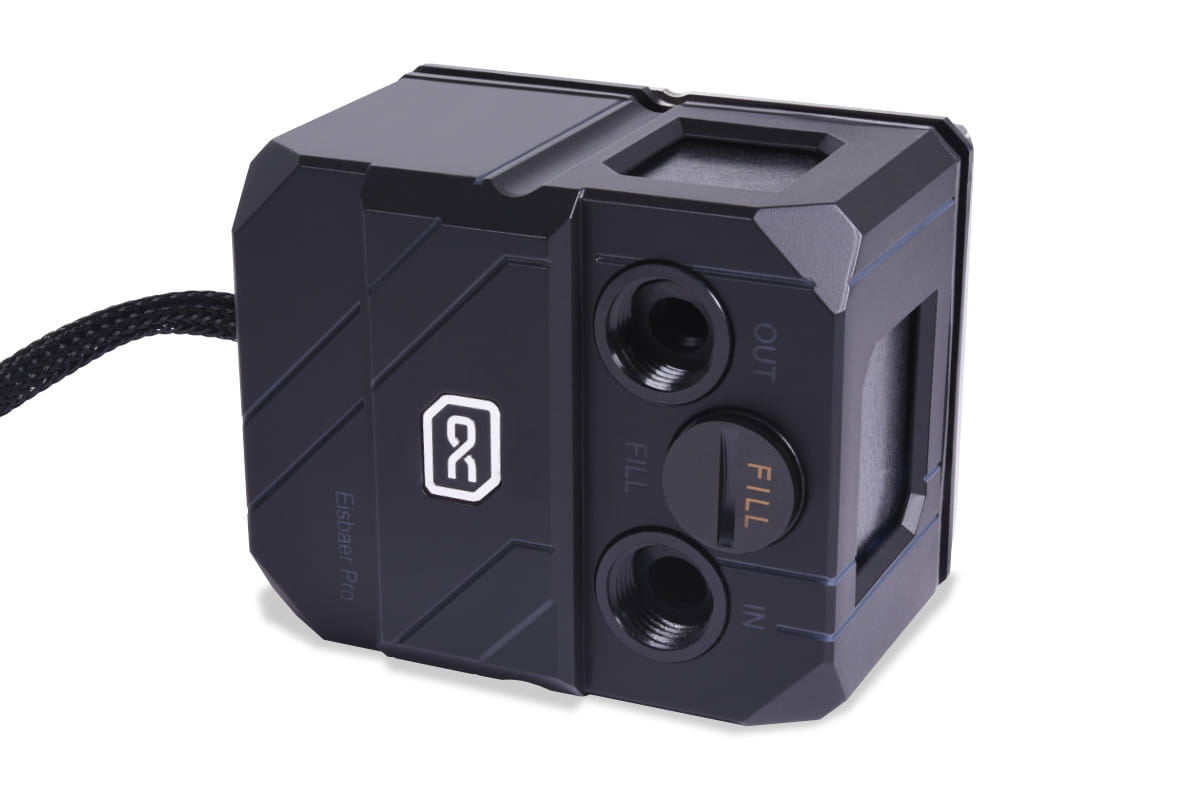

| Technical Data – Cooler with Pump | |
|---|---|
| Dimensions (L × W × H) | 64 × 79 × 54.3 mm |
| Cooler Base Material | Nickel-Plated Copper |
| Cooler Top Material | Acrylic |
| Threads | 2 × G1/4″ + 1 × G1/4″ Fill Port |
| Pump Type | DC-LT2 |
| Pump Speed | 2600 RPM (±10%) |
| Max. Head Pressure | 1 m |
| Max. Flow Rate | 72 L/h |
| Operating Voltage | 6 – 13.5 V DC |
| Power Consumption | 3.2 W |
| Pressure Tested | 0.8 bar |
| Max. Working Temperature | 60 °C |
| Colour | Black |
£199.73£166.44 Inc VatEx Vat
