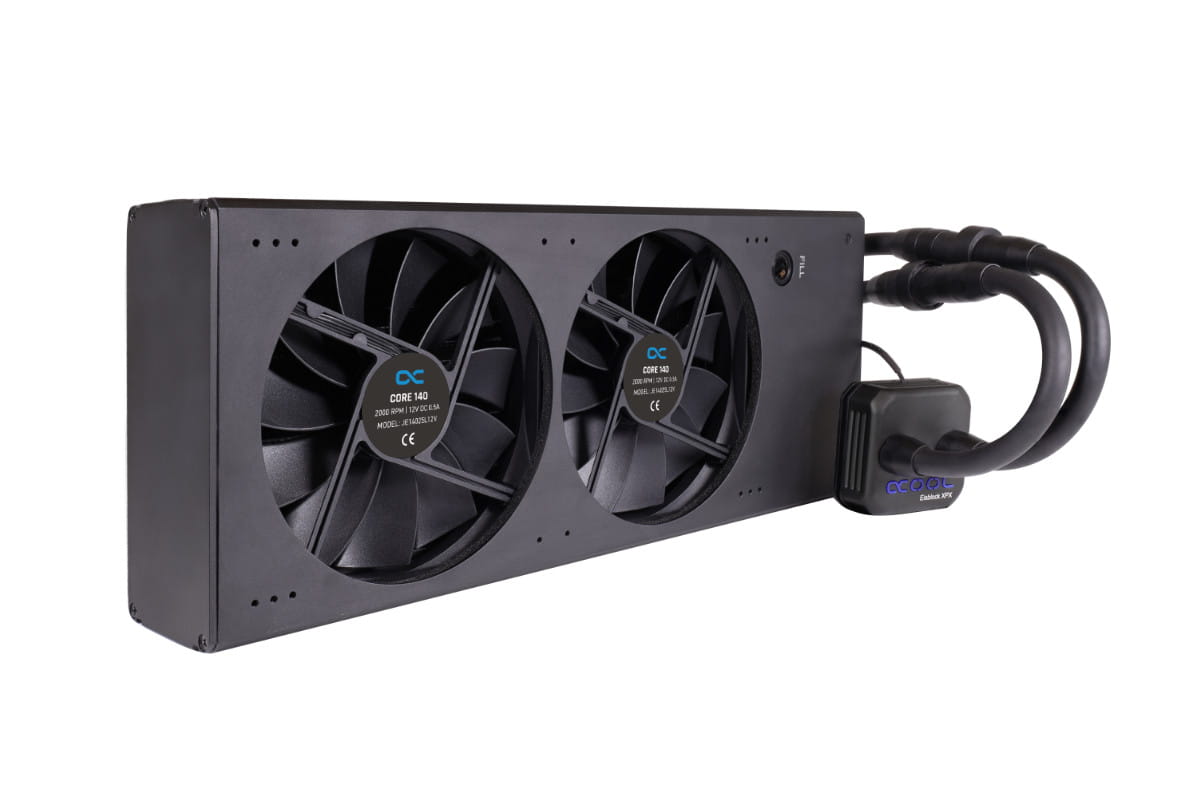

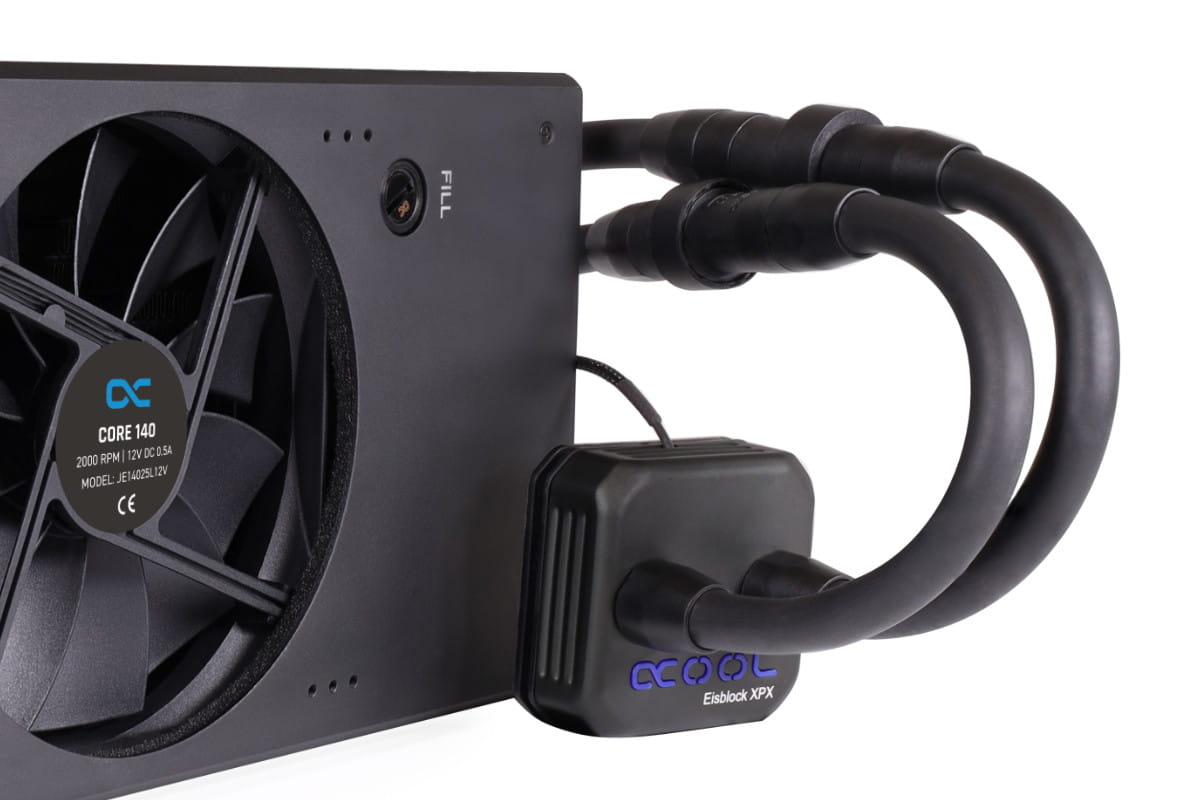

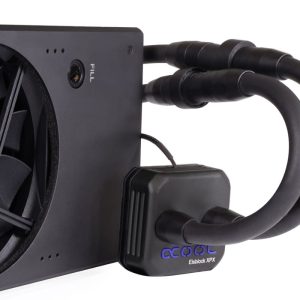

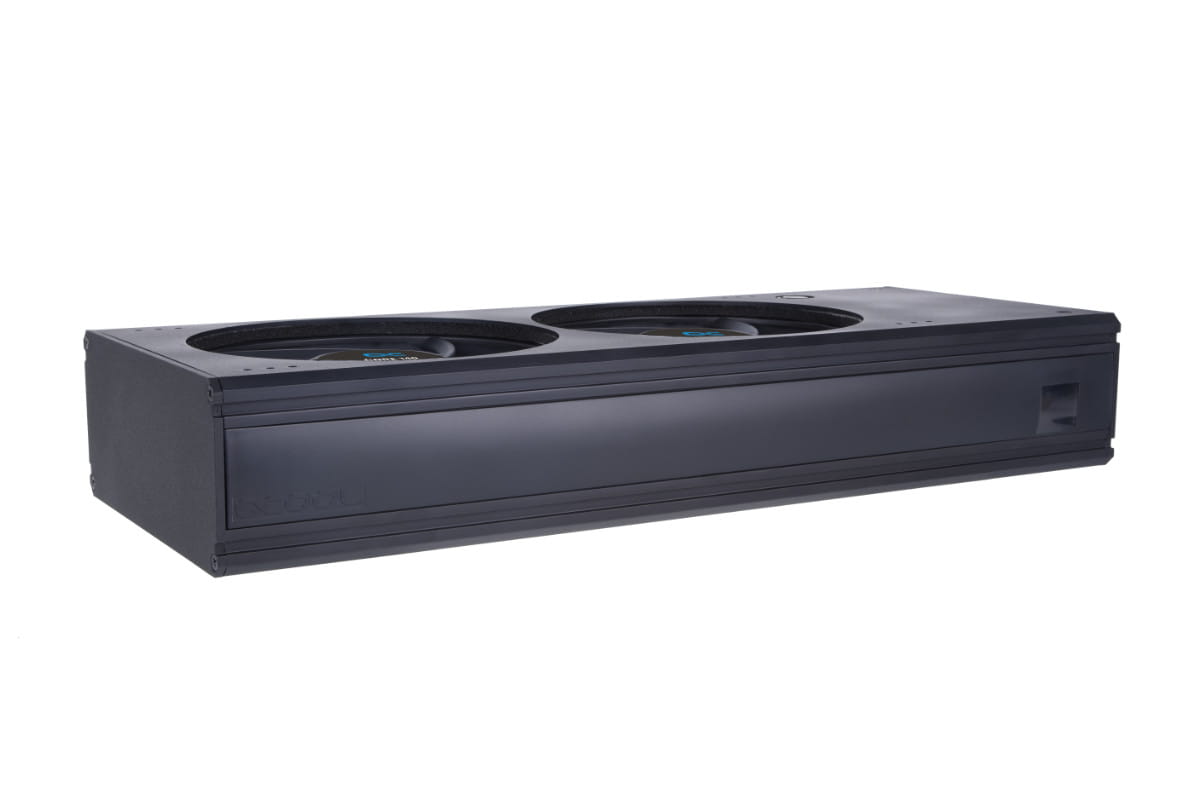

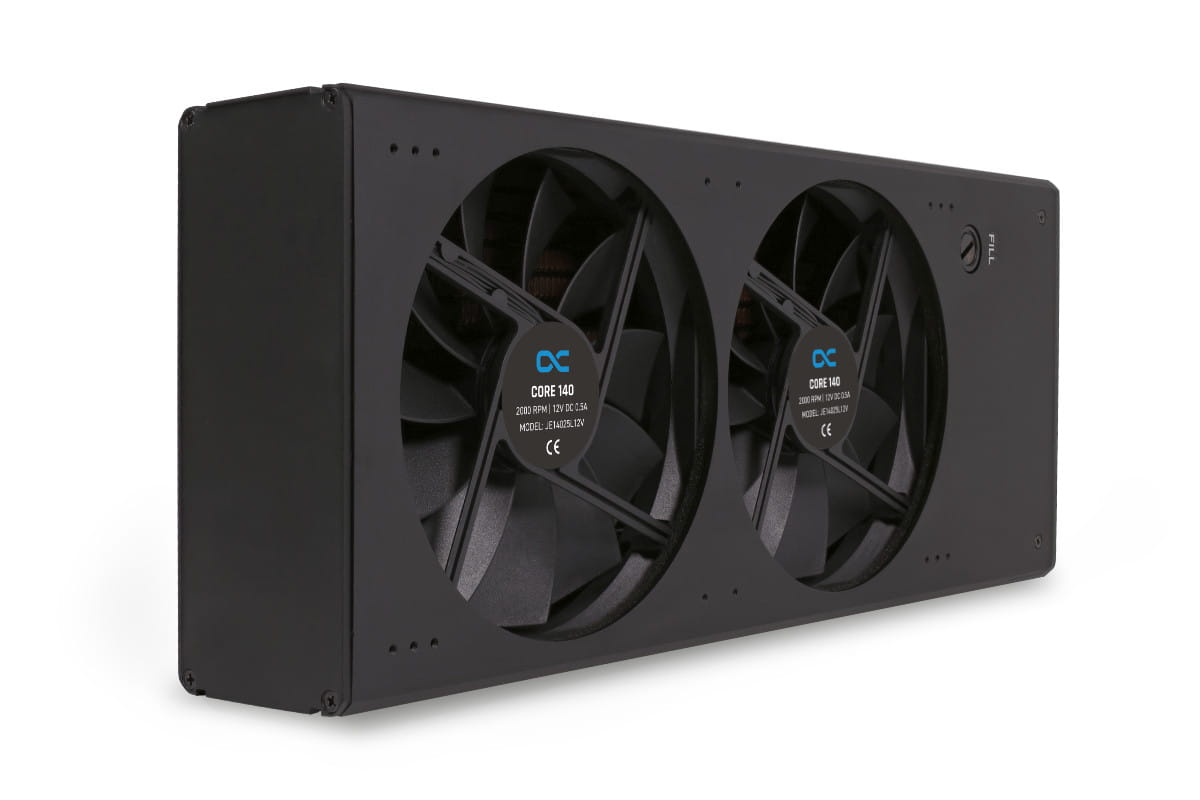

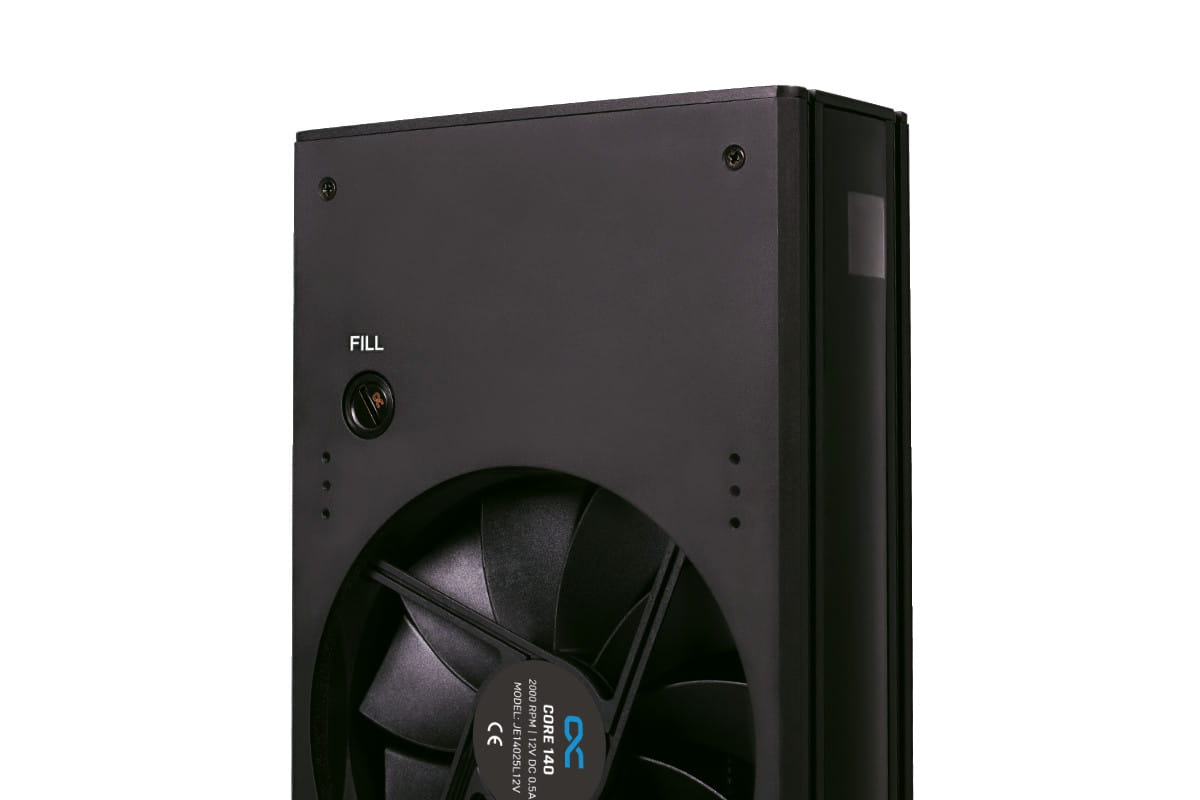

Alphacool Eisbaer Extreme liquid CPU cooler 280 - black edition

The Alphacool Eisbaer Extreme is stronger, more beautiful and quieter than anything youve seen before in the AiO water cooling market.

Eisblock XPX- Freedom and maximum comfort
For the Eisbaer Extreme AiO, Alphacool relies on its award winning Eisblock XPX CPU cooler. It is known for its cooling performance at the highest level and impresses with its elegant design. Mounting is possible on all common AMD and Intel sockets. With the Eisbaer Extreme you enjoy absolute performance and quality.

Pure Performance – inc. Silent Wings powered by be quiet!
The Eisbaer Extreme is a brand-new design for Alphacool. A high-quality housing encloses the radiator and fans as well as a patented pump/reservoir combination. In co-operation with the well-known manufacturer be quiet! the award-winning Silent Wings 3 fans are alread installed on the Alphacool NexXxoS Radiator. With the Eisbaer Extreme you have the coolest cooling for your hardware.

Progress into a New Age
Alphacool gives you the flexibility you need. Use your Eisbaer Extreme perfectly thanks to the new Eisbaer Ready quick-release couplings. These are compatible with all Eiswolf / Eisbaer quick release connections. The redesigned, powerful VPP755 Eispump gives you the flow you need.

Individual
With the Eisbaer Extreme you decide how your system is structured. You can expand this All-in-One at any time with additional components, modify it or fill it according to your desires. Whether you install the Eisbaer Extreme horizontally or vertically, its up to you how you showcase your water cooling system.

Technical details
– Dimensions (LxWxH): 385,5 x 156 x 64mm
– Housing material: Aluminium
– Integrated large capacity reservoir (138ml)
– Fill port with patented screw plug

Alphacool Eispump VPP755 V.3
– PWM controlled pump
– Connection: 4Pin PWM / 4Pin Molex
– Start Boost Function
– Self-venting
– Improved Software
– New bearing for the ceramic axis
– 5 adjustable steps
– 1. 2100 rpm 120l/h
– 2. 2700 rpm 140l/h
– 3. 3330 rpm 280l/h
– 4. 3950 rpm 320l/h
– 5. 4350 rpm 340l/h
– Maximum Head Pressure: 4.25m

Fans: Silent Wings 3, powered by be quiet!
– Dimensions: 140 x 140 x 25mm
– Colour: Black
– Bearing: HDB
– Maximum speed: 1300rpm (+/-200)
– Starting voltage: 5V (at 25 degreesC)
– Voltage: 5-12V
– Power consumption: 4.8W (0.2 Ampere)
– Conveying capacity: 64.81 cfm
– Static pressure: 1.84mm-H2O
– Noise emission: 31dBa (max)
– Service life: 50,000
– Connector: 4 Pin PWM

Alphacool Eisblock XPX
– Dimensions: 65 x 65 x 30mm
– Connections: 2x G1/4
– Pressure tested: 2 Bar
– Housing material: aluminium/acetal
– Material base plate: nickel-plated copper
– Compatibility Intel: 2066 / 2011 / 2011-3 / 1151 / 1150 / 1155 / 1156 / 1366
– AMD compatibility: AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / TR4

Scope of delivery
– Prefilled All-in-One CPU Cooler Unit
– 2x Silent Wings 3 Fan
– Mounting material
– CPU Cooler for Intel and AMD Socket
– Mounting material to mount the radiator
