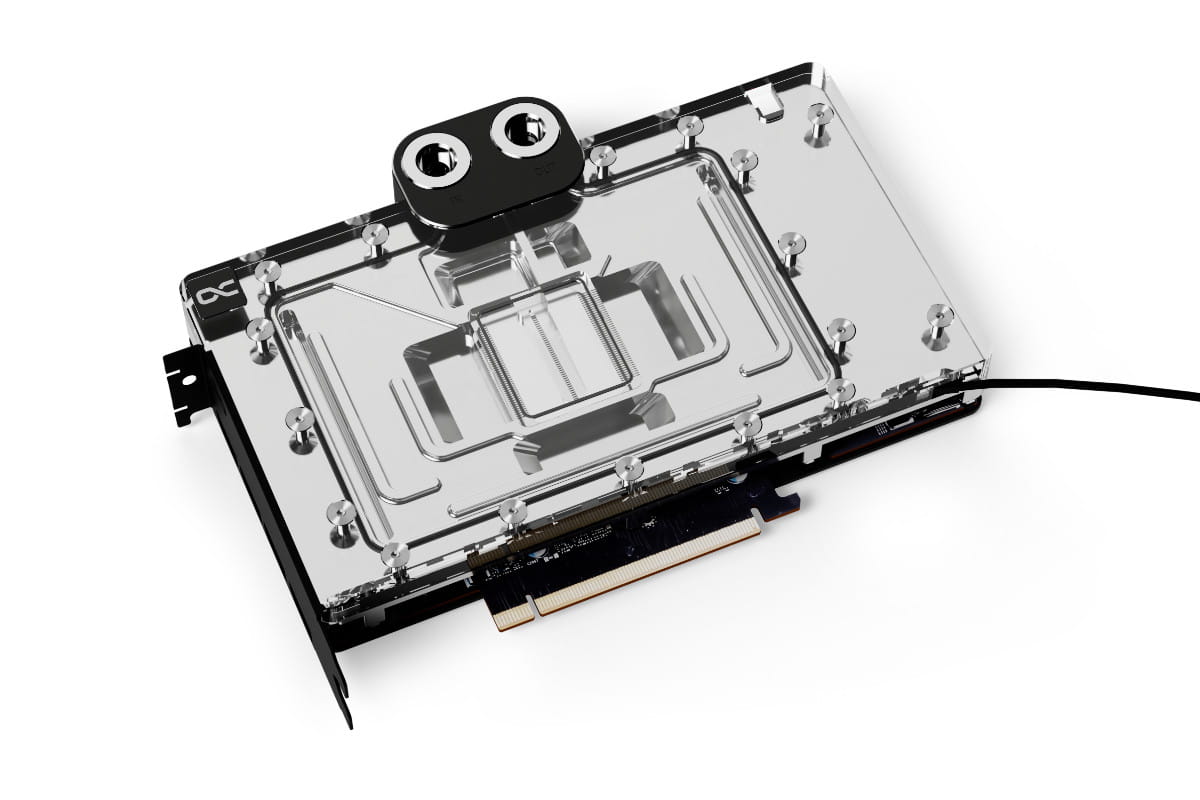

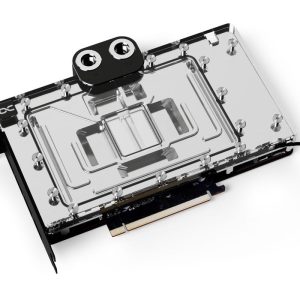

Alphacool Core Geforce RTX 4090 GameRock + Phantom with Backplate

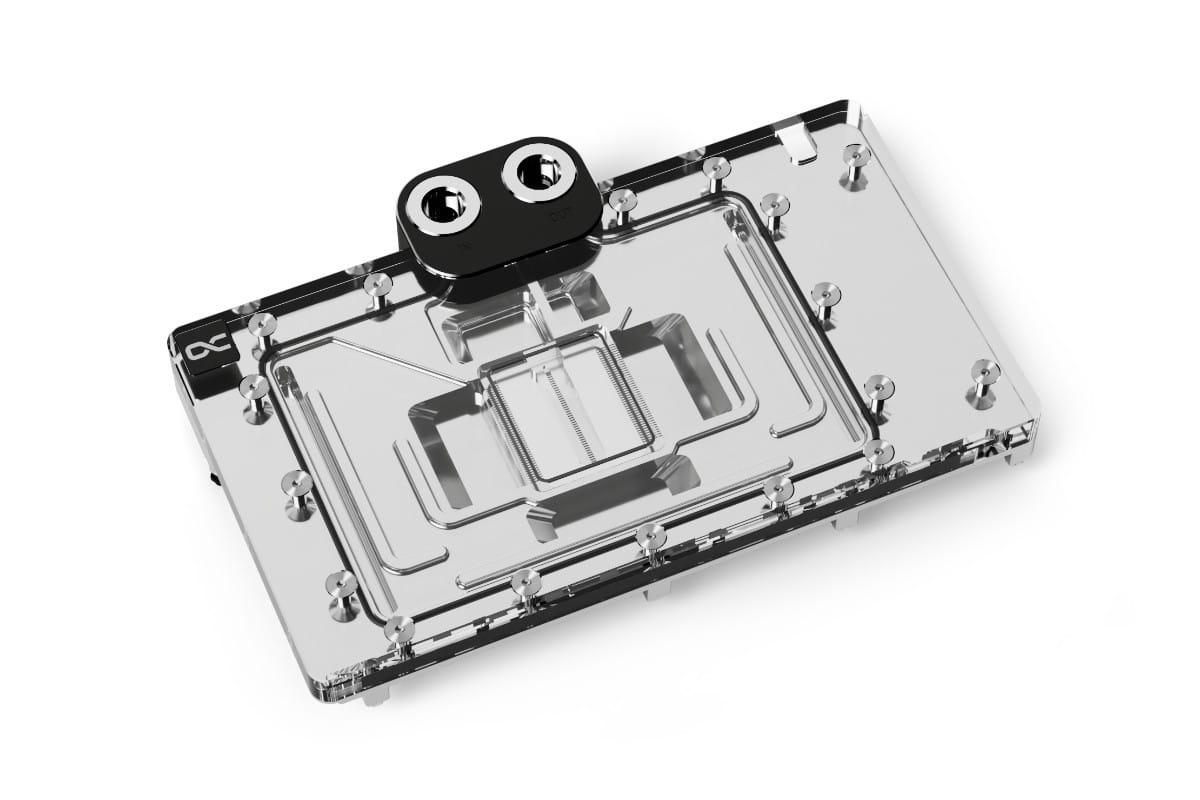

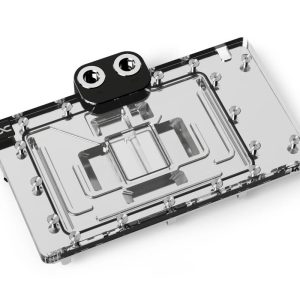

The core of this cooler is the copper cooler, which is milled from a piece of copper together with the end terminal. The fine workmanship in combination with the hard and durable chrome plating of the entire copper cooler meets the highest quality standards. The two integrated G1/4 brass threads, which are left in chrome, stand out visually from the terminal and are one of the key points of the new design language that is evident in all products in the Core series.

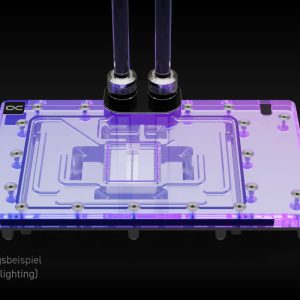

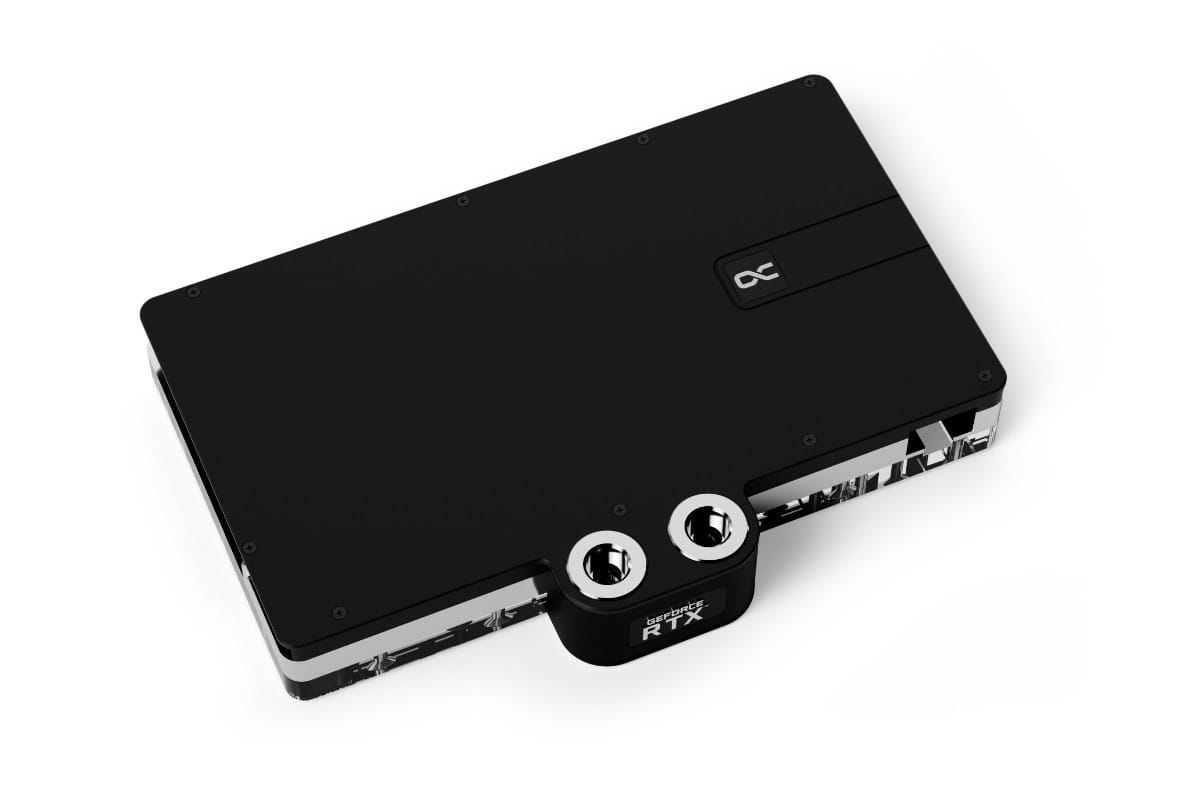

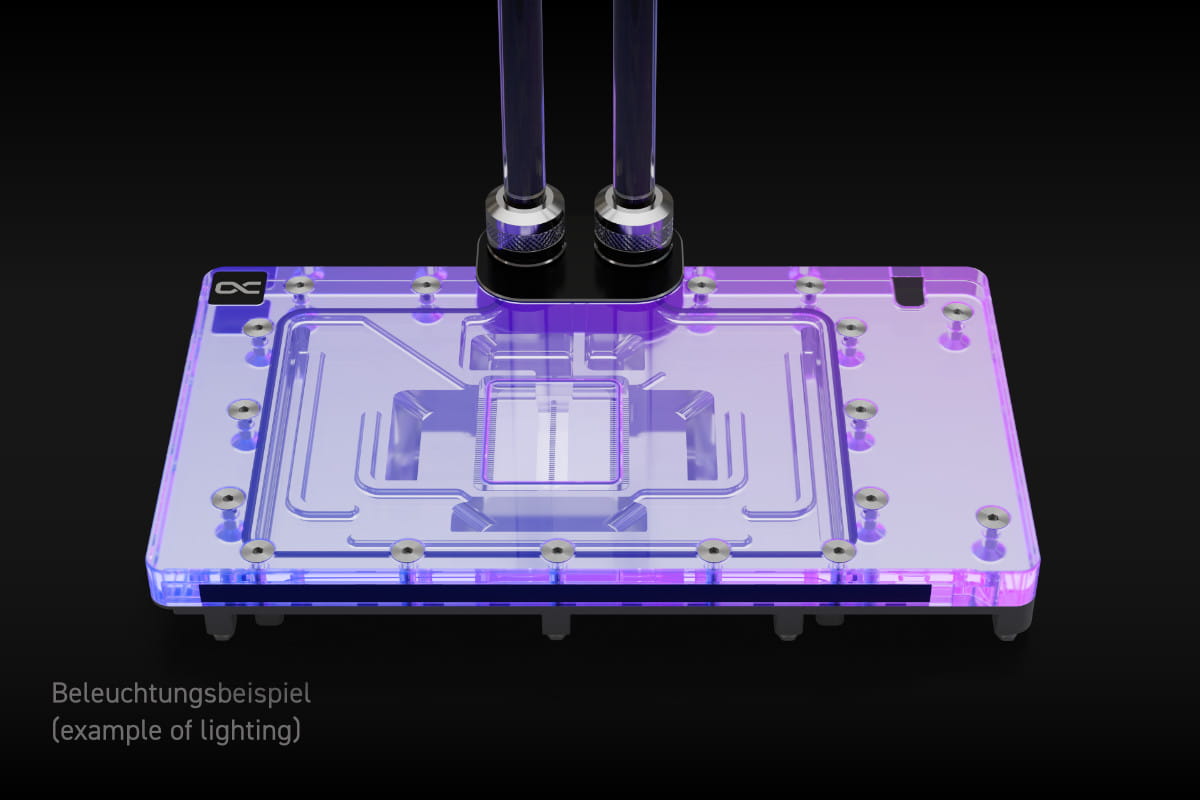

The aluminum backplate, which is adapted to the design, forms a unit together with the terminal and convinces with a clear and homogeneous look on the back of the cooler. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and well.

The technical development is reflected in the water supply to the jet plate and in the optimization of the jet plate itself. This was completely redesigned on the basis of many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been changed, the cooling surface increased and the water flow optimized to the core components with the greatest heat dissipation. The included special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Compatibility:
– Palit GeForce RTX 4090 GameRock, 24GB GDDR6X (NED4090019SB-1020G)
– Palit GeForce RTX 4090 GameRock OC, 24GB GDDR6X (NED4090S19SB-1020G)
– Gainward GeForce RTX 4090 Phantom, 24GB GDDR6X
– Gainward GeForce RTX 4090 Phantom GS, 24GB GDDR6X (3413)

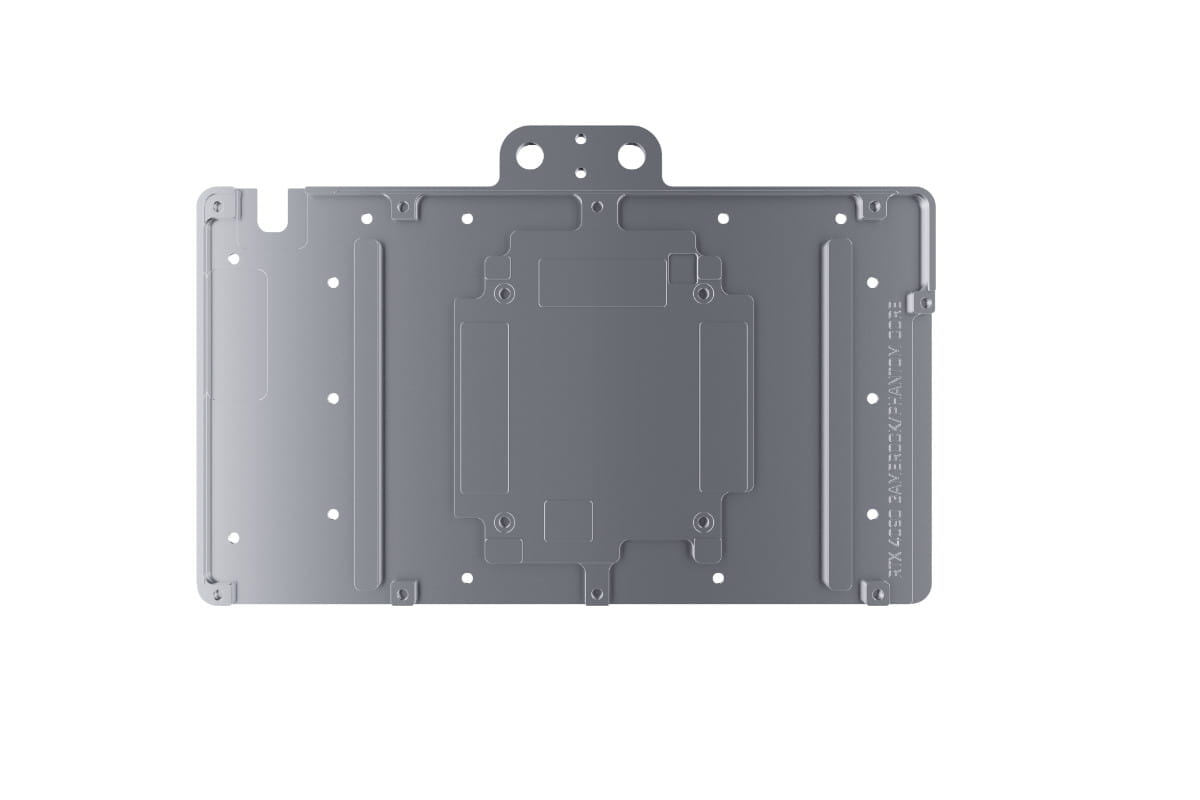

Specifications backplate
– Dimensions (L x W x H) 217.91 x 123.69 x 5mm
– material aluminium
– Color: Black

Note on application

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
