Alphacools Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm.

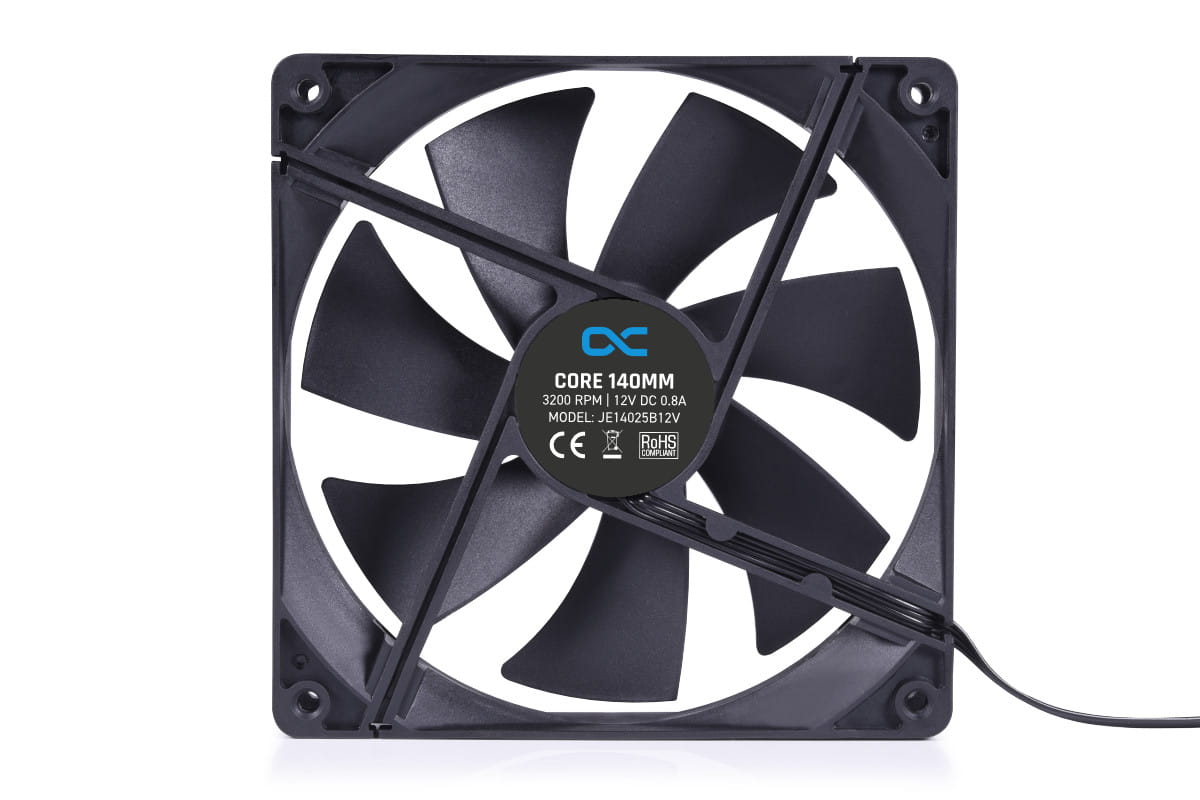

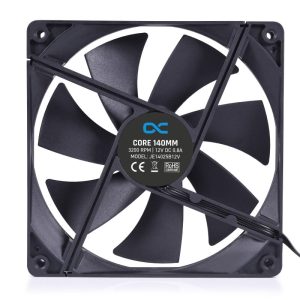

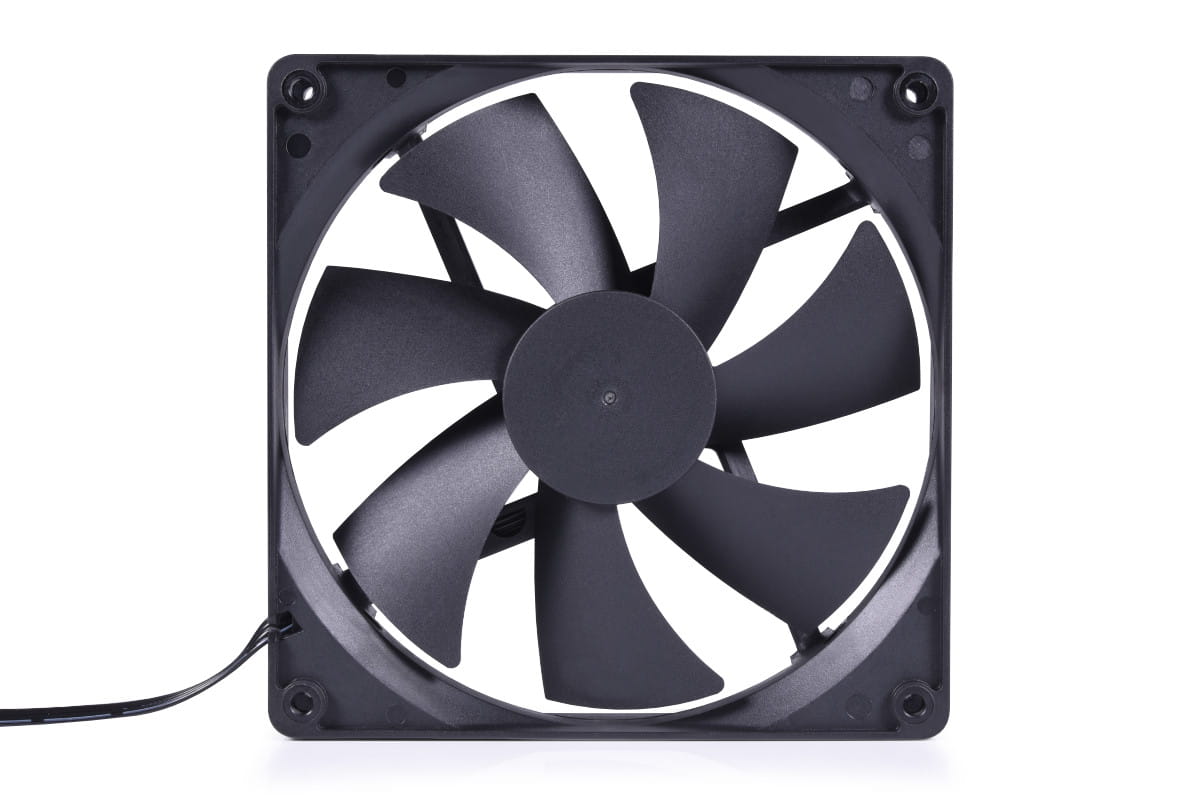

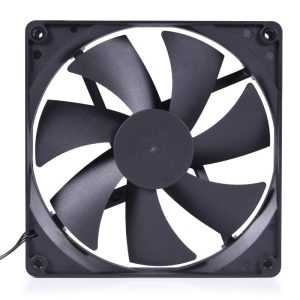

Alphacool Core 140mm fan PWM 3200rpm (140x140x25mm)
Alphacools Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm.
Alphacools Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm.
Earn 9 Points
We price match UK retailers. Try It Now!
- SKU: 1022221
- MPN: 24847
- EAN: 4250197248471
- Warranty: 12 Months
Details
The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacools Core 140mm model!
Connections

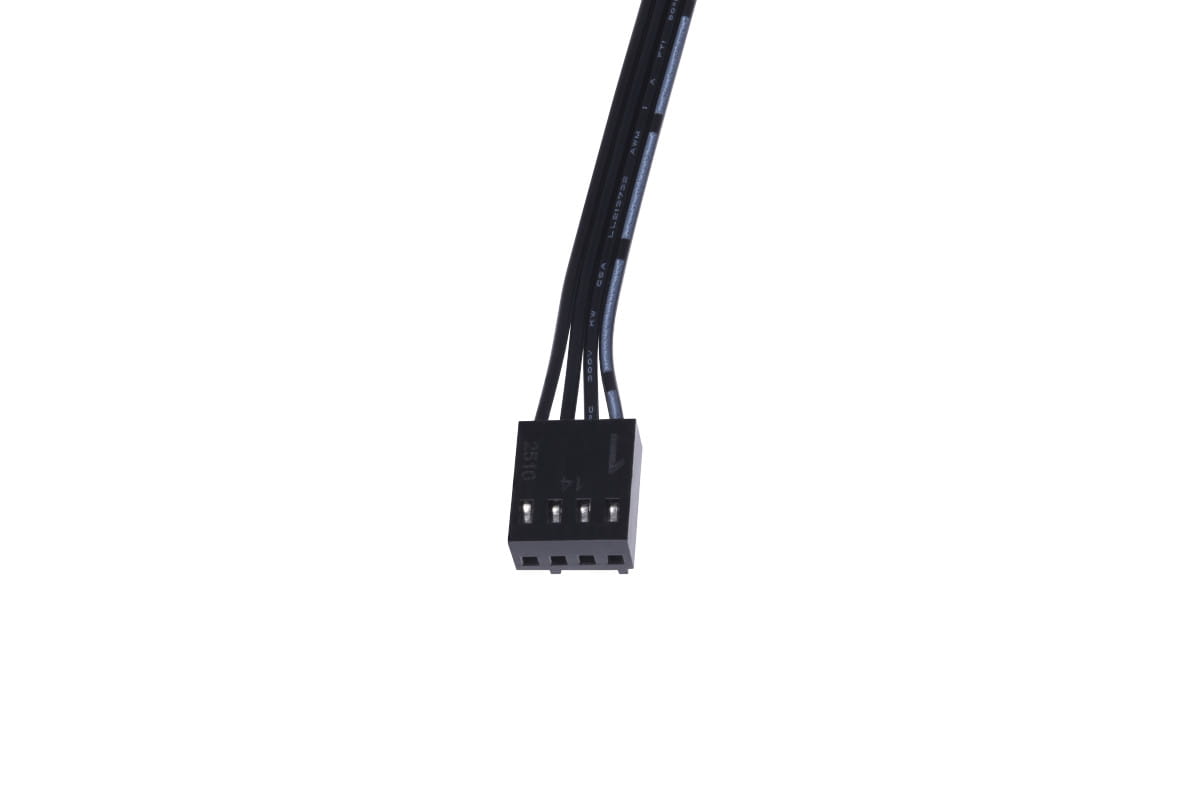

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.
Control range
The fan can be controlled from 0 to 3200 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 153.9 CFM combined with a high static pressure of 6.99 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 140 × 140 × 25 mm |
| Material | Synthetic material (PBT UL94V-0) |
| Bearing Type | Two Ball Bearing |
| Electrical Specifications | |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 7-14V |
| Start-up Voltage | 7V |
| Rated Current | 0.66A (Max: 0.75A) |
| Rated Power | 7.92 W (Max: 9 W) |
| Performance | |
| Rated Speed | 0 – 3200 rpm ±10% |
| Max Air Flow | 153.9 CFM |
| Max Static Pressure | 6.99 mm/H₂O |
| Noise Level | 51 dBA (Max: 53 dBA) |
| Life Expectancy | 70,000 h at 40°C |
| Connections & Control | |
| Connection | 4-Pin PWM |
| Speed Control Mode | Via PWM |
| Operating Conditions & Features | |
| Operating Temperature | -10°C to +70°C |
| Other Features | Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22 |
