Alphacool Core 120mm fan PWM 3000rpm (120x120x25mm)

The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacools Core 120mm model!

Connections

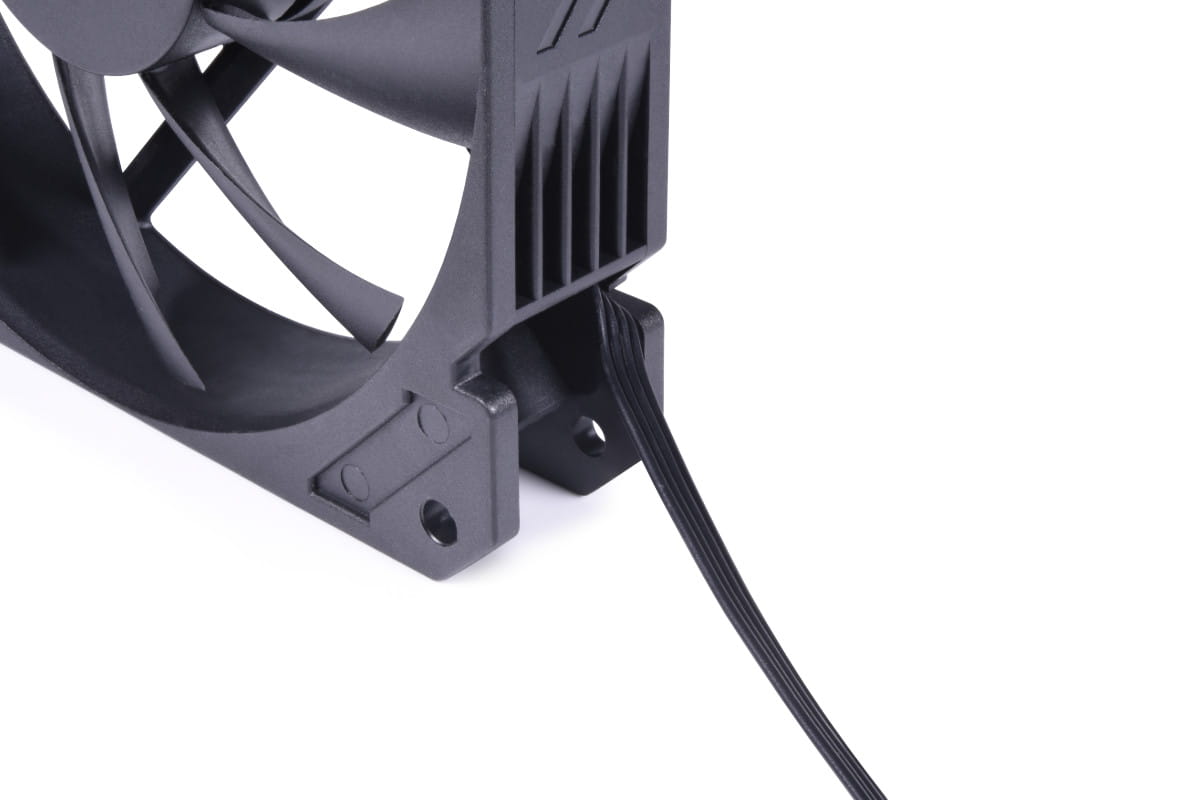

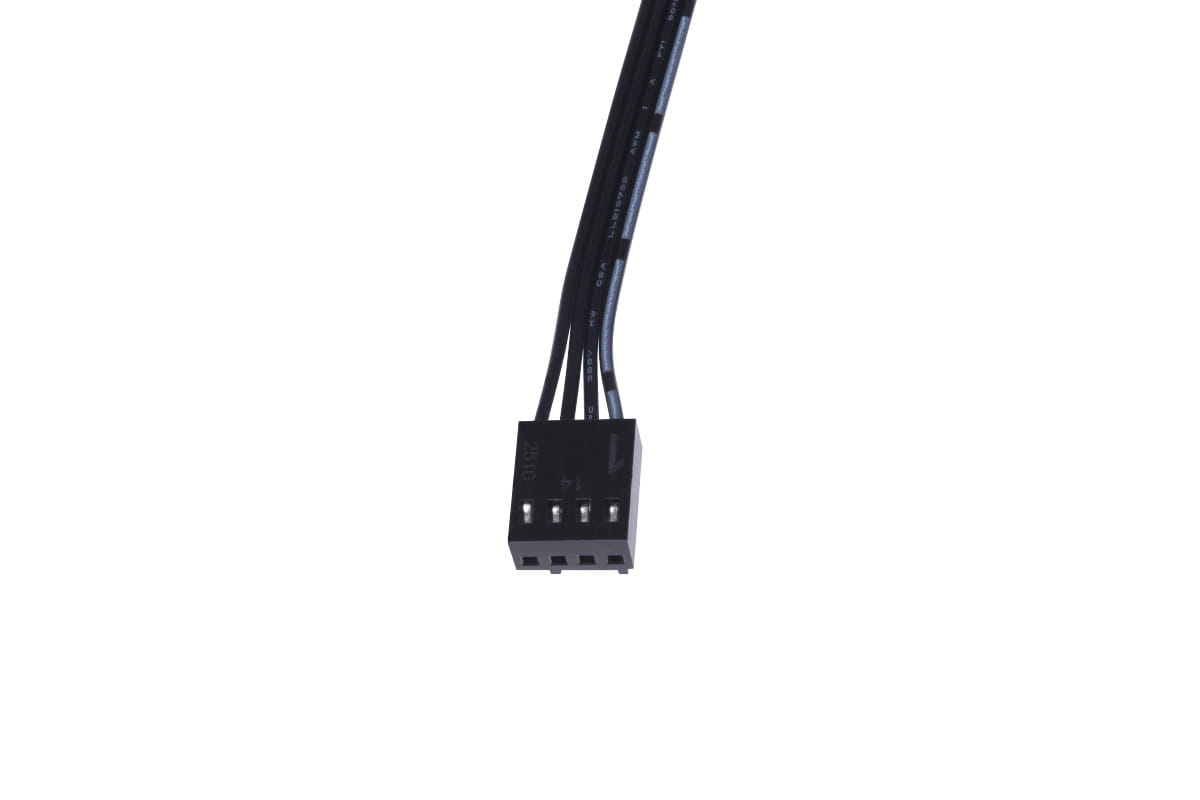

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.

Control range
The fan can be controlled from 0 to 3000 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 93.6 CFM combined with a high static pressure of 7.83mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.

Technical data
– Dimension (L x W x H) 120 x 120 x 25mm
– Material synthetic material (PBT UL94V-0)
– Bearing Type Two Ball Bearing
– Rated Voltage DC 12V
– Operating Voltage DC 7-14V
– Start-up Voltage 7V
– Rated Current 0.25 (Max: 0.38) A
– Rated Power 3.0 (Max: 4.56) W
– Rated Speed 0 – 3000 rpm/min ±10%
– Max. Air Flow 93.6 CFM
– Max. Static Pressure 7.83mm-H2O
– Noise level 43.0 (Max:45.0) dBA
– Life Expectance 70000 h at 40 degrees celcius
– Connection 4-Pin PWM
– Speed Control Mode via PWM
– Operating Temperature -10~+70 degrees celcius
– Other Features Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22
