High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan.

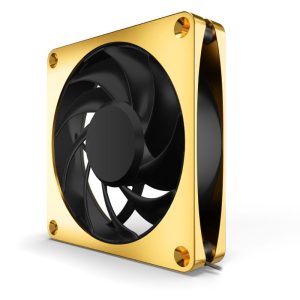

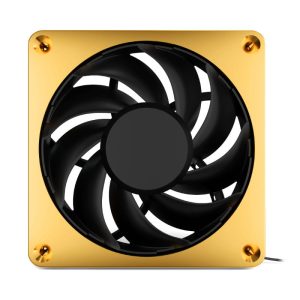

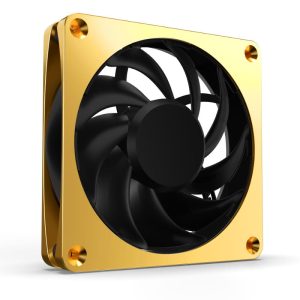

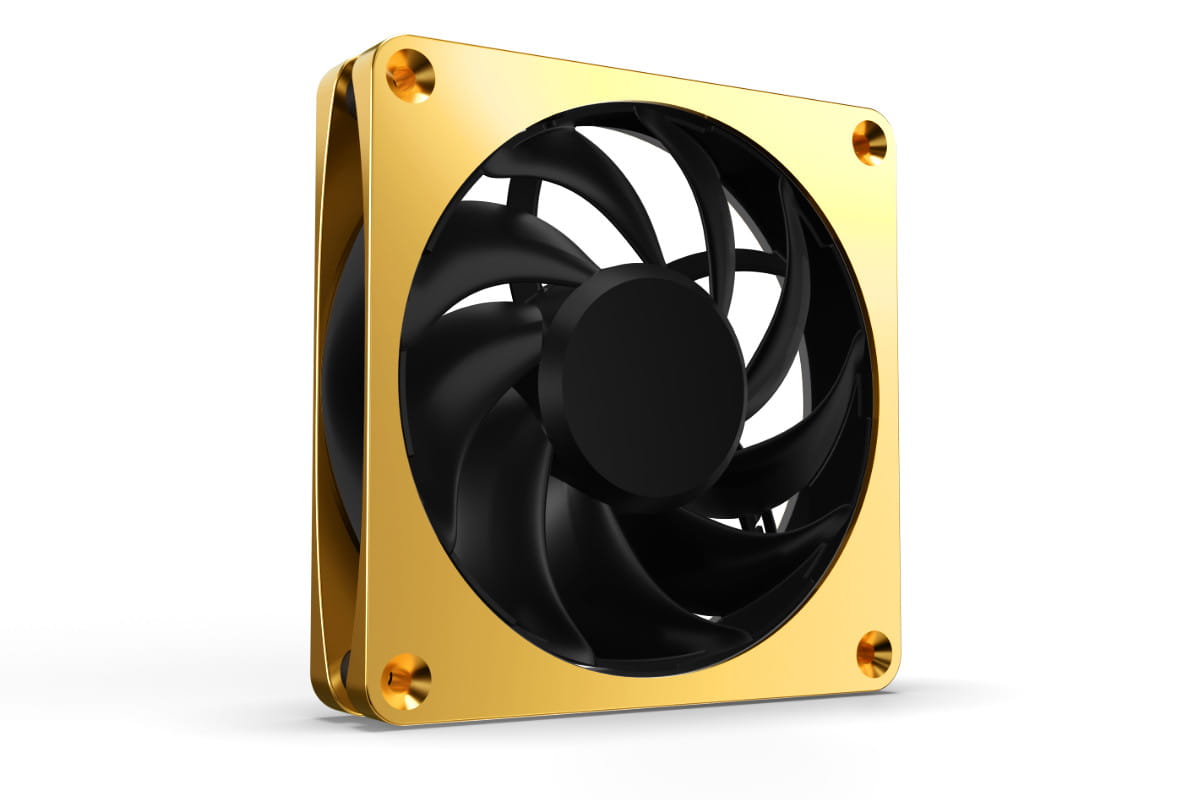

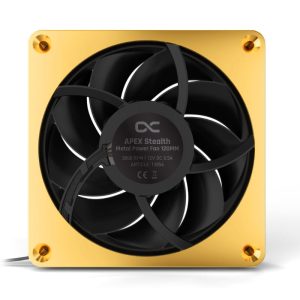

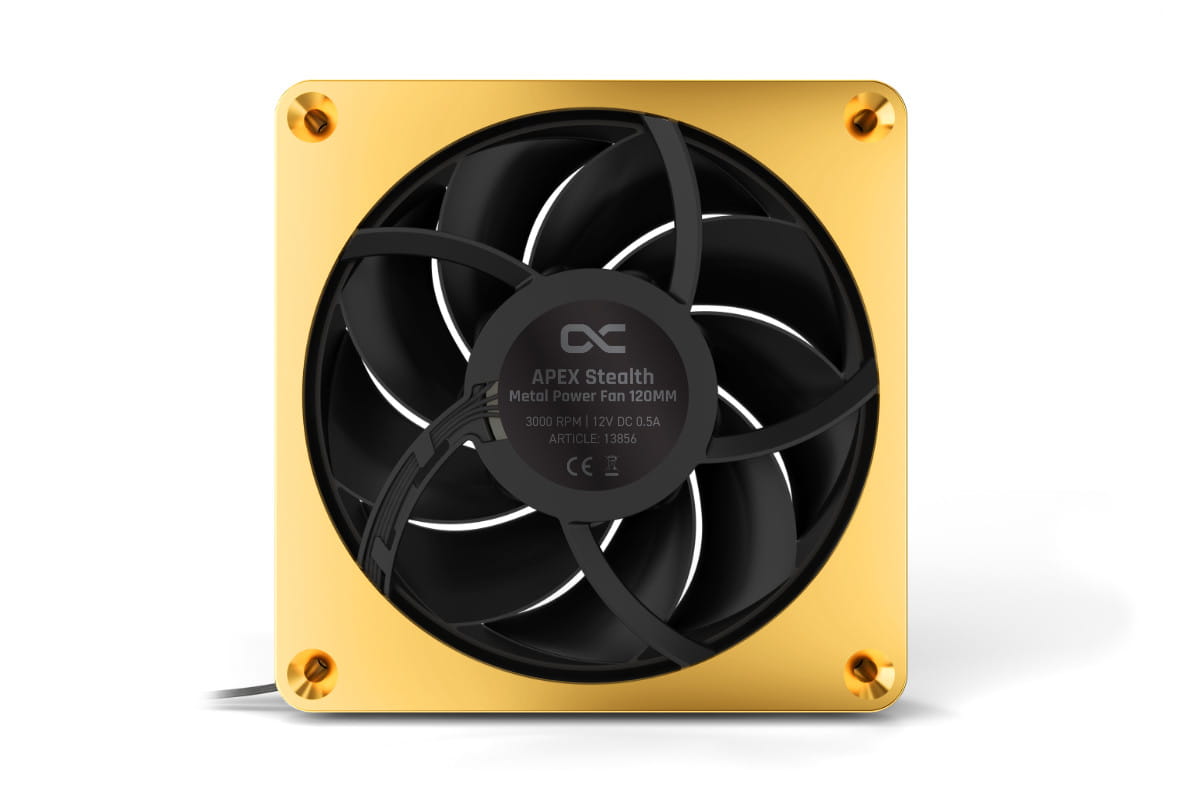

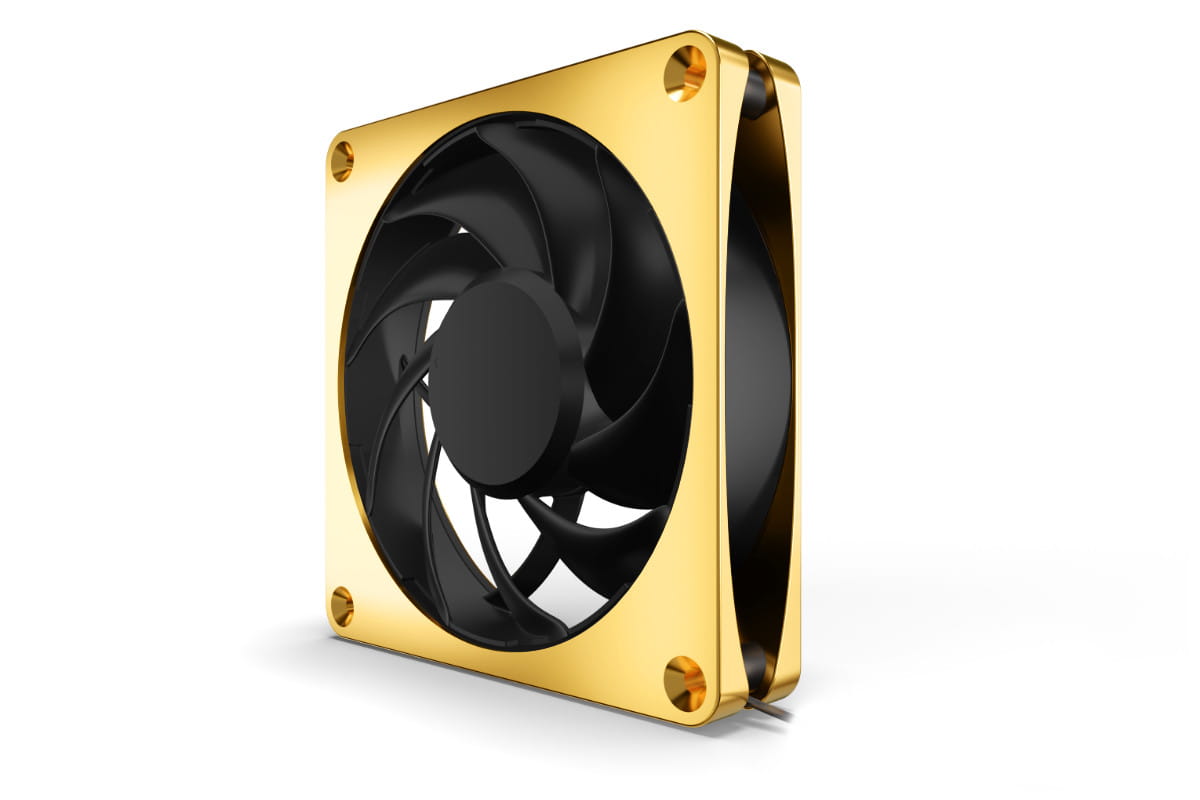

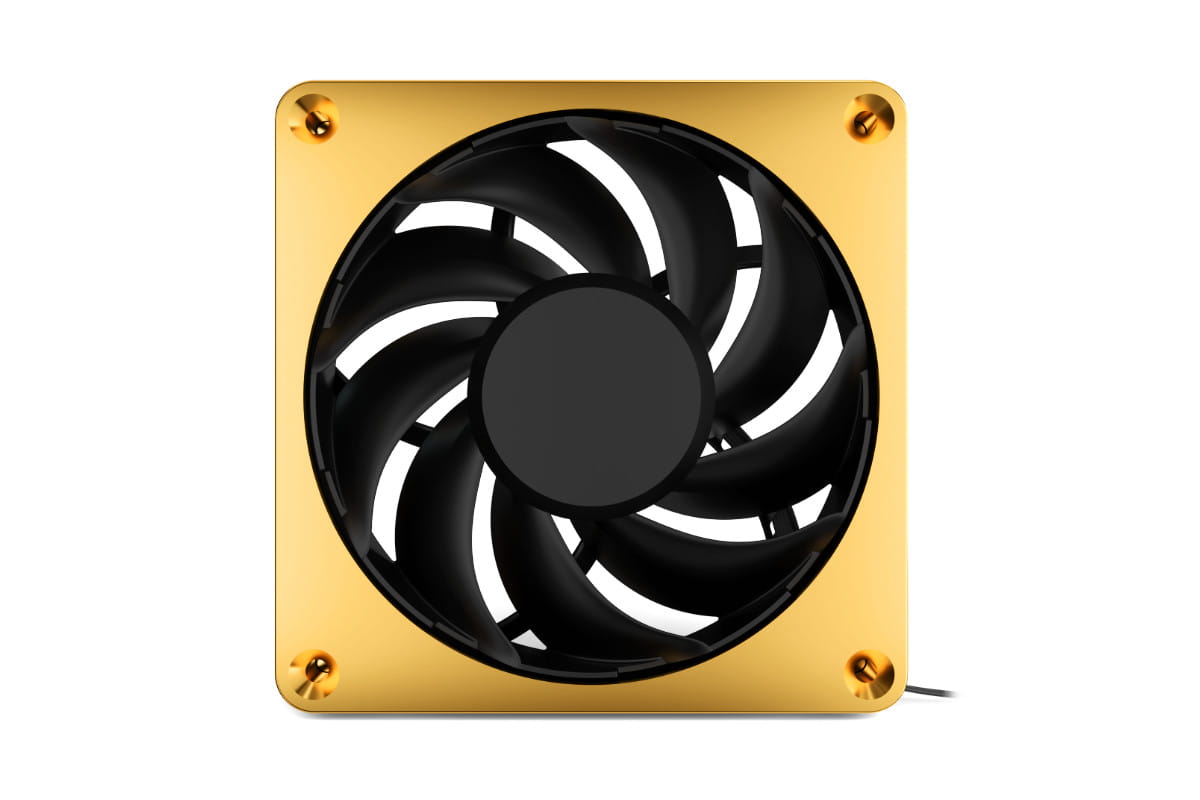

Alphacool Apex Stealth Metal Power fan 3000rpm gold (120x120x25mm)
High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan.
High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan.
Earn 19 Points
We price match UK retailers. Try It Now!
Details
With its patent-pending decoupling technology, the robust metal frame and a special rotor, this fan certainly impresses. Not only is the Apex Stealth one of the most powerful fans, but it also remains the quietest at any speed.
Whisper Quiet

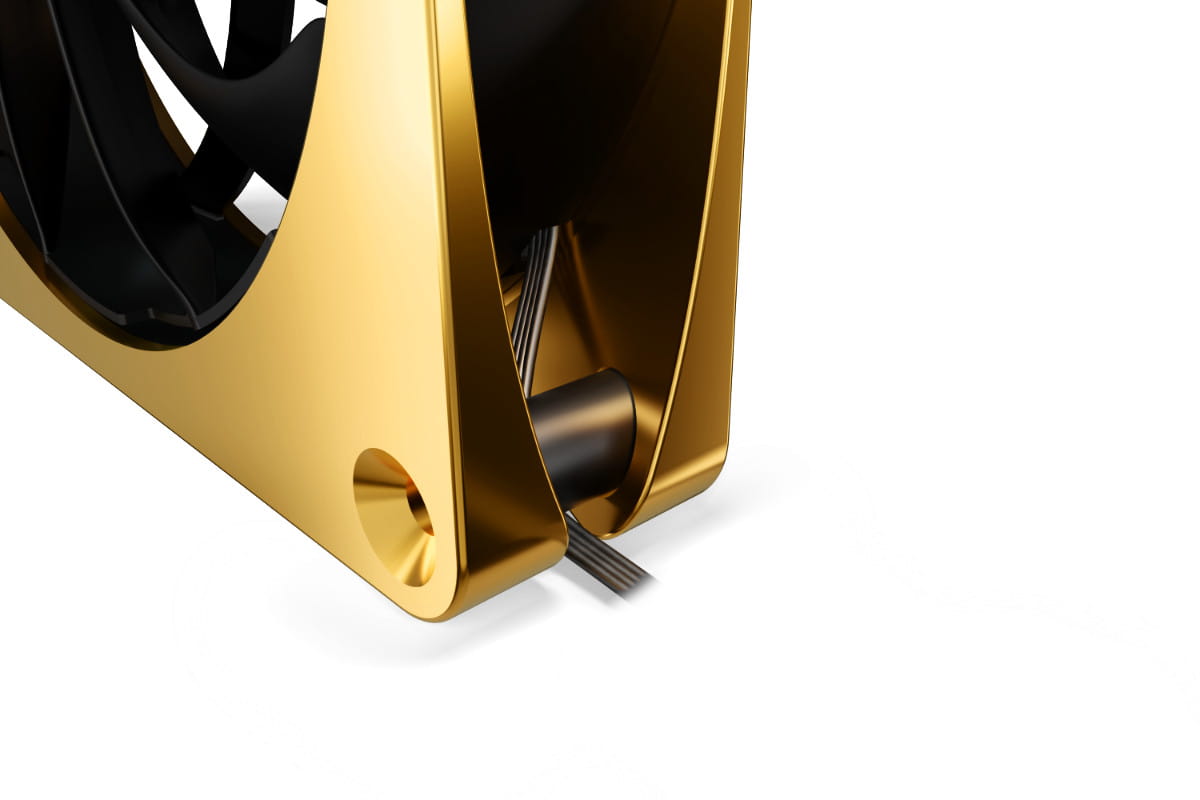

The fan blades, motor and its suspension are completely decoupled from the metal frame. For this purpose, a special damping system was placed between the metal frame and the fan, which absorbs all vibrations. This type of decoupling is a completely new system, which is brought to the market by Alphacool for the first time with the Apex fan. In addition, the impeller is equipped with a closed frame that prevents the impeller tips from fluttering at high speed, which also has a positive effect on the fans characteristics.
Powerful All-rounder
The Alphacool Apex Stealth metal fan is a true all-rounder. It sets new standards in terms of airflow and static pressure. Therefore, this fan is not only perfect for mounting on radiators, but also provides excellent airflow as a case fan. The Apex Stealth Power can be controlled between 400 to 3000 rpm via the 4-pin PWM connector. The startup speed is ~500 rpm. In addition, the Stealth offers Zero RPM control, which can be used to bring the fan to a complete stop.
Apex Design
Alphacools Apex product line represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique premium product. Consisting of high-quality metal, the curved frame gives the Apex Stealth its distinctive design and fits perfectly into any PC build.
Additional Features
As usual with Alphacool, multiple fans can be effortlessly connected in series via daisy chain. The cables can be hidden in the corners of the fan so that they are no longer visible. A 50 cm PWM cable is also included as an extension. The 6-pole motor in combination with the HDB bearing (Hydro Dynamic Bearing) ensures extremely quiet operation and high durability.
| Technical Data | |
|---|---|
| Dimensions (L × W × H) | 120 × 120 × 25 mm |
| Frame Material | Die-cast zinc |
| Impeller Material | Plastic |
| Weight | 320 g |
| Fan Speed | 400 ~ 3000 RPM ±10% |
| Bearing Type | Hydro Dynamic Bearing |
| Connector | 4-pin PWM |
| PWM Cable Length | 40 ±8 mm (plus 50 cm extension cable) |
| Daisy-Chain Cable Length | 110 ±10 mm |
| Start-up Voltage | 6 V DC |
| Rated Voltage | 12 V DC |
| Power Consumption | 6.60 W |
| Airflow | 116.89 CFM |
| Static Pressure | 6.22 mmH₂O |
| Noise Level | 40.2 dBA |
| MTBF | 100,000 hours |
| PWM Control | Yes |
| Zero RPM Mode | Yes |
| Tacho Signal | Yes |
| Auto Restart | Yes |
| Color | Gold |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Guides
Related Products
- Available for Collection
£5.99£4.99 Inc VatEx Vat
Available

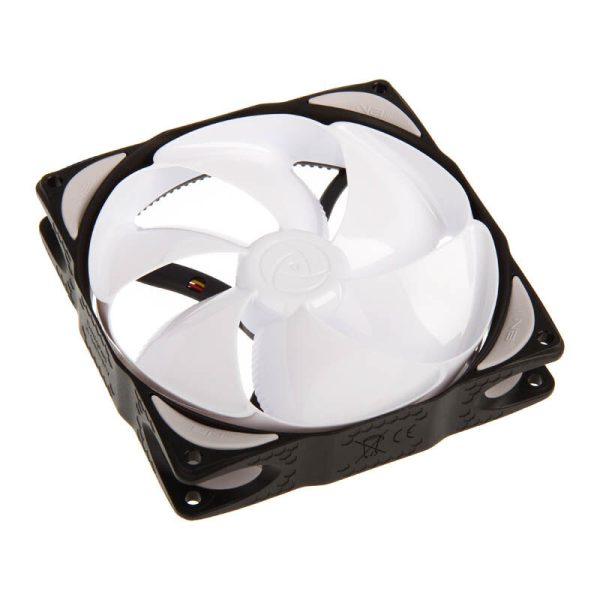

Through the technology, the noise is reduced in air, air flow rate increases at the same speed in a defined area and it can also be realized energy savings in the operation.
- SKU: LUNO-053
- MPN: ITR-B12-2
- EAN: 4250051906424
£20.51£17.09 Inc VatEx Vat
Out of stock

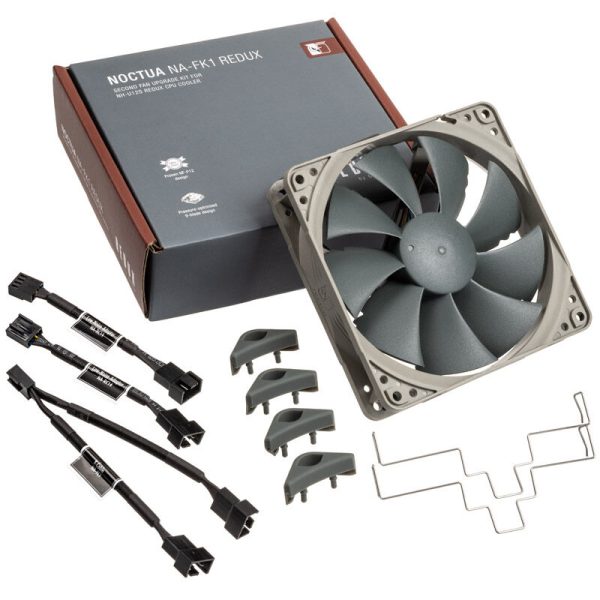

The NA-FK1 redux is a second fan set to operate the NH-U12S redux tower cooler in a double fan configuration.
- SKU: LUNA-100
- MPN: NA-FK1
- EAN: 9010018200973
£20.65£17.21 Inc VatEx Vat
Available
- 120 mm PWM fan with aluminum frame - Practical wireless connection for fewer visible cables - 26 digitally addressable RGB LEDs - Speed and lighting can be controlled via Lian Li L-Connect 3 software - Whisper bar cooling performance...
- SKU: LULI-105
- MPN: 12TL1W1B
- EAN: 4718466017239
- Available for Collection
£21.67£18.06 Inc VatEx Vat
Available

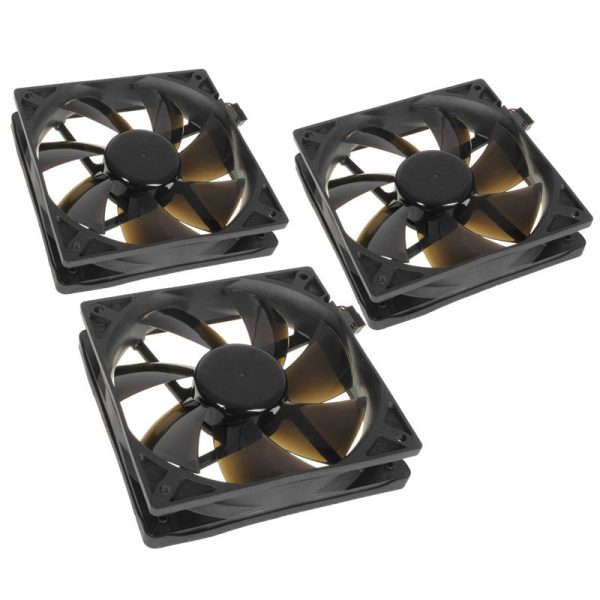

Noiseblocker is the specialist for particularly quiet fans. To achieve this, the company relies on maximum quality with low manufacturing tolerances and high technological know-how with German engineering. The manufacturer also states that its technical specifications represent realistic values, which...
- SKU: LUBU-027
- MPN: LUBU-027
- EAN: n/a
£46.02£38.35 Inc VatEx Vat
Available

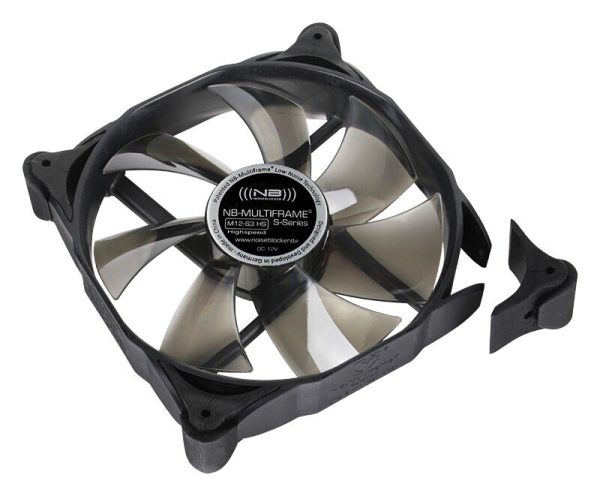

Noiseblocker Multiframe S-Series M12-S3 HS - 120mm
