The Akasa Plato TN is a compact and VESA-compatible UCFF housing for Intel NUC boards with a passive cooling design.
The Akasa Plato TN is a compact and VESA-compatible UCFF housing for Intel NUC boards with a passive cooling design.
The Akasa Plato TN is a compact and VESA-compatible UCFF housing for Intel NUC boards with a passive cooling design.
Fanless and noiseless operation thanks to the optimized design with large cooling fins. Elegant design with brushed, black anodized aluminum and a front panel with a diamond-edge finish.
The features of the Akasa Plato TN at a glance
Compact housing for 11th generation Intel NUC boards
Compatible with boards in UCFF format (4 x 4)
Fanless cooling through passive housing design with large fins
Elegant look thanks to brushed aluminum in black
Front panel with 2x USB 3.0 and 2x USB 2.0 openings
Space for a 2.5-inch data carrier
VESA compatible
Noble UCFF case for Intel NUC boards
The Plato TN from Akasa was specially developed for Intel NUC boards and can be used either lying flat or directly on the VESA mounts of the monitor. Specially tailored to boards in UCFF format, it is very space-saving and extremely flat with a height of only 38.5 millimeters. In addition to the compact design, it also impresses with a very elegant look.

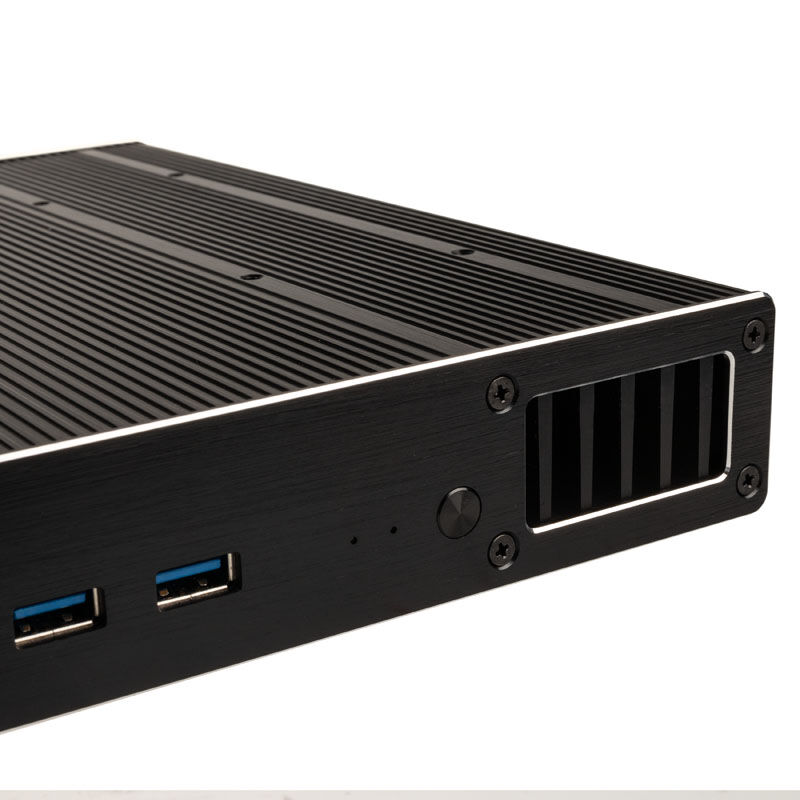

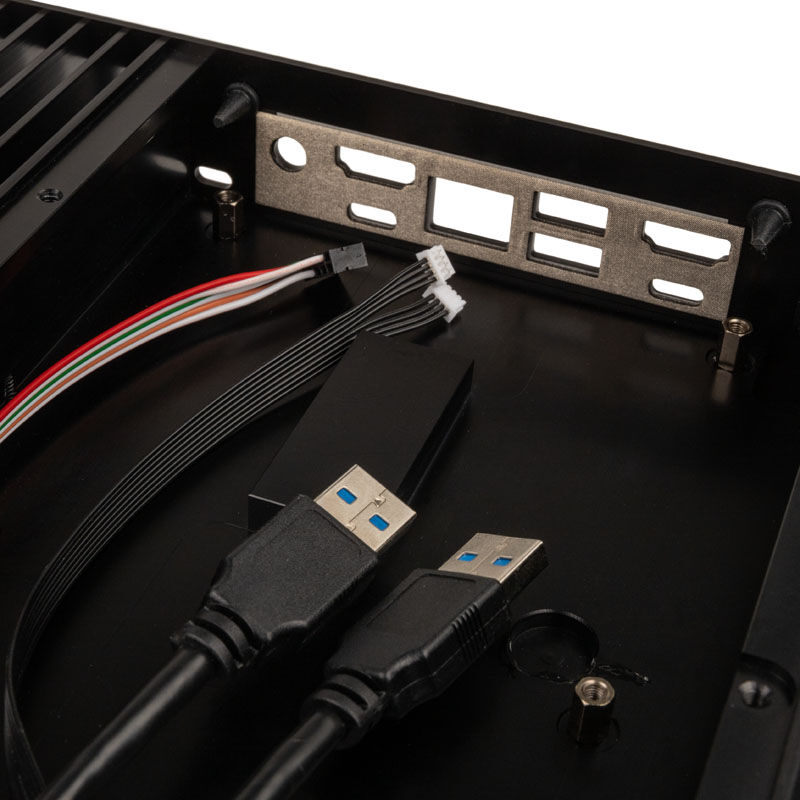

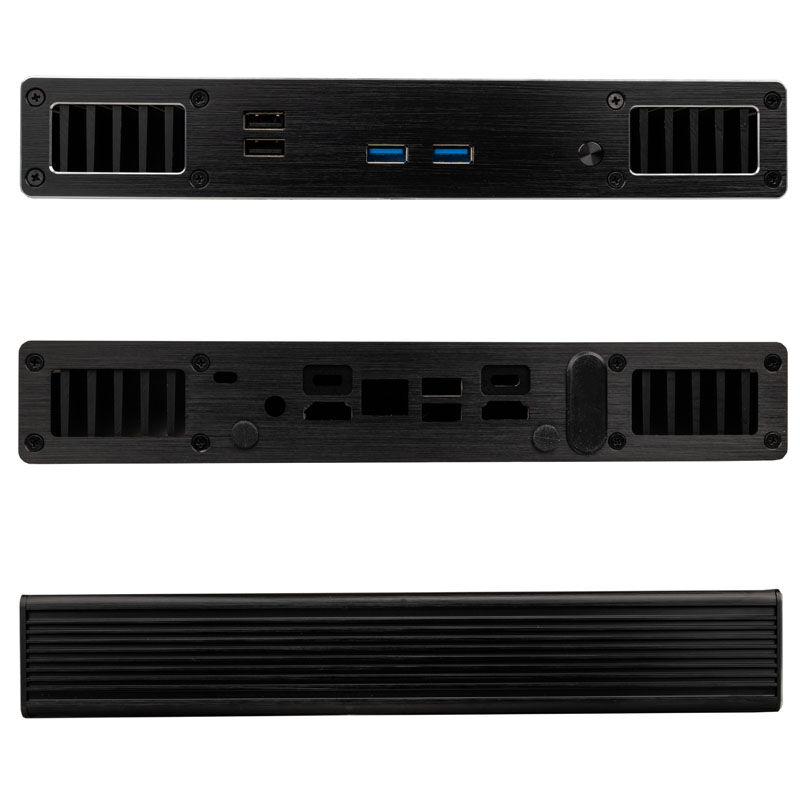

A front made of brushed aluminum makes the black Akasa Plato TN a restrained yet stylish contemporary, which also fits inconspicuously into any hi-fi landscape as an HTPC housing. The elegant front is only broken up by two USB 3.0 and two USB 2.0 ports as well as the power button and two LEDs. On the back there are perfectly matching cutouts for the connections of the Intel NUC board.

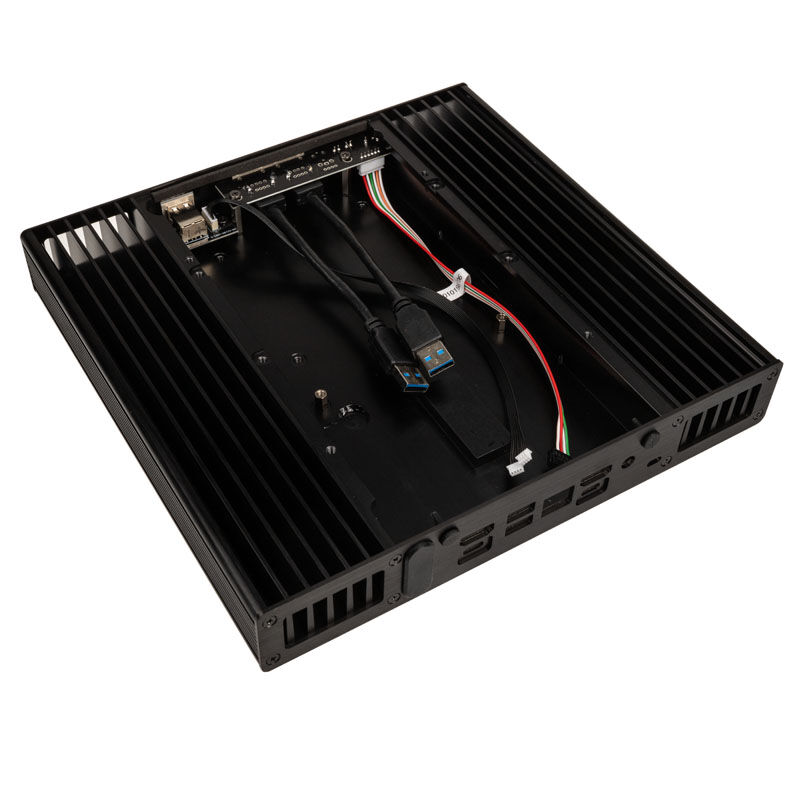

Both sides of the stylish housing are completely provided with large aluminum cooling fins. The CPU and the Akasa Plato TN are in direct contact via a heatsink plate. As a result, the waste heat from the processor is evenly transferred to the housing and the housing itself functions as a huge passive cooler. The heat is given off directly to the surrounding air via the large-area lamellar structure on the outside of the small housing: absolutely fan-free and noiseless!

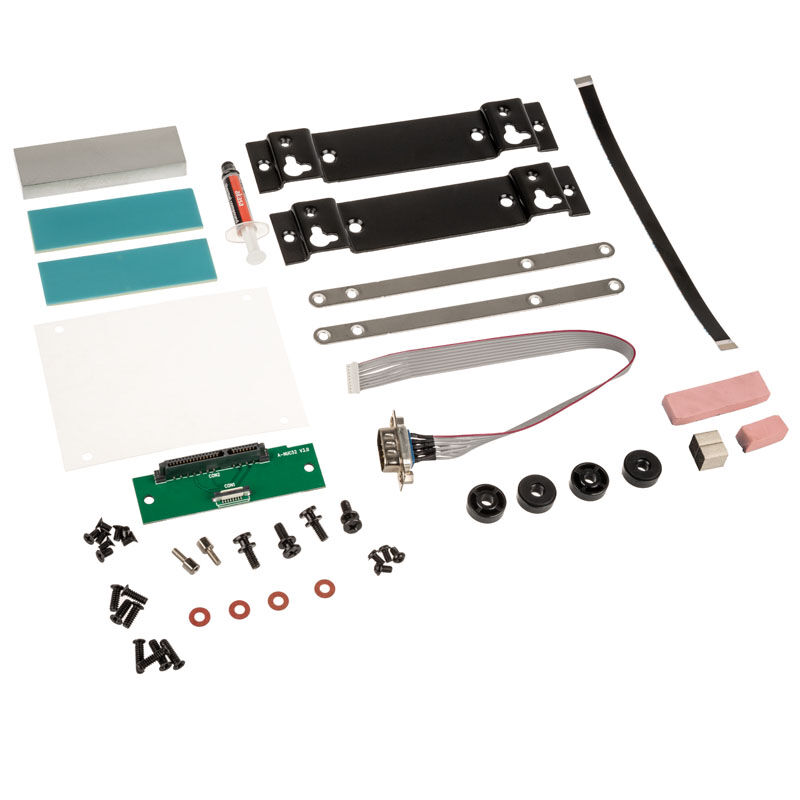

A heat conducting pad is included for ideal heat transfer. The scope of delivery includes, among other things, a serial cable, housing feet, mounting material for VESA brackets, mainboard and data carrier as well as thermal paste. An external power supply must be purchased separately.
Technical details:
– Dimensions: 247 x 38.5 x 240 mm (W x H x D)
– Material: aluminum
– Color: Black
– Form factor: UCFF (4 x 4)
-Total fan possible: passive
– Total storage possible: 1x 2.5 SSD / HDD (up to 9.5 mm high)
— Power supply: external

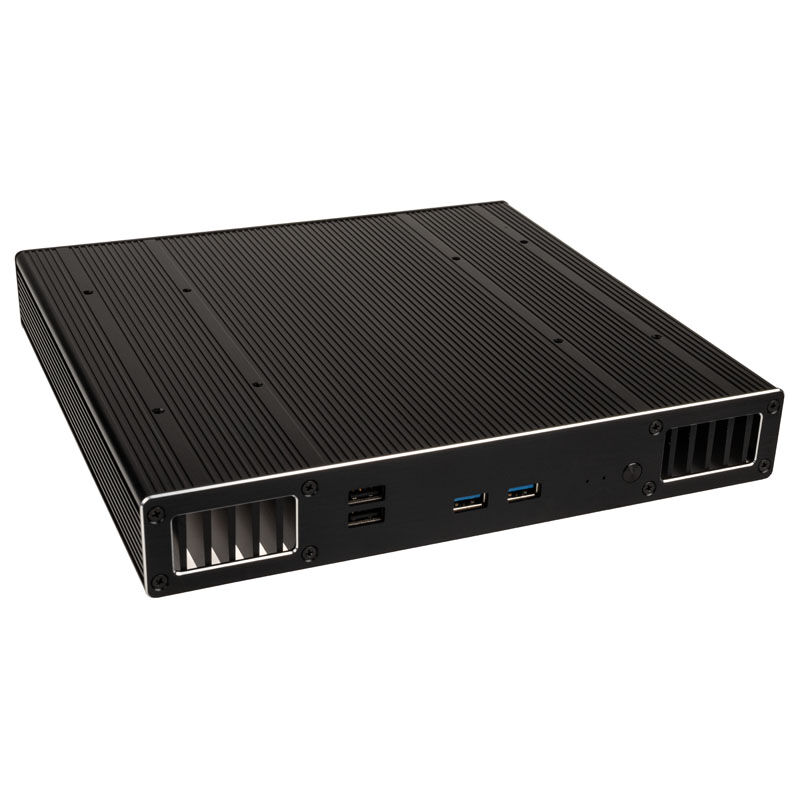

– Openings on the front: power button, power LED, HDD LED, 2x USB 3.0, 2x USB 2.0

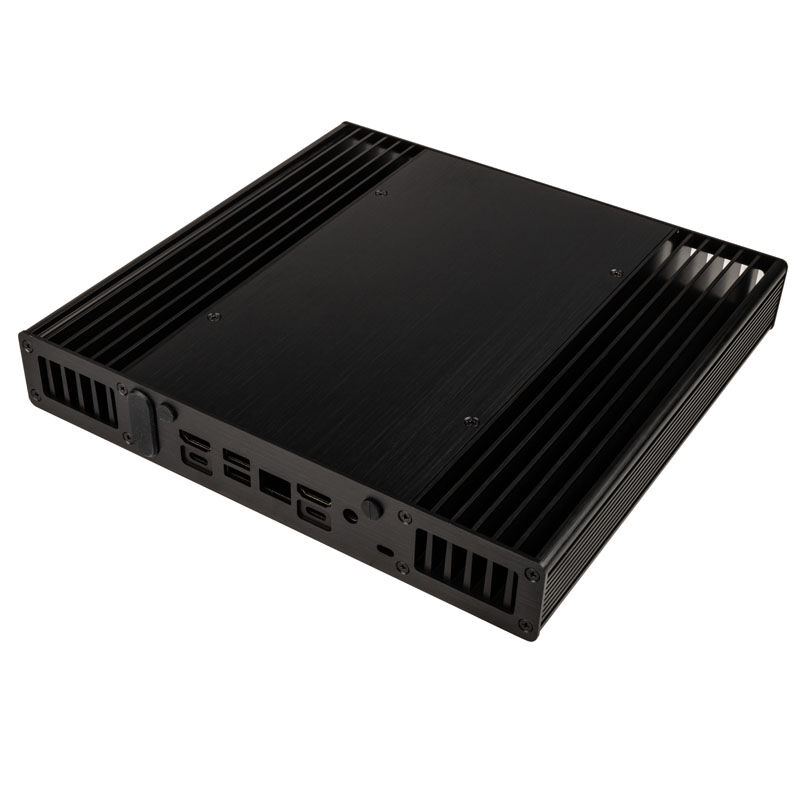

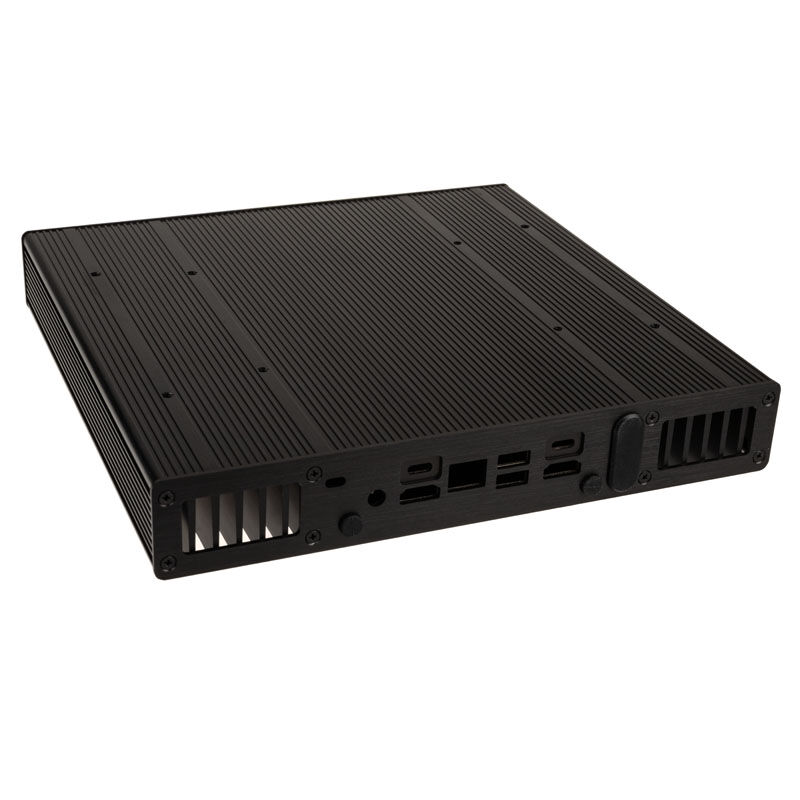

– Openings on the back: 1x Kensington lock, 2x preparation for antenna, 1x serial connection, 2x USB type A, 2x USB type C, 2x HDMI, 1x LAN, 1x power supply
Compatibility (mainboards):
NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3
NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5
NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5
NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7
NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7
£127.73£106.44 Inc VatEx Vat
