Akasa AK-955A-BV2 CPU cooler

The pre-installed 95 mm fan has a height of only 25 mm, which makes the AK-955A-BV2 particularly suitable for HTPC and Mini-ITX cases.

The Akasa AK-955A-BV2 low-profile CPU cooler at a glance:
– Low overall height of only 62 mm
– Including ultra-slim Akasa fan
– Suitable for common Intel processors
– High compatibility with Intel mainboards
– Pre-installed thermal paste for easy assembly

The Akasa AK-955A-BV2: Flat and powerful
The low-profile cooler is ideally suited for mini-ITX and HTPC cases, where flat but powerful coolers are required. Thanks to its compact design, it also achieves maximum compatibility with mainboards and memory modules. Thanks to the large cooling surface, the cooling performance of the 62 mm high Akasa fan is also impressive. This effectively removes the waste heat from the processor so that it can develop its full performance over the long term.

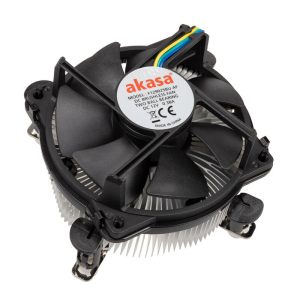

The pre-installed fan is a quiet, 95 mm model with a 4-pin PWM connector. With a maximum of 36 dB (A), 500 to 3,400 rpm and a flow rate of 69.49 m³ / h, it delivers astonishingly high performance for its size. Thanks to the PWM signal, the AK-955A-BV2 can be controlled from the mainboard so that the speed is automatically adjusted depending on the power requirement.

The mounting system with comfortable push pins ensures easy installation on the mainboard, so that the AK-955A-BV2 sits securely and stably on the processor. Even computers that are transported regularly experience a higher level of security. The mounting kit is also suitable for all modern Intel sockets.

Technical details:
– Dimensions (including fan): 95 x 62 x 95 mm (W x H x D)
– Weight (including fan): 381 g
– Material: copper, aluminum (lamellas)
– Fan:
– Dimensions: 95 x 95 x 25 mm
– Noise level: 19 to 36 dB (A)
– Speed: 500 – 3,400 rpm
– Delivery rate: 69.49 m³ / h
– Static pressure: max.3.81 mm H2O
– Connection: 4-pin PWM
Compatibility:
– Intel: 775/1150/1151/1155/1156/1200
