Watercool HEATKILLER GPU-X³ 6870
Featured products
No products found
Its unique design helps the KILLER HEAT GPU-X ³ 6870 to its sophisticated services. A cooling performance that moves on the current high-end CPU cooler, a flat design and top quality materials are the features of the new GPU-X ³ series.

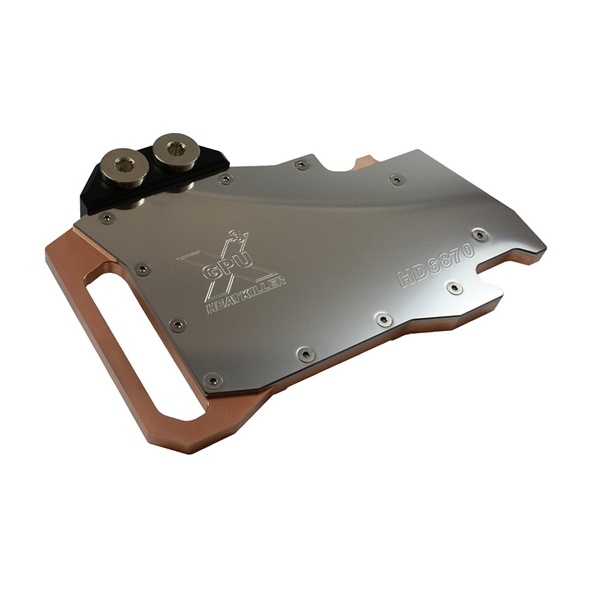

The water-carrying part is made completely of high grade copper. In addition to the graphics processor, the Rambausteine and voltage regulators are cooled. In the area of GPU a particularly fine micro structure was built. Together with a small residual soil strength optimum cooling performance is achieved. In all relevant areas of insulating spacers were inserted. These make for easy installation of the cooler.
To keep the flow resistance, and the overall weight down, all channels are running large volume. Due to the existing thread on both sides of the terminal block many opportunities of integration are given in the cooling circuit.
For use in Crossfire systems are optimized Dual and Triple-CF adapter is available.
For ease of installation, all supplied thermal pads are pre-cut.
Technical data:
Material: Electrolytic copper, stainless steel, POM
Dimensions: (LxWxH) 174.5 x 116.0 x 11.5 mm
Weight: 800g
Connection: 4x G ¼ in. (DIN ISO 228-1)
Tested pressure: 5 bar
Compatible with: ATI Radeon HD6870 (Reference Design)
Delivery:
1x KILLER HEAT GPU-X ³ 6870
1x mounting hardware / instructions
