Thermal Grizzlys Ryzen 7000 Delid-Die-Mate is a tool for removing the heatspreader (dehead, delidden) on AMD Ryzen 7000 processors. This allows the CPU to be cooled via Direct Die, for example. The CPU cooler is mounted directly on the CPU dies and the I/O die of the processor.
By omitting the heat spreader in the cooling circuit, a significantly optimized heat transfer from the dies to the CPU cooler is possible.
Thermal Grizzlys Ryzen 7000 Delid-Die-Mate is a tool for removing the heatspreader (dehead, delidden) on AMD Ryzen 7000 processors. This allows the CPU to be cooled via Direct Die, for example. The CPU cooler is mounted directly on the CPU dies and the I/O die of the processor.
By omitting the heat spreader in the cooling circuit, a significantly optimized heat transfer from the dies to the CPU...
Thermal Grizzlys Ryzen 7000 Delid-Die-Mate is a tool for removing the heatspreader (dehead, delidden) on AMD Ryzen 7000 processors. This allows the CPU to be cooled via Direct Die, for example. The CPU cooler is mounted directly on the CPU dies and the I/O die of the processor.
By omitting the heat spreader in the cooling circuit, a significantly optimized heat transfer from the dies to the CPU...
– Developed by Roman der8auer Hartung
– Made from black and red anodized aluminum

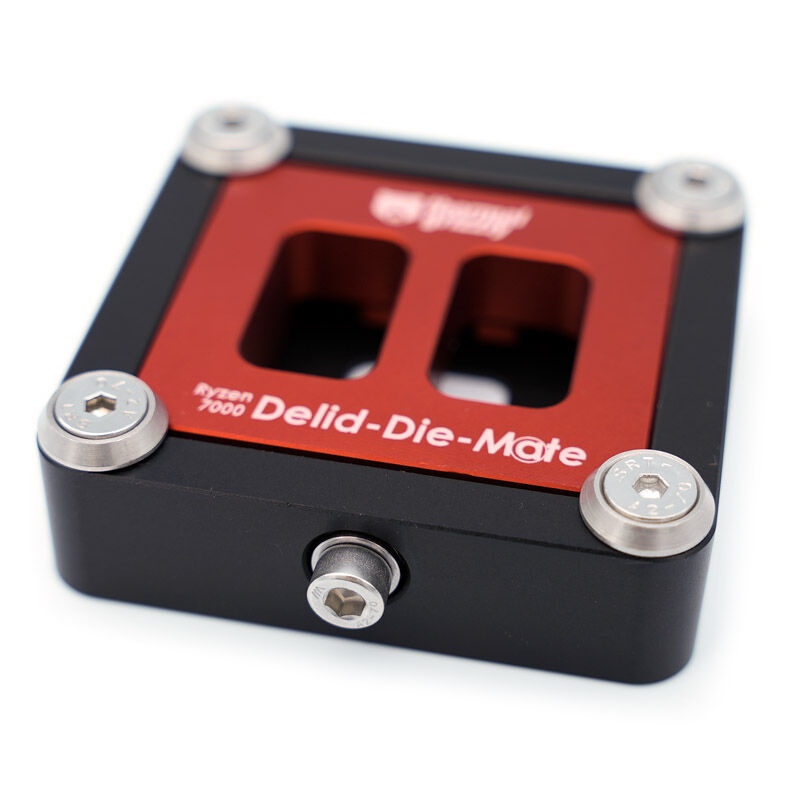

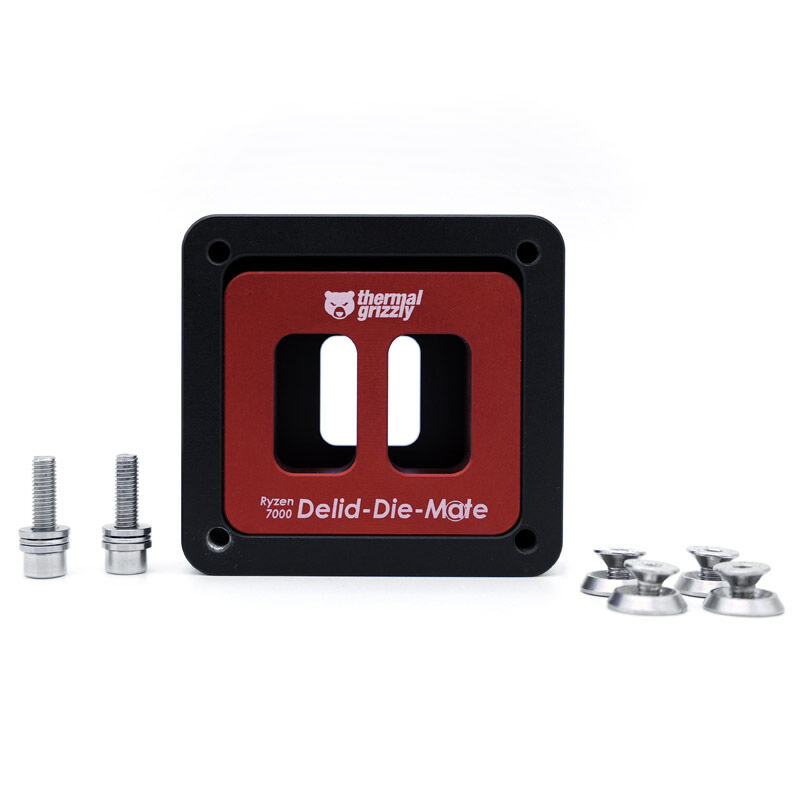

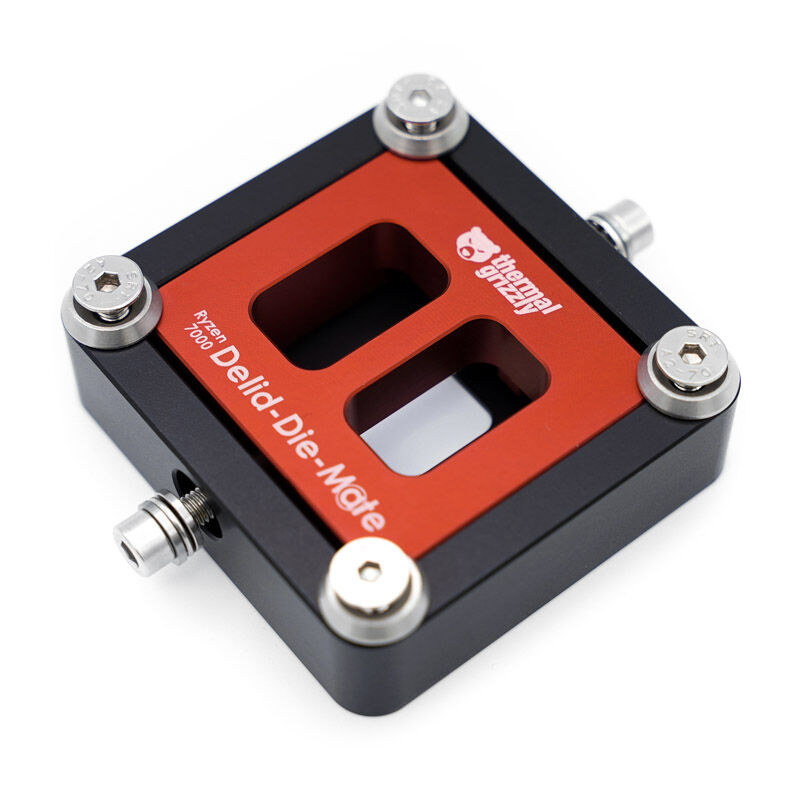

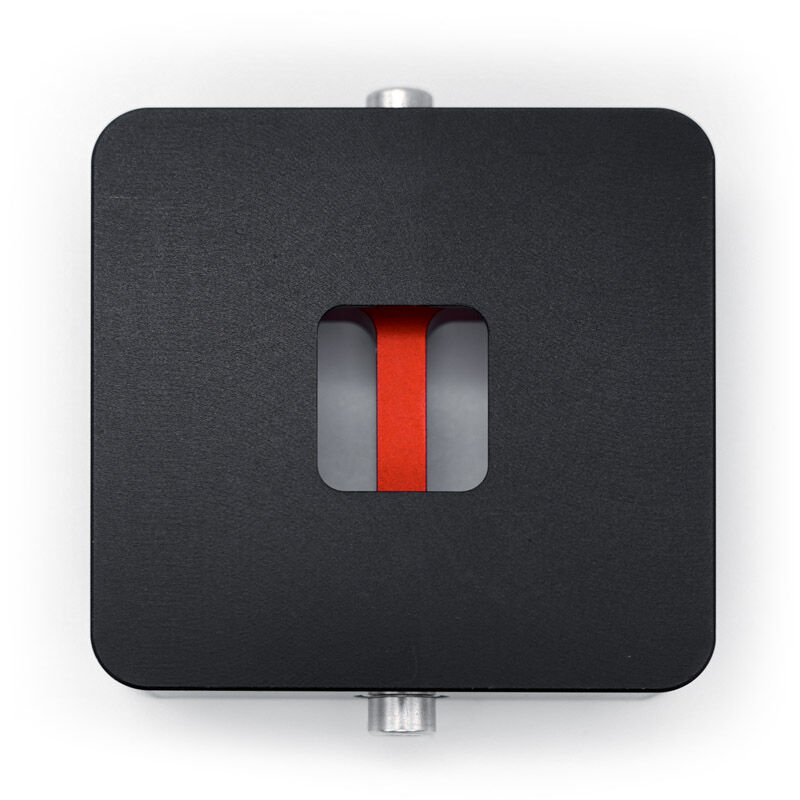

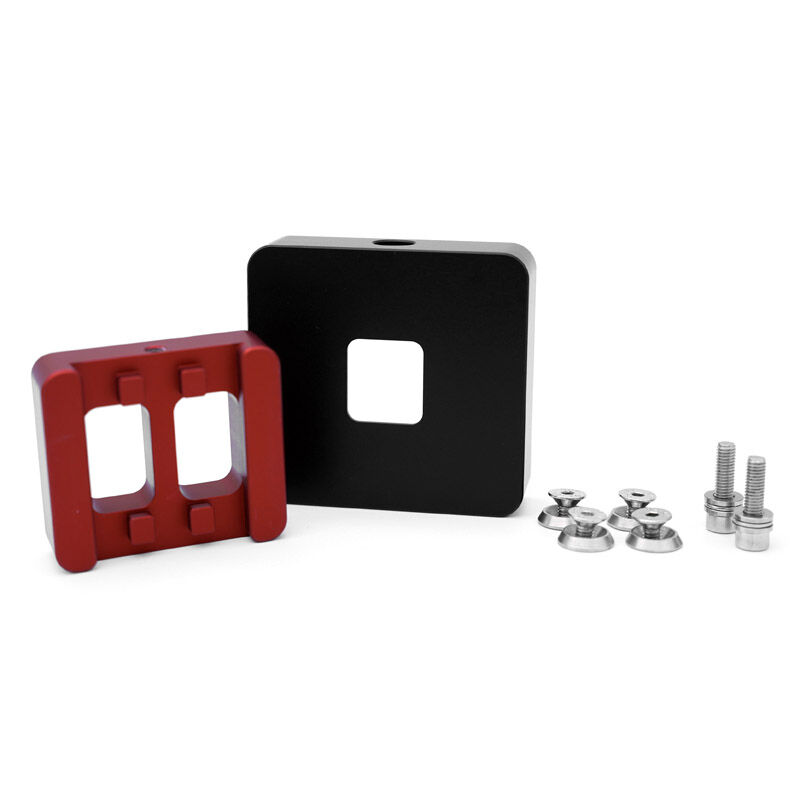

The Thermal Grizzly Ryzen 7000 Delid-Die-Mate in detail
Thermal Grizzlys Ryzen 7000 Delid-Die-Mate is a tool for removing the heatspreader (dehead, delidden) on AMD Ryzen 7000 processors. This allows the CPU to be cooled via Direct Die, for example. The CPU cooler is mounted directly on the CPU dies and the I/O die of the processor. By omitting the heat spreader in the cooling circuit, a significantly optimized heat transfer from the dies to the CPU cooler is possible.
Why Delidding & Direct Die Method on Ryzen 7000?
During delidding, or heading, the processors heat spreader is removed. For unsoldered processors, delidden is typically used to replace the thermal interface (TIM) between the CPU die and heatspreader with high quality thermal paste or liquid metal before the heatspreader is reassembled. However, since the Ryzen 7000 processors are soldered, this is not an option as removing the indium solder would create too large a gap between the IHS and CPU dies.
Therefore, the Ryzen 7000 CPUs are primarily delidded for a possible installation of the CPU cooler directly on the CPU dies. In the case of Ryzen 7000 CPUs, that would be the I/O die (IOD) and one or two CPU dies (CCDs), so-called chiplets. Experience has shown that by leaving out the heatps reader and mounting the CPU cooler directly on the die, the temperatures can be reduced by 10-20 degreesC if liquid metal such as Conductonaut is used as the TIM. Corresponding tests were carried out by the content creators and tech YouTubers Roman der8auer Hartung, a professional overclocker and engineer, and Jason JayzTwoCents Langevin.
These enormous temperature improvements through Direct Die are also due to the heat spreader of the Ryzen 7000 processors. The heat spreaders for the AM5 platform introduced with Ryzen 7000 are thicker than older heat spreaders such as AM4. This was done to make older AM4 compatible CPU coolers compatible with the AM5 platform as well. In addition, the surface of the Ryzen 7000 heat spreader is significantly smaller at around 910 mm² compared to AM4 at 1,300 mm².
| General Specifications | |
|---|---|
| Dimensions (L x W x H) | 74 x 70.1 x 19.8 mm |
| Material | Anodized Aluminum |
| Color | Black, Red |
