Swiftech Apogee HD 4-Port Waterblock for Intel and AMD - Black

Among the most obvious benefits of harnessing the power of water-cooling is the ability to daisy-chain multiple devices for the CPU, Graphics, Chipset, and even memory. Up until now, the most common way to do this has been to connect the waterblocks in series. In this type of configuration however, the pressure drop generated by each one of the devices cumulates, which substantially reduces the overall flow rate in the loop; and as the flow rate diminishes, so does the thermal performance of the system. Many extreme users have been resorting to adding a second pump to their system to mitigate this effect.

• Innovative features, with the introduction of the multi-port connectivity:   two more outlet ports have been added for dramatic flow rate improvements in multiple waterblock configurations and when used with the new MCRx20 Drive Rev3 radiators that now also include two additional inlet ports (3 total); read more about Flow Parallelization in the section below including examples and in-depth explanations.
• Improved thermal performance out of the box with the inclusion of high performance PK1 thermal compound
• Cosmetic appeal: the Apogee HD is now available in two colors, Classic black or Fashionable white to match high-end case offerings from NZXT™, Silverstone, Thermaltake and many others.
• Reduced cost of ownership.

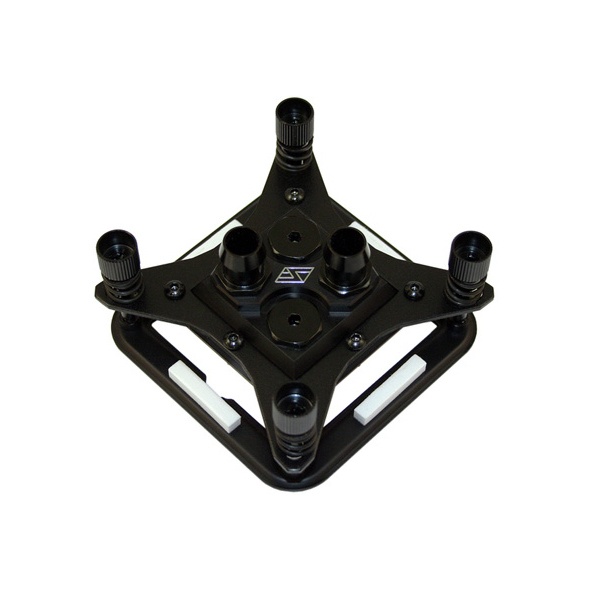

Swiftechs retention mechanism is widely recognized as the simplest and safest to use. It has been further enhanced with added attention to details and quality, such as hollowed thumb screws, and improved back-plate fabrication.

• Adjustable screws provide compatibility with all Intel Desktop Processors:
  • Socket 1155, 1156, and 1366 (back-plate included)
  • Socket 775 (not included, mailed free of charge upon request)
  • A socket 2011 spring-screw kit will be available shortly.

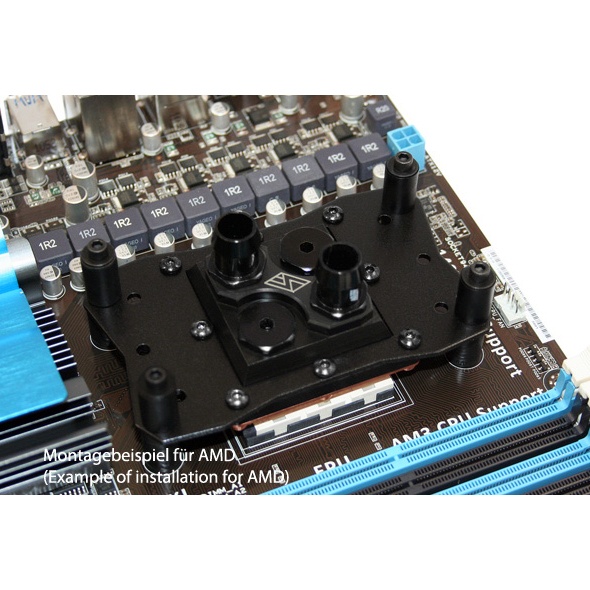

• An elegant Multi-mount hold-down plate provides compatibility with all AMD Desktop processors:  sockets 754, 939, 940, AM2, AM3, 770, F, FM1, as well as legacy Intel Server socket 771 processors. The kit is not included with the Apogee HD, but supplied for free (shipping not included), upon request.

Available in Black or White

The Classic All Black will give any system the high-tech look you are looking for, or the fashionable white combined with the new MCW82, Bridges, and MCP35x pump top (also available in white) will allow you to build elegant and distinctive systems.

Shipped with High Performance Thermal Compound

The Apogee™ HD ships with PK1 thermal compound highly rated by enthusiast users and reviewers (and confirmed by in-house testing) for its excellent thermal performance and ease of application.

There is another strategy to connect multiple water blocks: the parallel configuration. It is very advantageous because in this type of setup, when two devices are parallelized, the flow is divided in half, but the pressure drop is divided by a factor of four, thus alleviating the need for a second pump.  However, it necessitates splitting the main line using Y connectors, and it is seldom used because connectivity is awkward and cumbersome.

Enter the Multi-port Apogee™ HD waterblock, and MCR Drive Rev3 Radiators.  With two additional outlet ports for the Apogee™ HD and two additional inlet ports for the MCR Drive Rev3 radiator, it is now possible to conveniently setup a high flow multi-block loop without using splitters.  We will show below that while it always remains preferable to keep the CPU waterblock in series with the main line whenever possible, all other electronic devices in the loop are perfect candidates for parallelization. The resulting configuration is a mixed serial + parallel setup, i.e. the best of both worlds!
