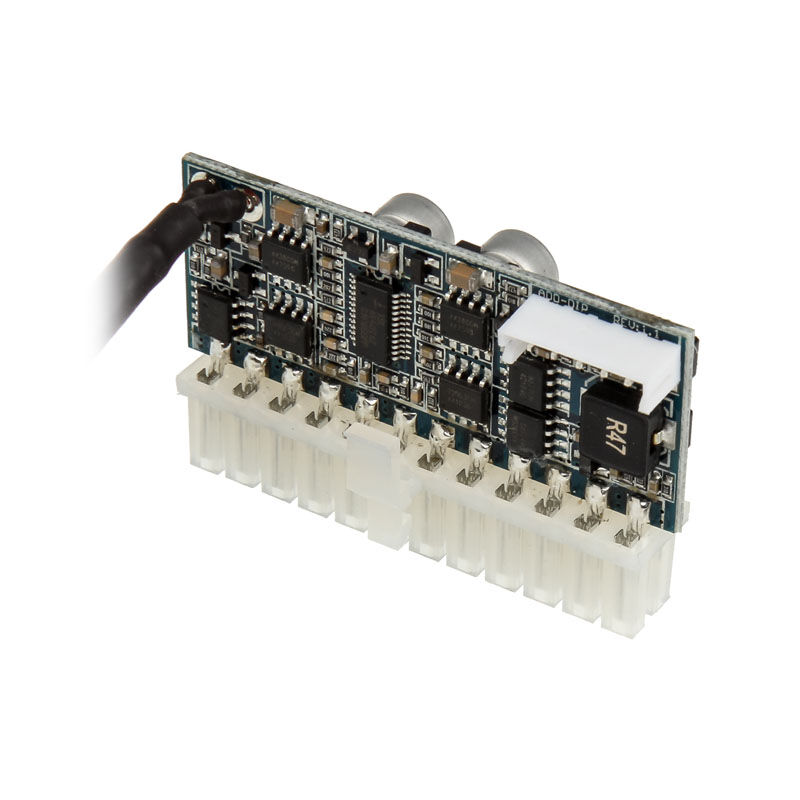

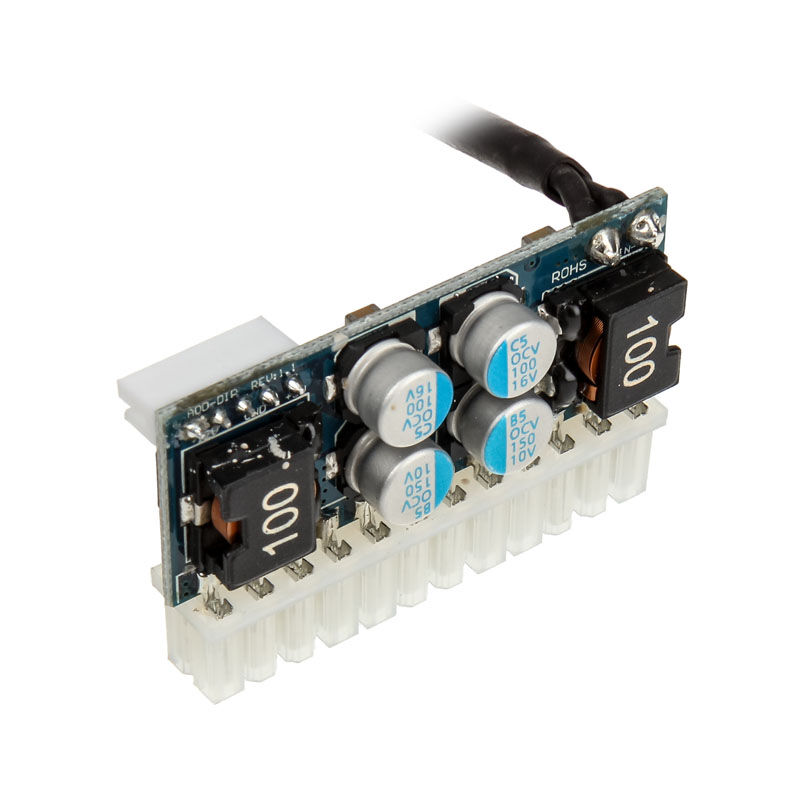

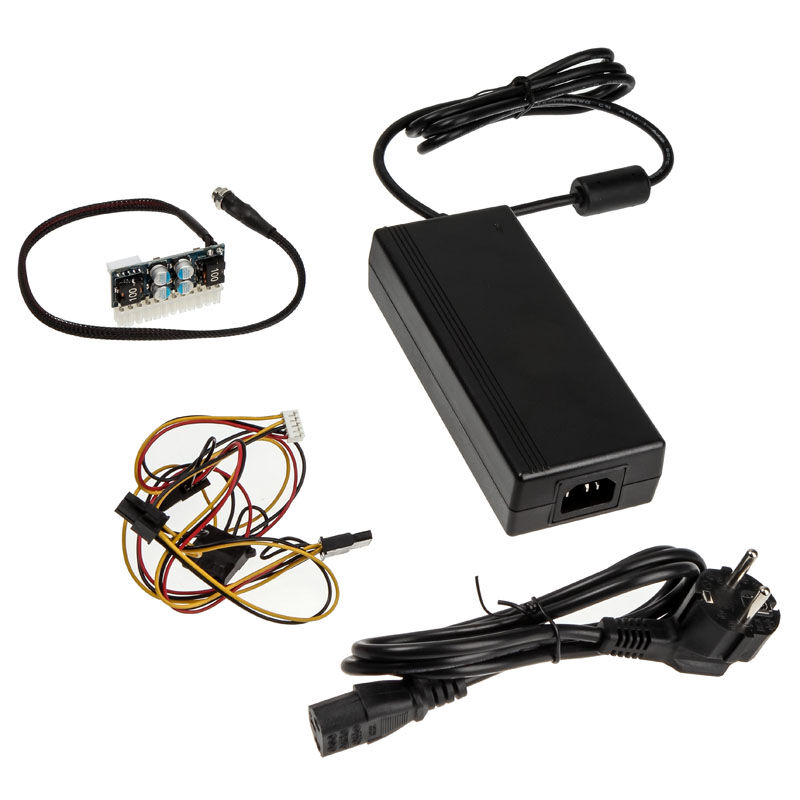

Just like the offer you highly efficient, silent and tiny 120-watt Nano PSU. It is a set that (as we know it about laptops) and an internal DC-DC converter board consists of an external AC-DC adapter, which is plugged directly into the 24-pin connector on the mainboard. Both components are connected by means of a hollow plug and corresponding socket.
The socket is on the internal converter board on an approximately 40 cm long cable which can be secured by knurled nut on the rear side where the cable is plugged from the external adapter. The ST-NANO120 HTPC PSU is ideal for Silent systems based on Streacoms innovative passive enclosures suitable, but can also be used in other HTPC configurations, as long as the maximum overall performance of 120 watts is not exceeded.
Technical Details:
Type: internal DC-DC converter board and external AC-DC adapter (power supply)
Compatibility: (Streacom-) passive housing
Dimensions (internal board): 54 x 33 x 18 mm (W x H x D)
Dimensions (external adapter): 169 x 42 x 38 mm (W x H x D)
Input Voltage (board): 12 V DC (12.5 A)
Input voltage (adapter): 110 – 240 V AC
max. Total output: 120 W
+ 3.3V: 5.5A
+ 5V: 5.5 A
+ 12V: 66W / 5.5A
-12V: 2.4 W / 0.2 A
+ 5Vsb: 6 W / 1.2A

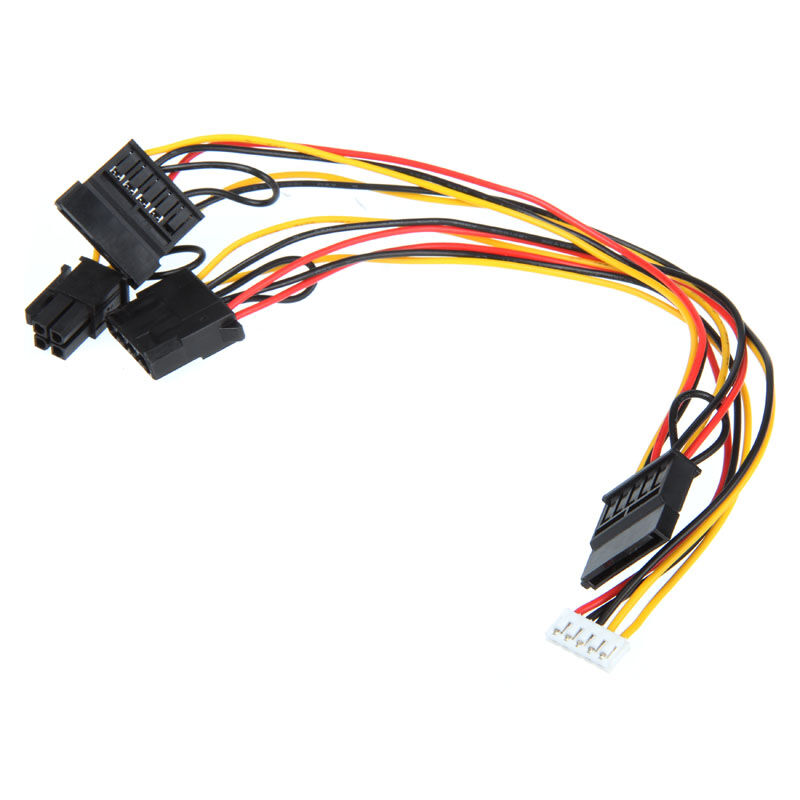

Connectors (board):
1x 24-pin ATX
1x 4-pin ATX
2x SATA
1x 4-pin Molex
1x input barrel connector socket (via mother fixable)
Connections (adapter):
Input 1x Power cord (C6-plug)
1x Output barrel connector (for motherboard)
Protection: Overload protection (OPP), Short Circuit Protection (SCP)
Original price was: £72.96£60.80.£54.96£45.80Current price is: £54.96£45.80. Inc VatEx Vat
