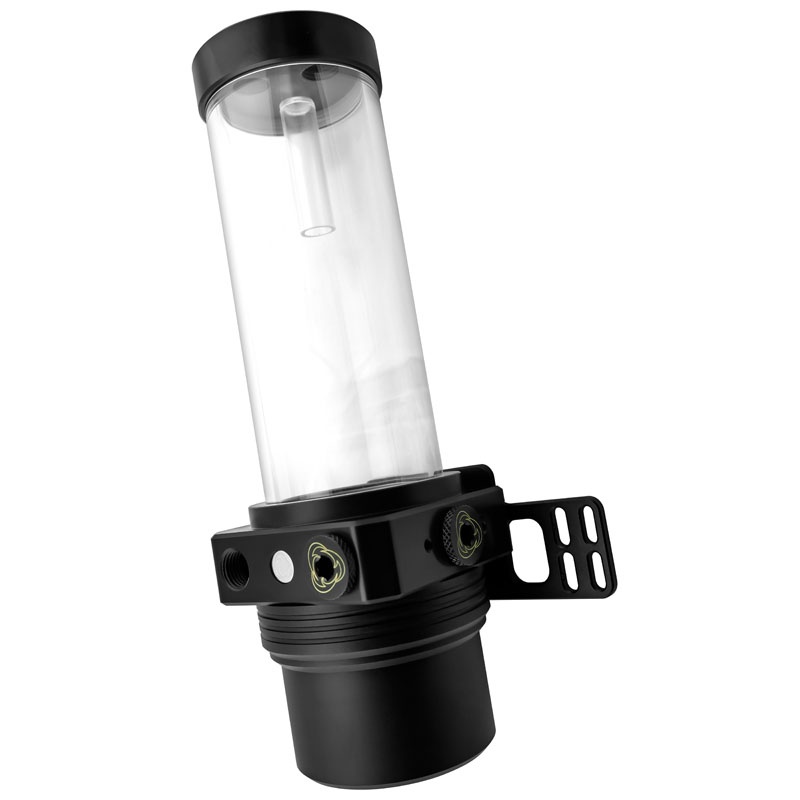

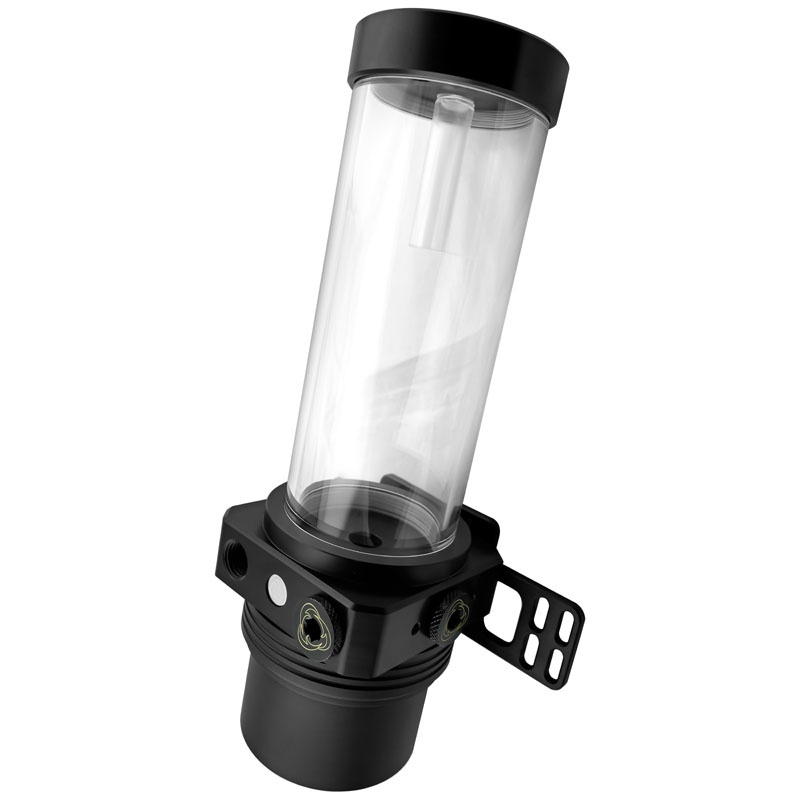

Singularity Computers Protium 150 D5 / Reservoir Combo, with D5 pump - acetal

The reservoir with a diameter of 60 millimeters is made of transparent acrylic glass, the bottom and the lid are made of black acetal. A total of seven G1 / 4 ports provide extensive options for integration into a water cycle. In addition, the in-house D5 pump from the Protium series including the matching pump housing is included.

The Singularity Computers Protium D5 pump reservoir combo 150 mm at a glance:
– Powerful D5 pump from the Protium series
– Expansion tank from Singularity Computers
– 150 mm tube made of transparent acrylic glass (Ø60 mm)
– Lid and base attachment made of black acetal
– Two sturdy aluminum circlips
– A total of seven G1 / 4-inch ports
– Flexible mounting options
– Customizable: interchangeable parts and optional accessories

The Singularity Computers Protium D5 reservoir combo in detail
The Singularity Computers D5 pump is a powerful pump for custom water cooling. With a flow of 1500 liters per hour and 3.9 meters head, it delivers more than enough power for high-flow systems and several cooling blocks. The electronically commutated ball motor ensures extremely smooth running and a long service life.

The peculiarity of the pump is the PWM input, with which the speed of the motor can be easily controlled via the mainboard or a suitable fan or pump controller. The power supply is via a 4-pin Molex connector, which enables operation without PWM control at 100%.
Protium series expansion tank
With the Protium Reservoir, Singularity Computers offers a high-quality expansion tank with a transparent tube tank made of acrylic glass and a black lid and base made of acetal. The tube has a diameter of 60 millimeters, the entire expansion tank including attachments, pump housing and pump is 240 mm high.

This set has a total of seven G1 / 4-inch ports, four of which are in the pump attachment and three in the lid attachment. The connections are placed in such a way that two 16-millimeter hard-tube connections fit easily next to each other. An enclosed riser tube provides additional options when implementing a circuit, since a port in the lid can also serve as an outlet.

Circlips made of aluminum ensure a stable hold of acetal attachments and pumps. Thanks to the clever design, the attachments can be positioned in all directions. The scope of delivery of the Protium D5 pump reservoir combo includes five sealing plugs, a riser tube made of acrylic glass, sealing rings made of silicone, a versatile mounting plate and the chic pump housing with logo.

The modular structure of the Protium Reservoir allows a high degree of customization, because almost all individual parts can be exchanged for differently colored versions.

Technical details:
Dimensions:
– with mounting plate: 135 x 240 x 75 mm (W x H x D)
– without mounting plate: 75 x 240 x 75 mm (W x H x D)
– Pump:
– Material: stainless steel, PPS-GF40, EPDM (O-rings), aluminum oxide, hard coal
– Head (12 V): 3.9 m
– Flow: 1500 L / h
– PWM control range: 20 – 100%
– Operating voltage: 12 V.
– Power consumption: 23 watts
– Operating temperature: max. 60 degrees C
– Connections:
– 1x 4-pin Molex (power supply)
– 1x 4-pin PWM
– Surge tank:
– Tube height: 150 mm
– Diameter: 60 mm
– Material: acetal (lid, bottom), acrylic glass (reservoir), aluminum (mounting rings)
– Thread: 7x G1 / 4-inch
– Scope of delivery:
– 1x Protium D5 PWM pump
– 1x Protium expansion tank (150 mm)
– 2x aluminum retaining rings
– 1x D5 pump housing with circlip
– 1x quad-port attachment (pump attachment)
– 1x triple-port attachment (lid)
– 1x universal 120/140 mm mounting plate
– 1x 16mm internal acrylic flow tube
– 5x G1 / 4 inch plugs
– 3x silicone O-rings (2x AGB, 1x pump)
– 2x Allen screw (8 mm)
