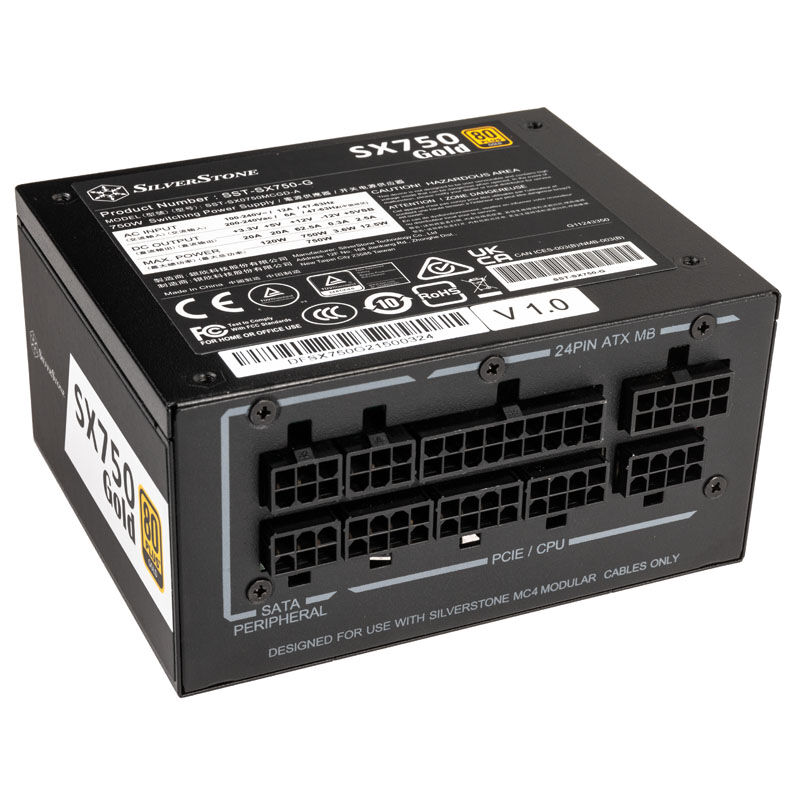

Silverstone SST-SX750-G 80 PLUS Gold, modular - 750 Watt

– 750 watts rated power for high-end components
– Quiet 92mm fan (FDB)
– Efficiency certified with 80 PLUS Gold
– Fully modular cable management with black ribbon cables
– Four 6+2-pin PCIe connectors for graphics cards

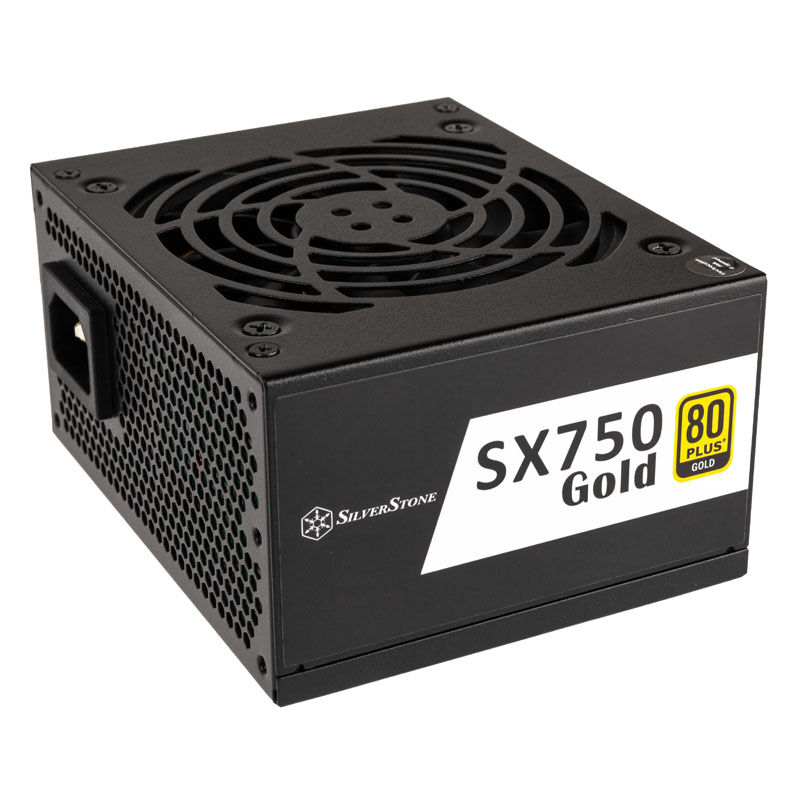

High-performance SFX power supply with 80 PLUS Gold efficiency
The SFX power supply Silverstone SST-SX750-G with its 750 watts total output power is suitable for PC components from the high-end segment. The power supply is extremely efficient, which also results from the use of high-quality electrical components. The 80 PLUS Gold certified power supply achieves an efficiency of up to 92% at a load of 50%.

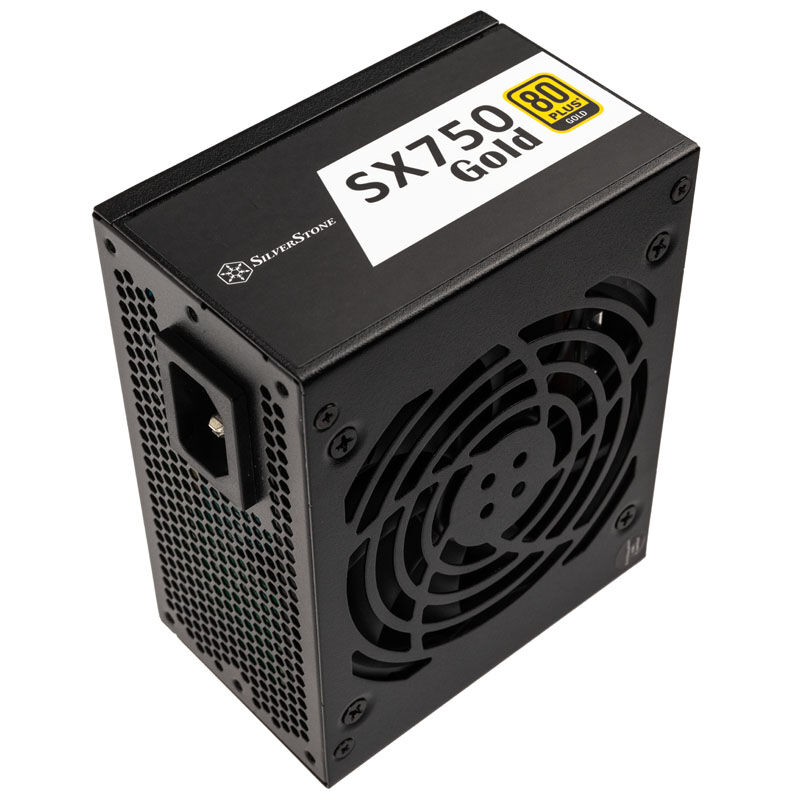

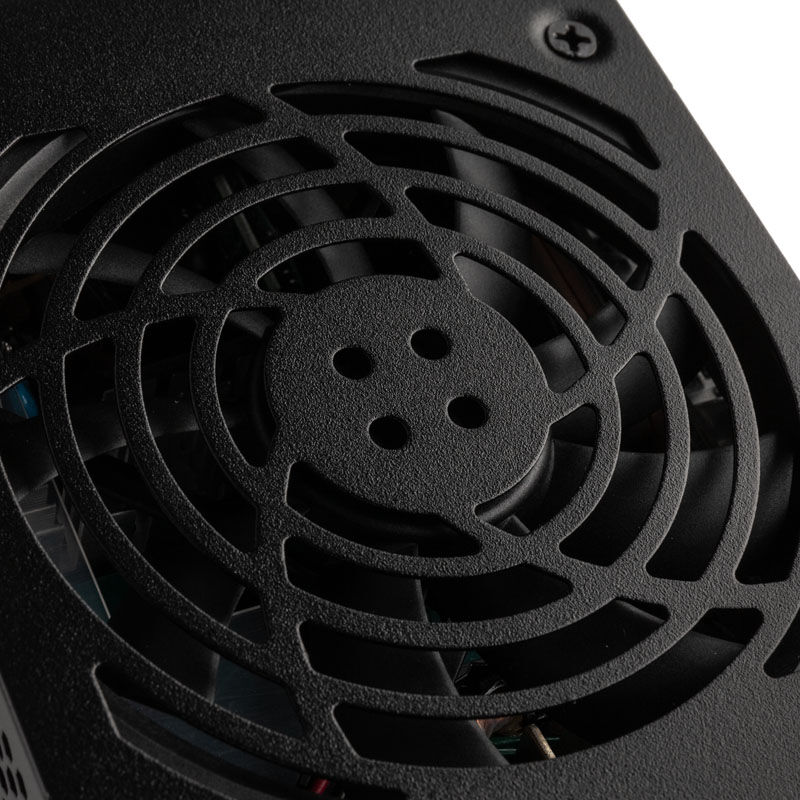

The power supply impresses with its particularly compact SFX form factor. This makes the SST-SX750-G suitable for space-saving mini enclosures. The 92 mm hybrid fan works with only 18 dB(A) of the fans whisper-quiet, which is especially appreciated by lovers of silent systems. These features make the power supply interesting for many areas of application: whether for office use, for multimedia applications, gaming, for a workstation or even a home server.

High level of connectivity
The SST-SX750-G also convinces with extensive connectivity despite a compact form factor. In addition to a 24-pin connector, an 8-pin connector and two 4+4-pin connectors for the motherboard, there are also four 6+2-pin PCIe connectors for graphics cards as well as eight SATA and three 4-pin Molex connectors as well as a floppy connector for drives and other components.

Specifications:
– Dimensions: 125 x 63.5 x 100mm (W x H x D)
– Weight: 1.49 kg
– Color: Black
– Fan: 92 mm (automatic control, min. 18 dB(A))
– Efficiency: ~90/92/89%@20/50/100% load at 230V, 80 PLUS Gold Certificate
– Active PFC (> 0.9)
– Form factor: SFX
– Power: 750W
– +3.3V: 20A
– +5V: 20A
– +3.3V & +5V: 120W
– +12V: 750W / 62.5A
– -12V: 0.3A
– +5Vsb: 2.5A

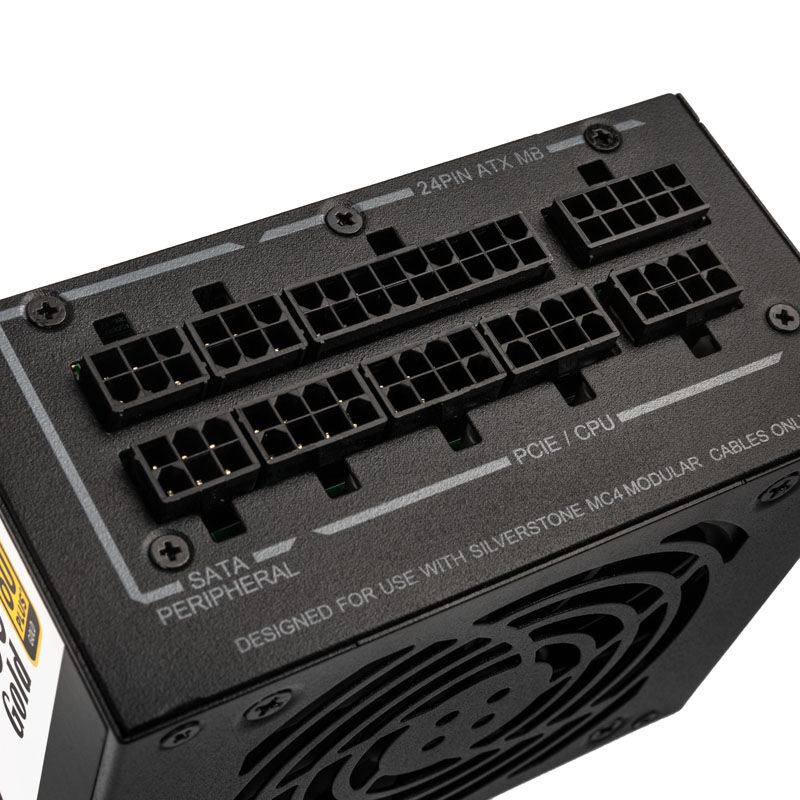

Connectors (removable):
– 1x 20+4 pin
– 2x 4+4 pin ATX12V / EPS
– 1x 8-pin ATX12V / EPS
– 4x 6+2 pin PCIe
– 8x SATA
– 3x 4-pin Molex
– 1x floppy
– Protection: OVP, OPP, OCP, OTP, UVP, SCP
– Average operating time: 100,000 hours

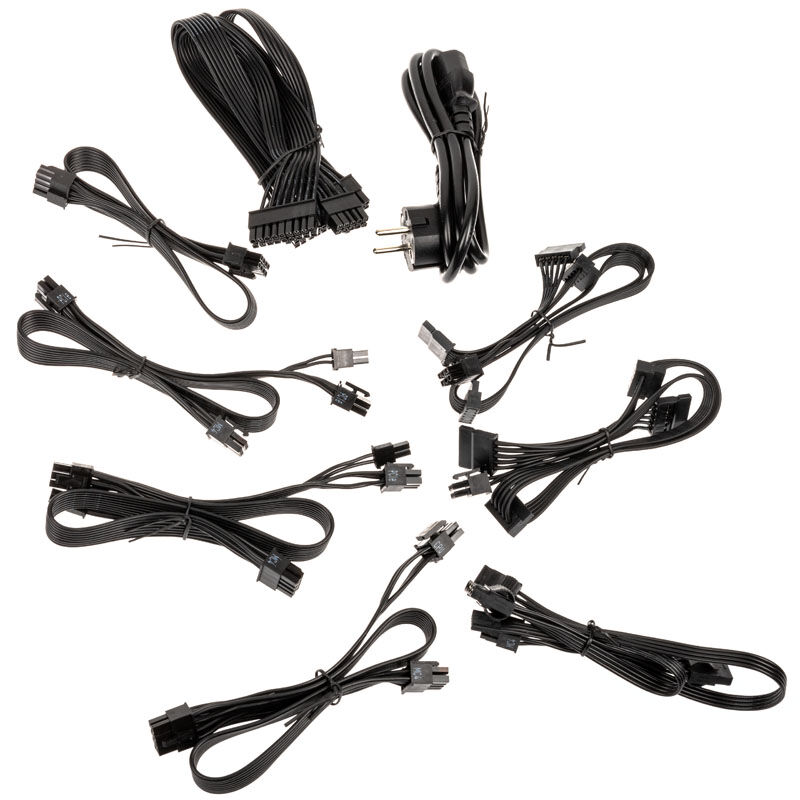

Scope of delivery:
– 1x SST-SX750G power supply
– 1x 20+4-pin cable (300mm)
– 1x 4+4-pin cable (400mm)
– 1x 8-pin / 4+4-pin cable (400 + 150 mm)
– 2x PCIe 6+2-pin cable (400 + 150 mm)
– 2x SATA cables (300 + 200 + 100 + 100mm)
