The SST-SDP12 from Silverstone enables the operation of two M.2 SATA and one M.2 NVMe SSD on two SATA ports and a mini-SAS (U.2) port of a motherboard.
The SST-SDP12 from Silverstone enables the operation of two M.2 SATA and one M.2 NVMe SSD on two SATA ports and a mini-SAS (U.2) port of a motherboard.
The SST-SDP12 from Silverstone enables the operation of two M.2 SATA and one M.2 NVMe SSD on two SATA ports and a mini-SAS (U.2) port of a motherboard.

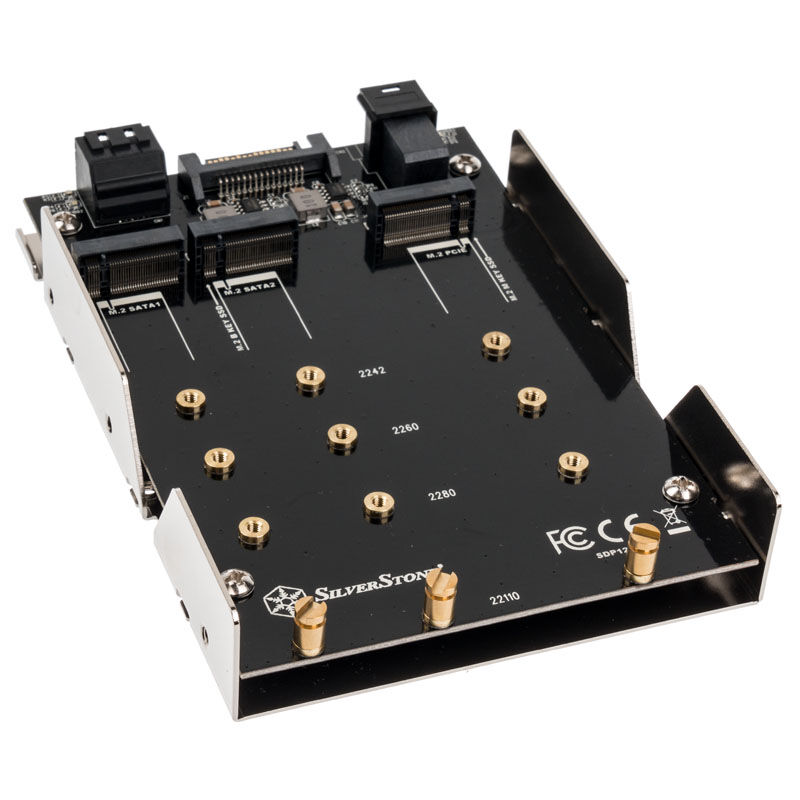

The three M.2 slots allow the installation of up to 110 millimeter long M.2 SSDs. Thus, the adapter is compatible with almost all common M.2 SSD sizes. The 22110, 2280, 2260 or 2242 SSDs are plugged into the slots and screwed.

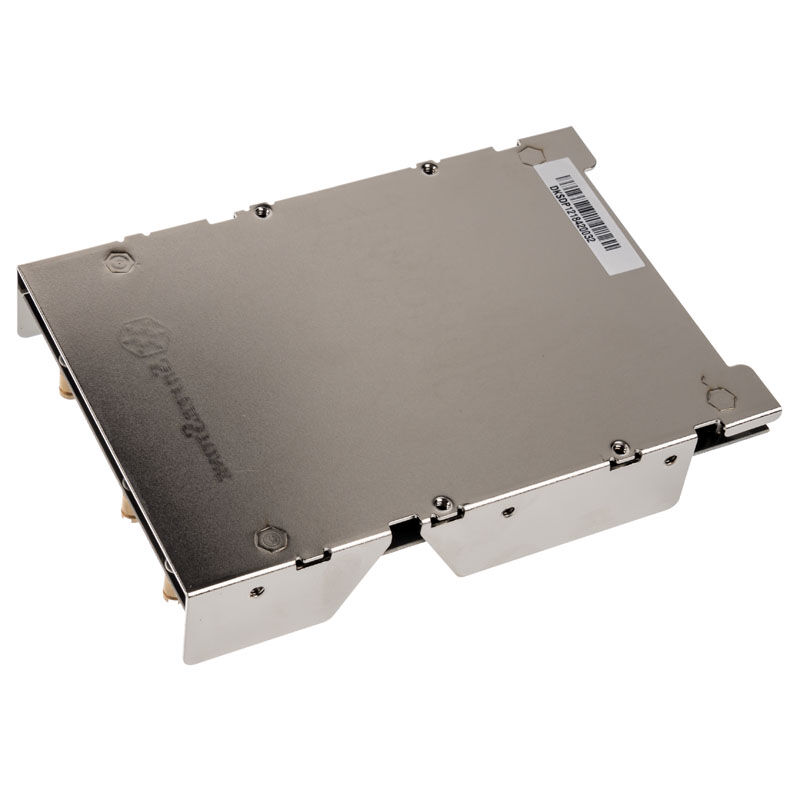

A 15-pin SATA socket is used to connect a SATA power cable, which is used to power the adapter and the built-in SSDs. The card uses the 3.5-inch form factor and can easily be accommodated in a hard drive cage or at a mounting location for 3.5 data carriers.
Technical details:
– Dimensions: 101.6 x 25.4 x 146 mm (W x H x D)
– Weight: 235.4 g
– Color: silver, black
SSD Support:
– 2x M.2 (B-Key, SATA (AHCI), sizes 22110/2280/2260/2242)
– 1x M.2 (M-Key, PCIe (NVMe), sizes 22110/2280/2260/2242)

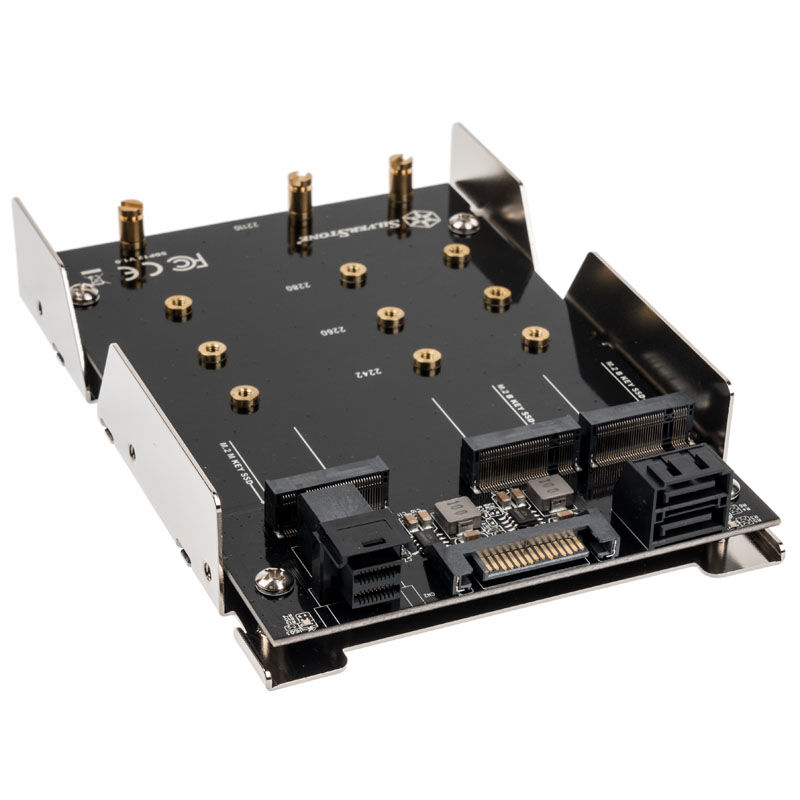

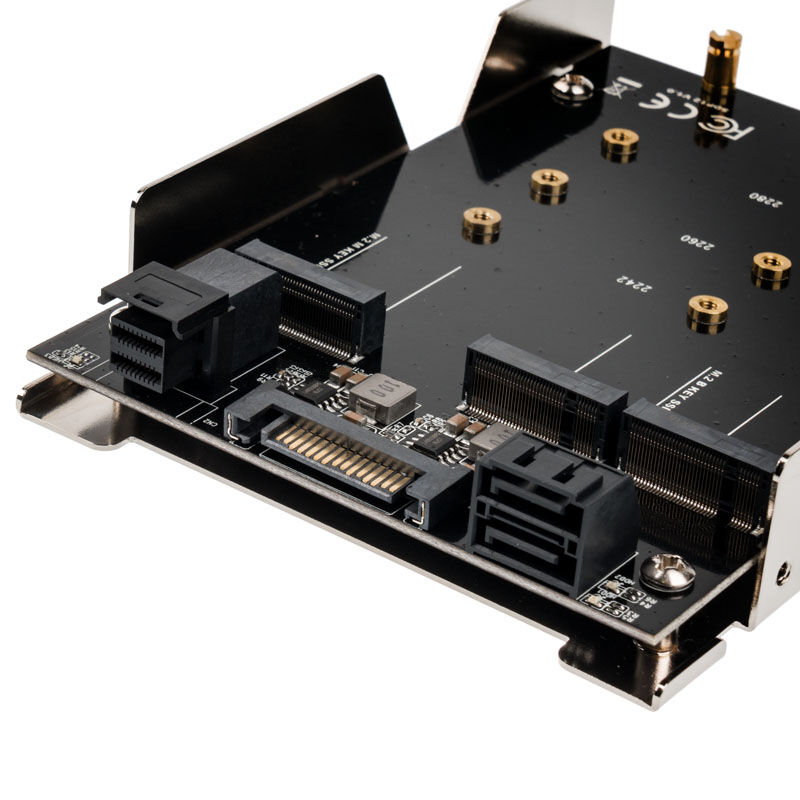

Connections:
– 2x 7-pin SATA 6Gb / s
– 1x 36-pin SFF-8643 Mini-SAS (U.2)
– 1x 15-pin SATA power

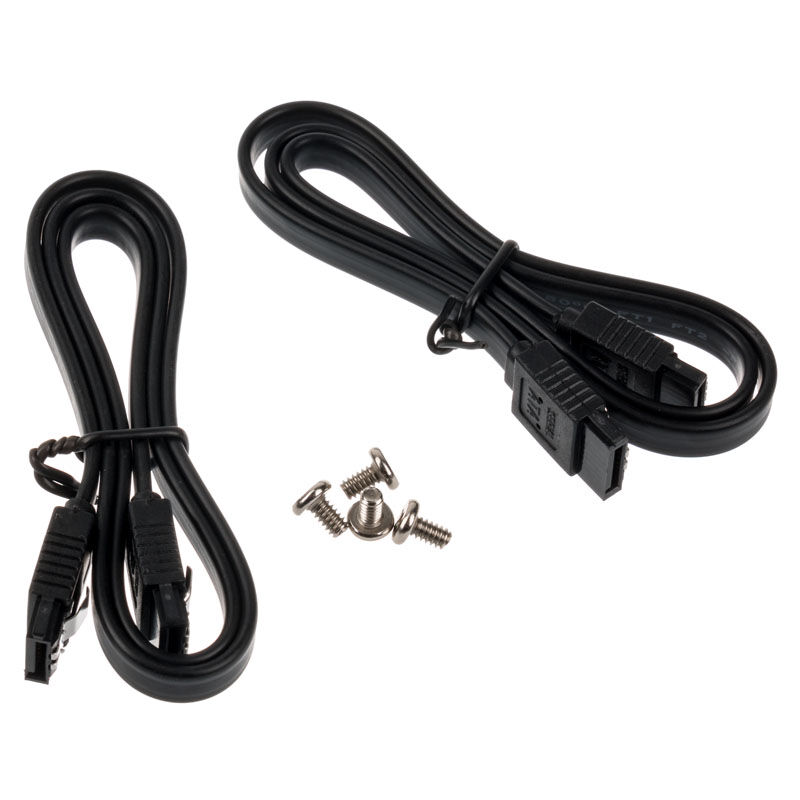

Equipment:
– 1x mounting material
– 2x SATA cable
£48.34£40.28 Inc VatEx Vat
