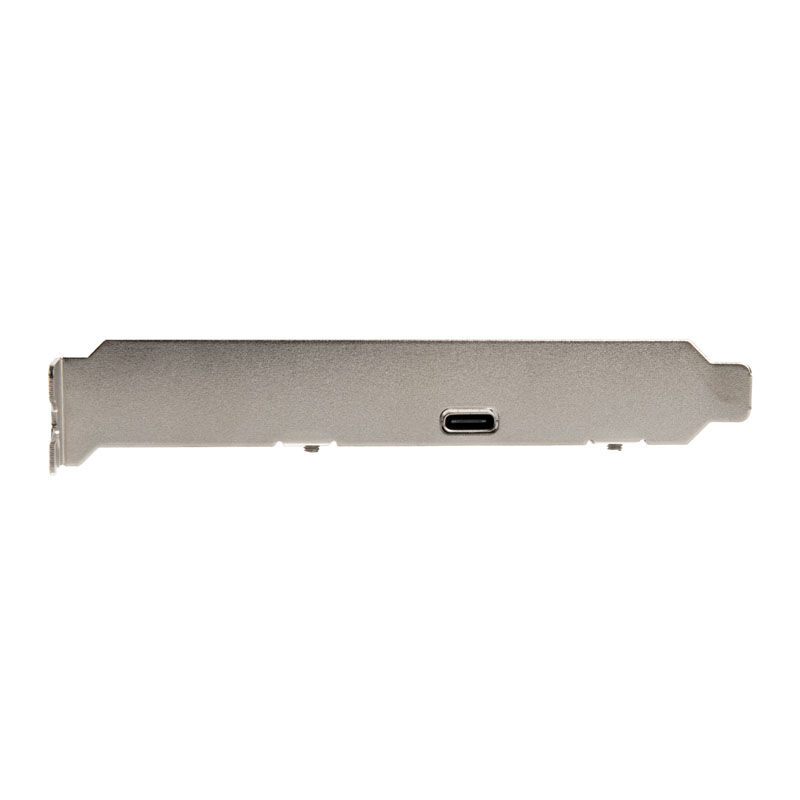

The Silverstone ECU06 is a USB Type-C 3.2 interface card with an external USB-C connector.
The Silverstone ECU06 is a USB Type-C 3.2 interface card with an external USB-C connector.
The Silverstone ECU06 is a USB Type-C 3.2 interface card with an external USB-C connector.
Installed in a PCIe 3.0 x4 slot, the card achieves a maximum bandwidth of 20 Gbit / s. The card is also downward compatible with USB 3.1 (10 Gbit / s), USB 3.0 (5 Gbit / s), USB 2.0 (480 Mbit / s) and USB 1.1 (12 Mbit / s).
The card supports the USB Attached SCSI Protocol (USASP) and Multi-IN. A flat slot cover is also included in the scope of delivery so that the card can also be installed in flat cases. The card also supports overcurrent detection. Thanks to XHCI (eXtensible Host Controller Interface), the card can also be installed without a driver if supported by the operating system.
Technical details:
– Dimensions: 132 x 105 x 21 mm (L x W x H)
– Weight: 47 g
– Form factor: Low-Profile PCI-Express Gen 3 x4 (32 GT / s)
– Slot: PCIe 3.0 x4
– Connections:
– 1x USB-Type-C 3.2 Gen 2×2 (max. 20 Gbit / s)
– USB port: USB Type-C
– Power supply: PCI Express bus power supply
– USB 3.2 controller: ASMedia ASM3242
– Compatibility: at least Windows 8, Windows Server 2016-2019, Mac10.X, Linux OS
– Security standard: OCP
– Scope of delivery:

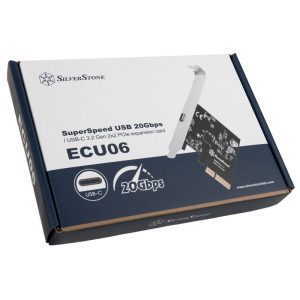

-1x Silverstone ECU06
– 1x slot cover
