Features:
– 140mm fan in black
– 15.5 mm slim fan, ideal for PC systems with limited space
– Shark Force fan blade design for quieter operation and higher performance
– Hydraulic bearings for high running smoothness
– Modular cable design ensures easy connection and cable management
– Max. speed of 1,700 RPM
– High static pressure of 2 mmH2O

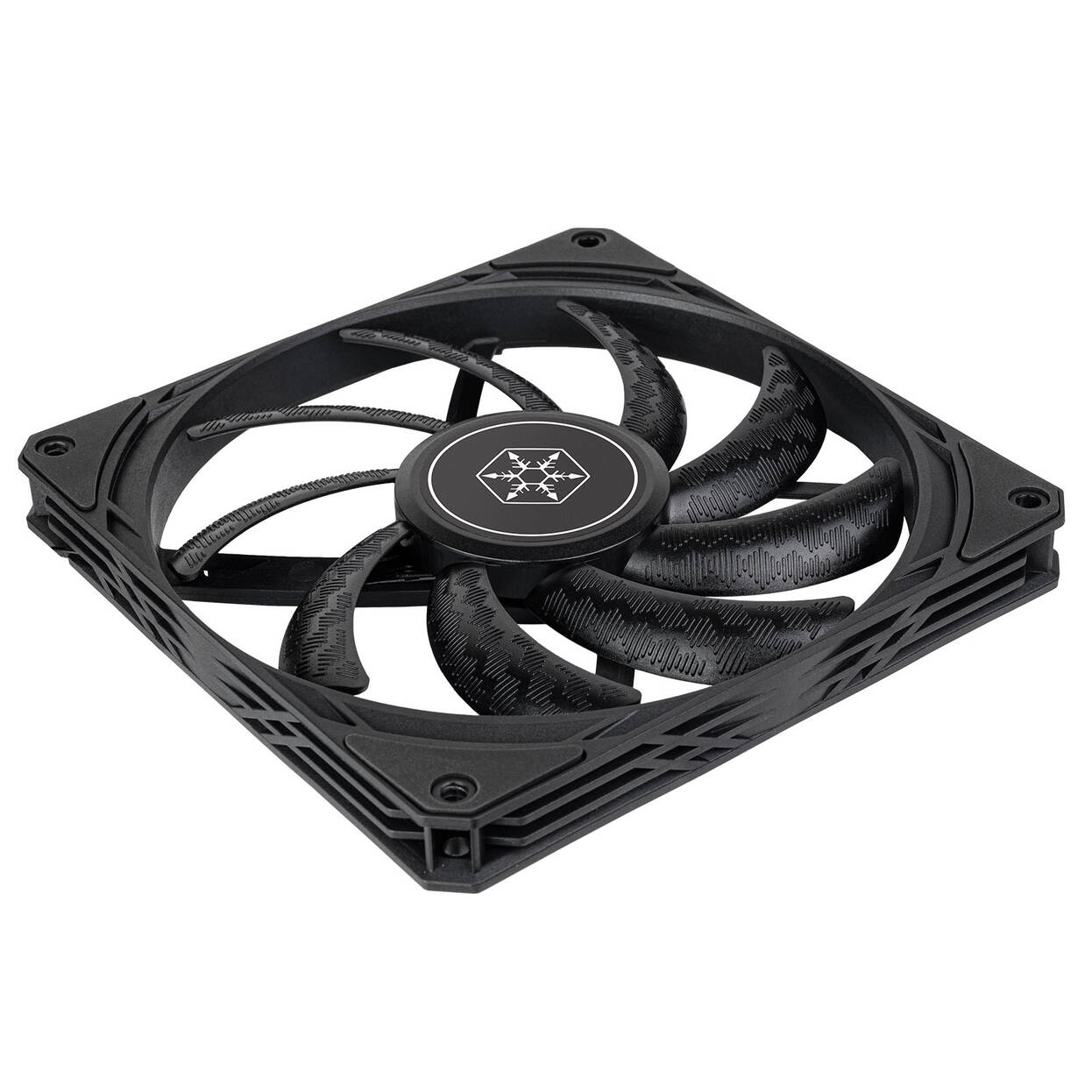

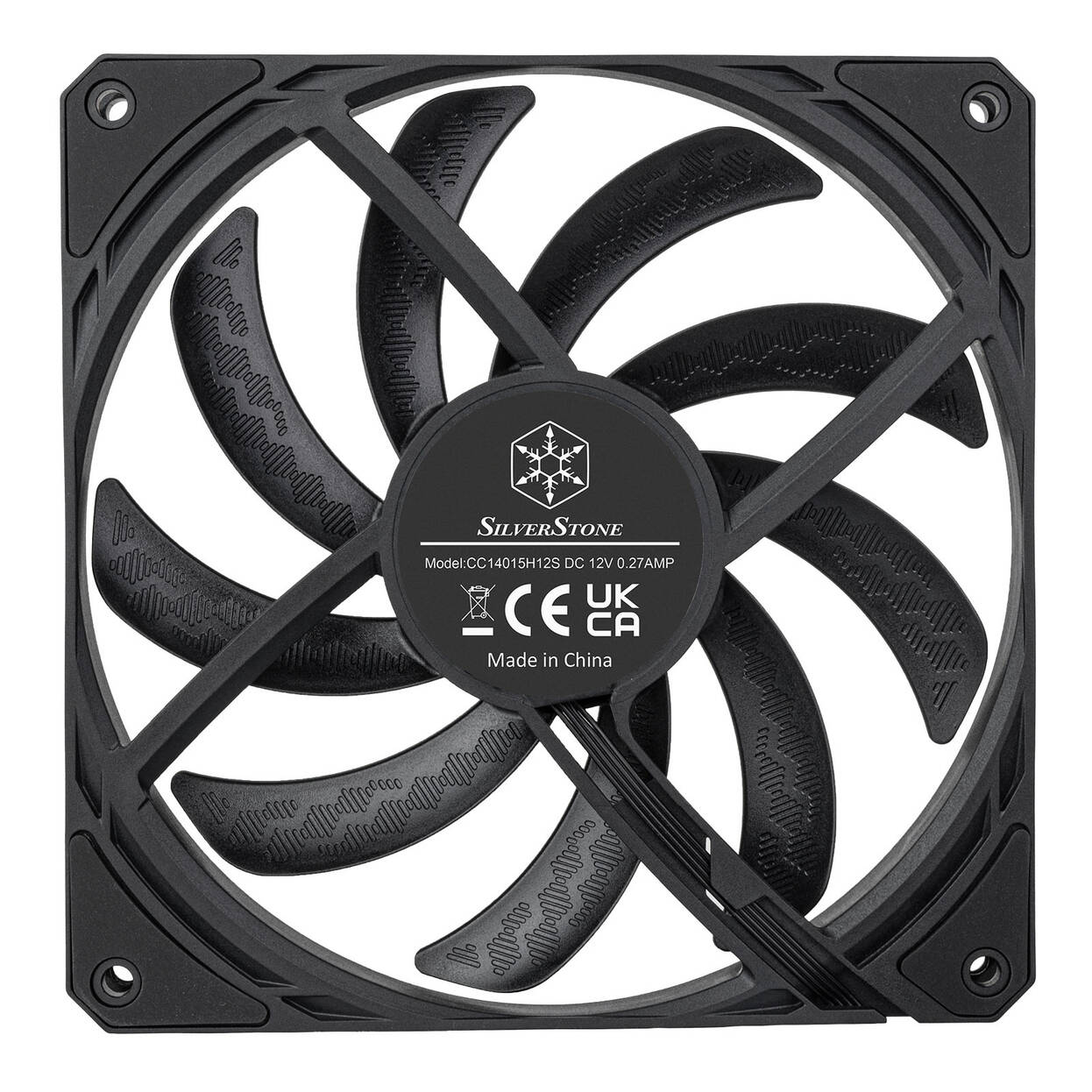

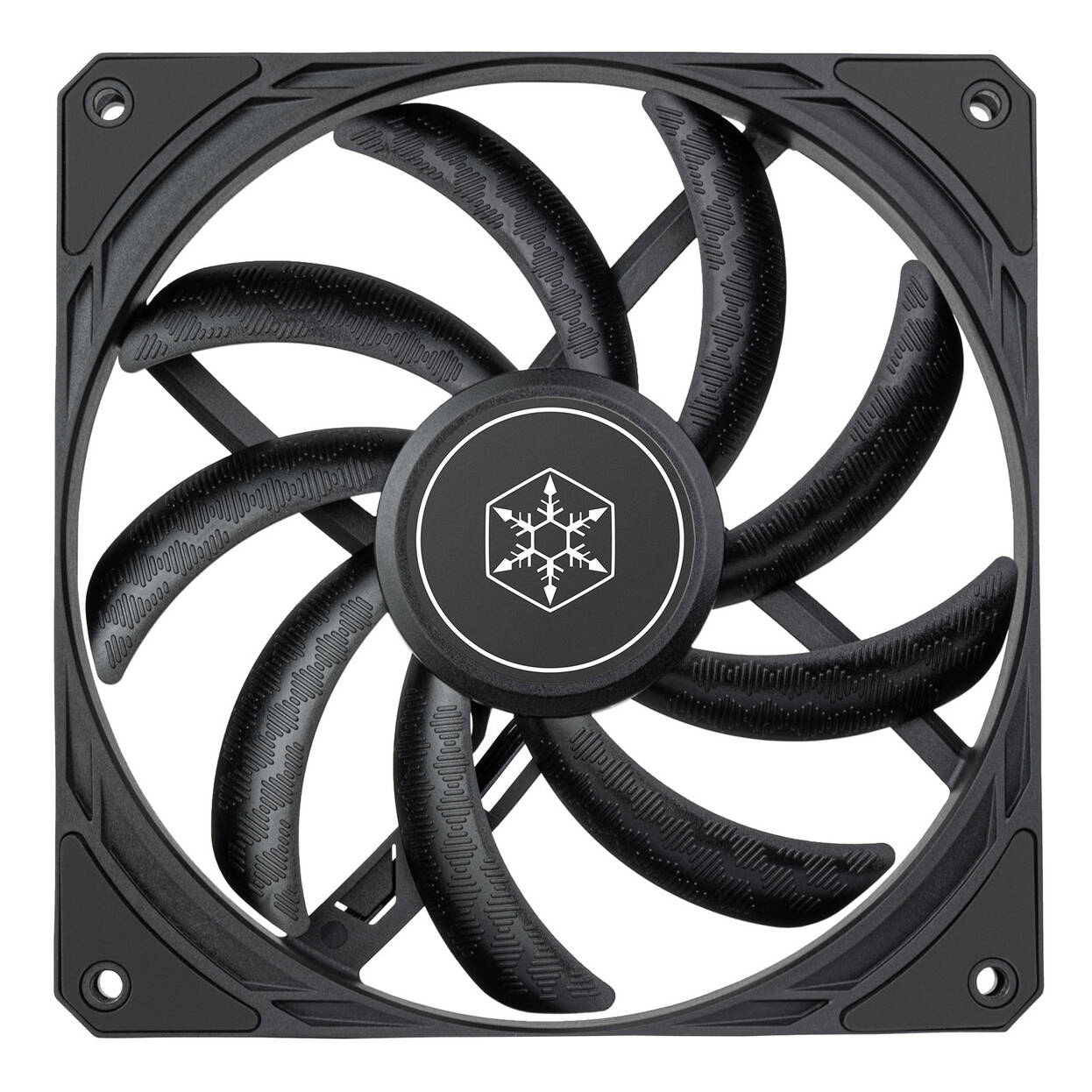

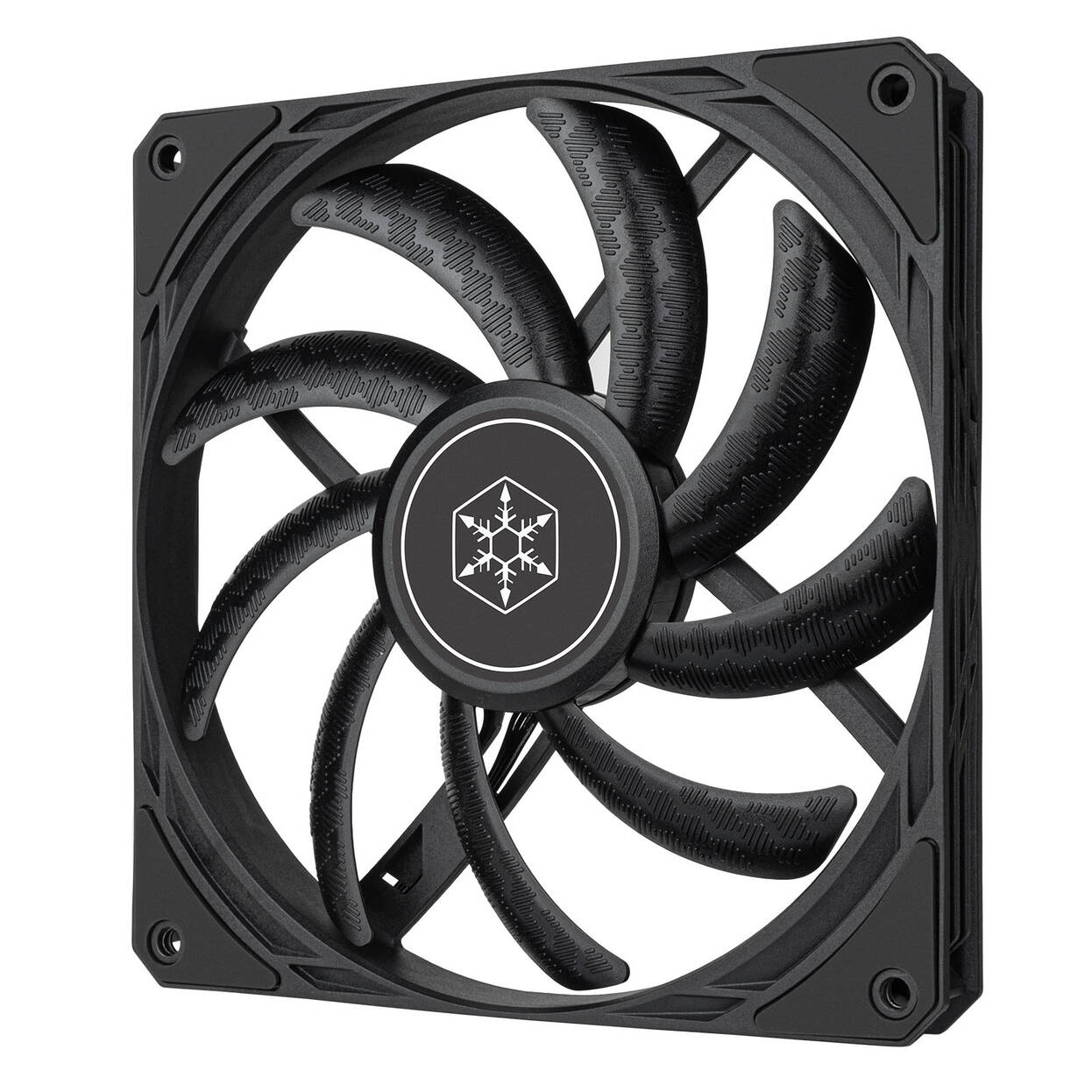

The features of the SilverStone SST-AS140B Air-Slimmer-140 fan in detail
With the SST-AS140B, SilverStone offers a large 140 mm fan with a primary focus on an extremely slim height of 15.5 mm. This is particularly suitable for small PC systems with compact cases and Mini-ITX motherboard layouts. The voltage-regulated fan impresses with strong performance values and a thoughtful design. The integrated ARGB lighting can be connected and controlled via the included adapter to a motherboard. Additionally, the cable design is modular, making it straightforward to connect and manage cables.
The SST-AS140B features a wider speed range of 0 to 1,700 RPM thanks to PWM control. Its speed is regulated via a PWM signal through the 4-pin fan connector. It delivers up to 139.33 m³/h. To ensure that the SST-AS140B can handle the increased speed, a hydrodynamic bearing is used, which guarantees durability over long periods of high demand.

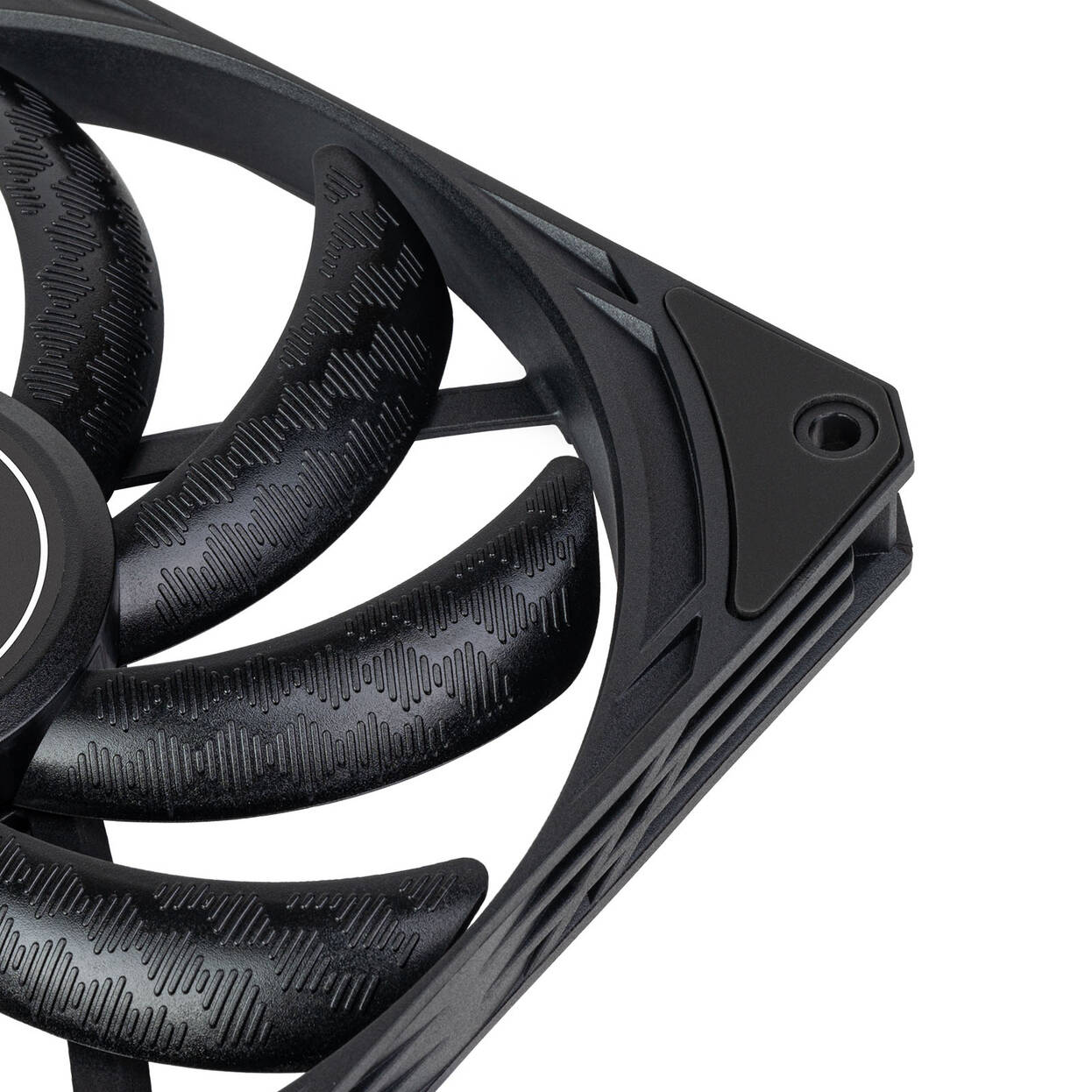

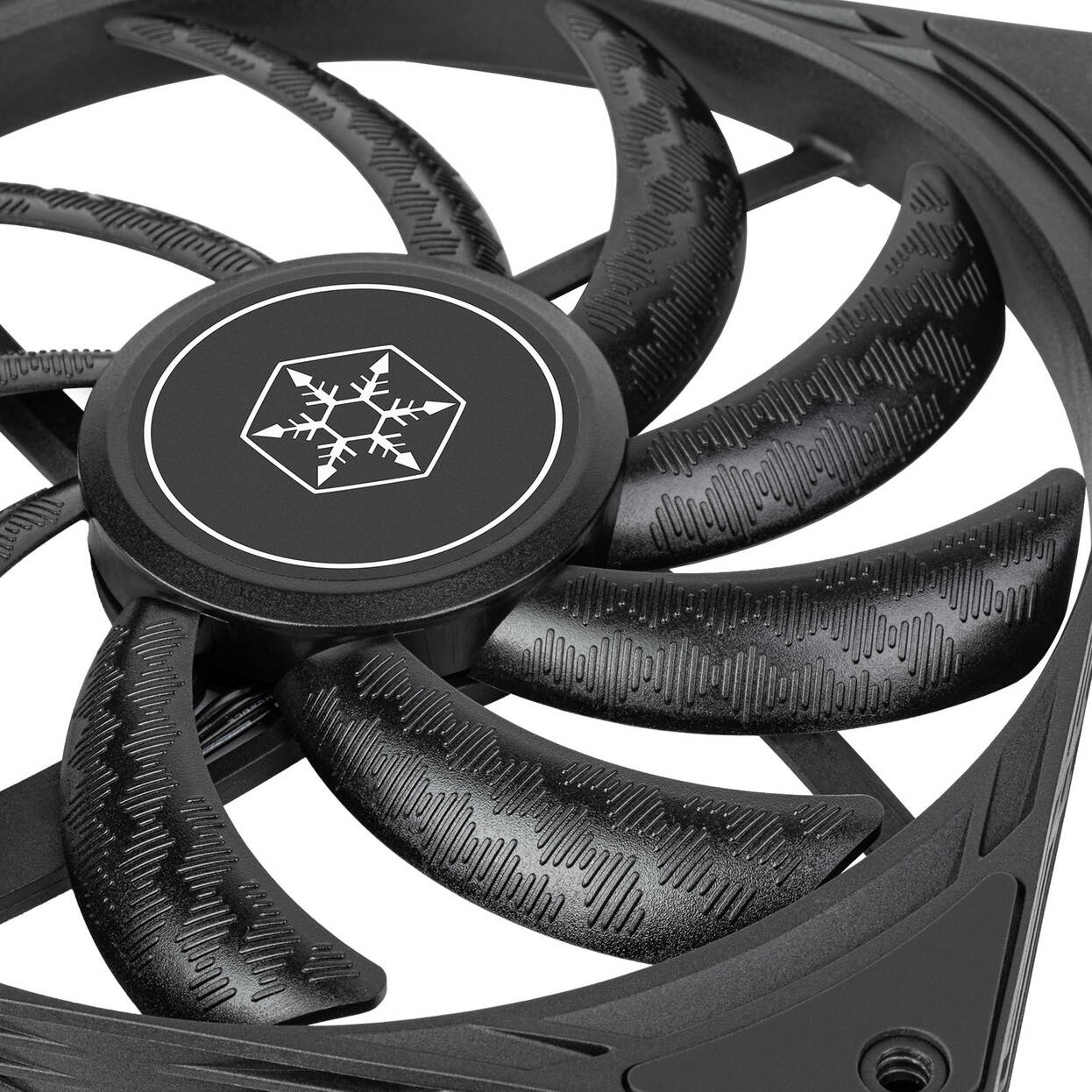

Shark Force fan blade design ensures better airflow and quieter operation
However, the high airflow and speeds are only half the story. SilverStone shines with a special feature: the Shark Force fan blade design. The fan blades are extremely slim and curved, which improves air pressure and airflow. The fan blades also feature a pattern that helps to smooth the overall airflow and significantly reduce noise.
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions & Weight | |
| Length / Depth | 140 mm |
| Width | 140 mm |

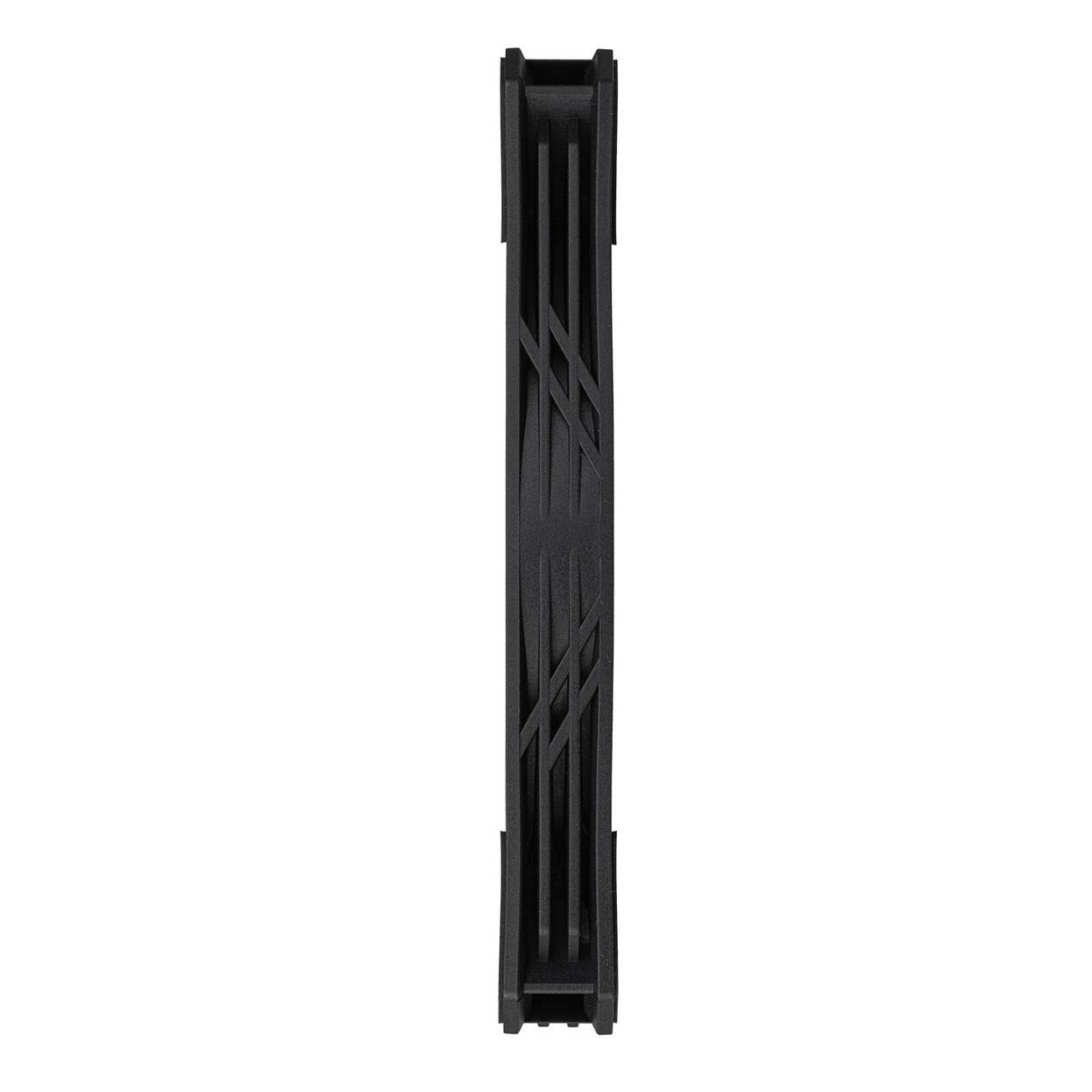

| Height | 15.5 mm |
| Weight | 135 g |
| Materials | |
| Fan Blade Material | Polycarbonate |
| Frame Material | PBT |
| Bearing | |
| Bearing Type | Hydrodynamic Bearing |
| Fan Performance | |
| Speed Range | 0 – 1,700 RPM |
| Noise Level | 0 – 33 dB(A) |
| Max. Airflow | 139.33 m³/h |
| Max. Static Pressure | 2 mmH₂O |
| Electrical Specifications | |
| Operating Voltage | 6 – 12 V |
| Start Voltage | 6 V |
| Current | 0.27 A |
| Power Consumption | 3.24 W |
| Connectivity | |

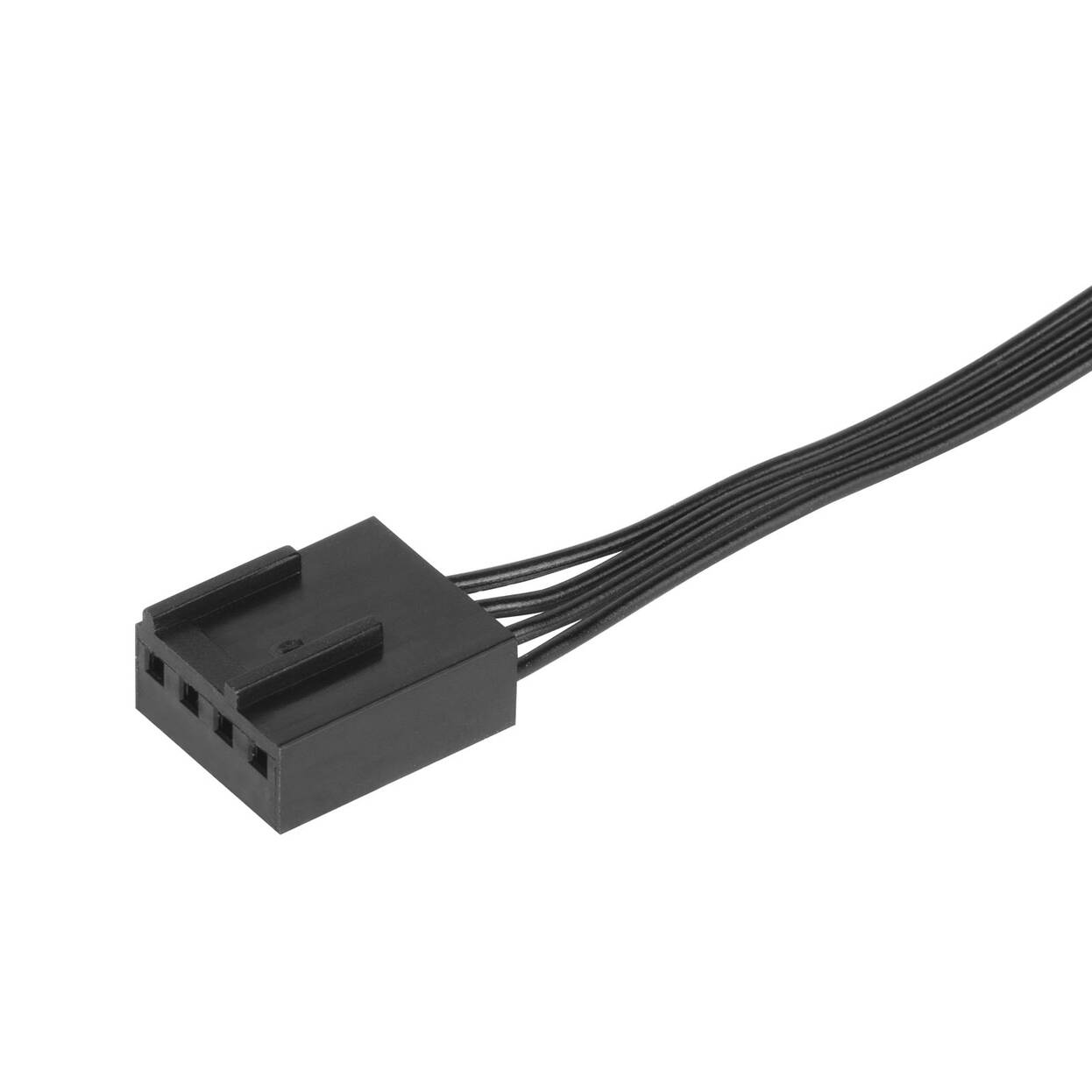

| Connection | 4-Pin PWM |
