Features:
- Support standard Flex ATX form factor
- 600W continuous power output at 40℃ operating temperature rated for 24/7 operation
- Japanese primary capacitor
- Class-leading single +12V rail
- PCIe 8pin and PCIe 6pin connectors support
Features:
- Support standard Flex ATX form factor
- 600W continuous power output at 40℃ operating temperature rated for 24/7 operation
- Japanese primary capacitor
- Class-leading single +12V rail
- PCIe 8pin and PCIe 6pin connectors support
Features:
- Support standard Flex ATX form factor
- 600W continuous power output at 40℃ operating temperature rated for 24/7 operation
- Japanese primary capacitor
- Class-leading single +12V rail
- PCIe 8pin and PCIe 6pin connectors support
Features
Compact 600W Flex ATX power supply, ideal for small form factor PC builds
80 PLUS Platinum certified for exceptional power efficiency
Designed for reliable 24/7 continuous operation
Powerful single +12V rail delivering up to 50A
Dual 6+2-pin PCIe power connectors for dedicated graphics cards
Integrated 40mm cooling fan for effective heat dissipation
Active Power Factor Correction (PFC) for improved electrical efficiency
Comprehensive connectivity for motherboards, processors, storage devices and peripherals
Compact Design, Powerful Performance

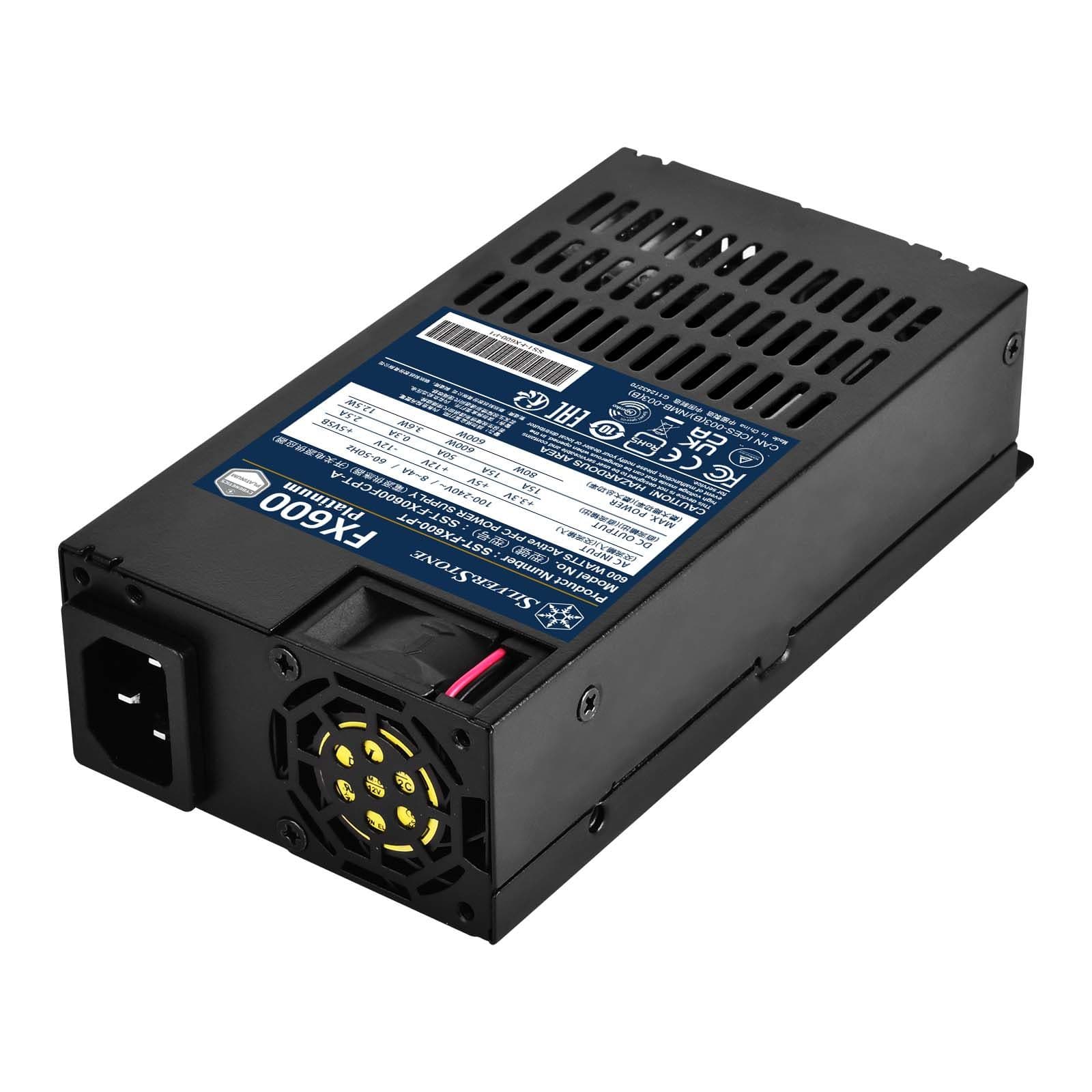

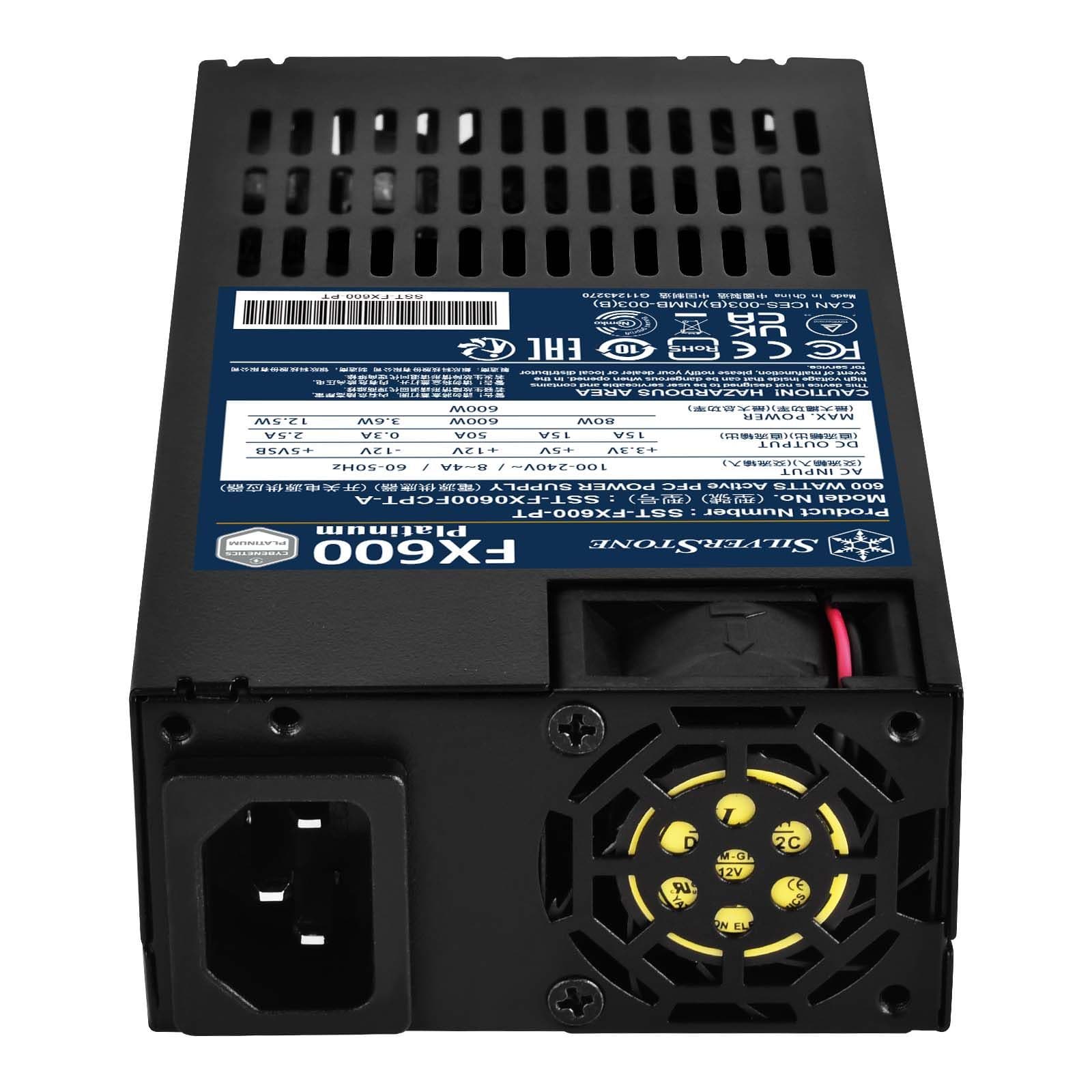

The SilverStone SST-FX600-PT 600W Flex ATX Power Supply delivers impressive performance and exceptional energy efficiency in an ultra-compact form factor. Designed specifically for small form factor (SFF) systems and space-restricted PC builds, this power supply combines reliable high-output power delivery with a footprint significantly smaller than a conventional ATX PSU.
Despite its compact dimensions of just 82 x 41 x 150mm, the SST-FX600-PT provides a substantial 600W continuous power output, making it an excellent choice for compact workstations, high-performance Mini-ITX systems and other compatible small form factor configurations.
80 PLUS Platinum Certified Efficiency
Engineered to minimise wasted energy and maximise power efficiency, the SST-FX600-PT features 80 PLUS Platinum certification, delivering efficiency ratings of at least 90% at 20% load, 94% at 50% load and 90% at full load under 230V operation.
This high level of efficiency helps reduce unnecessary power consumption and heat generation, making the unit particularly suitable for compact systems where thermal management and energy efficiency are essential.
Built for dependable, round-the-clock operation, the SilverStone SST-FX600-PT is designed to support systems requiring consistent power delivery over extended periods.
Its powerful single +12V rail delivers up to 50A, providing a maximum of 600W to demanding components such as processors and dedicated graphics cards.
With a specified mean time between failures (MTBF) of 100,000 hours, the SST-FX600-PT is engineered for long-term reliability, making it suitable for compact desktop PCs, workstations and systems operating continuously.
Efficient Cooling in a Space-Saving Design

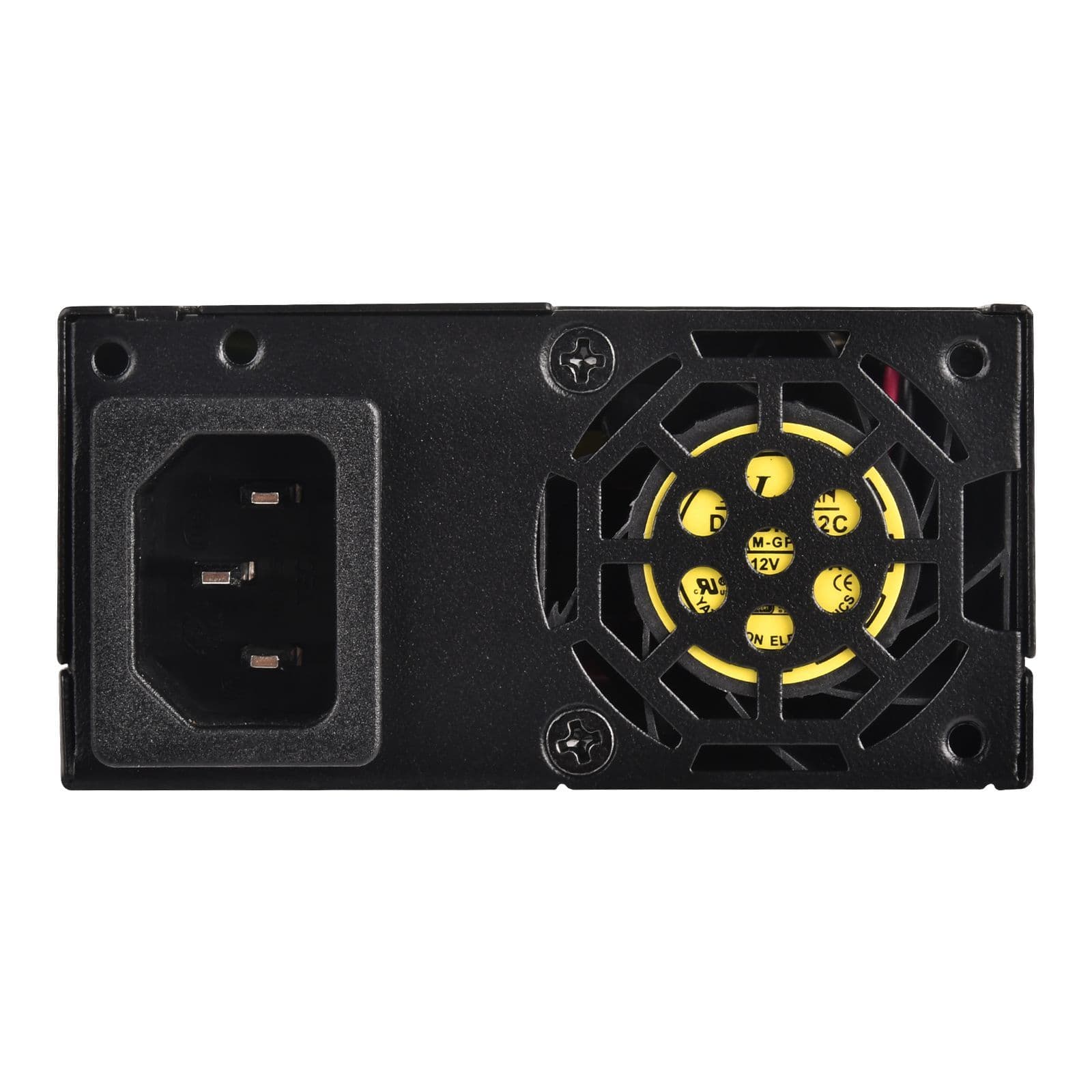

The SST-FX600-PT incorporates a built-in 40mm cooling fan to maintain airflow and assist with heat dissipation inside its compact housing.
Combined with its high-efficiency internal design, the integrated cooling solution helps maintain dependable performance while keeping the power supply’s physical dimensions to a minimum.
Comprehensive Connectivity
Despite its compact size, the SilverStone SST-FX600-PT offers a versatile selection of power connections to support modern PC hardware.
A 20+4-pin ATX connector provides motherboard power, while dedicated 8-pin EPS12V and 4+4-pin ATX12V connectors support compatible processor power requirements.
For graphics cards, the unit includes two 6+2-pin PCIe connectors, providing flexible compatibility with supported dedicated GPUs.
Additional connectivity includes four SATA power connectors, three 4-pin Molex connectors and a floppy power connector, allowing a variety of storage drives and peripheral devices to be powered.
| Technical Data | |
|---|---|
| Power Supply Format | Flex-ATX |
| Power Output | 600 W |
| Efficiency Certification | 80 PLUS Platinum |
| Continuous Operation | Suitable for 24/7 operation |
| 12 V Rail | Single rail, 50 A |
| PCIe Connectors | 2x 6+2-Pin PCIe |
| Dimensions | |
| Dimensions | 82 x 41 x 150 mm (W x H x D) |
| Weight | 1,120 g |
| Cooling | |
| Fan Size | 40 mm |
| Minimum Noise Level | 20 dB(A) |
| Reliability | |
| Mean Operating Time | 100,000 h |
| Efficiency | |
| Efficiency at 20% Load | At least 90% at 230 V |
| Efficiency at 50% Load | At least 94% at 230 V |
| Efficiency at 100% Load | At least 90% at 230 V |
| Certification | 80 PLUS Platinum |
| Power Factor Correction | Active PFC |
| Power Specifications | |
| Total Power | 600 W |
| +3.3 V | 15 A |
| +5 V | 15 A |
| +3.3 V + +5 V Combined | 80 W |
| +12 V | 50 A / 600 W |
| -12 V | 0.3 A |
| +5 Vsb | 2.5 A |
| Connections | |
| 20+4-Pin Mainboard | 1x, 350 mm |
| 4+4-Pin ATX12V / EPS12V | 1x, 350 mm |
| 8-Pin ATX12V / EPS12V | 1x, 150 mm |
| 6+2-Pin PCIe | 2x, 350 mm / 150 mm |
| SATA | 4x, 350 mm / 150 mm / 150 mm / 150 mm |
| 4-Pin Molex | 3x, 350 mm / 150 mm / 150 mm |
| Floppy | 1x, 150 mm |
