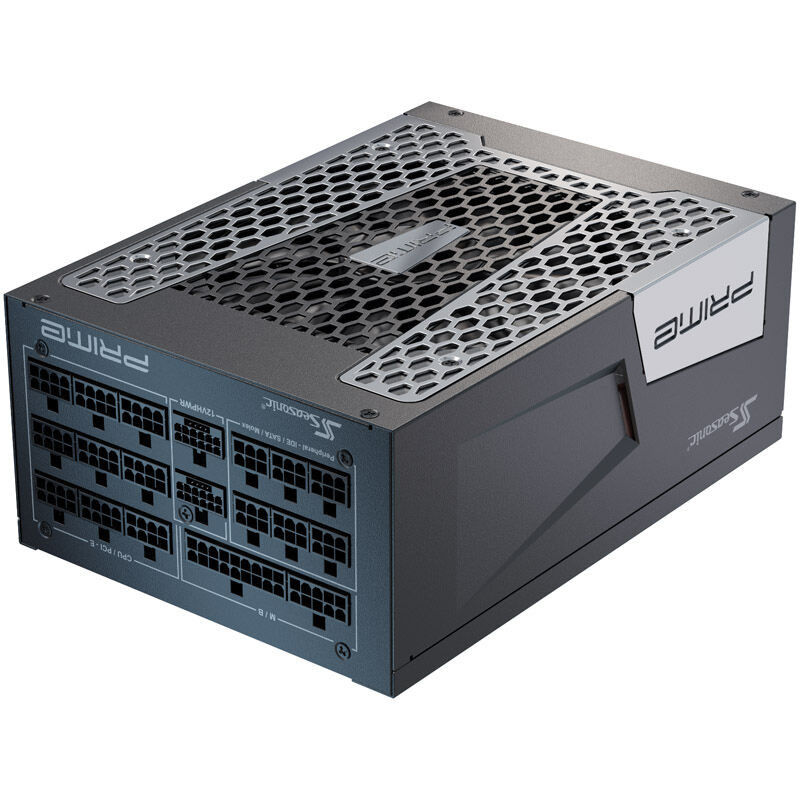

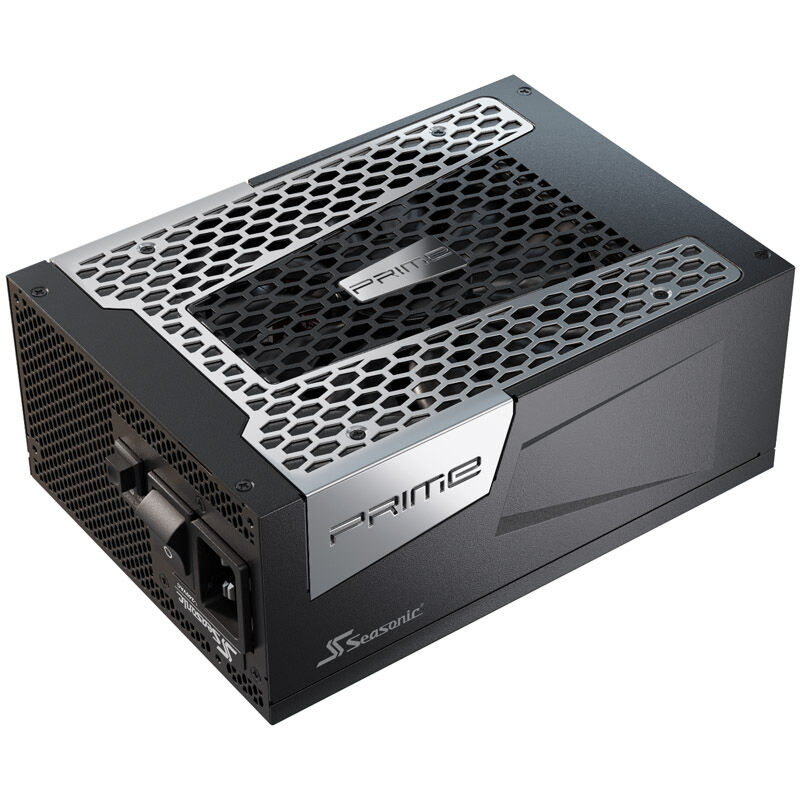

Seasonic Prime TX-1600, 80 PLUS Titanium power supply, modular, ATX 3.0, PCIe 5.0 - 1600 Watt

– Extremely powerful ATX 3.0 power supply from Seasonic
– 1,600 watts nominal power for components from the absolute high-end segment
– Efficiency certified with 80 PLUS Titanium
– Modular cable management with black cables
– Six 6+2-pin PCIe connectors for graphics cards
– 2x 12+4-pin PCIe 12VHPWR connectors for high-end graphics accelerators

Extremely powerful ATX 3.0 power supply with 80 PLUS Titanium efficiency
With its 1,600 watts total output power, the Seasonic Prime ATX power supply is suitable for gaming PCs that only have components from the absolute high-end segment installed. This power supply is also the right choice for workstations, as several GPUs have an enormous power requirement at the same time. There are two connectors for NVIDIA graphics cards with 12+4-pin 12VHPWR connectors.

The power supply is therefore extremely efficient, which is also a result of the use of high-quality electrical components. The 80 PLUS Titanium certified power supply achieves an efficiency of up to 96% at a load of 50%.

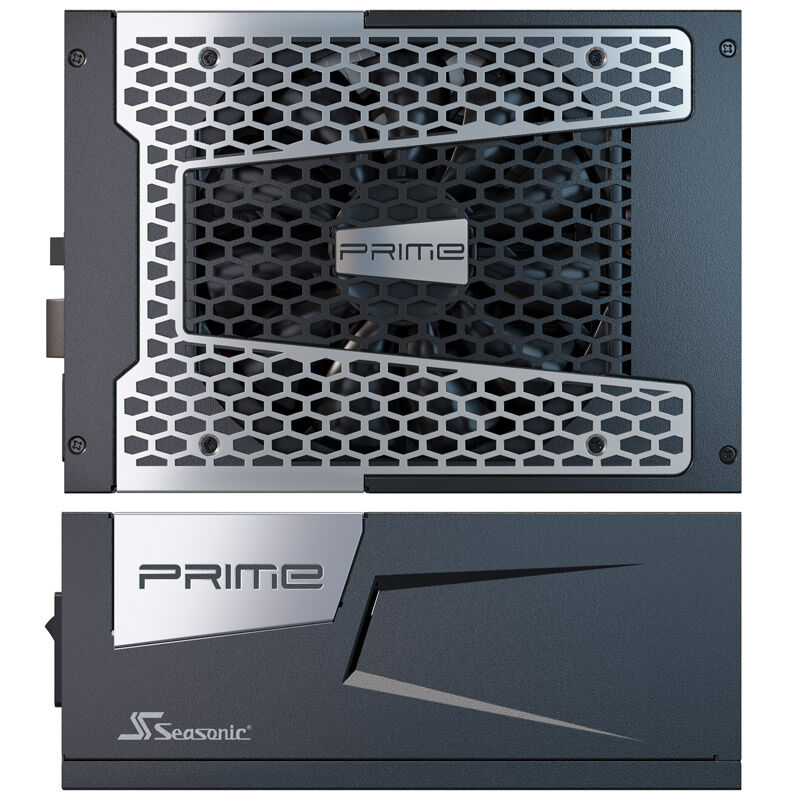

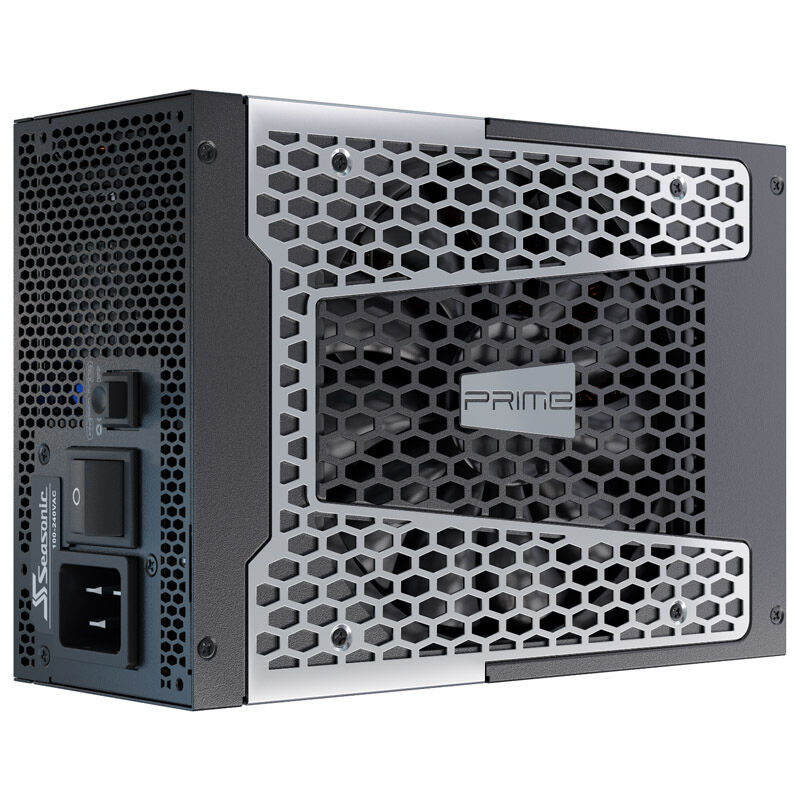

Thanks to the ATX form factor, the power supply is ideal for most cases. Despite the extreme performance, the 135 mm hybrid fan keeps the Seasonic Prime at cool operating temperatures even after extensive use.

Extensive connectivity

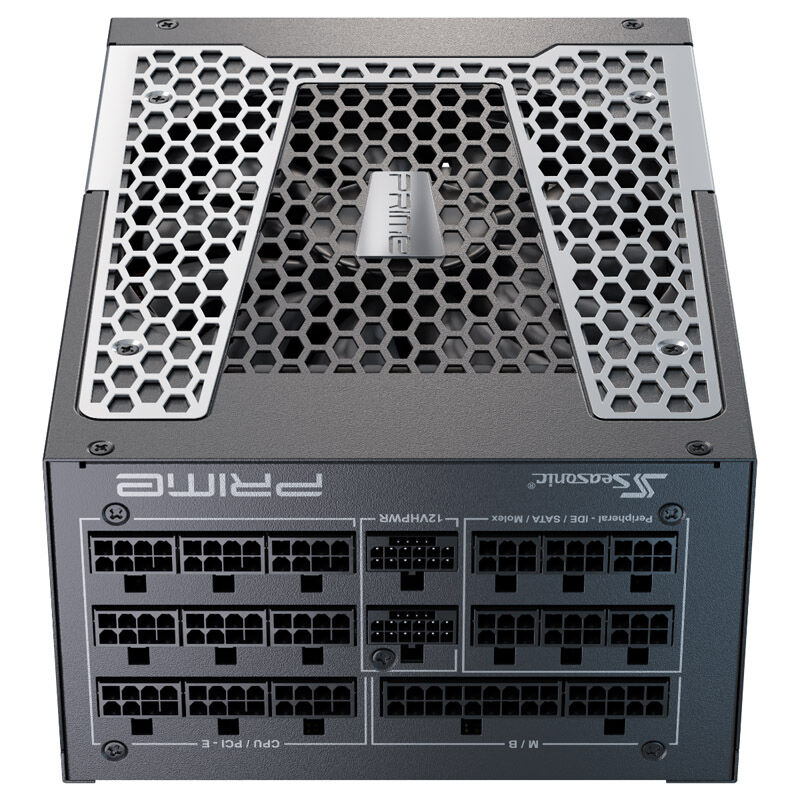

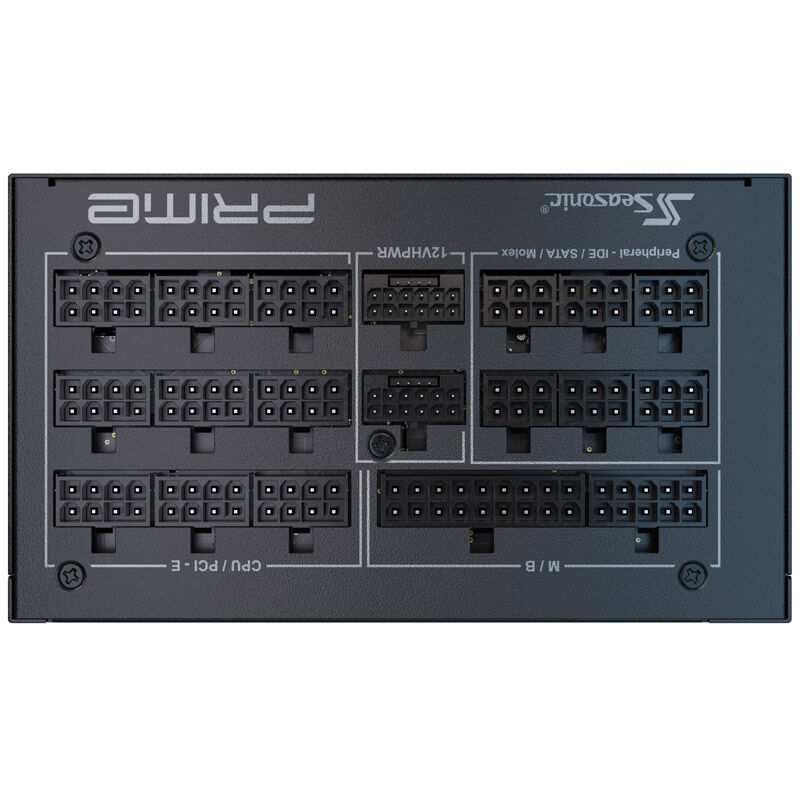

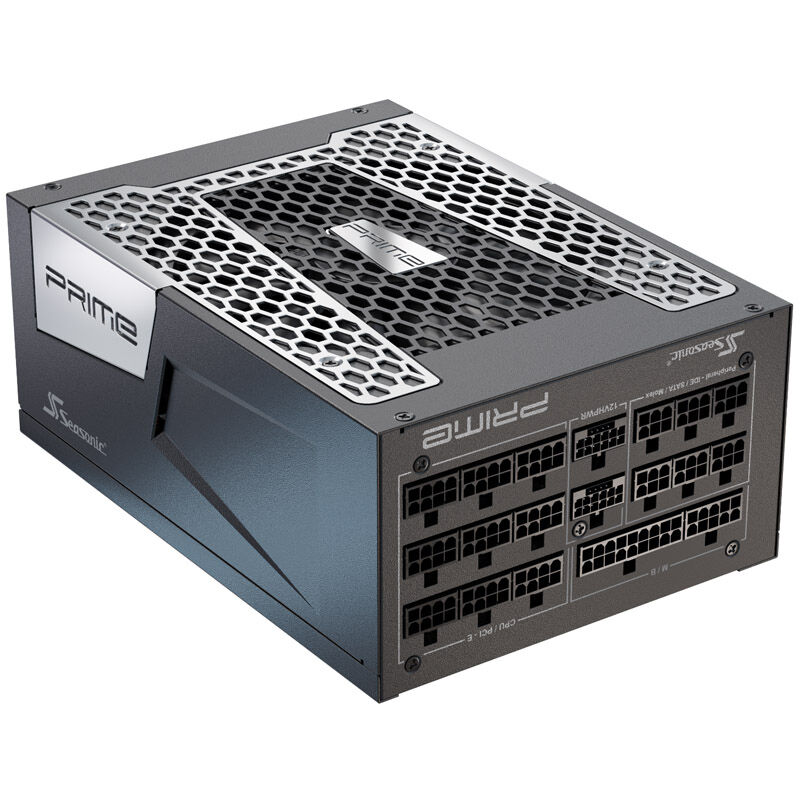

The Seasonic Prime also impresses with its extensive connectivity. In addition to a 24-pin connector and three 4+4-pin connectors for the mainboard and your CPU, there are six 6+2-pin PCIe connectors for graphics cards and two 12+4-pin PCIe 5.0-12VHPWR connectors for high-end graphics accelerators. 18 SATA and three 4-pin Molex connectors are available for drives and other components.

Thanks to modular cable management, you only use the cables that you actually need for your build. Thanks to this feature, your case always looks tidy.

Technical details:
– Dimensions: 210 x 86 x 150 mm (W x H x D)
– Weight: n/a kg
– Color: Black
– Fan: 135 mm (automatic control, fluid dynamic bearing)
– Standard: ATX 3.0
– Efficiency: ~ 94 / 96 / 94 % @ 10 / 20 / 50 / 100 % load at 230 V, 80 PLUS Titanium certificate
– Form factor: ATX
– Power: 1,600 W
– +3.3V: 25 A
– +5V: 25 A
– +3.3V & +5V: 125 W
– +12V: 1,600 W / 133.3 A
– -12V: 6 W / 0.5 A
– +5Vsb: 15 W / 3 A
– Connectors:
– 1x 24-pin mainboard
– 2x 12+4-pin 12VHPWR
– 9x 6+2-pin PCIe/CPU
– 6x SATA/Molex
– Protection: OVP, OPP, OCP, SCP, UVP, OTP
– Average service life: 100,000 hours

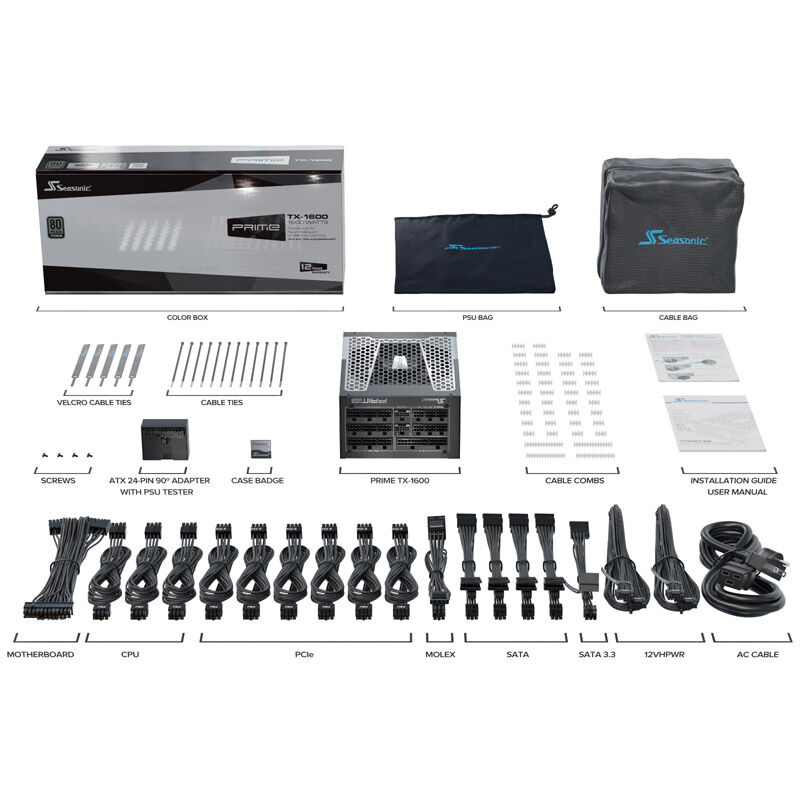

– Scope of delivery:
– 1x Seasonic Prime 80 PLUS Titanium ATX 3.0 power supply
– 1x 20+4-pin cable (610 mm)
– 3x 8-pin / 4+4-pin cable (700 mm)
– 8x 8-pin / 6+2-pin cable (750 mm)
– 4x SATA cable (950 mm, 4 connectors)
– 1x SATA 3.3V cable (550 mm, 2 connectors)
– + 1x Molex cable (690 mm, 3 connectors)
– 2x 12+4-pin 12VHPWR (750 mm)
