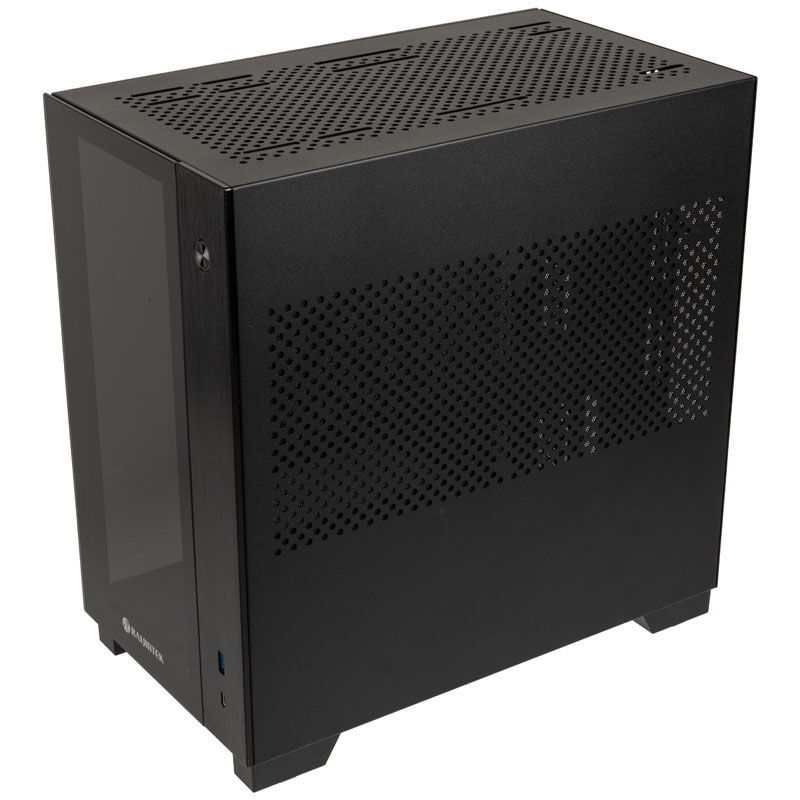

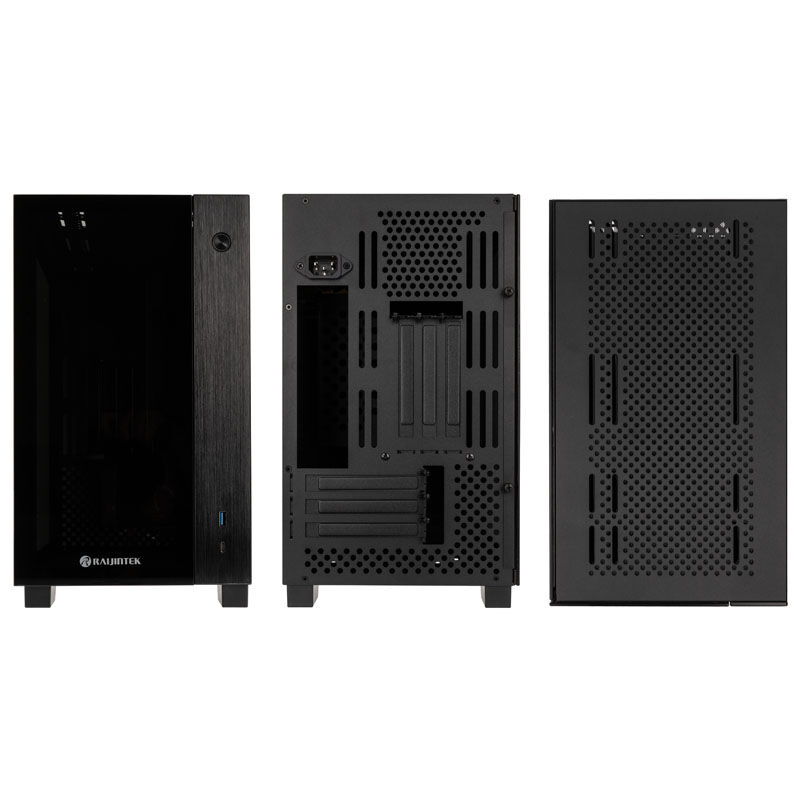

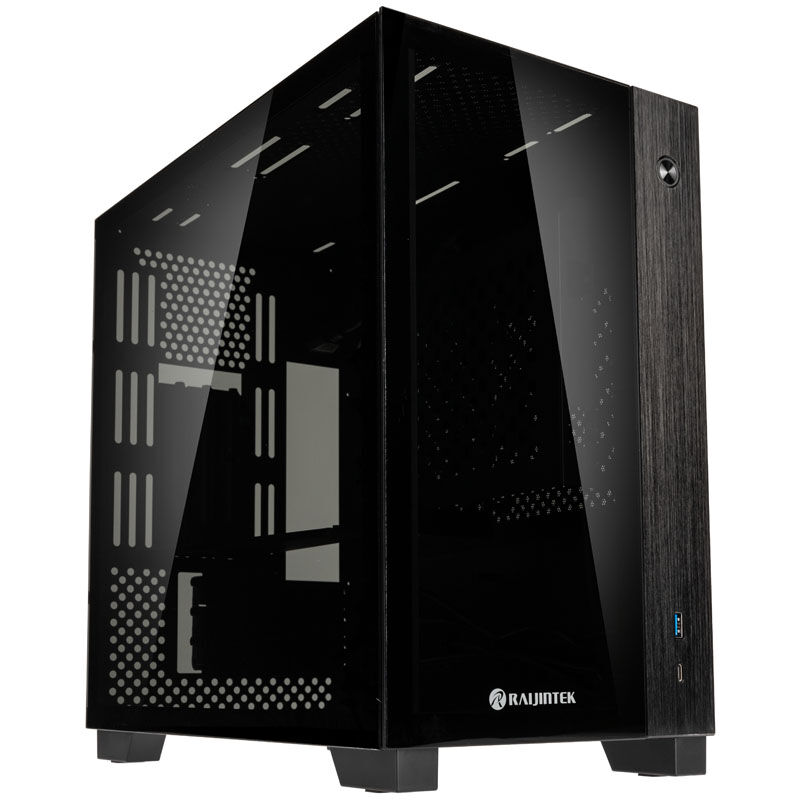

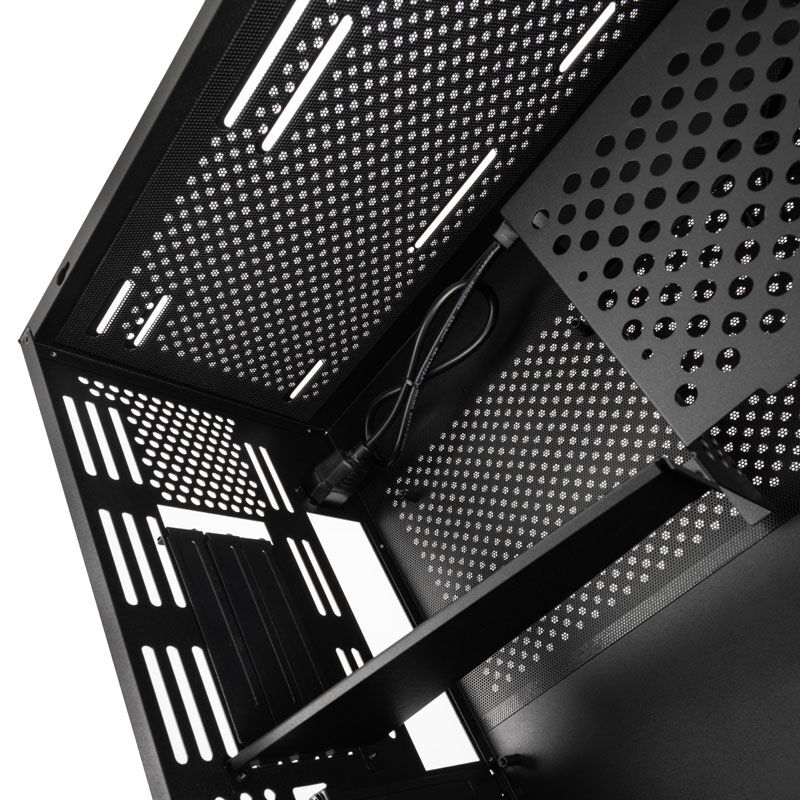

RAIJINTEK PAEAN MINI Mini-ITX case, Tempered Glass - black

Despite its low volume, the mini tower offers space for a full-fledged gaming graphics card. Due to the additional expansion slots, this can also be mounted vertically. The front and the side panel made of tempered glass allow a stylish staging of the installed hardware.

The features of the Raijintek PAEAN MINI Mini-ITX case at a glance:
– Modern Mini-ITX enclosure for high-performance hardware
– Space for a mini-ITX format motherboard
– Three horizontal expansion slots for graphics cards up to 33 cm
– Suitable for one dual radiator, single radiator and up to five fans
– Three additional expansion slots for vertical mounting of the GPU

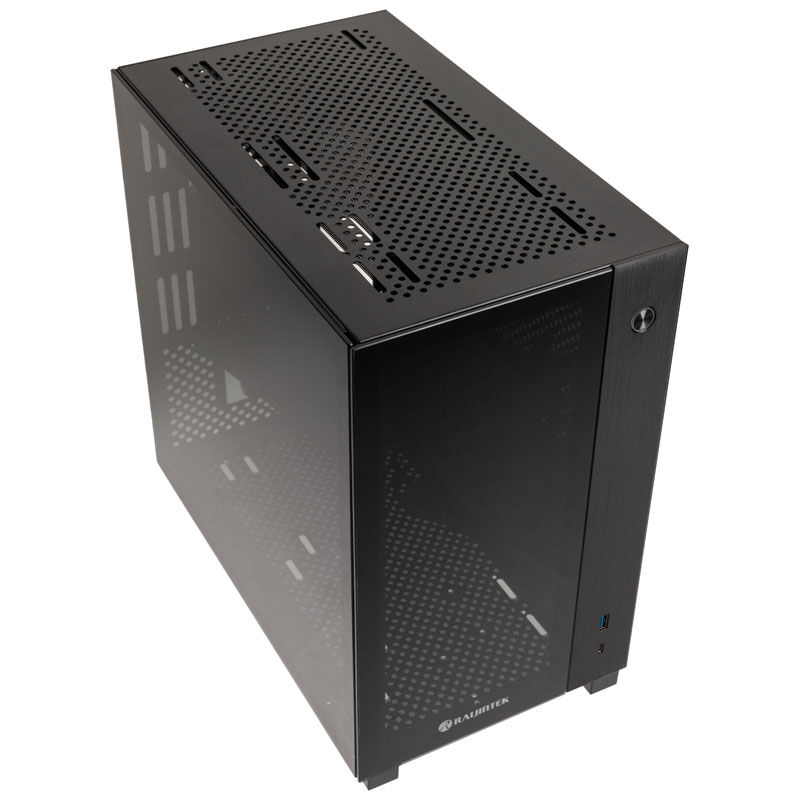

– Front and side panel made of tempered glass for an eye-catching look

PAEAN MINI: Compact Mini-ITX housing for high-performance PCs
Despite its small dimensions, the PAEAN MINI offers extensive possibilities for cooling powerful PC hardware. The lid of the case offers space for a 280 mm radiator, while another 120 mm radiator can be mounted on the back. In total, the case has five slots for fans: two 140 or 120 on the lid, two 140 or 120 on the bottom and a 120 or 92 on the back.

Space for drives and components
A mini-ITX format motherboard can be installed on the motherboard tray. The graphics card may be up to 33 cm long and three slots high when mounted horizontally. Thanks to three vertical expansion slots, the vertical installation of a triple-slot graphics card is also possible.

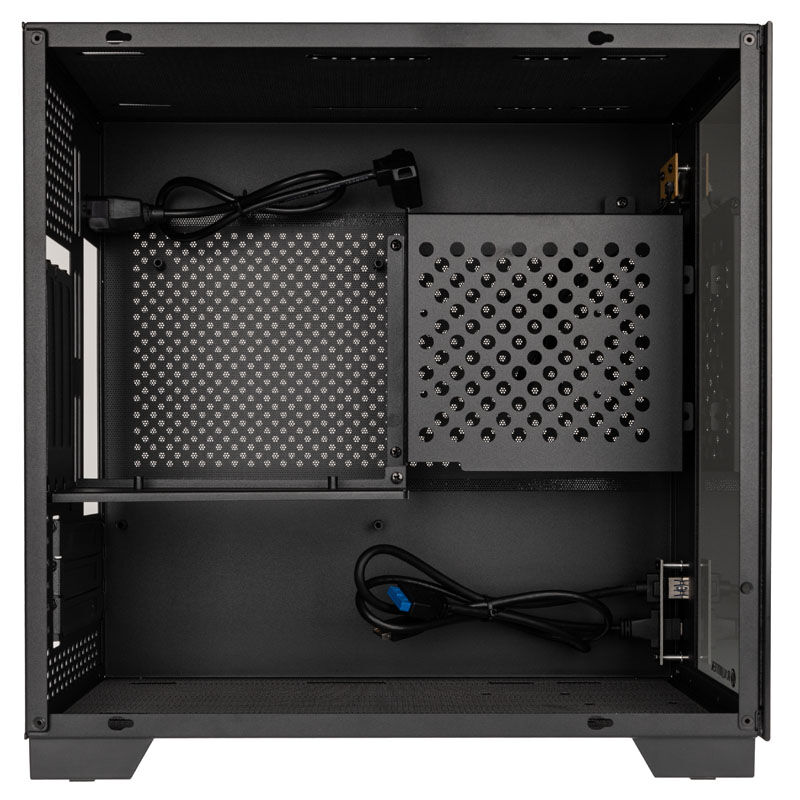

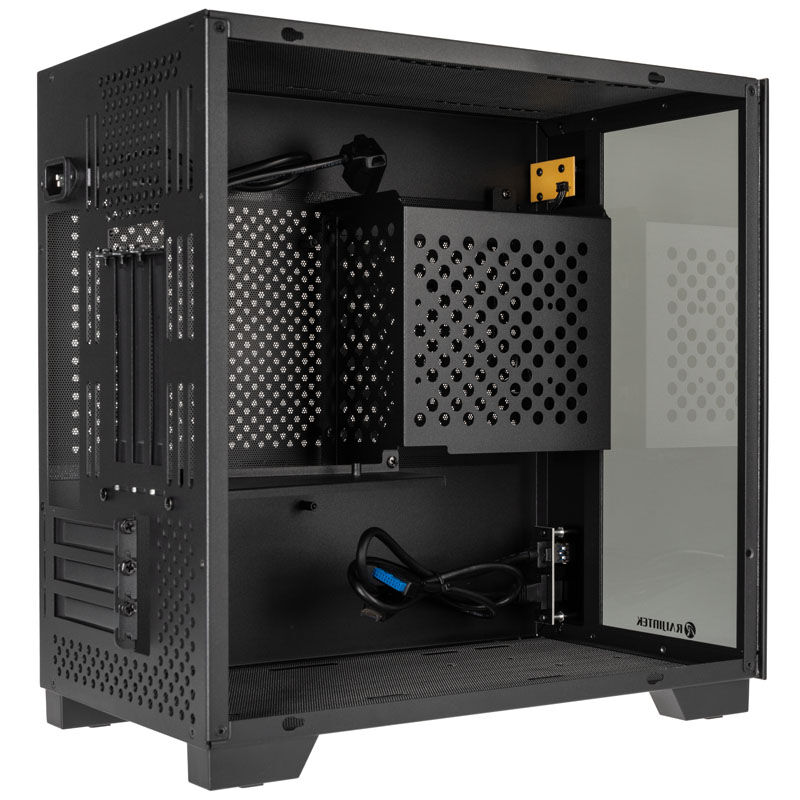

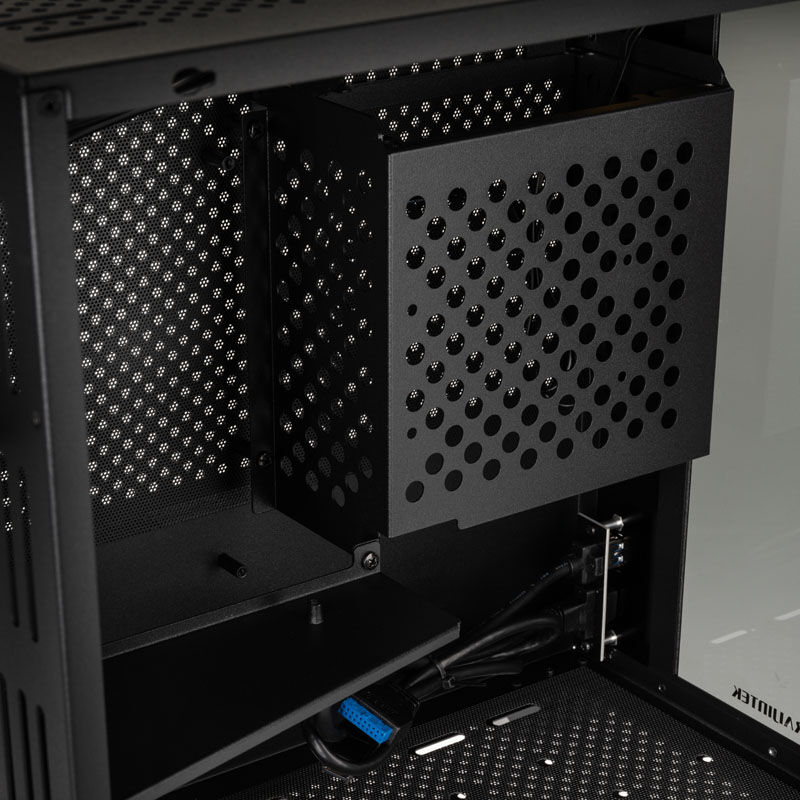

The Raijintek PAEAN MINI offers a total of two locations for installing drives: A 2.5 and 3.5 inch drive can be mounted on the power supply cage. The power supply cage is suitable for ATX and EPS power supplies to supply high-performance hardware. In addition to the power switch, the I/O panel also offers a USB-C and a USB 3.0 (Type A) port.

Specifications:
– Dimensions: 206 x 357 x 353 mm (W x H x D)
– Material: steel, plastic, tempered glass
– Weight: 4.6 kg
– Color: Black
– Format: Mini-ITX (max. 170 x 170 mm)
Fan:
– 2x 140 / 2x 120 mm (lid)
– 1x 120 / 1x 92 mm (back, not with vertical GPU mounting)
– 2x 140 / 2x 120 mm (bottom)
Radiator mounts (partial absence of fan slots):
– 1x 120mm (back)
– 1x 120mm / 140mm / 240mm / 280mm (bottom)
– Filter: not applicable
Drive bays:
– 1x 3.5 inch (on power supply cage)
– 1x 2.5 inch (on power supply cage)
– Power supply (optional): ATX / EPS
– Expansion slots: 3 / 3 (horizontal / vertical)

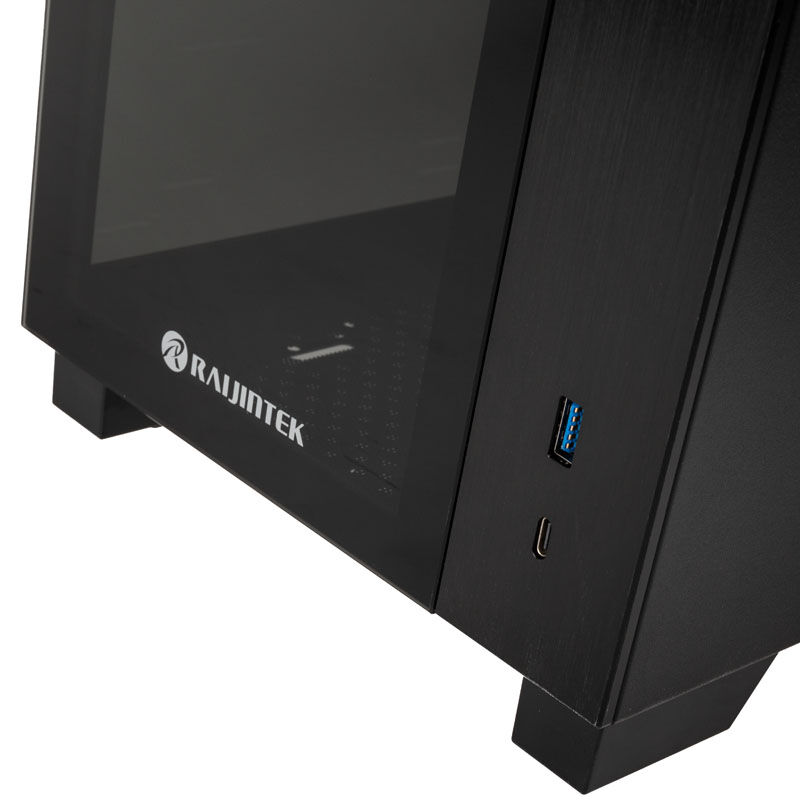

I/O panels:
– 1x USB 3.0 Type A
– 1x USB-C
– Maximum graphics card length: 330 mm
– Maximum CPU cooler height: 170mm
– Maximum power supply length: 130 mm
Scope of supply:
– 1x Raijintek PAEAN MINI housing
– 22x mounting screws assembly instructions

– 6x cable ties
