Raijintek Ophion M Evo AS Micro-ATX case - black

The Ophion M EVO in the ALS version impresses with its elegant and high-quality exterior with two aluminum side panels. The outer shell is also made entirely of aluminum. The case offers space for Mini-ITX and mATX motherboards. High-quality hardware can be installed behind its stylish exterior because there is enough space. In this case you can even install a 360 radiator on the lid.

The Raijintek Ophion M EVO AS Micro ATX case at a glance:
– Black aluminum housing from Raijintek
– Two aluminum side panels
– Compatible with Mini-ITX and Micro-ATX motherboards
– Outer shell made of high-quality aluminum with a brushed surface
– Space for a 360 radiator and powerful ATX power supplies
– Supports dual-slot gaming graphics cards up to 41 cm long
– Includes riser module with full PCI Express 3.0 x16 speed
– Space for three 3.5-inch or five 2.5-inch disks

The Raijintek Ophion M EVO AS Micro-ATX case in detail

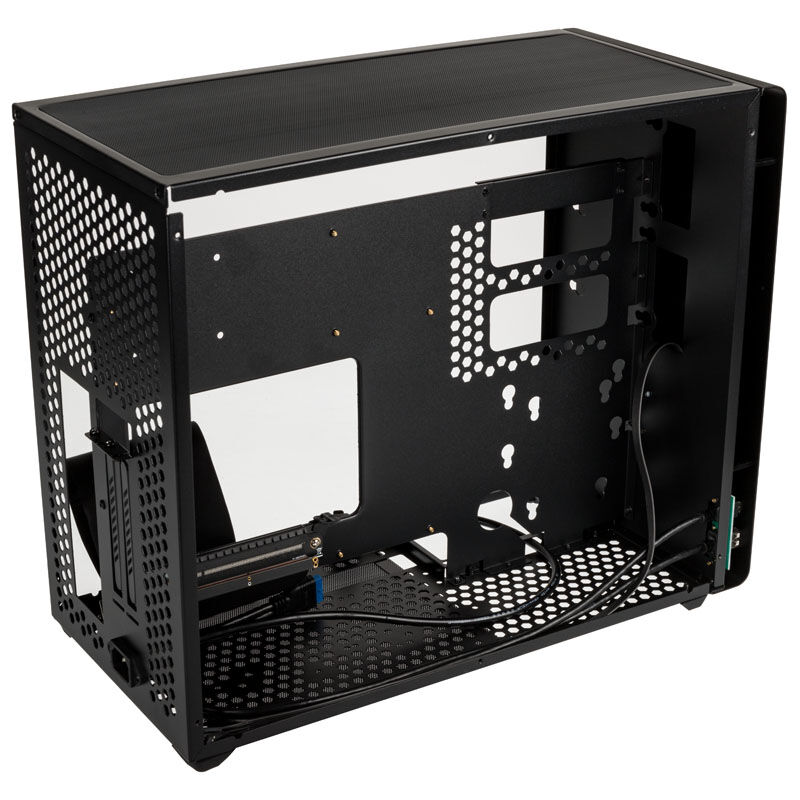

The well thought-out concept of the Ophion M EVO ALS from Raijintek enables the installation of an uncompromising gaming PC despite its small dimensions: the graphics card is housed in a separate chamber behind the mainboard tray. In addition, every square centimeter in the steel interior of the Raijintek Ophion M EVO ALS is used sensibly, whereas in normal tower cases there is usually an unnecessarily large amount of free space.

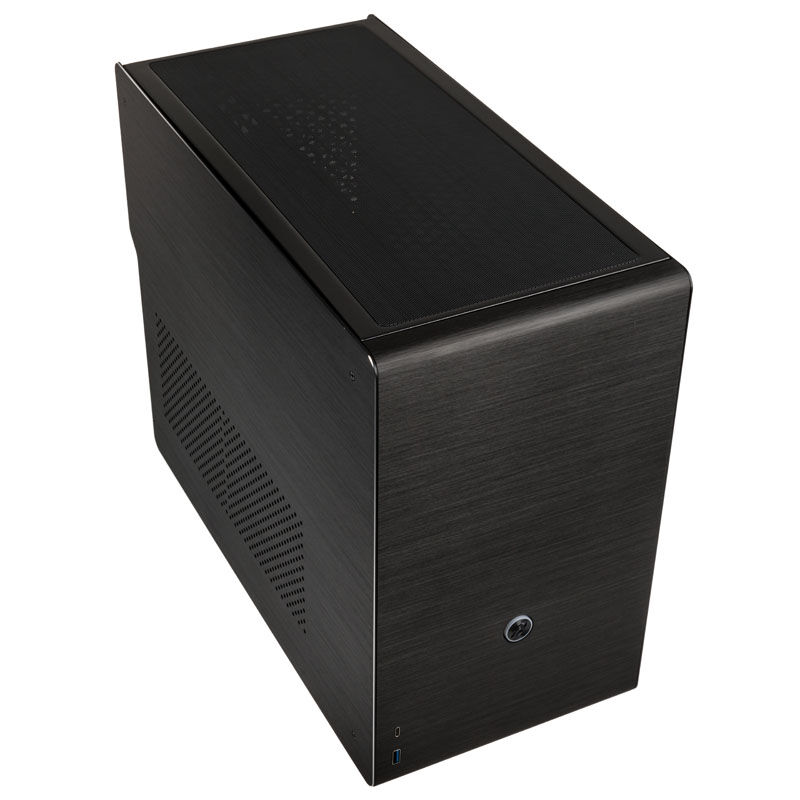

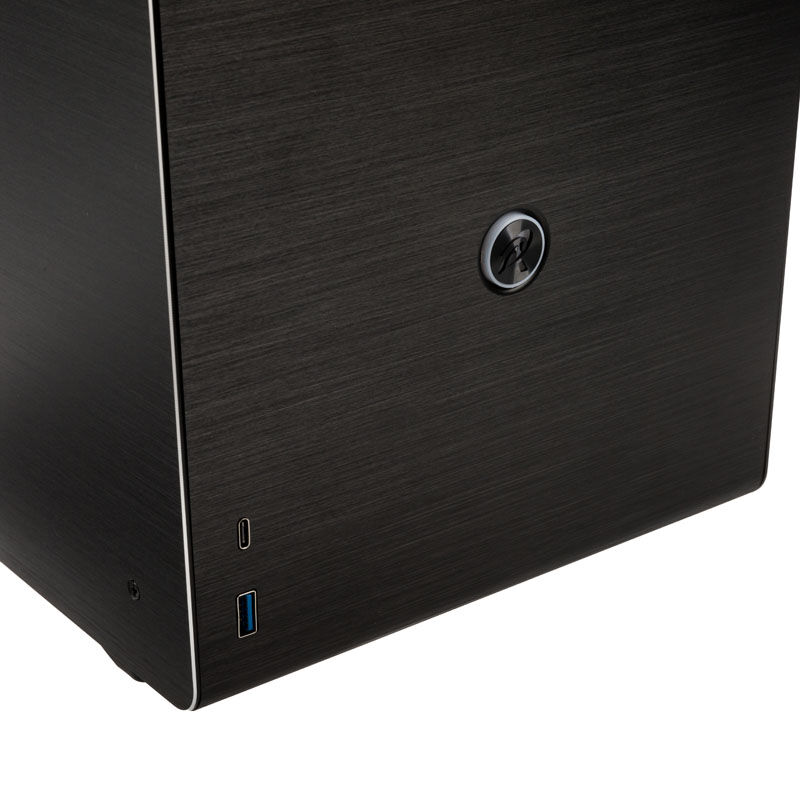

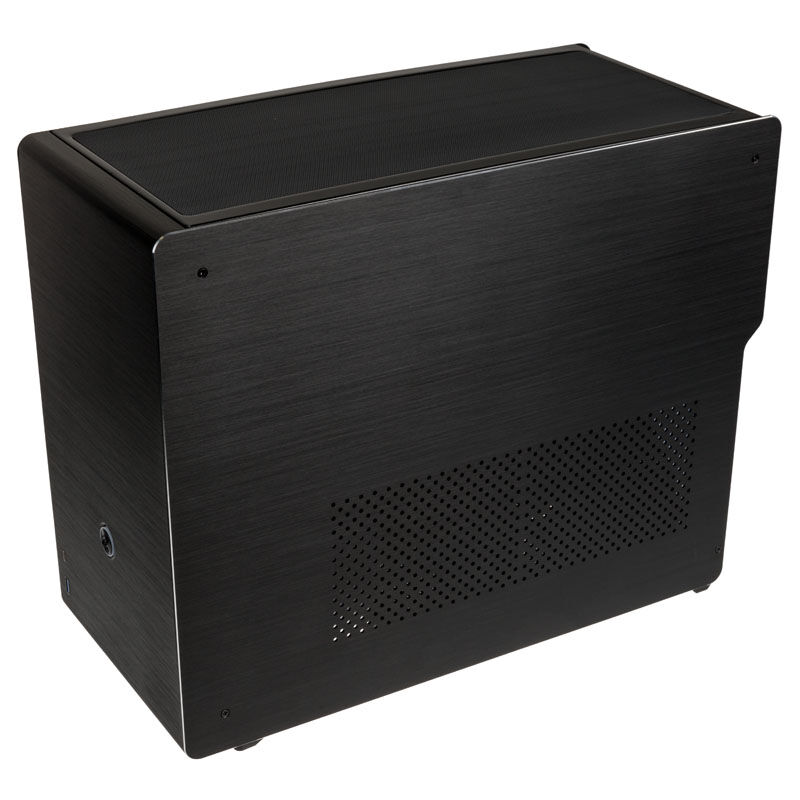

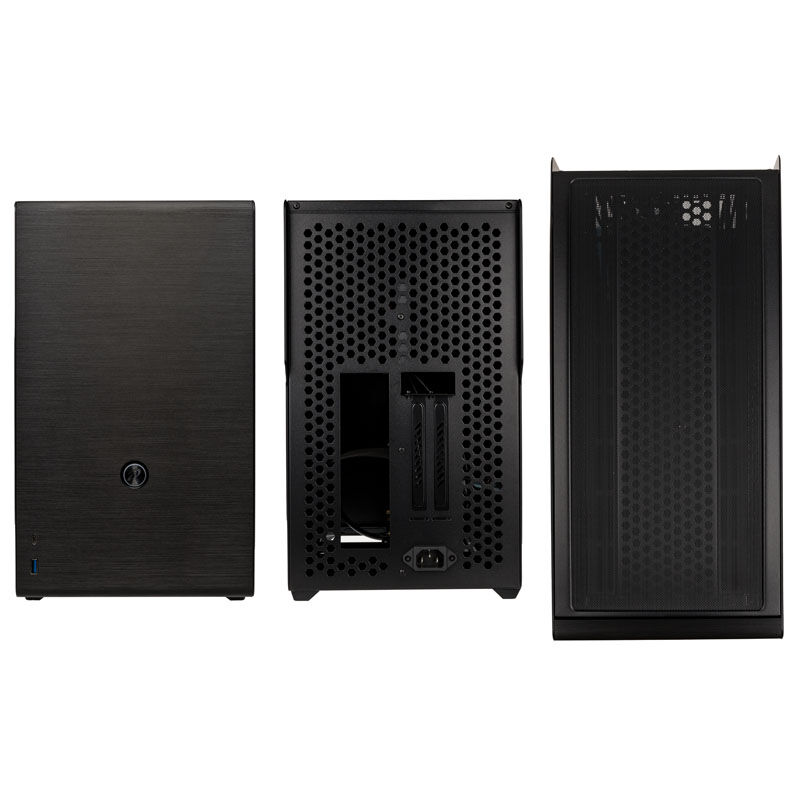

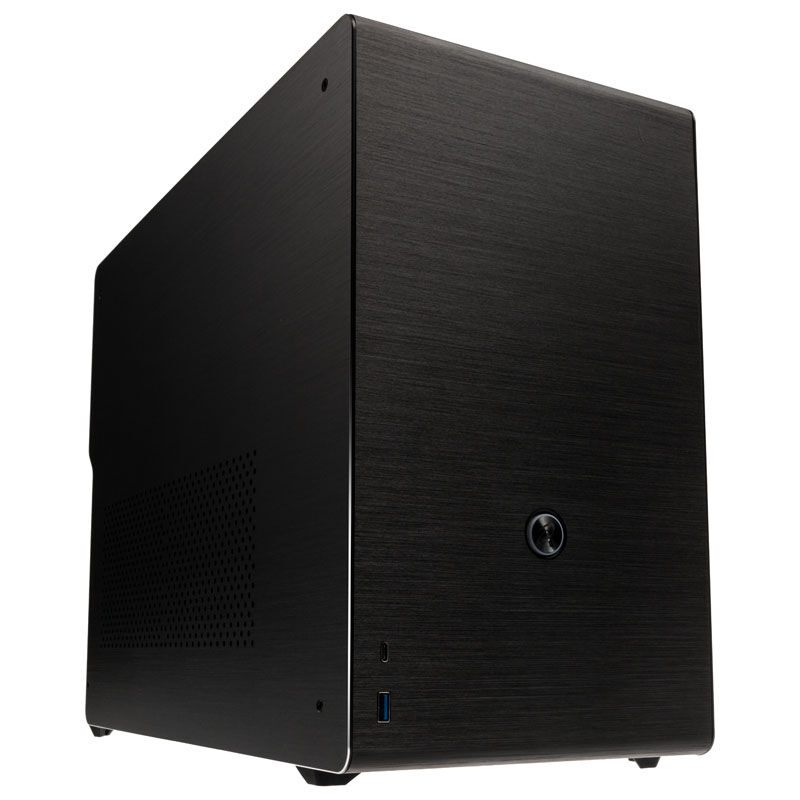

Externally, the case impresses with its simple design and flawless workmanship. The anodized aluminum in black with a thickness of 2 millimeters and the chic hairline finish ensures a distinctive look. On the simple front of the Ophion M EVO ALS, in addition to the power button with the Raijintek logo, there are only two unaccompanied USB ports with an internal mainboard connection. In addition to the USB 3.0 Type A port, Raijintek has also installed a modern USB 3.0 Type C port.

The clever cooling concept is similarly spartan. The airflow occurs from bottom to top. An optional 120, 140 or even 200 mm fan on the base ensures the supply of fresh air, which is then transported out again on the lid by up to three 120 mm fans. The resulting draft cools both the main chamber with the mainboard and processor as well as the rear chamber in which the graphics card is housed. The back and lid have generous ventilation holes, while the side panels are attached to the housing with spacers using knurled screws, thus also contributing to the supply of cool air. The Ophion M EVO ALS even has enough space for two 200 mm fans or a 360 mm radiator in the lid.
Supports full-fledged high-end graphics cards thanks to the riser module

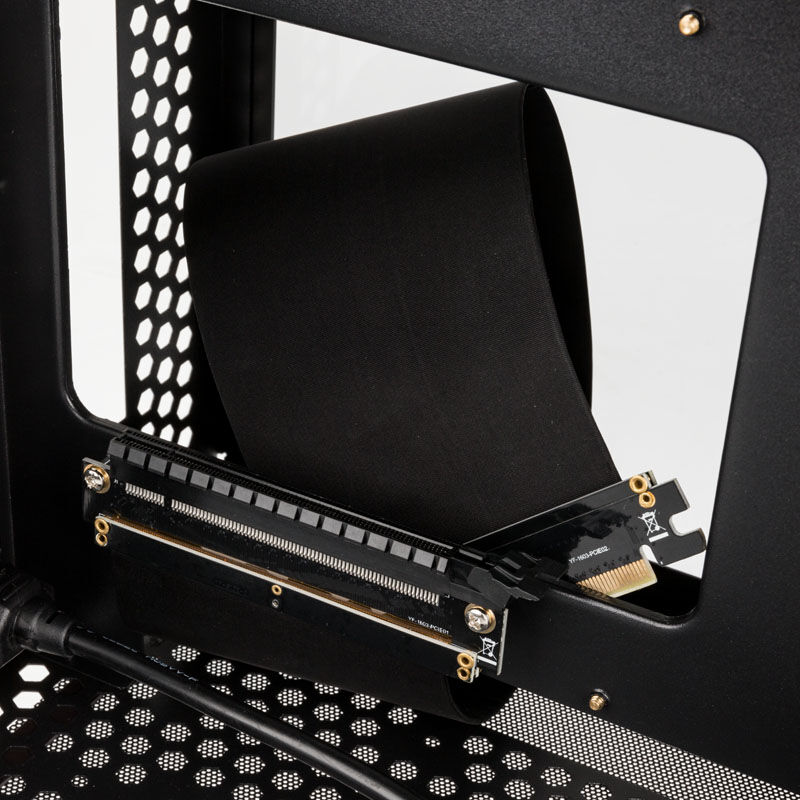

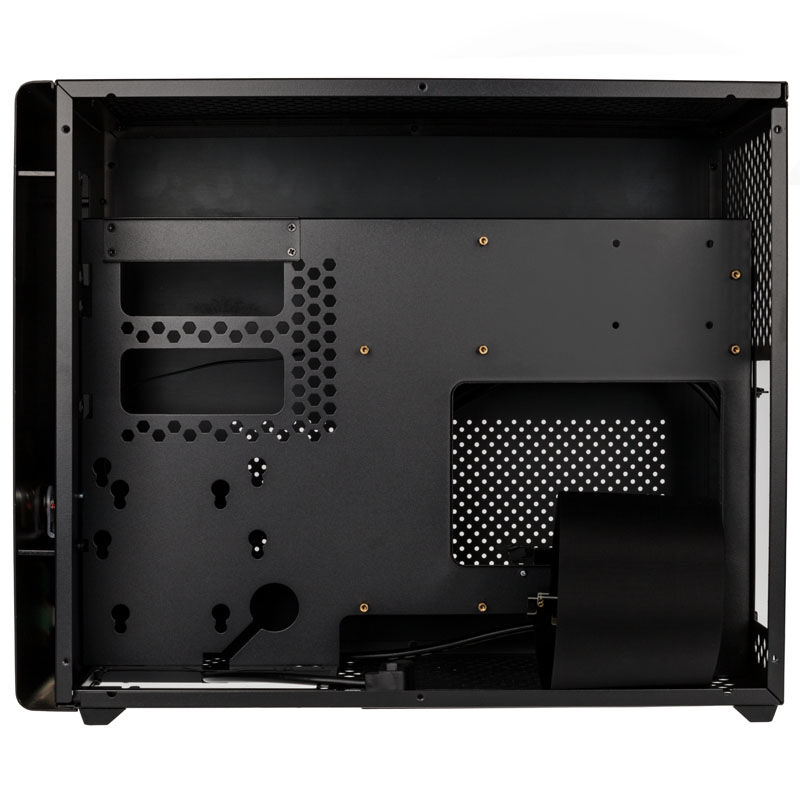

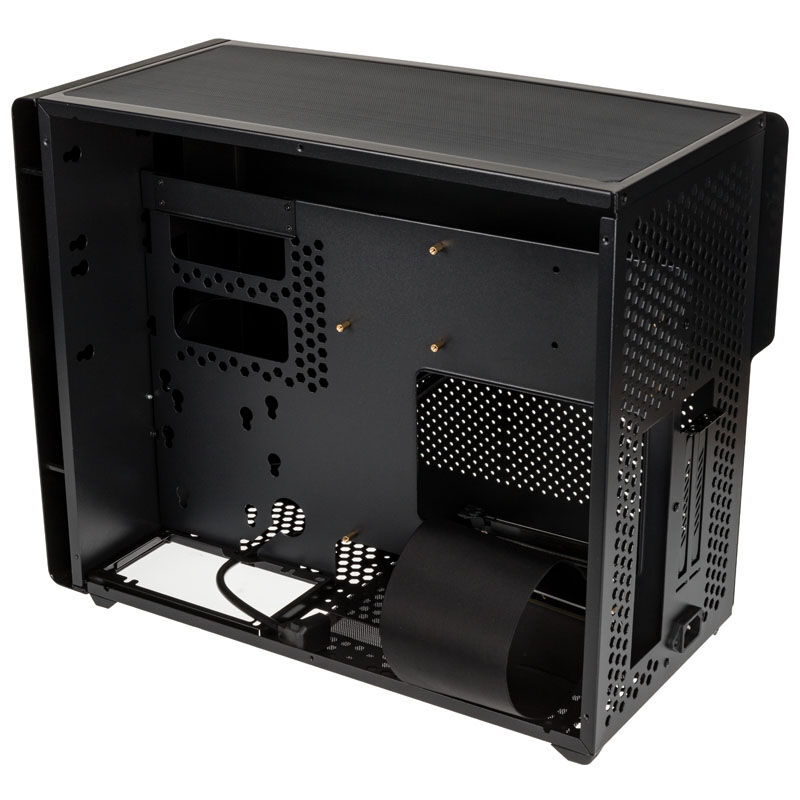

Inside, a motherboard in Mini-ITX or mATX format can be accommodated on the right side. The CPU can be kept at temperature here with a processor cooler that is a maximum of 82 millimeters high. Flat top blower coolers are completely sufficient for cooling due to the ever decreasing TDP of modern processors. Alternatively, an AiO can of course be used. The motherboards PCI Express x16 slot is redirected to the second chamber of the case via a riser cable. Graphics cards up to 410 millimeters long can be installed there.

The mini gaming system is powered by a power supply in the conventional PS/2 ATX standard, which is attached next to the mainboard. The wiring harness then protrudes upwards into the housing. An extension for the power cable leads to the corresponding plug on the back of the housing. Of course, the more compact SFX or SFX-L power supplies can also be used instead.

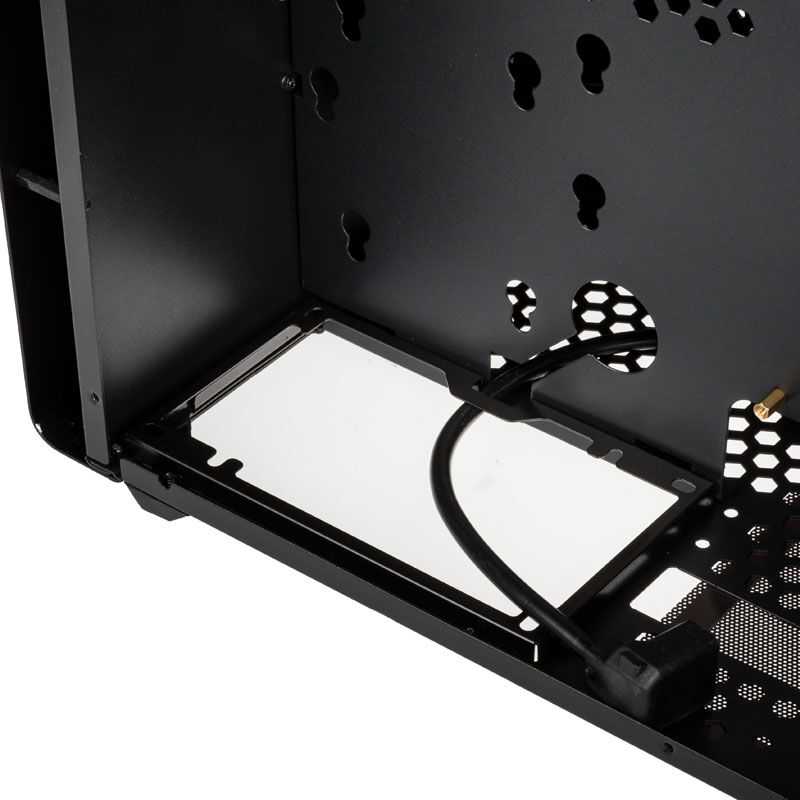

There is space for two 2.5-inch data storage devices directly behind the front cover. A total of up to five 2.5-inch drives or three 3.5-inch data carriers can be installed. In order to keep the inside of the stylish housing dust-free, magnetic and therefore removable filters are attached to the lid and base.

Technical details:
– Dimensions: 214 x 365 x 453 mm (W x H x D)
– Material: aluminum (anodized, brushed), steel
– Material thickness: 2 mm (aluminum), 0.8 mm (steel)
– Weight: 4.96kg
– Volume: 20.1L
– Color: Black
– Form factor: Mini-ITX, mATX
– Total fans possible:
– 3x 120 / 2x 140 / 2x 200 mm (lid)
– 1x 120 / 140 / 1x 200 mm (floor)
– Radiators possible overall:
– 1x 120 / 140 / 240 / 280 / 360 mm (lid, max. 28 mm thickness)
– Dust filter:
– Lid (removable)
– Base (removable)
– Drive bays: max. 5x 2.5 inches / 3x 3.5 inches
– Power supply: ATX, SFX (optional)
– Expansion slots: 2x PCIe (dual slot)
– I/O panel:
– 1x USB 3.0 Type C (internal connection)
– 1x USB 3.0 Type A (internal connection)
– Maximum CPU cooler height: 82mm
– Maximum graphics card length: 410 mm
– Maximum graphics card height: 55 mm (dual slot)
– Special feature: PCIe 3.0 x16 riser module for GPU mounting
