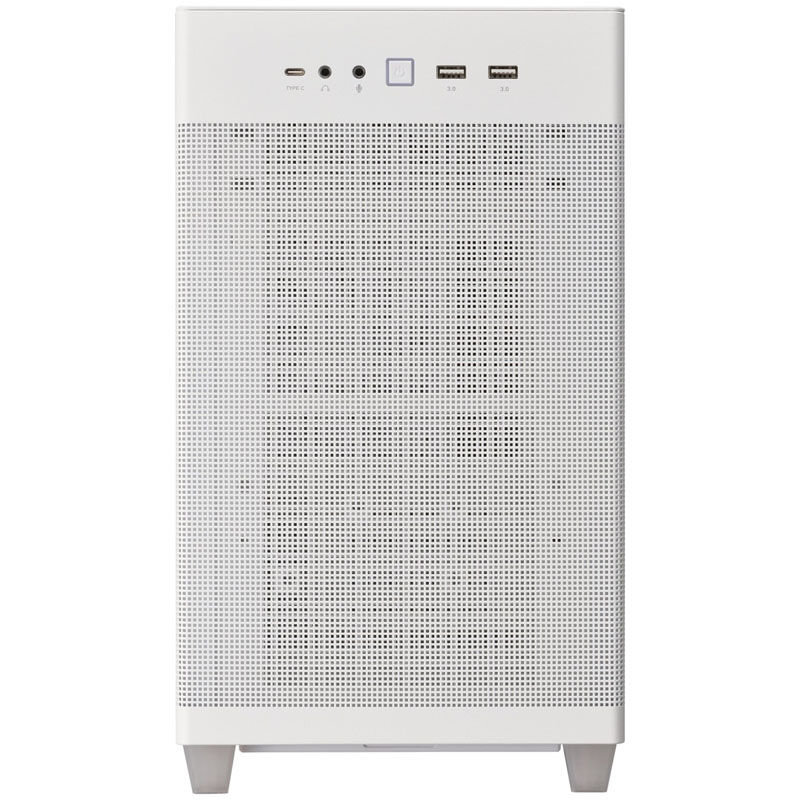

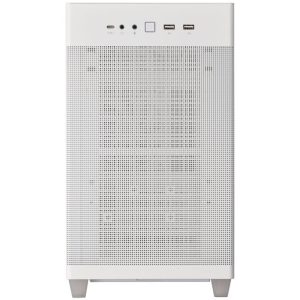

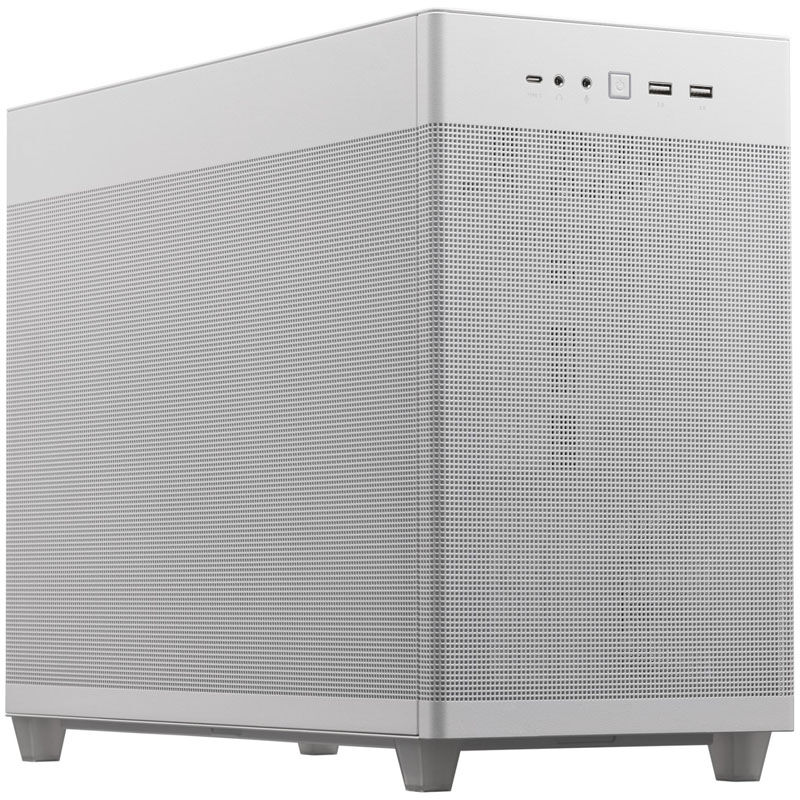

ASUS Prime AP201 Micro-ATX case - white

– Generous air inlets and chimney effect for high airflow
– Removable dust filters in the floor
– Space for a 360 radiator
– A total of up to six case fans possible
– Space for up to four drives
– For graphics cards up to 338 mm in length

Optimal cooling of your hardware through mesh walls

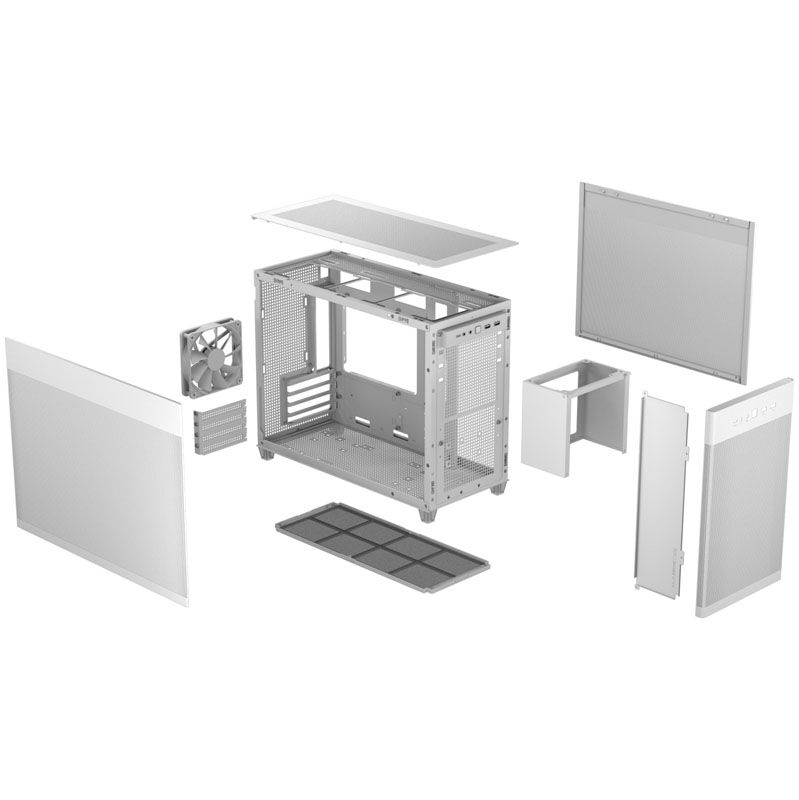

The Prime AP201 is a compact airflow case with unique cooling properties. The front, side panels and lid of the ASUS Prime AP201 are completely lined with mesh surfaces to ensure optimal airflow for your components.

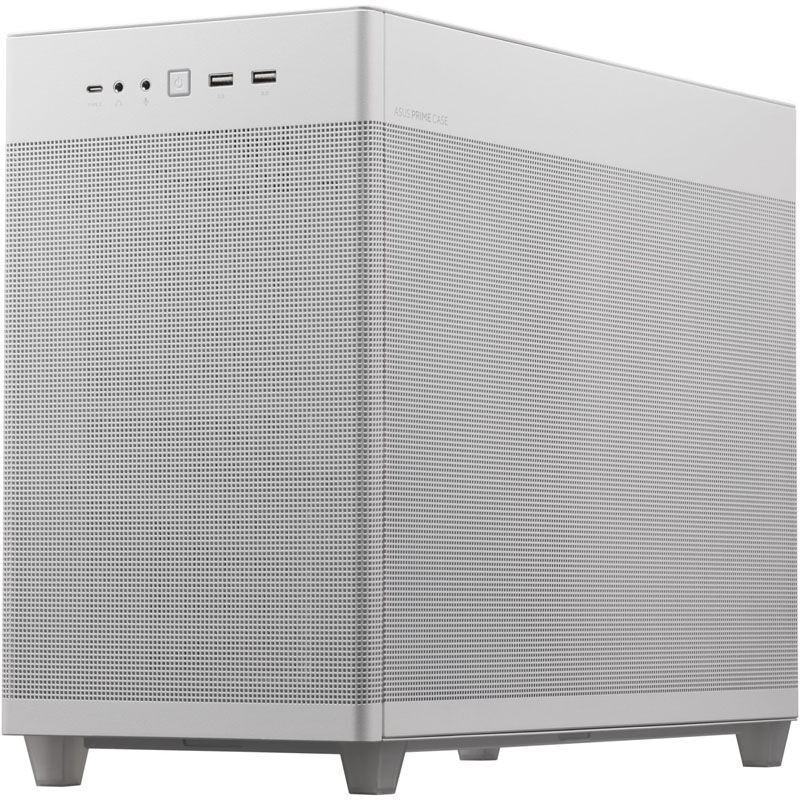

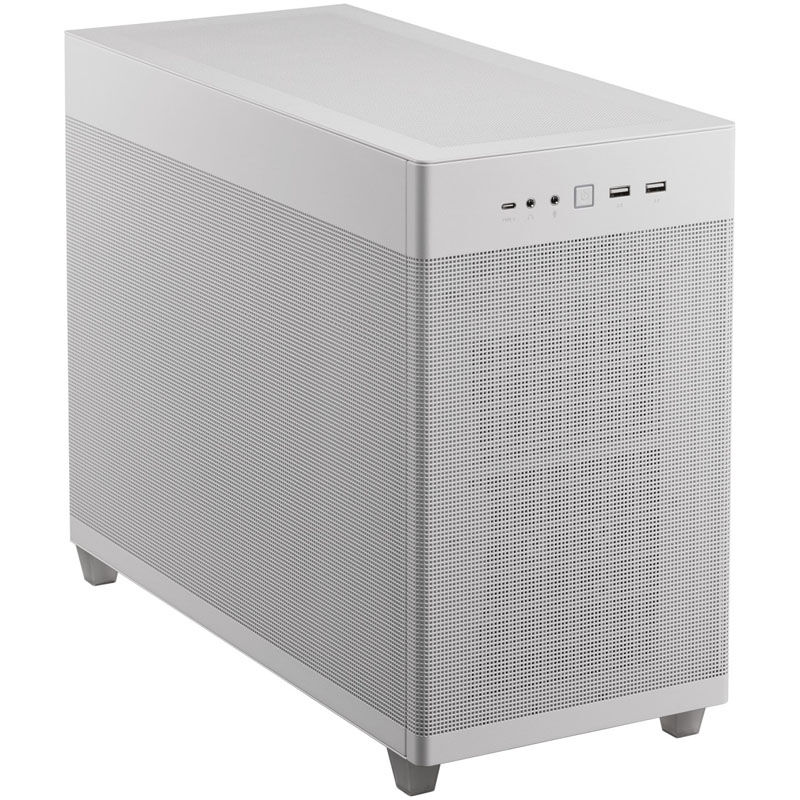

The minimalist case is particularly noticeable due to its large mesh surfaces and the clean workmanship. The well thought-out design is only interrupted by a power button, two USB 3.0 type A ports and a USB 3.1 type C port on the I/O panel.

Space for high-performance gaming hardware

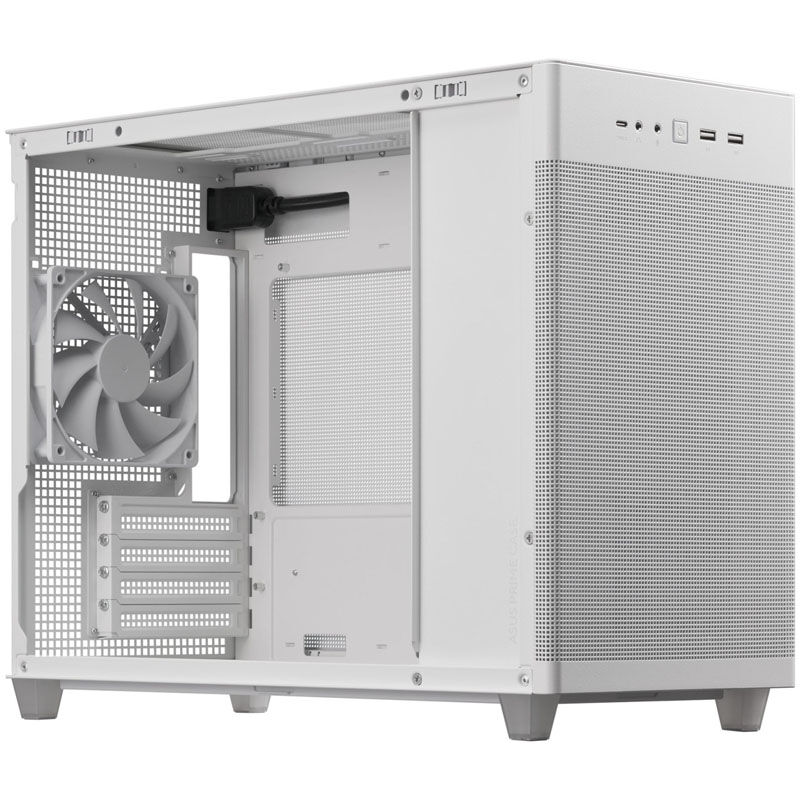

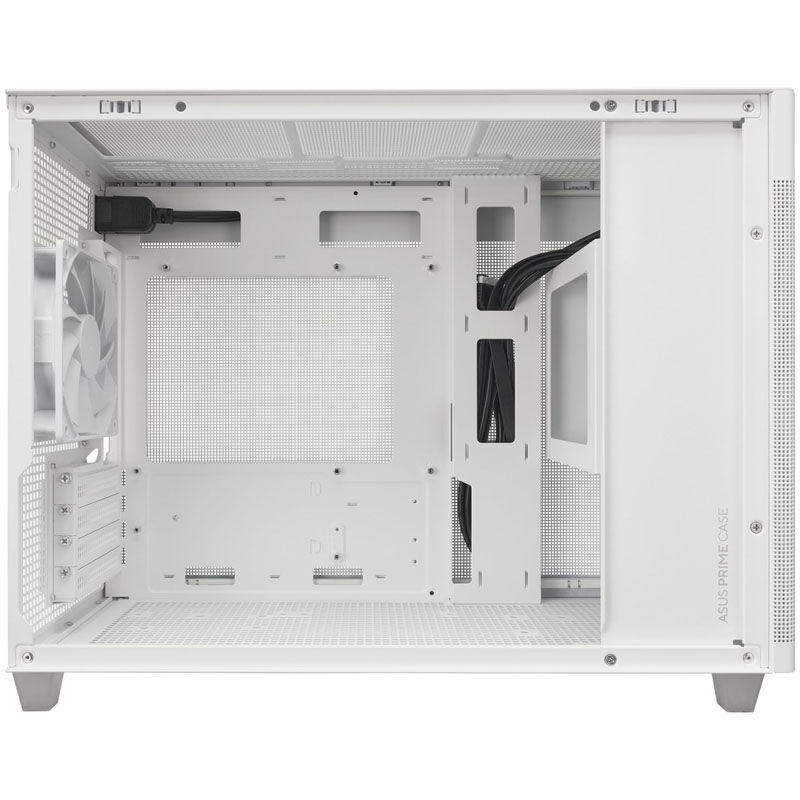

Despite the compact dimensions, high-performance gaming hardware can be installed inside the Prime AP201. In addition to a Micro-ATX mainboard, the housing can also accommodate a graphics card with a length of up to 338 mm.

There is space for up to three additional 2.5 or 3.5 inch drives in the Prime AP201. In total, you can accommodate four drives at the same time. If you install three 3.5-inch drives, there is still space for a 2.5-inch drive, for example. If you mount three 2.5 drives, you can also install a 3.5 drive.

Diverse cooling options despite the small form factor

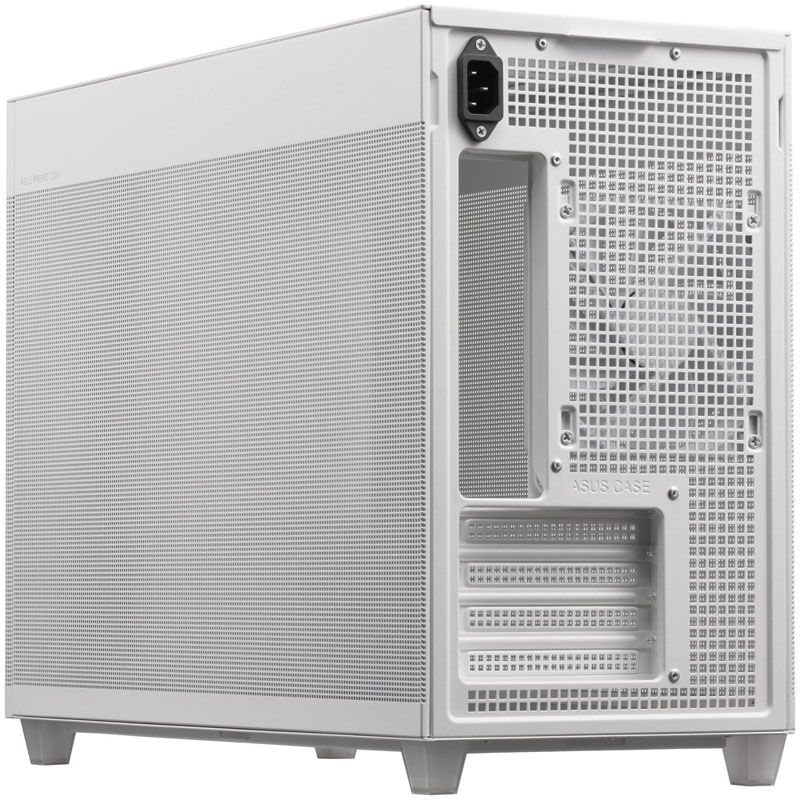

In combination with the generous air passages, which extend over the entire housing wall and the lid, excellent airflow is ensured. Alternatively, a 360 mm radiator for water cooling can be installed on the lid. A 120 mm fan is also pre-installed on the rear.

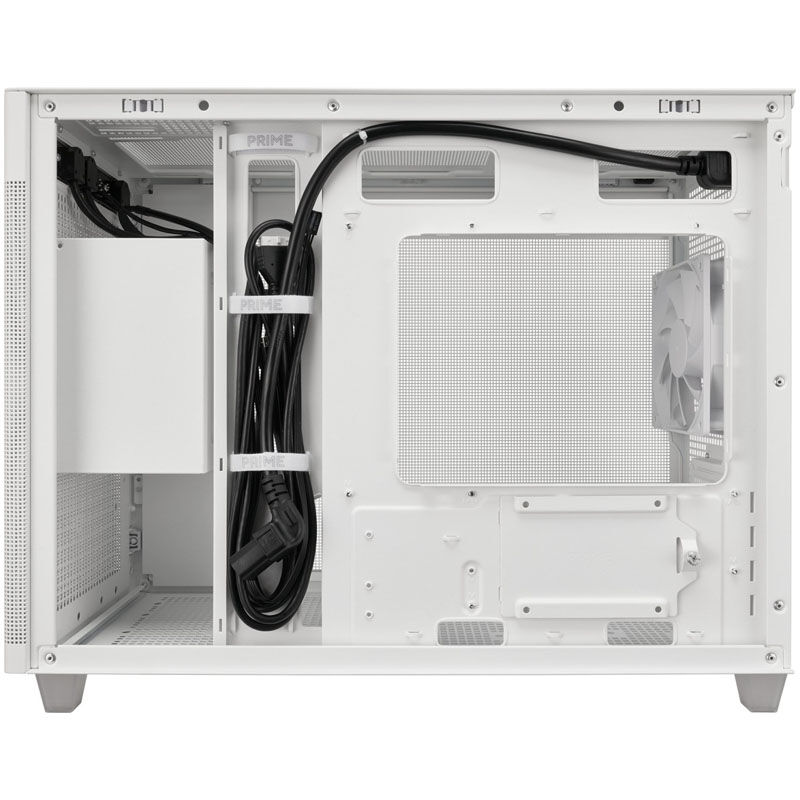

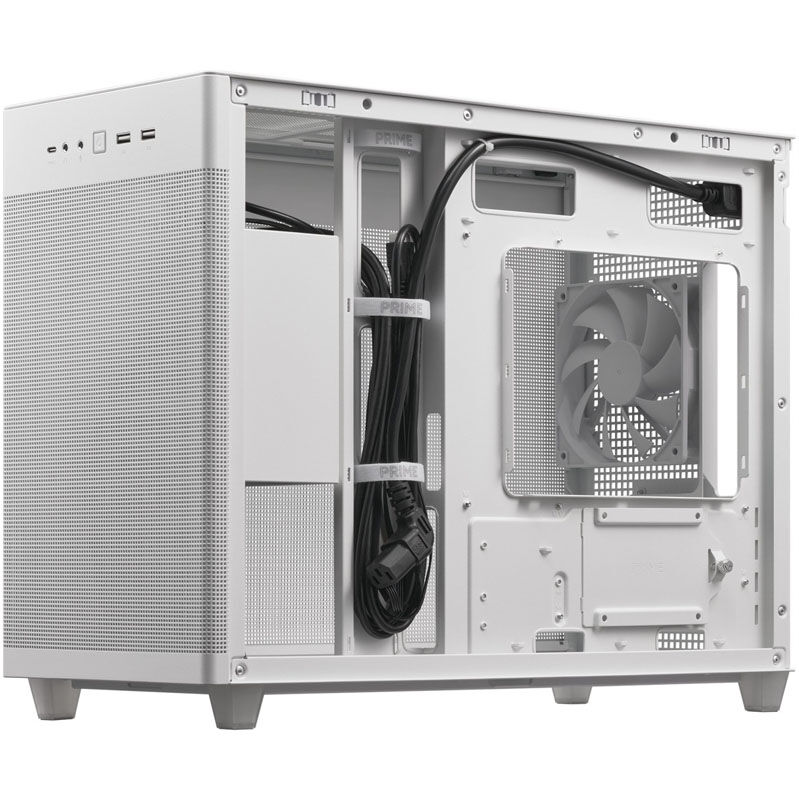

The ASUS Prime AP201 is flexible when it comes to the power supply. A full-fledged ATX power supply can be installed here for particularly power-hungry gaming systems. Finally, there is still 32 mm of space available for cable management.

Technical details:
– Dimensions: 205 x 460 x 350 mm (W x H x D)
– Material: steel
– Weight: 5.8kg
– Color white
– Form Factor: Micro ATX
– Fan total possible:
– 3x 120 mm / 2x 140 mm (lid)
– 1x 120mm (rear)
– Of which pre-installed: 1x 120 mm (rear)
– Radiator mounts:
– 1x max. 360 mm (lid)
– 1x max. 120 mm (rear)
– Dust filter: 1x mesh (bottom, removable)
– drive bays:
– 1x 2.5 inch
 -3x 2.5 or 3.5 inches
 -Power supply: ATX (up to 180 mm, optional)
 -Expansion slots: 4
– I/O panel:
– 2x USB 3.2 Gen 1, Type A
–  1x USB 3.2 Gen 2 Type-C
– 2x 3.5 mm jack (audio in/out)
– 1x power button
– Maximum CPU cooler height: 170mm
– Maximum graphics card length: 338 mm
